Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1120BOARD ACCEL/COMPASS 3AXIS LSM303 |
2,018 |
|
Datasheet | - | Bulk | Obsolete | Accelerometer, Magnetometer | ±2g, 4g, 8g, 16g, ±1.3 ~ 8.1 gauss | I2C | 1 ~ 12mg/LSB, ±1%FS/gauss | 3.3V ~ 5V | - | Board(s) | LSM303DLHC |
|

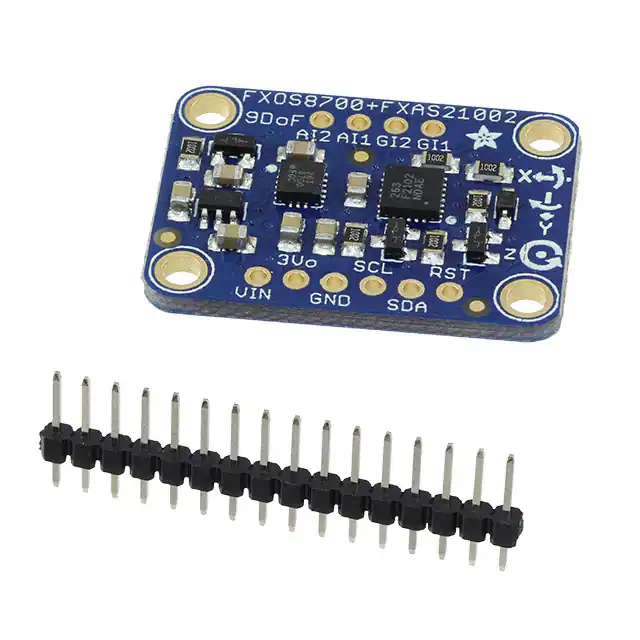

3463EVAL BOARD FXAS21002 FXOS8700 |
2,292 |
|
Datasheet | - | Bulk | Obsolete | Accelerometer, Gyroscope, Magnetometer | - | - | - | - | - | Board(s) | FXAS21002, FXOS8700 |
|
3515HTU21DF TEMP & HUMIDITY SENSOR B |
3,231 |
|
Datasheet | - | Bulk | Obsolete | Humidity, Temperature | - | I2C | - | 3V ~ 5V | - | Board(s) | HTU21D-F |
|
1965CHIRP THE PLANT WATERING ALARM |
4,396 |
|
Datasheet | - | Bulk | Active | Moisture | - | I2C | - | - | - | Board(s) | ATtiny44 |
|

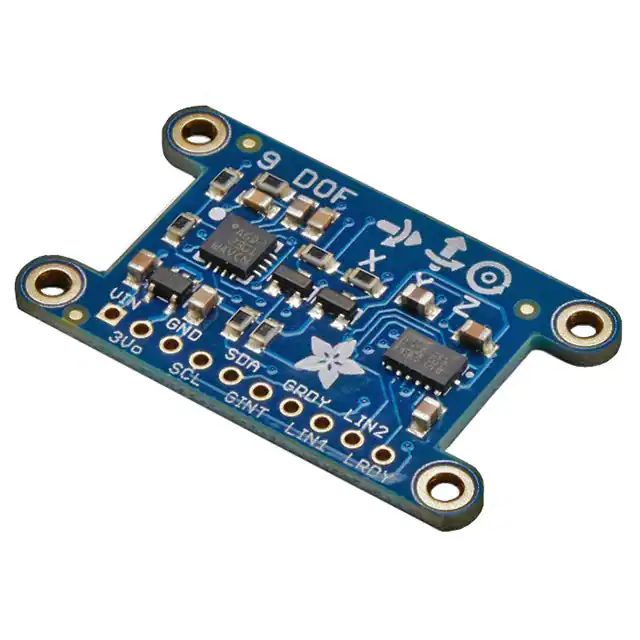

17149-DOF IMU BREAKOUT BRD |
3,860 |
|
Datasheet | - | Box | Obsolete | Accelerometer, Gyroscope, Magnetometer, 3 Axis | - | - | - | 3.3V ~ 5V | - | Board(s) | L3GD20H, LSM303DLHC |
|
3566CCS811 AIR QUALITY SENSOR BREAKO |
2,045 |
|
Datasheet | - | Bulk | Obsolete | Indoor Air Quality (IAQ) | - | I2C | - | 3V ~ 5V | - | Board(s) | CCS811 |
|
|
1413ADXL377 3 AXIS 200G BREAKOUT BRD |
2,225 |
|
Datasheet | - | Box | Obsolete | Accelerometer, 3 Axis | ±200g | Analog | 6.5 mV/g | 3.3V ~ 5V | - | Board(s) | ADXL377 |
|
|
2021BREAKOUT ACCEL/MAG/GYR/TEMP 9DOF |
4,682 |
|
Datasheet | - | Bulk | Obsolete | Accelerometer, Gyroscope, Magnetometer, 3 Axis | - | I2C, Serial, SPI | - | 3.3V ~ 5V | - | Board(s) | LSM9DS0 |
|

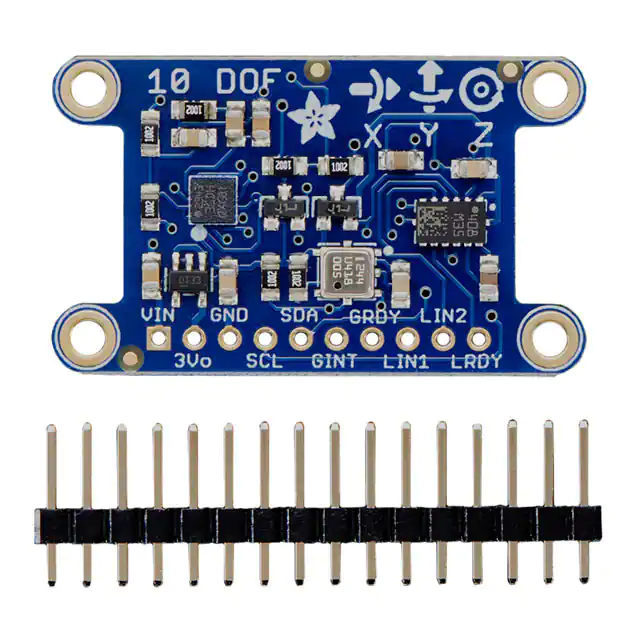

1604L3GD20H LSM303 BMP180 10DOF IMU |
2,221 |
|
Datasheet | - | Bulk | Obsolete | Accelerometer, Gyroscope, Magnetometer, Pressure, Temperature | - | I2C | - | 3.3V ~ 5V | - | Board(s) | BMP180, L3GD20H, LSM303DLHC |
|

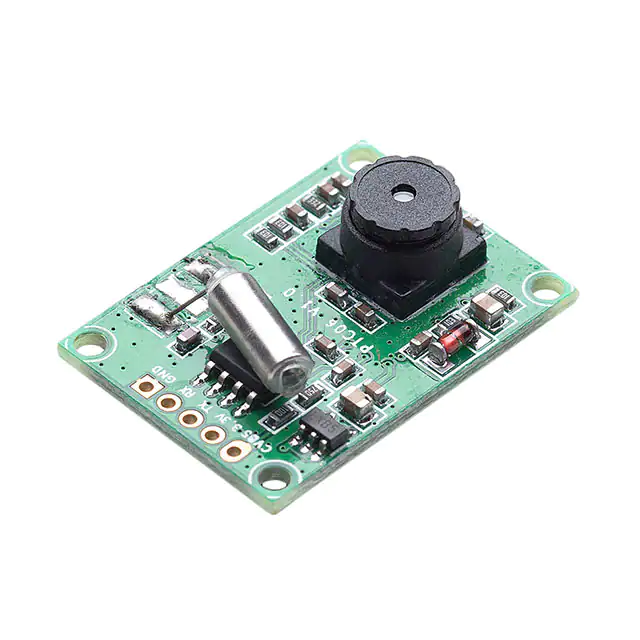

1386MOD MINI CAMERA TTL JPEG NTSC |
3,397 |
|
Datasheet | - | Bulk | Active | CMOS Imaging, Color (RGB) | VGA | Serial | 30FPS | 5V | - | Board(s) | - |
