Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20160148HDC1080-BREAKOUT (HUMIDITY AND T |
3,297 |
|
Datasheet | - | Bulk | Active | Humidity, Temperature | - | I2C, Serial | - | 2.7V ~ 5.5V | - | Board(s) | HDC1080 |
|
201878BME680-BREAKOUT (HUMIDITY. PRESS |
2,853 |
|
Datasheet | - | Bulk | Active | Gas, Humidity, Pressure, Temperature | 300 ~ 1100 hPa | I2C, Serial, SPI | - | 3V ~ 5.5V | - | Board(s) | BME680 |
|
201875-004ACS724 CURRENT SENSOR BREAKOUT 2 |
1,056 |
|
Datasheet | - | Bulk | Active | Current Sensor | 20A | Analog | 66mV/A | 5V | - | Board(s) | ACS724 |
|

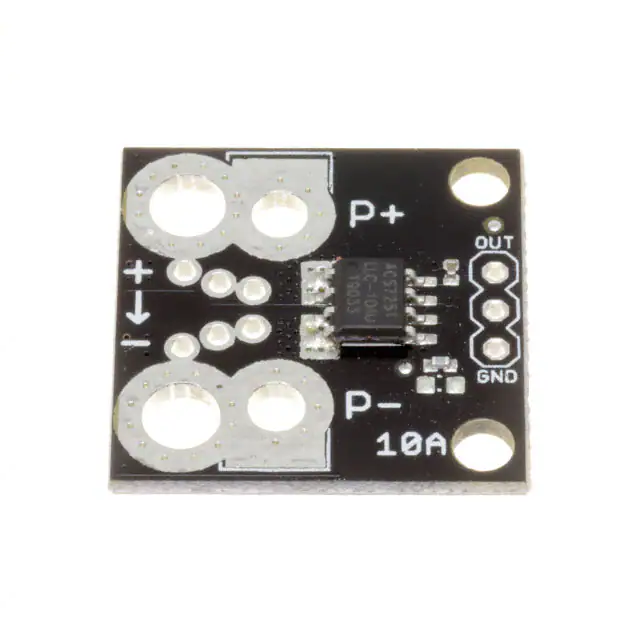

201876-003ACS725 STROMSENSOR BREAKOUT 10A |
4,819 |
|
Datasheet | - | Bulk | Active | Current Sensor | 10A | Analog | 264mV/A | 3.3V | - | Board(s) | ACS725 |
|
201877BME280-BREAKOUT (HUMIDITY. PRESS |
3,897 |
|
Datasheet | - | Bulk | Active | Humidity, Pressure, Temperature | 300 ~ 1100 hPa | I2C, Serial, SPI | - | 3V ~ 5.5V | - | Board(s) | BME280 |
|
|
201875-001ACS724 CURRENT SENSOR BREAKOUT + |
2,009 |
|
Datasheet | - | Bulk | Active | Current Sensor | ±10A | Analog | 66mV/A | 5V | - | Board(s) | ACS724 |
|

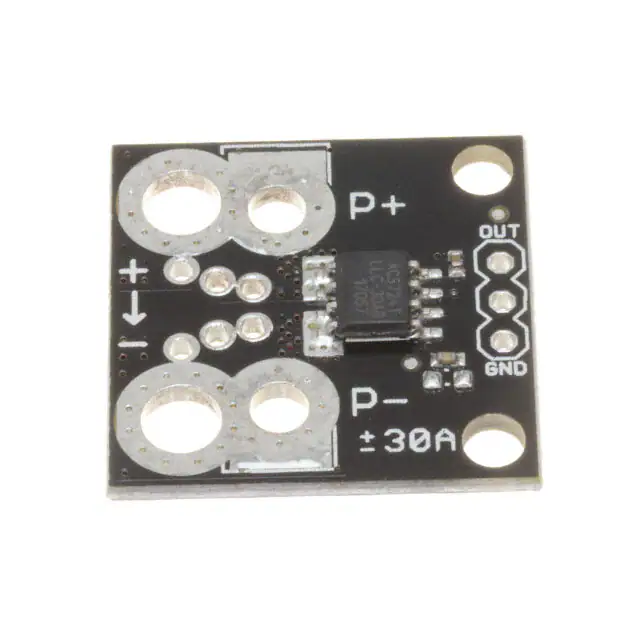

201876-002ACS725 STROMSENSOR BREAKOUT +-30 |
3,300 |
|
Datasheet | - | Bulk | Active | Current Sensor | ±30A | Analog | 44mV/A | 3.3V | - | Board(s) | ACS725 |
|

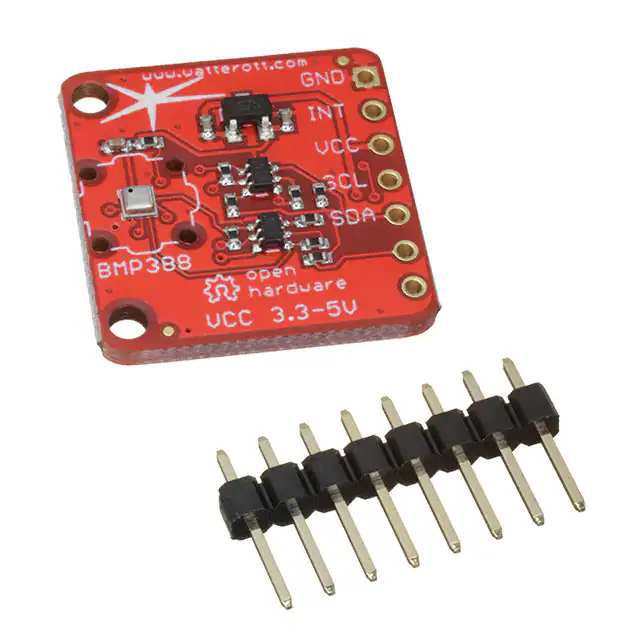

20190001BMP388-BREAKOUT (PRESSURE & TEMP |
3,981 |
|
Datasheet | - | Bulk | Active | Pressure | 300 ~ 1100 hPa | I2C, Serial, SPI | - | 3V ~ 5.5V | - | Board(s) | BMP388 |
|
|
201875-002ACS724 CURRENT SENSOR BREAKOUT + |
4,325 |
|
Datasheet | - | Bulk | Active | Current Sensor | ±20A | Analog | 100mV/A | 5V | - | Board(s) | ACS724 |
|
|
201875-003ACS724 CURRENT SENSOR BREAKOUT + |
2,044 |
|
Datasheet | - | Bulk | Active | Current Sensor | ±30A | Analog | 66mV/A | 5V | - | Board(s) | ACS724 |
