Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

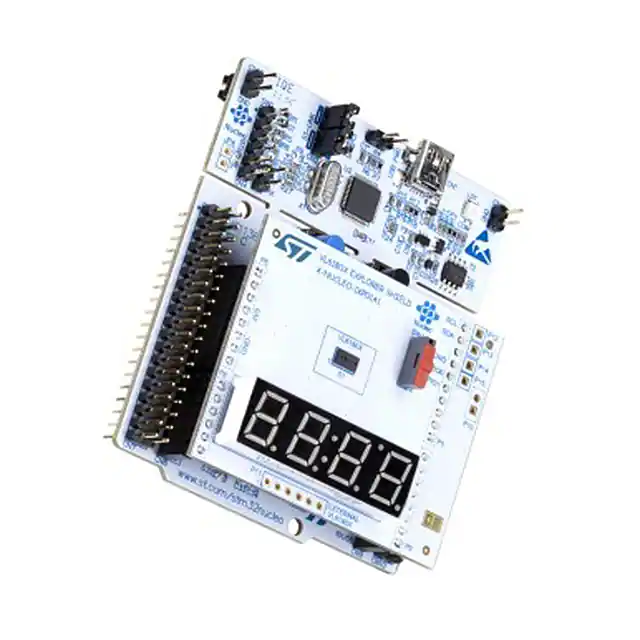

EVALKIT-VL6180XKIT EVAL STM32 F401 VL6180X |
3,928 |
|
Datasheet | FlightSense™ | Box | Obsolete | Light, 3D Time-of-Flight (ToF) | - | I2C | - | - | Yes, MCU, 32-Bit | Board(s) | STM32F401RE, VL6180X, mbed-Enabled Development |
|

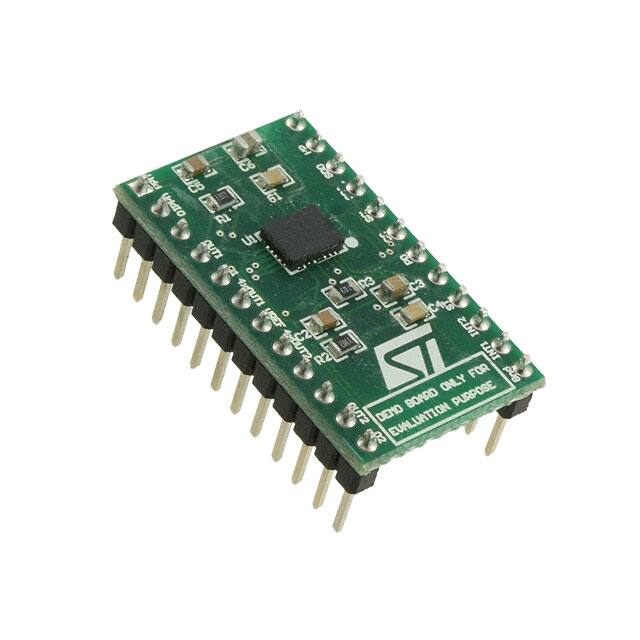

STEVAL-MKI097V1BOARD ADAPTER LPR430AL DIL24 |
4,663 |
|
Datasheet | MEMS | Bulk | Obsolete | Gyroscope, 2 Axis | ±300°/sec | Analog | 33.3mV/°/s | - | No | Board(s) | LPR430AL |
|

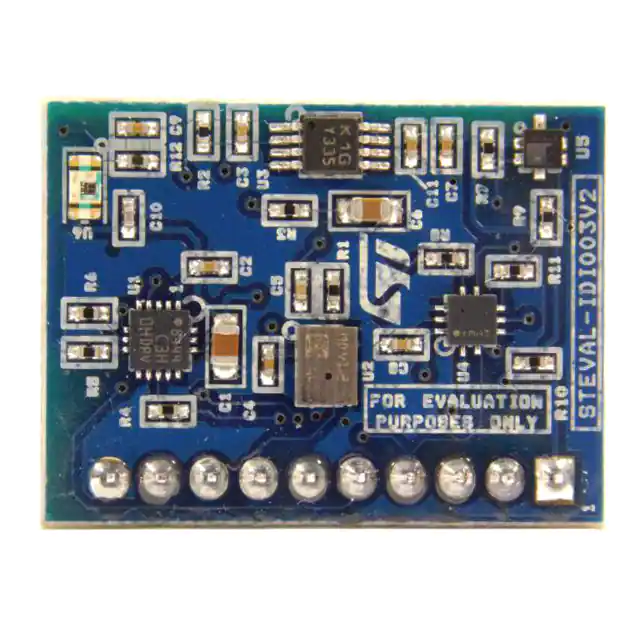

STEVAL-IDI003V2EVAL BOARD RF MULTI-SENSOR |
3,518 |
|
Datasheet | - | Box | Obsolete | Accelerometer, Humidity, Pressure | - | - | - | - | - | Board(s) | HTS221, LIS3DH, LPS25H, MP34DT01 |
|
STEVAL-IFS012V12EVAL DAUGHTER STTS424E02 8-TDFN |
2,373 |
|
- |
- | Box | Obsolete | Temperature | -40°C ~ 125°C | I2C, Serial | ±1°C | 2.7V ~ 3.6V | No | Board(s) | STTS424E02BDN3F |
|
STEVAL-IFS012V11EVAL DAUGHTER STCN75 8-TSSOP |
4,022 |
|
- |
- | Box | Obsolete | Temperature | -55°C ~ 125°C | I2C, Serial | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | STCN75DS2F |
|
STEVAL-IFS012V2EVAL DAUGHTER STTS75 8-TSSOP |
4,500 |
|
- |
- | Box | Obsolete | Temperature | -55°C ~ 125°C | I2C, Serial | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | STTS75 |
|
STEVAL-IFS012V4EVAL DAUGHTER STLM20 SOT-323 |
1,759 |
|
- |
- | Box | Obsolete | Temperature | -55°C ~ 130°C | I2C, Serial | ±1.5°C | 2.4V ~ 5.5V | No | Board(s) | STLM20W87F |
|
STEVAL-IFS012V7EVAL DAUGHTER STDS75 8-TSSOP |
2,028 |
|
- |
- | Box | Obsolete | Temperature | -55°C ~ 125°C | I2C, Serial | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | STDS75DS2F |
|

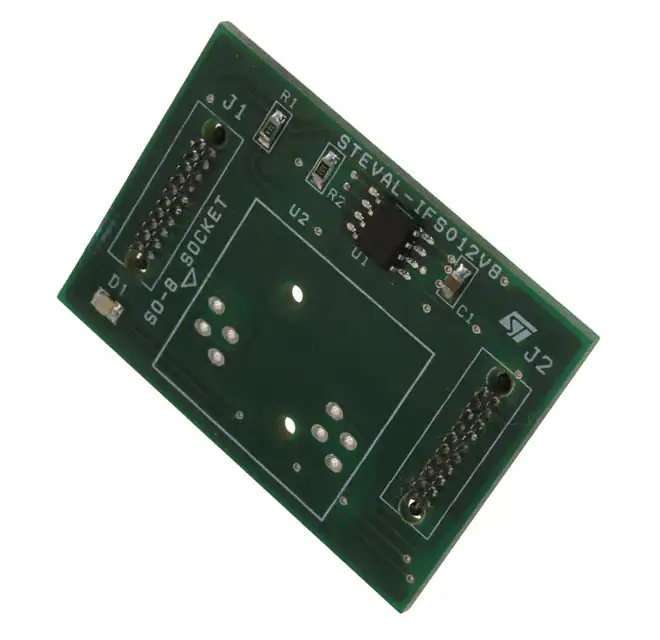

STEVAL-IFS012V8EVAL DAUGHTER STLM75 8-SOIC |
2,548 |
|
- |
- | Box | Obsolete | Temperature | -55°C ~ 125°C | I2C, Serial | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | STLM75M2F |
|
STEVAL-IFS012V9MEMS TEMP SENSOR CARD |
1,119 |
|
- |
- | Bulk | Obsolete | Temperature | -55°C ~ 125°C | I2C, Serial | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | STLM75DS2F |
