Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

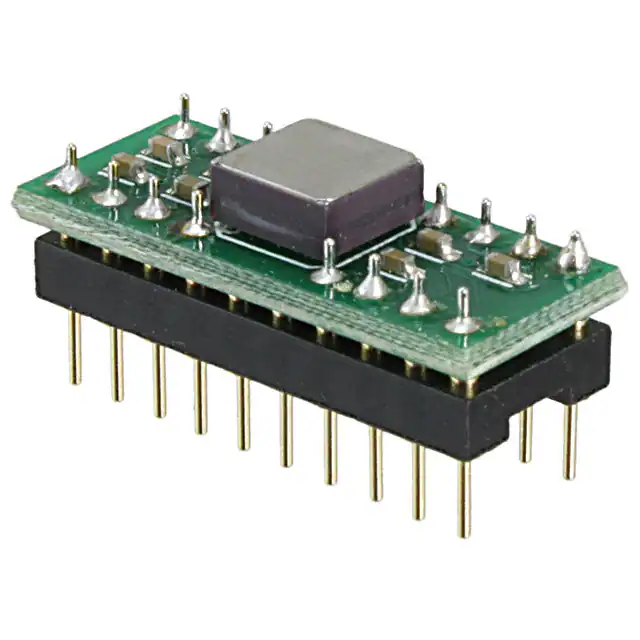

EVAL-ADXRS649ZBOARD EVAL FOR ADXRS649Z |
2,759 |
|
Datasheet | - | Box | Active | Gyroscope, 1 Axis | ±20000°/sec | Analog | 0.1mV/°/s | 4.75V ~ 5.25V | No | Board(s) | ADXRS649 |
|

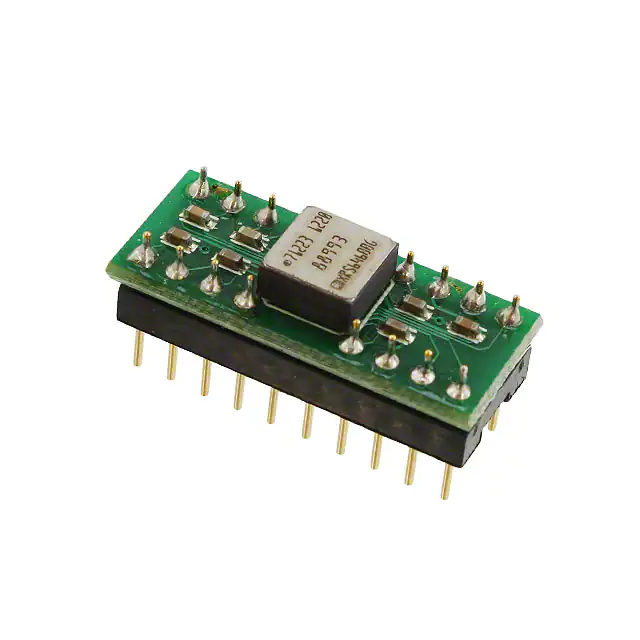

EVAL-ADXRS646ZEVAL BOARD FOR ADXRS646 |
2,027 |
|
Datasheet | - | Box | Active | Gyroscope, 1 Axis | ±300°/sec | Analog | 9mV/°/s | 5.75V ~ 6.25V | No | Board(s) | ADXRS646 |
|

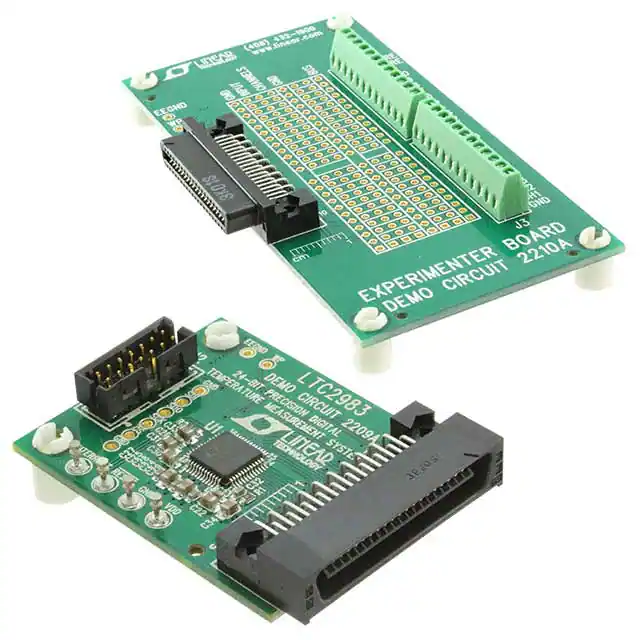

DC2296AEVAL BOARD FOR LTC2983 |
4,944 |
|
Datasheet | - | Box | Active | Temperature | - | SPI | - | 2.85V ~ 5.25V | - | Board(s) | LTC2983 |
|

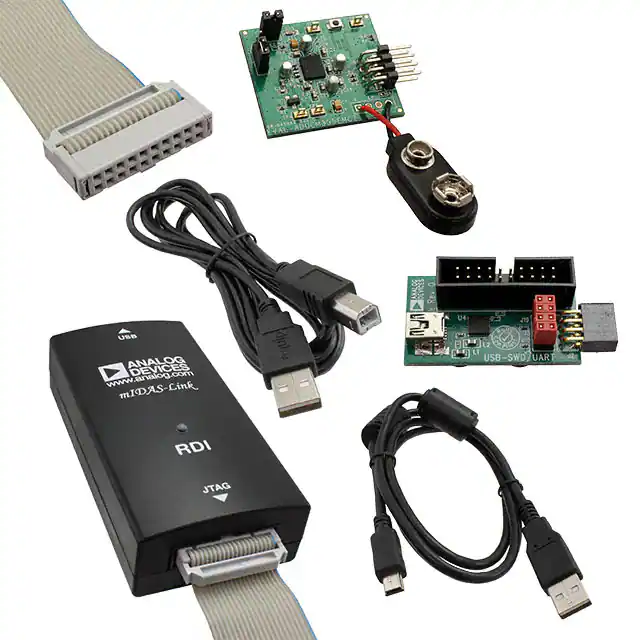

EVAL-ADUCM355EMCZEMC REFERENCE DESIGN BOARD |
1,355 |
|
Datasheet | Circuits from the Lab™ | Box | Active | Gas | - | Serial, SPI | - | 3V | Yes, MCU, 32-Bit | Board(s) | ADuCM355 |
|

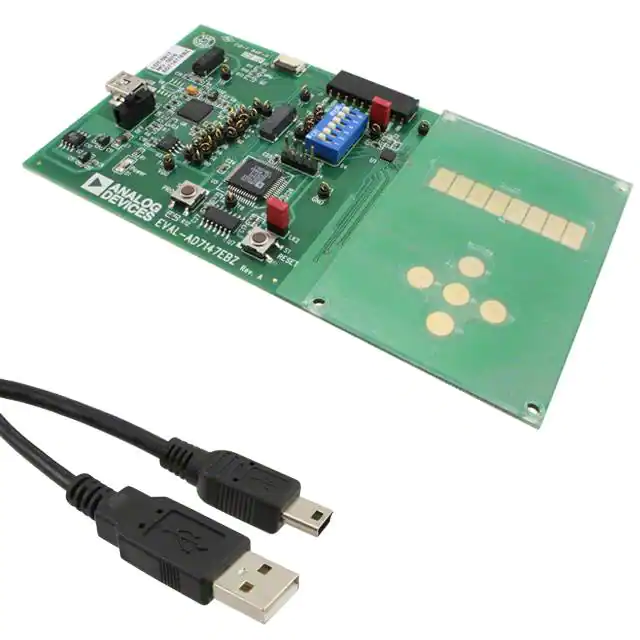

EVAL-AD7147-1EBZBOARD EVAL FOR AD7147ACPZ-1 |
3,850 |
|
Datasheet | CapTouch™ | Box | Active | Touch, Capacitive | - | I2C | - | 2.6V ~ 3.6V | Yes, MCU, 8-Bit | Board(s), Cable(s) | AD7147 |
|

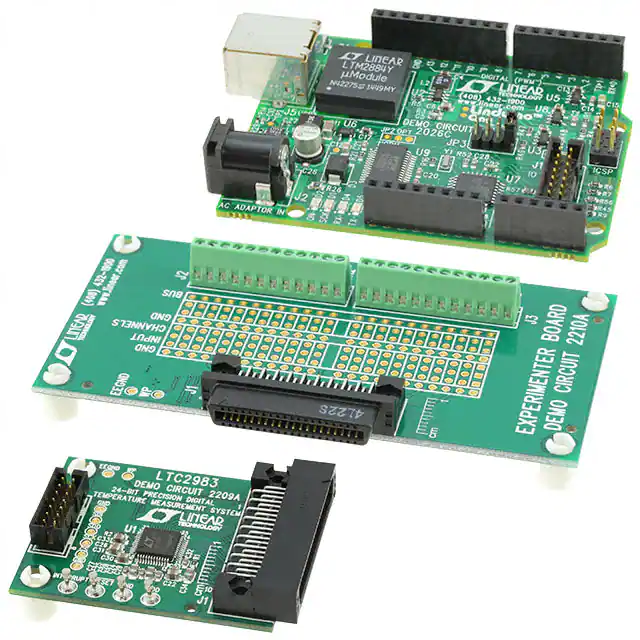

DC2296A-KITEVAL KIT FOR LTC2983 |
1,915 |
|
Datasheet | - | Box | Active | Temperature | - | SPI | - | 2.85V ~ 5.25V | - | Board(s) | LTC2983 |
|

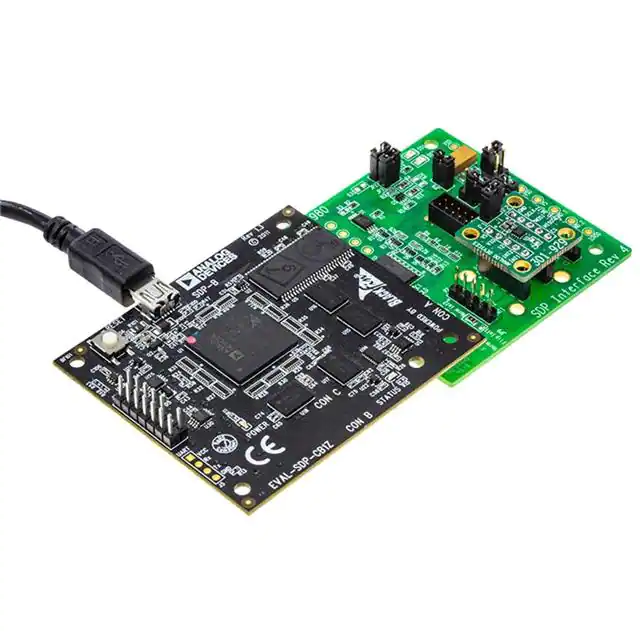

EVAL-ADXL367-SDPEVAL-ADXL367-SDP |
4,072 |
|
Datasheet | - | Bulk | Active | Accelerometer, 3 Axis | ±2g, 4g, 8g | I2C, Serial, SPI | 4000LSB/g, 2000LSB/g, 1000LSB/g | 1.1V ~ 3.6V | No | Board(s), Cable(s) | ADXL367 |
|

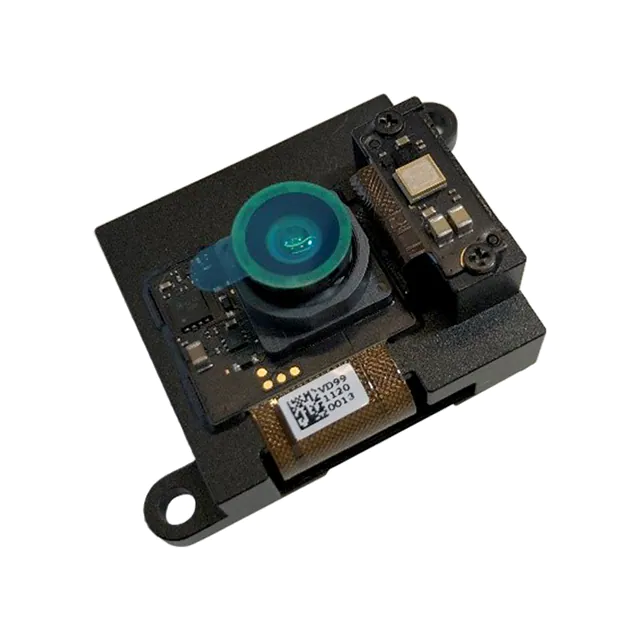

AD-FXTOF1-EBZADDI9036 CAMERA MODULE KIT |
2,100 |
|
Datasheet | - | Bulk | Active | Light, 3D Time-of-Flight (ToF) | 3m | - | - | 5V | No | Board(s), Cable(s) | ADDI9036 |
|

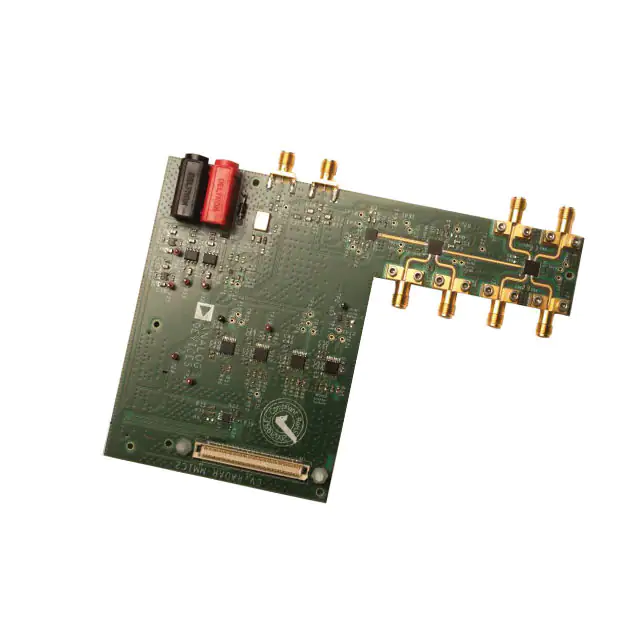

EV-RADAR-MMIC2EVAL BRD ADF4159 ADF5901 ADF5904 |
4,743 |
|
Datasheet | - | Box | Active | Radar | - | - | 24GHz | 5V, ±9V | - | Board(s) | ADF4159, ADF5901, ADF5904 |
|
EVAL-ADT7320MBZMINI TEMP SENSOR BRD |
1,024 |
|
- |
- | Bulk | Active | Temperature | - | SPI | ±0.25°C | - | No | Board(s) | ADT7320 |
