Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

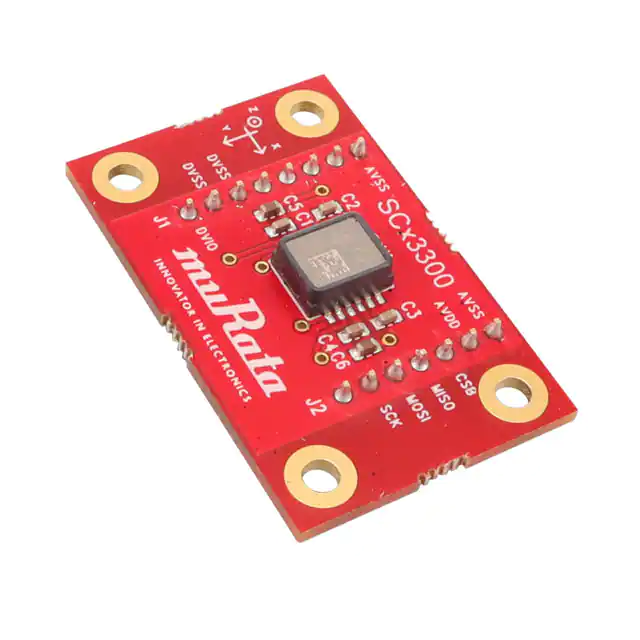

SCL3300-D01-PCBSCL3300 DEV BOARD |
2,716 |
|
Datasheet | - | Box | Active | Inclinometer | ±90° | Serial, SPI | - | 3V ~ 3.6V | Yes, ASIC | Board(s) | SCL3300-D01 |
|
SCH16T-K01-PCBEVAL BOARD FOR SCH16T 6 DOF |
3,021 |
|
Datasheet | - | Box | Active | Accelerometer, Gyroscope | ±8g, ±300°/sec | SPI | - | 3V ~ 3.6V | No | Board(s) | SCH16T |
|
|
SCR410T-K03-PCBEVAL BOARD GYROSCOPE |
3,342 |
|
Datasheet | - | Box | Active | Gyroscope | ±300°/sec | Digital, SPI | 80LSB/°/s | 3V ~ 3.6V | No | Board(s) | SCC400T |
|
|
SCC433T-K03-PCBEVAL BOARD GYROSCOPE |
3,801 |
|
Datasheet | - | Box | Active | Accelerometer, Gyroscope | ±6g, 8g, ±300°/sec | Digital, SPI | 4905 LSB/g, 2452.5 LSB/g, 80LSB/°/s | 3V ~ 3.6V | No | Board(s) | SCC400T |
|

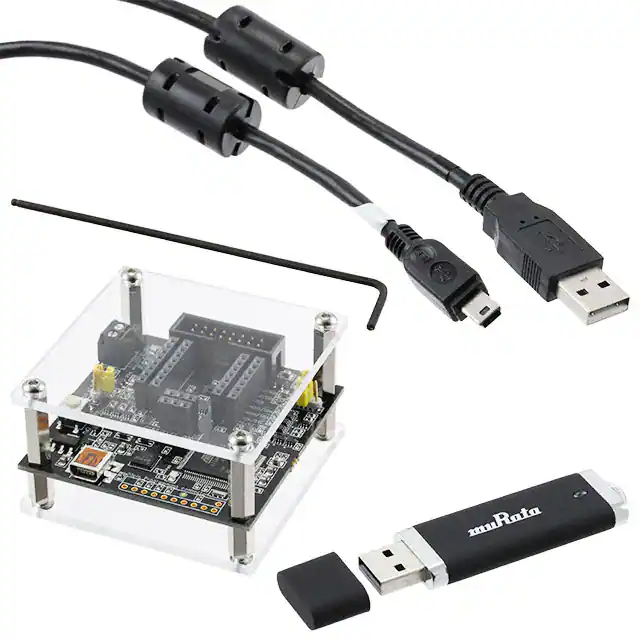

MEMS-EVAL-BOARDINTERFACE BOARD NO SENSOR |
2,025 |
|
Datasheet | MEMS | Box | Active | Accelerometer, Gyroscope, Inclinometer | - | - | - | - | No | Board(s) | - |
|

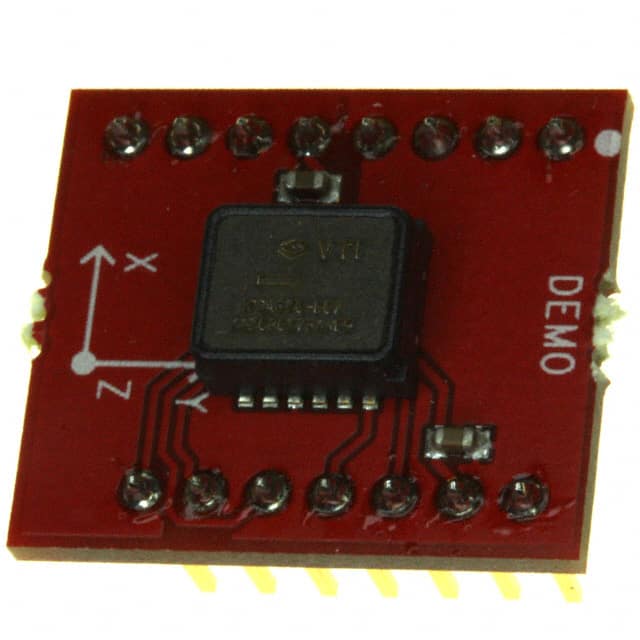

SCA830-D07-PCBEVAL BOARD INCLINOMETER Y-AXIS |
3,045 |
|
Datasheet | - | Bulk | Active | Inclinometer | ±1g | SPI | 32000 counts/g | 3V ~ 3.6V | No | Board(s) | SCA830-D07 |
|
|
SCL3400-D01-PCBEVAL BOARD INCLINOMETER 2 AXIS |
4,303 |
|
Datasheet | - | Box | Active | Inclinometer | ±90° | SPI | 32768LSB/g, 16384LSB/g | 3V ~ 3.6V | Yes, ASIC | Board(s) | SCL3400-D01 |
|

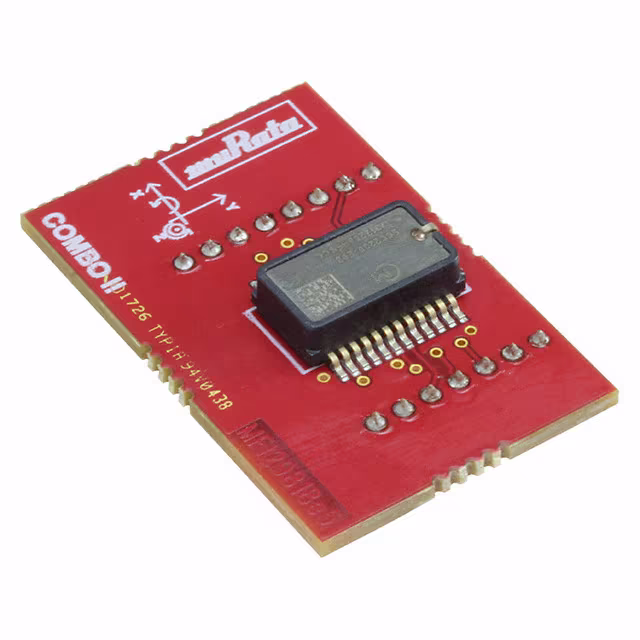

SCC2230-E02-PCBSENSOR HARDWARE & ACCESSORIES ME |
4,496 |
|
Datasheet | - | Box | Active | Accelerometer, Gyroscope | ±2g, ±125°/sec | SPI | - | 3V ~ 3.6V | - | Board(s) | SCC2230-E02 |
|
|
MR-T150EVALUATION BOARD FOR AMR SENSORS |
3,027 |
|
Datasheet | - | Box | Active | Magnetic, AMR (Anisotropic Magnetoresistive) | - | - | - | 3V ~ 5V | No | Board(s) | MR-T150 |
|
|
PKGX-16-4021SHOCK SENSOR EVAL BOARD |
2,963 |
|
Datasheet | - | Bulk | Obsolete | Vibration, Acceleration | ±10g | Analog | - | 2.7V ~ 5.5V | No | Board(s) | PKGS-25WXP1-R |
