Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX-HEALTH-BANDEVAL HEART/VITALS MAX86140+20303 |
2,207 |
|
Datasheet | - | Box | Active | Medical, Health and Fitness | - | - | - | - | - | Board(s) | MAX86140 |
|
MAXREFDES101#HEALTH SENSOR PLATFORM 2.0 |
3,755 |
|
Datasheet | - | Bulk | Obsolete | Medical | - | - | - | - | Yes | Board(s) | MAX30001, MAX30205, MAX32664, MAX86141 |
|

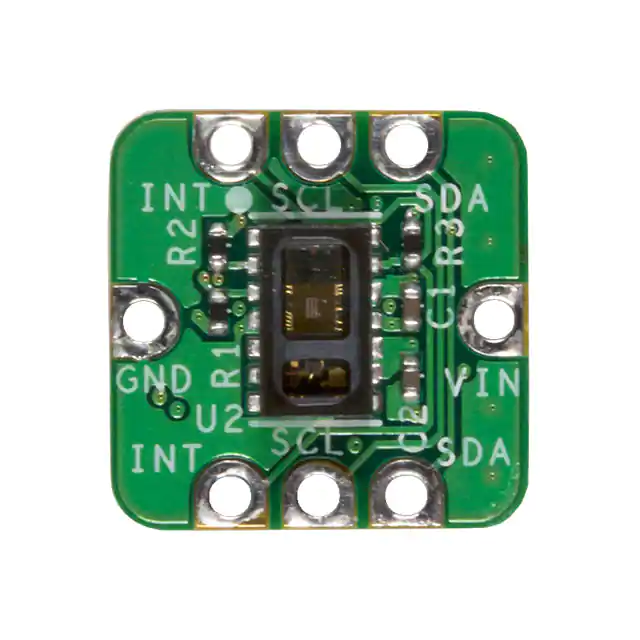

MAXREFDES117#EVAL BRD HEART OXIMETRY MONITOR |
4,047 |
|
Datasheet | - | Box | Active | Medical, Pulse Oximeter (PO or SpO2) | - | I2C | - | 2V ~ 5.5V | - | Board(s) | MAX1921, MAX14595, MAX30102 |
|

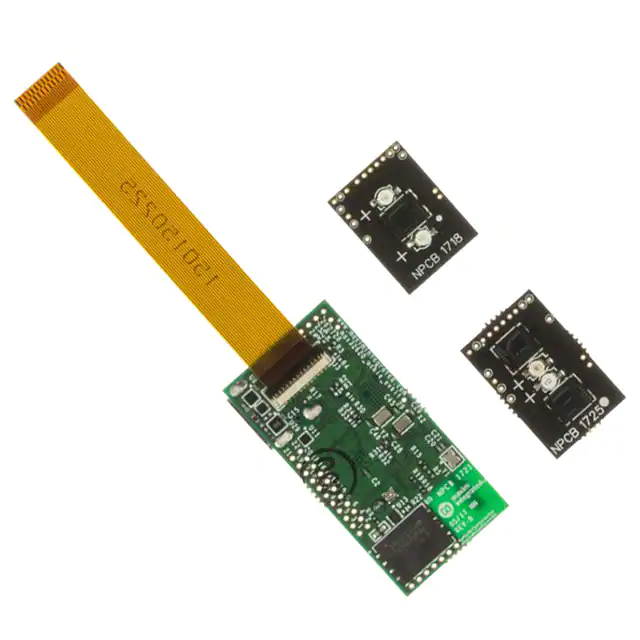

MAX86140EVSYS#EVAL MAX86140 OXIMETER/HEARTRATE |
1,808 |
|
Datasheet | - | Box | Active | Medical, Pulse Oximeter (PO or SpO2) | - | SPI | - | - | - | Board(s) | MAX86140, MAX86141 |
|
MAXREFDES104#HEALTH SENSOR PLATFORM 3.0. |
1,150 |
|
Datasheet | - | Box | Active | Medical, Health and Fitness | - | I2C | ±0.1°C | - | Yes, MCU, 32-Bit | Board(s) | MAX20360, MAX30208, MAX32666, MAX32674, MAX86176 |
|

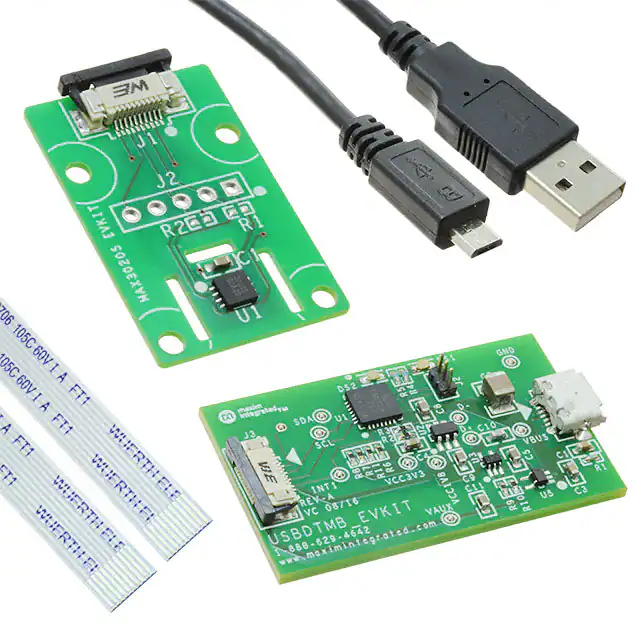

MAX30205EVSYS#EVAL BOARD FOR MAX30205 |
1,604 |
|
Datasheet | - | Box | Active | Temperature | - | - | - | - | - | Board(s) | MAX30205 |
|

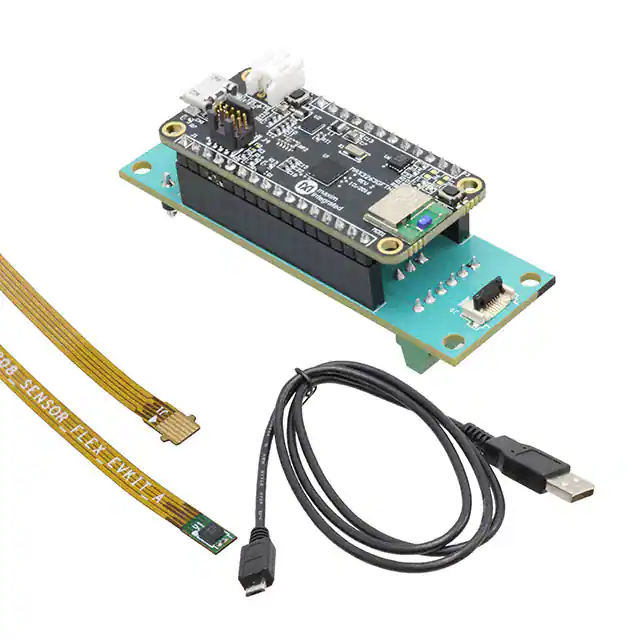

MAX30208EVSYS#EVKIT 0.1C TEMP SENSOR MAX30208 |
3,027 |
|
Datasheet | - | Box | Active | Temperature | 0°C ~ 70°C | I2C, Serial | ±0.15°C | 1.7V ~ 3.6V | Yes, MCU, 32-Bit | Board(s) | MAX30208 |
|
MAX-ECG-MONITOREVAL HEART RATE/ECG W/MAX30003 |
2,571 |
|
Datasheet | - | Box | Active | Medical, Health and Fitness | - | - | - | - | - | Board(s) | MAX30003 |
|
|
MAX86176EVKIT#EVKIT FOR ULTRA-LOW-POWER, OPTIC |
4,698 |
|
- |
- | Box | Active | Medical, Electrocardiogram (EKG/ECG) | - | I2C, SPI | - | - | No | Board(s) | MAX86176 |
|
MAX86916EVSYS#EVAL HEARTRATE BLOOD O2 |
4,371 |
|
Datasheet | - | Box | Active | Medical, Health and Fitness | - | I2C, Serial | - | 1.7V ~ 2V, 3.5V ~ 5.5V | - | Board(s) | MAX86916 |
