Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
102990763OPENMV CAM M7 |
4,297 |
|
Datasheet | - | Bulk | Active | Image Sensor | - | I2C, Serial, SPI | - | - | Yes, MCU, 32-Bit | Board(s) | OV7725, STM32F765VI |
|
ASEK-70331EESA-2P5B3-DKEVAL BOARD FOR ACS70331 |
1,150 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Current Sensor | 2.5A | Analog | 400mV/A | 3V ~ 4.5V | - | Board(s) | ACS70331 |
|
EK01-CP-SPIEVAL BOARD FOR CP201 SPI |
3,862 |
|
Datasheet | CP | Box | Active | Pressure | - | SPI | - | 2.8V ~ 3.5V | - | Board(s) | CP201 |
|
|
EK01-CP-I2CEVAL BOARD FOR CP201 I2C |
2,860 |
|
Datasheet | CP | Box | Active | Pressure | - | I2C | - | 2.8V ~ 3.5V | - | Board(s) | CP201 |
|
28317BOARD LINESCAN IMAGING SENSOR |
1,716 |
|
Datasheet | - | Bulk | Obsolete | Image Sensor | - | - | - | 3.3V ~ 5V | No | Board(s) | TSL1401R |
|

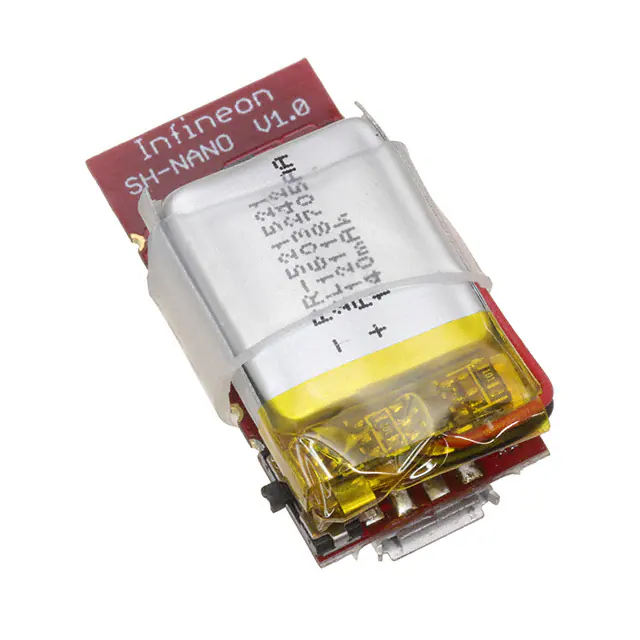

EVALSHNBV01TOBO1SENSOR HUB NANO DPS310 |
2,997 |
|
Datasheet | - | Box | Obsolete | Pressure | 300 ~ 1200 hPa | RF | - | 1.7V ~ 3.6V | Yes, MCU, 32-Bit | Board(s) | DPS310, XMC1100 |
|
DFR0517OPENMV CAM M7 A MACHINE VISION |
4,840 |
|
Datasheet | - | Bulk | Obsolete | Image Sensor | - | I2C, Serial, SPI | - | - | Yes, MCU, 32-Bit | Board(s) | OV7725, STM32F765VI |
|
RD1986MMA2260DKIT SENSOR ACCEL MMA2260D TRIAX |
2,208 |
|
Datasheet | TRIAX | Bulk | Obsolete | Accelerometer, 1 Axis | ±1.5g | SCI | 1200 mV/g | 4.75V ~ 5.25V | Yes, MCU, 8-Bit | Board(s), Cable(s) | MMA1260, MMA2260, MC68HC908KX8 |
|
STEVAL-MKI032V1BOARD DEMO ACCELEROMETER DIL24 |
3,521 |
|
Datasheet | MEMS | Bulk | Obsolete | Accelerometer, 3 Axis | ±2.3g, 9.2g | I2C, Serial, SPI | 18 ~ 72mg/Digit | - | No | Board(s) | STM32 and MEMS Demo Boards |
|
DM183027KIT DEV BOARD TOUCH PICDEM |
1,980 |
|
- |
mTouch™ | Box | Obsolete | Touch, Inductive | 4 Buttons/Keys | Serial | - | - | Yes, MCU, 8-Bit | Board(s) | PIC16F1936 |
|
EK-P5EVALUATION KIT SDP800 SERIES |
2,338 |
|
Datasheet | CMOSens® | Bulk | Obsolete | Pressure | - | Analog and Digital | - | - | - | Board(s) | SDP800 |
|
LFSTBEB3110KIT EVAL 3-AXIS DIG ACCELER |
4,752 |
|
Datasheet | - | Box | Obsolete | Accelerometer, Magnetometer | ±2g, 4g, 8g, ±1000µT | I2C | 4096 count/g, 2048 count/g, 1024 count/g, 0.1µT/LSB | - | No | Board(s), Cable(s) | MAG3110, MMA8451Q |
|
EK-H5EVALUATION KIT EK-H5 FOR HUMIDIT |
3,746 |
|
Datasheet | CMOSens® | Box | Obsolete | Humidity | - | USB | - | - | - | Board(s), Cable(s) | SHT21, SHT31 |
|
EK-H5 1.8VEVALUATION KIT EK-H5 1.8V FOR HU |
3,473 |
|
Datasheet | CMOSens® | Box | Obsolete | Humidity, Temperature | - | USB | - | 3.3V | - | Board(s), Cable(s) | SHTC1, SHTW1, STSC1 |
|
XB112BREAKOUT BOARD FOR XM112 |
1,128 |
|
Datasheet | - | Box | Obsolete | Radar | - | UART, USB | 60GHz | 5V, USB | - | Partially Populated Board(s) - Main IC Not Included | XM112 |
|
SEK-STC31EVAL BOARD FOR STC31 |
2,222 |
|
Datasheet | CMOSens® | Box | Obsolete | Carbon Dioxide (CO2) | 0 ~ 100% | I2C, Serial | - | 2.7V ~ 3.6V | - | Board(s) | STC31 |
|
SEN-14186OPENMV M7 CAMERA |
2,726 |
|
Datasheet | - | Bulk | Obsolete | Image Sensor | - | I2C, Serial, SPI | - | - | Yes, MCU, 32-Bit | Board(s) | OV7725, STM32F765VI |
|
SEN-14632OPENMV M7 CAMERA |
1,966 |
|
Datasheet | - | Bulk | Obsolete | Image Sensor | - | I2C, Serial, SPI | - | - | Yes, MCU, 32-Bit | Board(s) | OV7725, STM32F765VI |
|
SEN-14985OPENMV M7 CAMERA |
4,654 |
|
Datasheet | - | Bulk | Obsolete | Image Sensor | - | I2C, Serial, SPI | - | - | Yes, MCU, 32-Bit | Board(s) | OV7725, STM32F765VI |
|
SI7013USB-DONGLEBOARD EVAL FOR SI7013 |
4,802 |
|
Datasheet | - | Box | Not For New Designs | Humidity, Temperature | - | - | - | - | - | Board(s) | Si7013 |
