Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

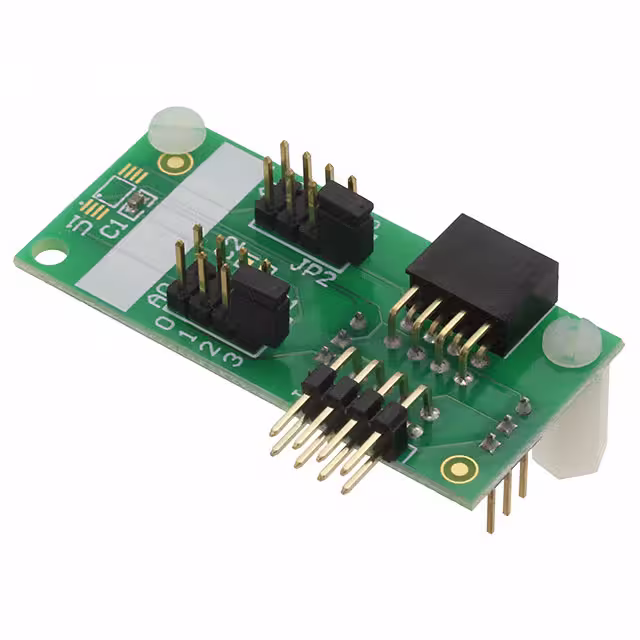

ASEK1454KLE-BB-TEVAL BOARD FOR A1454 |
4,016 |
|
Datasheet | - | Bulk | Obsolete | Hall Effect | - | - | - | - | - | Board(s) | A1454 |
|
ASEK717KMA-20AB-T-DKEVAL BOARD FOR ACS717 |
3,909 |
|
Datasheet | - | Bulk | Obsolete | Current Sensor | 20A | Analog | 66mV/A | 3V ~ 3.6V | - | Board(s) | ACS717 |
|
|
ASEK717KMA-10AB-T-DKEVAL BOARD FOR ACS717 |
2,935 |
|
Datasheet | - | Bulk | Obsolete | Current Sensor | 10A | Analog | 132mV/A | 3V ~ 3.6V | - | Board(s) | ACS717 |
|
|
ASEK718KMA-20AB-T-DKEVAL BOARD FOR ACS718 |
3,295 |
|
Datasheet | - | Bulk | Obsolete | Current Sensor | 20A | Analog | 100mV/A | 4.5V ~ 5.5V | - | Board(s) | ACS718 |
|

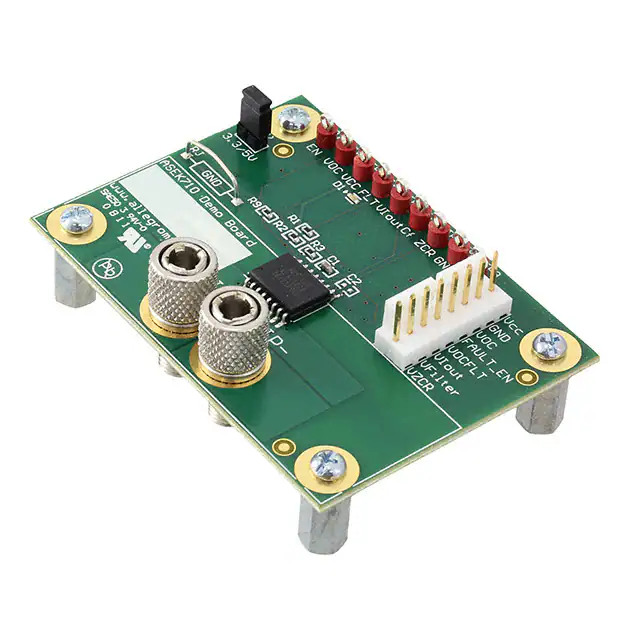

ASEK710LLA-12CB-T-DKBOARD DEMO 710LLA-12CB SENSOR |
2,283 |
|
Datasheet | - | Box | Active | Current Sensor | 12.5A | - | 56mV/A | 3V ~ 5.5V | - | Board(s) | ACS710 |
|

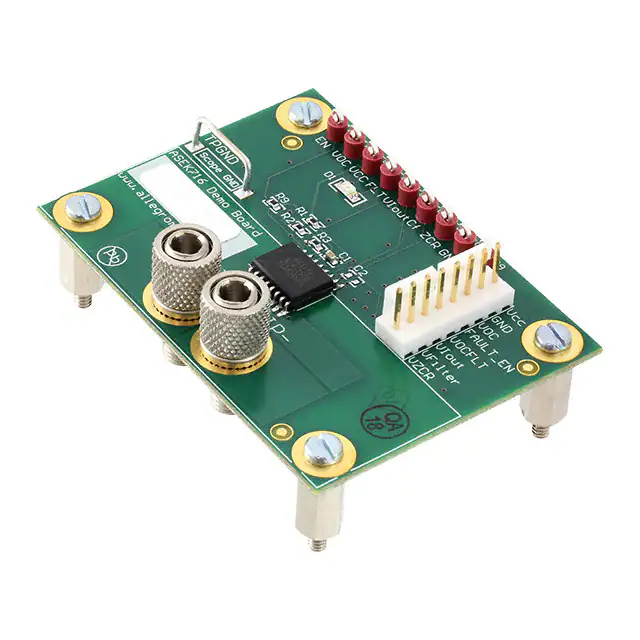

ASEK716KLA-25CB-T-DKBOARD DEMO 716KLA-25CB SENSOR |
3,325 |
|
Datasheet | - | Box | Obsolete | Current Sensor | 25A | - | 18.6mV/A | 3V ~ 3.6V | - | Board(s) | ACS716 |
|

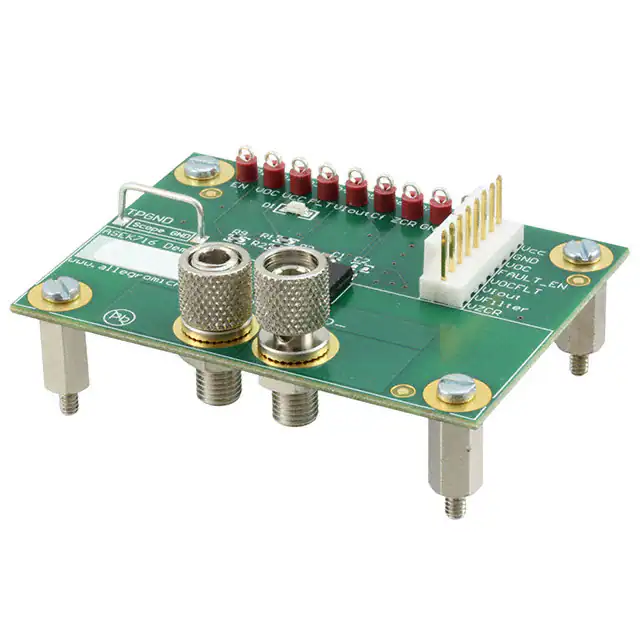

ASEK716KLA-6BB-T-DKBOARD DEMO 716KLA-6BB SENSOR |
3,900 |
|
Datasheet | - | Box | Obsolete | Current Sensor | 7.5A | - | 100mV/A | 3V ~ 3.6V | - | Board(s) | ACS716 |
|
|
ASEK71240LLC-50U5-TA71240 DEMO BOARD |
2,569 |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | Board(s) | A71240 |
|
|
ASEK71240LLC-45B5A71240 DEMO BOARD |
1,812 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | Board(s) | A71240 |
|

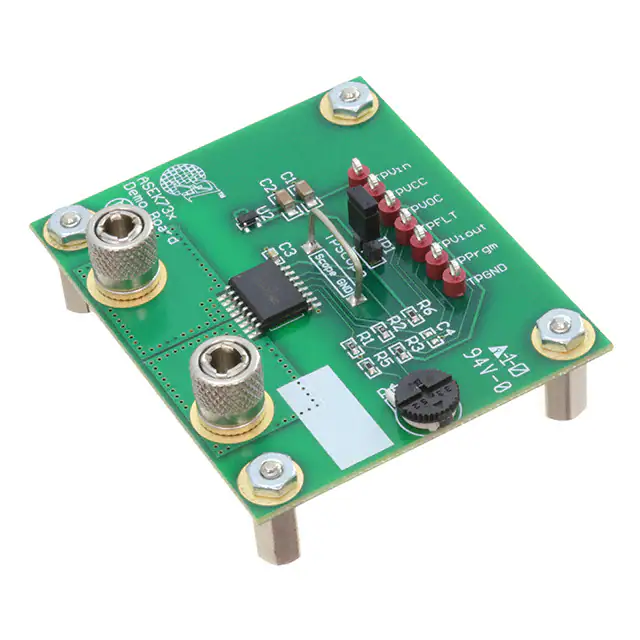

ASEK733KLA-40B-T-DKEVAL BOARD FOR ACS733 |
2,428 |
|
Datasheet | - | Bulk | Not For New Designs | Current Sensor | 40A | Analog | 20mV/A | 4.75V ~ 5.25V | - | Board(s) | ACS733 |
