Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

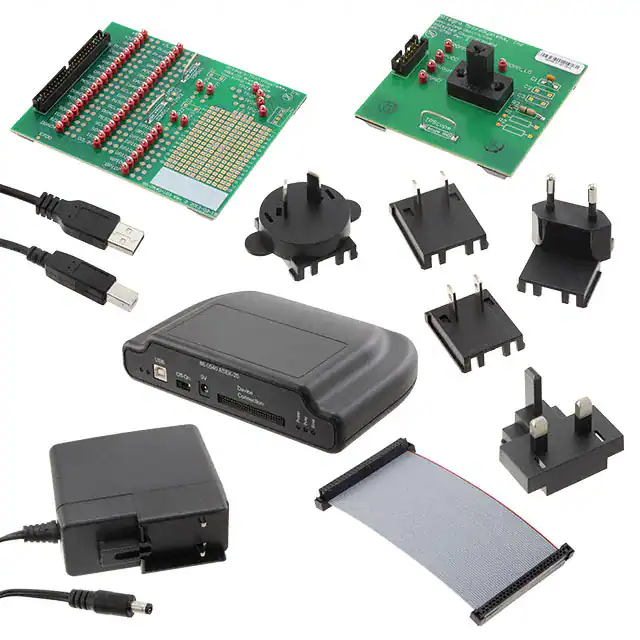

ASEK-1369-73369-T-KIT-DKEVAL BOARD FOR A1369 |
1,822 |
|
Datasheet | - | Bulk | Obsolete | Current Sensor | - | Analog | 26mV/g | 4.5V ~ 5.5V | - | Board(s) | A1369 |
|

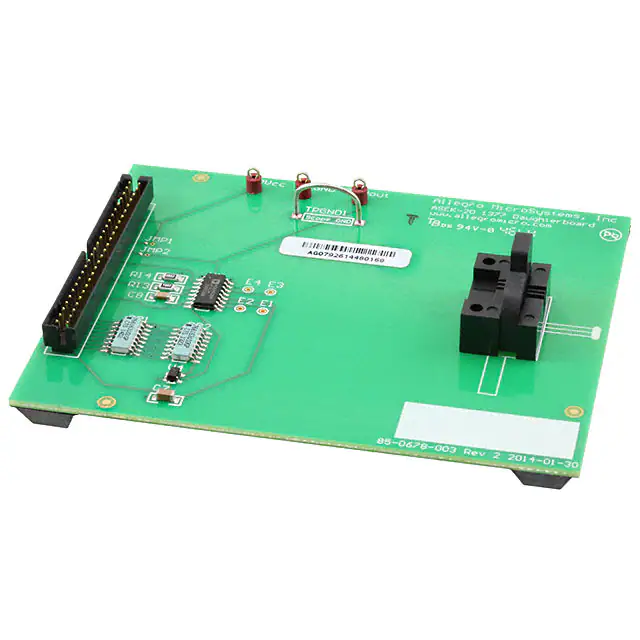

ASEK-1377-SUBKIT-TEVAL BOARD FOR A1377 |
1,281 |
|
Datasheet | - | Bulk | Obsolete | Hall Effect | - | - | - | 4.5V ~ 5.5V | - | Board(s) | A1377 |
|

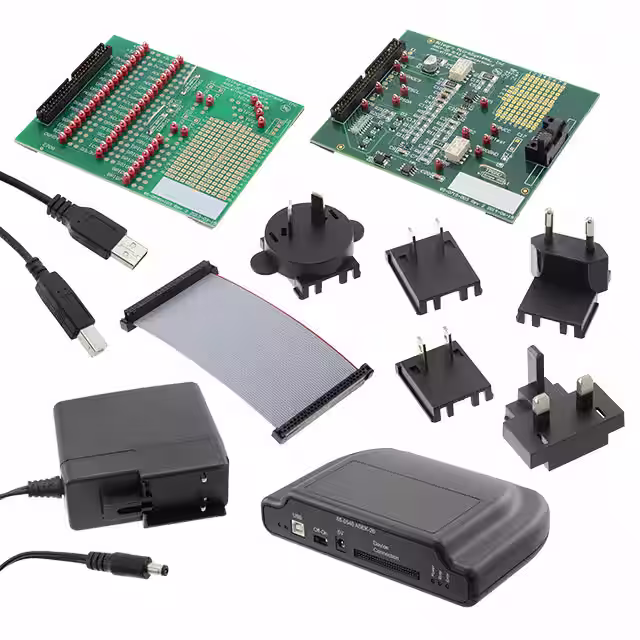

ASEK-ATS343-ATS344-KIT-T-DKEVAL BOARD ASEK-ATS343-ATS344 |
4,209 |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | Board(s) | - |
|

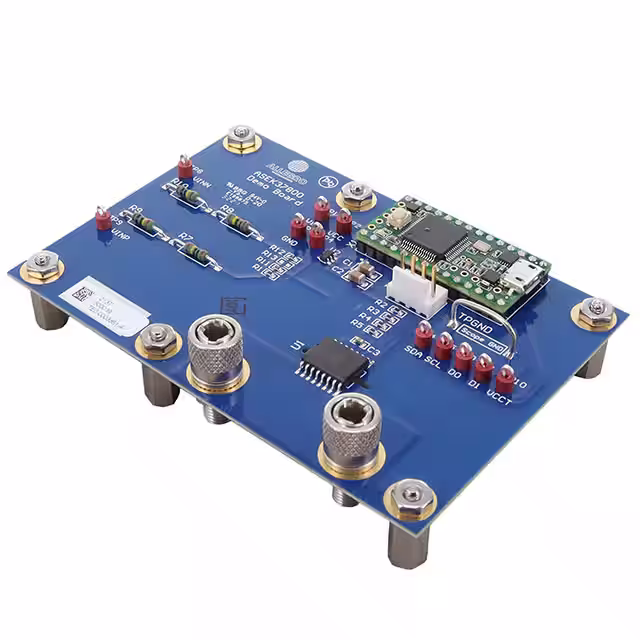

ASEK37800KMAC-090B3-I2CKIT FOR ASC37800 90-I2C |
1,374 |
|
Datasheet | - | Bulk | Obsolete | Current Sensor | - | I2C, Serial | - | 2.97V ~ 3.63V | Yes | Board(s) | ACS37800-090B3-I2C |
|
ASEK37800KMAC-030B3-I2CKIT FOR ASC37800 30-I2C |
2,498 |
|
Datasheet | - | Bulk | Obsolete | Current Sensor | - | I2C, Serial | - | 2.97V ~ 3.63V | Yes | Board(s) | ACS37800-030B3-I2C |
|

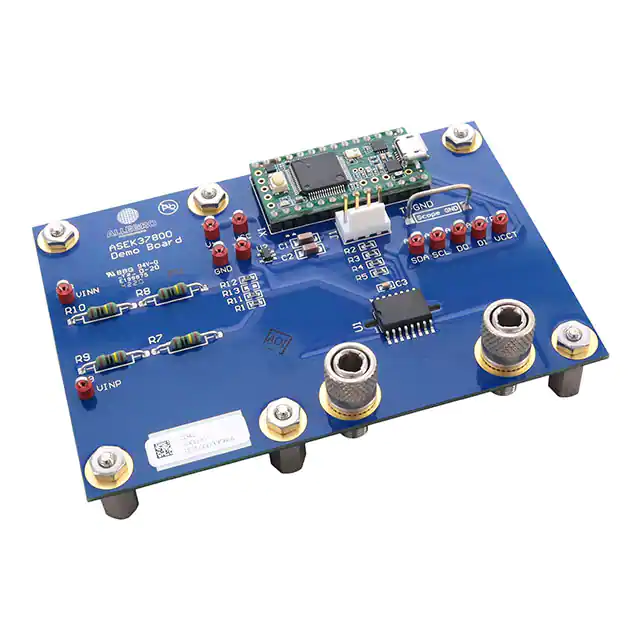

ASEK37800KMAC-015B5-SPIKIT FOR ASC37800 15-SPI |
3,366 |
|
Datasheet | - | Bulk | Obsolete | Current Sensor | - | Serial, SPI | - | 4.5V ~ 5.5V | Yes | Board(s) | ACS37800-015B5-SPI |
|

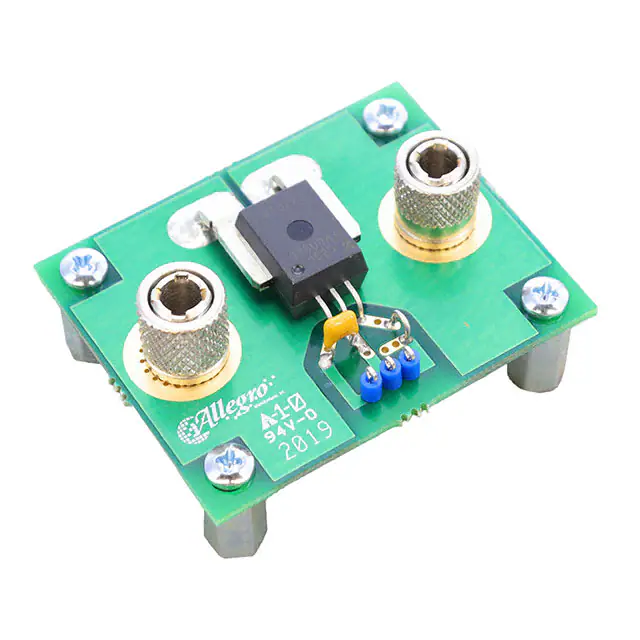

ASEK772KCB-150B-T-DKEVAL BOARD FOR ACS772 |
2,113 |
|
Datasheet | - | Bulk | Not For New Designs | Current Sensor | 150A | Analog | 13.33mV/A | 4.5V ~ 5.5V | - | Board(s) | ACS772 |
|

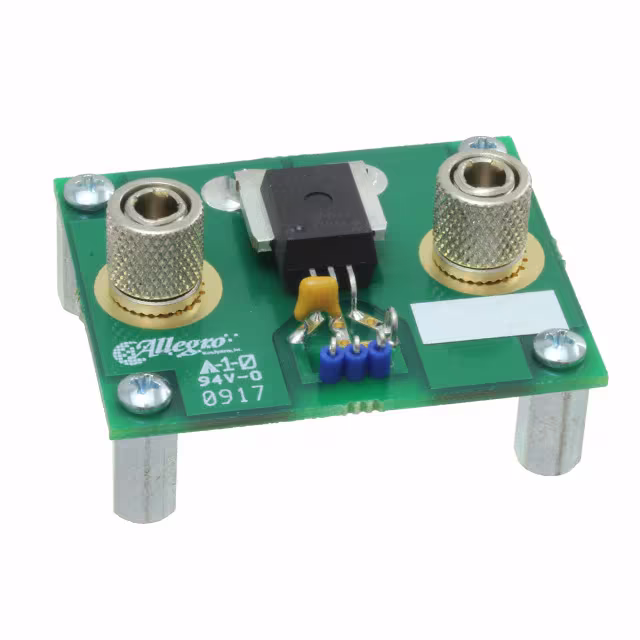

ASEK772LCB-050B-T-DKEVAL BOARD FOR ACS772 |
2,674 |
|
Datasheet | - | Bulk | Not For New Designs | Current Sensor | 50A | Analog | 40mV/A | 4.5V ~ 5.5V | - | Board(s) | ACS772 |
|
ASEK758KCB-150B-T-DKBOARD DEMO 758KCB-150B SENSOR |
2,593 |
|
Datasheet | - | Box | Active | Current Sensor | 150A | - | 13.3mV/A | 3V ~ 5.5V | - | Board(s) | ACS758 |
|

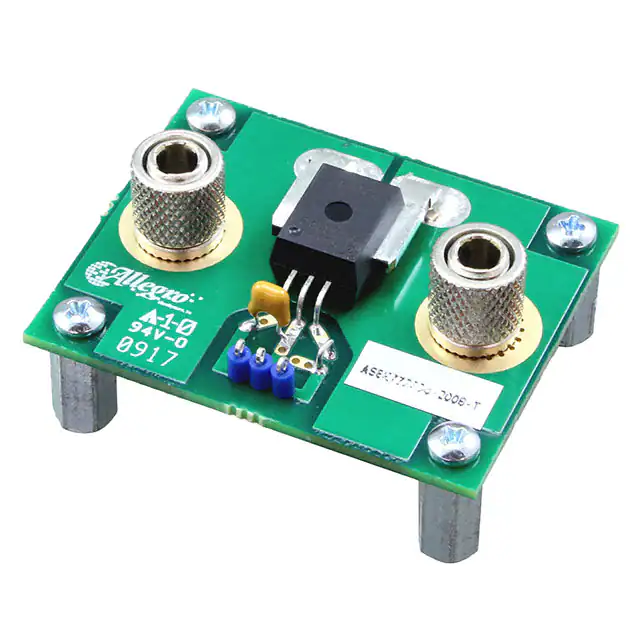

ASEK772ECB-200B-T-DKEVAL BOARD FOR ACS772 |
2,949 |
|
Datasheet | - | Bulk | Not For New Designs | Current Sensor | 200A | Analog | 10mV/A | 4.5V ~ 5.5V | - | Board(s) | ACS772 |
