Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

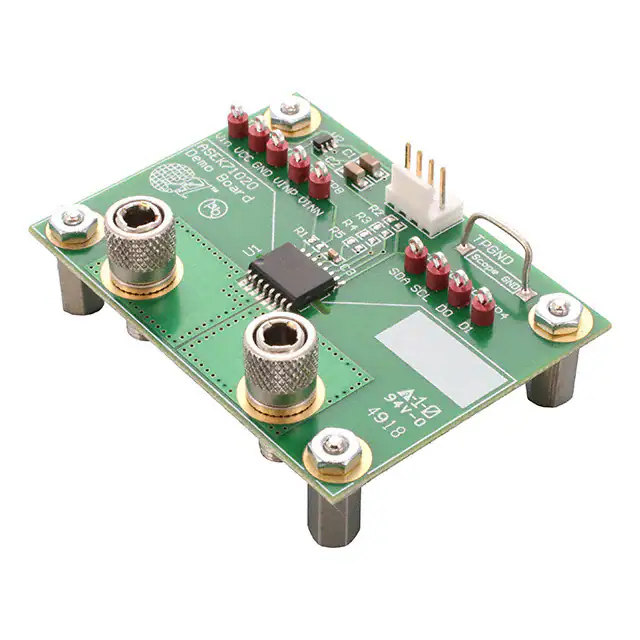

ASEK71020KMAB-015B5-SPIEVAL BOARD FOR ACS71020 |
1,981 |
|
Datasheet | - | Bulk | Obsolete | Current Sensor | 15A | Serial, SPI | - | - | - | Board(s) | ACS71020 |
|

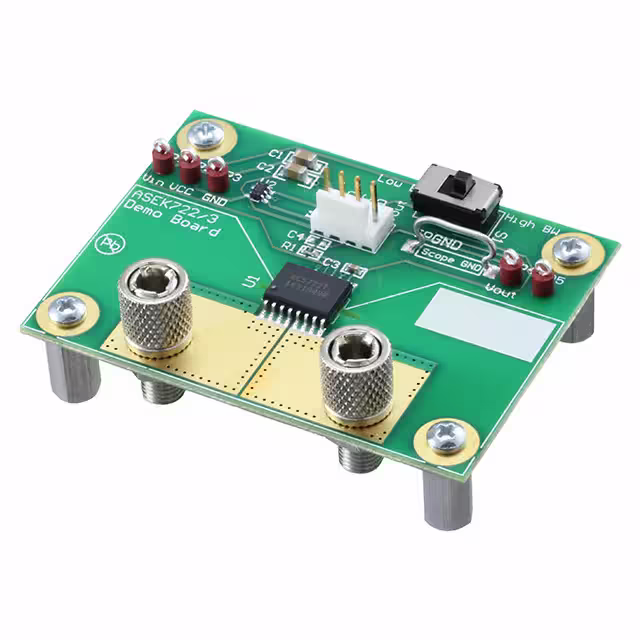

ASEK722KMA-10AB-T-DKEVAL BOARD FOR ACS722KMA |
1,549 |
|
Datasheet | - | Bulk | Not For New Designs | Current Sensor | 10A | Analog | 132mV/A | 3V ~ 3.6V | - | Board(s) | ACS722KMA |
|

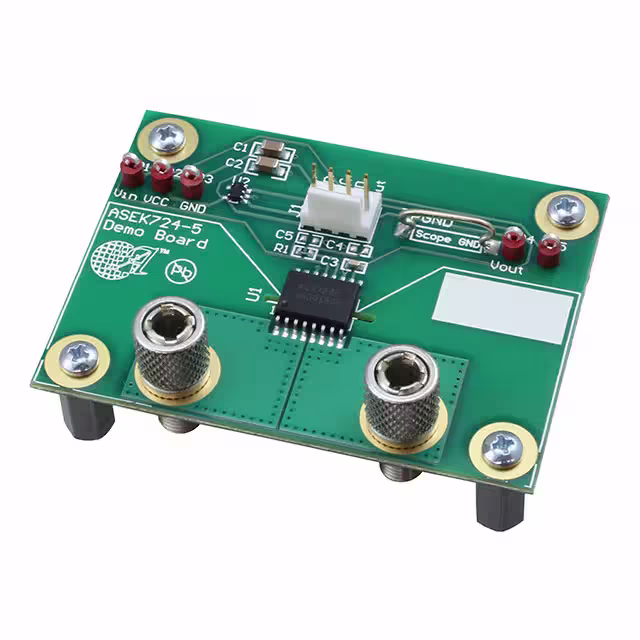

ASEK724KMA-30AB-T-DKEVAL BOARD FOR ACS724KMA |
1,100 |
|
Datasheet | - | Bulk | Not For New Designs | Current Sensor | 30A | Analog | 66mV/A | 4.5V ~ 5.5V | - | Board(s) | ACS724KMA |
|

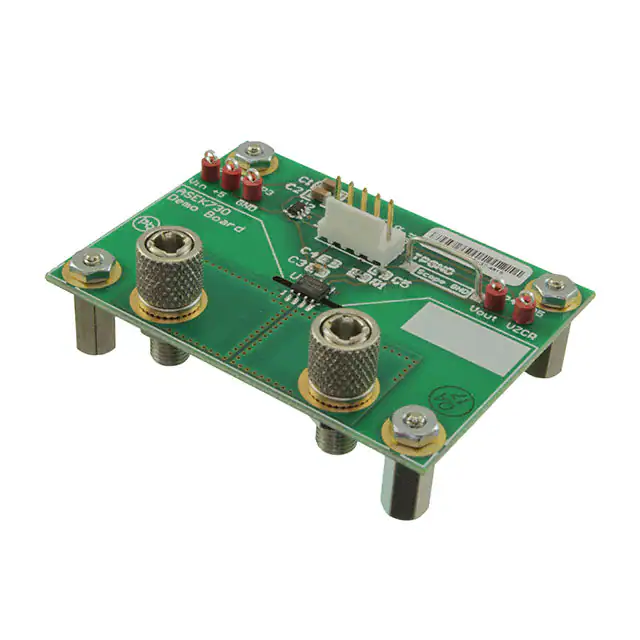

ASEK730KLC-20AB-T-DKEVAL BOARD FOR ACS730 |
3,675 |
|
Datasheet | - | Bulk | Not For New Designs | Current Sensor | 20A | Analog | 100mV/A | 4.5V ~ 5.5V | - | Board(s) | ACS730 |
|
|
ASEK730KLC-40AB-T-DKEVAL BOARD FOR ACS730 |
2,075 |
|
Datasheet | - | Bulk | Not For New Designs | Current Sensor | 40A | Analog | 50mV/A | 4.5V ~ 5.5V | - | Board(s) | ACS730 |
|
ASEK732KMA-65BA732 DEMO BOARD |
2,351 |
|
- |
- | Bulk | Not For New Designs | - | - | - | - | - | - | Board(s) | A732 |
|
ASEK733KMA-65BA733 DEMO BOARD |
4,531 |
|
Datasheet | - | Bulk | Not For New Designs | - | - | - | - | - | - | Board(s) | A733 |
|
ASEK724LLC-30AB-TEVAL BOARD FOR ACS724LLCTR |
2,603 |
|
- |
- | Box | Not For New Designs | Current Sensor | ±30A | Analog | 66mV/A | 4.5V ~ 5.5V | No | Board(s) | ACS724 |
|
|
ASEK-31313KLEA-500-DKEVAL BOARD ASEK-31313KLEA-500 |
2,143 |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | Board(s) | - |
|
|
CTD415-30DCEVAL BOARD FOR CT415 |
1,029 |
|
Datasheet | XtremeSense™ Crocus Technology | Bulk | Active | Current Sensor | 30A | Analog | 133.3mV/A | 4.75V ~ 5.5V | No | Board(s) | CT415 |
