RF, RFID, Wireless Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Frequency | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

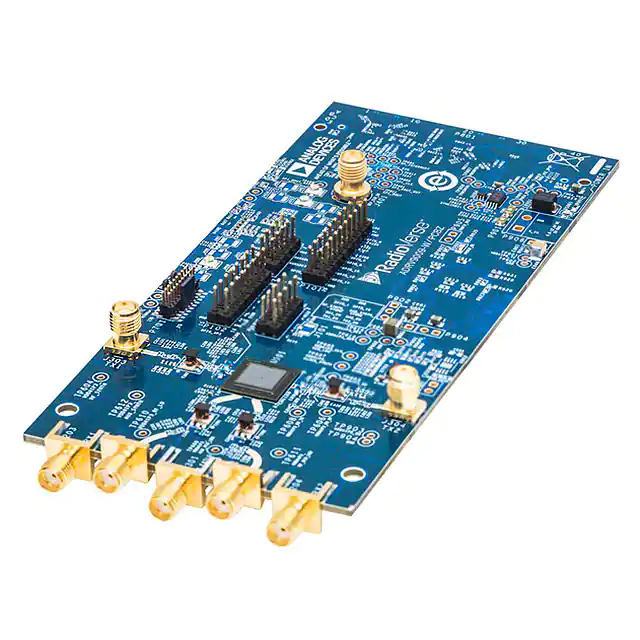

ADRV9009-W/PCBZDUAL RF RX/TX/ORX EVALUATION BOA |
3,937 |
|
Datasheet | - | Box | Active | Transmitter, Receiver | 75MHz ~ 6GHz | Board(s) | ADRV9009 |
|

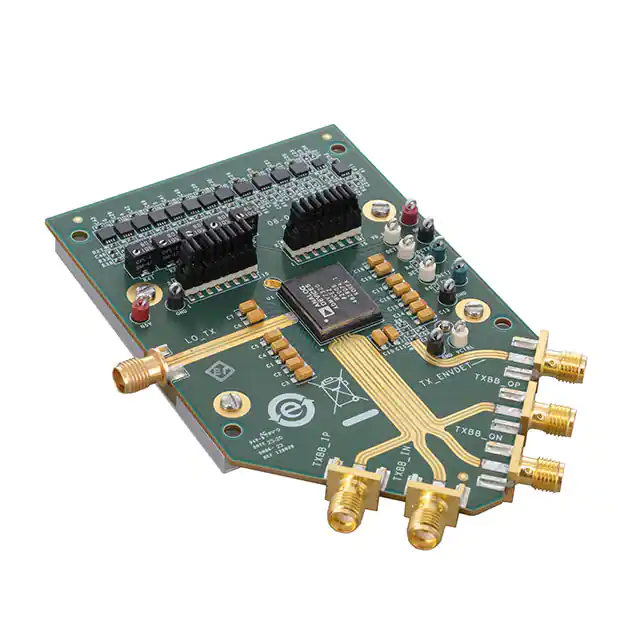

ADMV7320-EVALZEVAL BOARD 81-86GHZ UPCONVERTER |
4,003 |
|
Datasheet | - | Box | Active | Upconverter | 81GHz ~ 86GHz | Board(s) | ADMV7320 |
|
ADRV2CRR-FMCADRV9009 RFSOM CARRIER BOARD |
1,471 |
|
Datasheet | - | Box | Active | Transceiver | 75MHz ~ 6GHz | Board(s) | ADRV9009 |
|
EVAL-CN0566-RPIZ10 GHZ PHASED ARRAY SYSTEM |
2,142 |
|
- |
Circuits from the Lab™ | Box | Active | Beamformer | 10GHz ~ 10.5GHz | Board(s) | ADALM-Pluto |
|

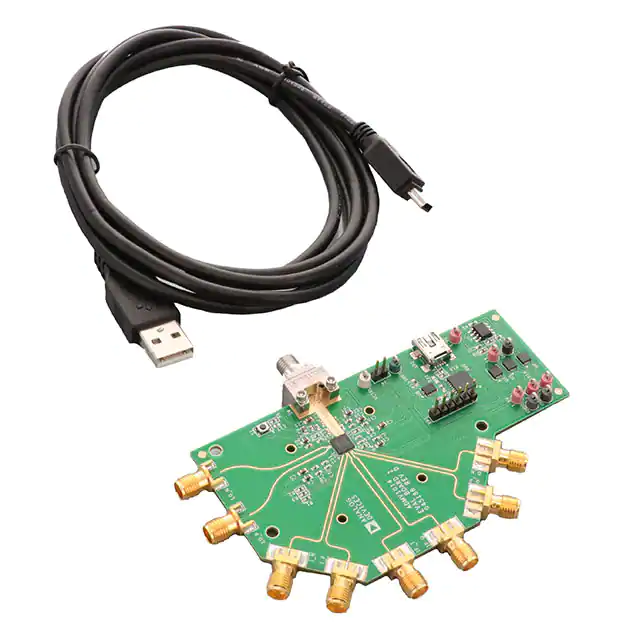

ADMV1014-EVALZEVAL BRD DOWNCONVERTER ADMV1014 |
3,514 |
|
Datasheet | - | Box | Active | Downconverter | 24.5GHz ~ 43.5GHz | Board(s) | ADMV1014 |
|

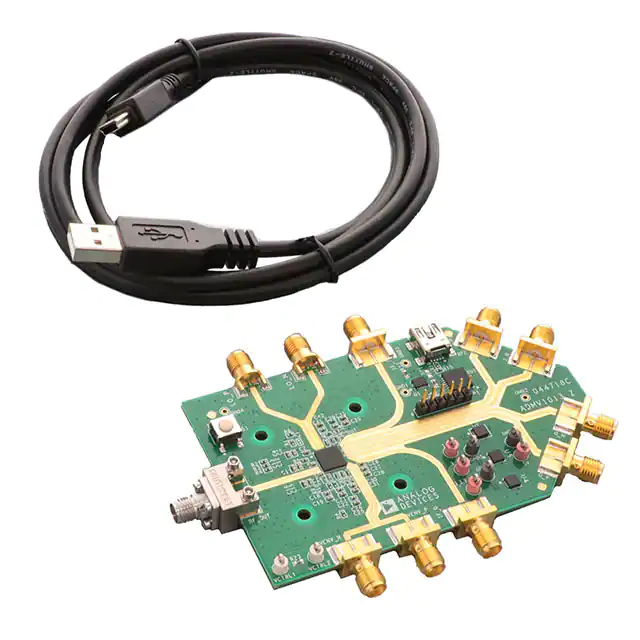

ADMV1013-EVALZADMV1013 EVAL BOARD |
4,839 |
|
Datasheet | - | Box | Active | Upconverter | 24GHz ~ 44GHz | Board(s) | ADMV1013 |
|
AD9988-FMCB-EBZAD9988 4T4R EVAL BOARD |
4,630 |
|
Datasheet | - | Bulk | Active | Transmitter, Receiver | - | Board(s) | AD9988 |
|

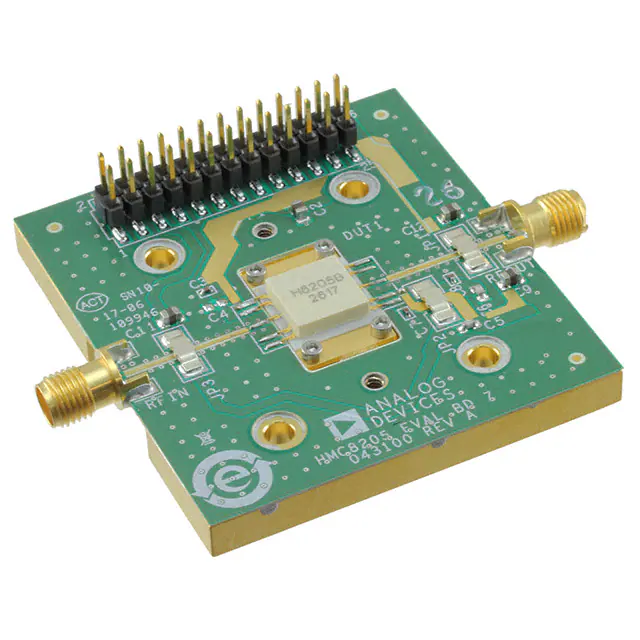

EV1HMC8205BF10EVAL BOARD ASSEMBLY |
1,380 |
|
Datasheet | - | Box | Active | Amplifier | 300MHz ~ 6GHz | Board(s) | HMC8205BF10 |
|

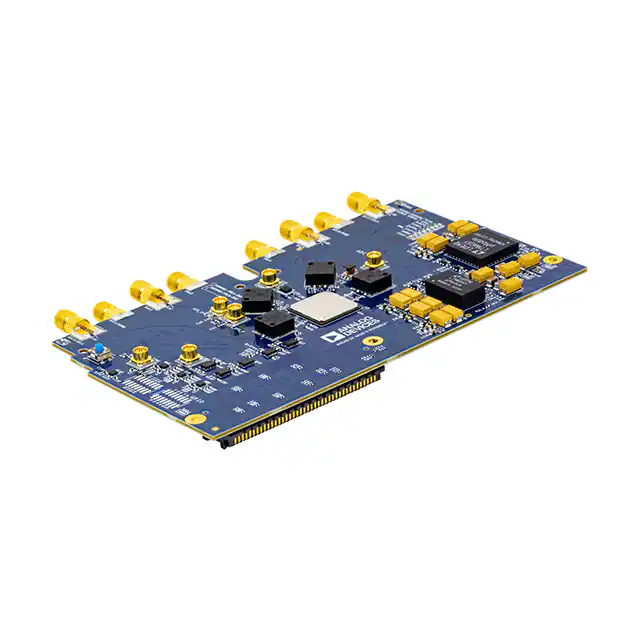

AD9081-FMCA-EBZAD9081 4-DAC 4 -ADC WITH MARKI B |
3,314 |
|
Datasheet | - | Bulk | Active | Front End | - | Board(s) | AD9081 |
|

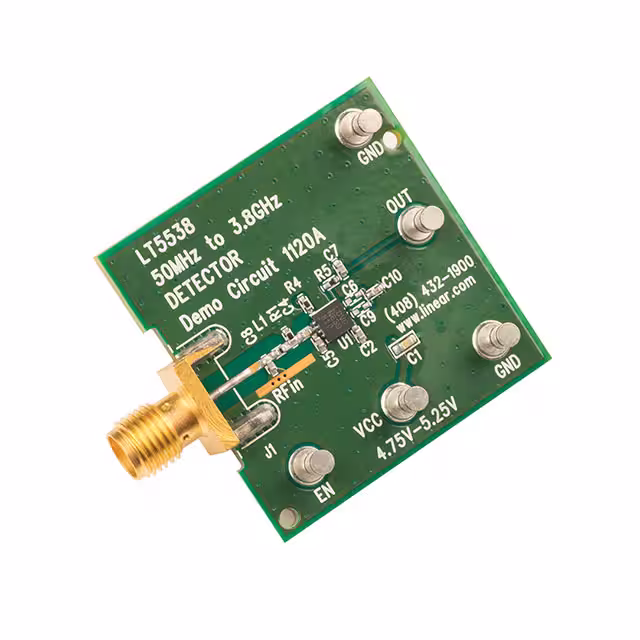

DC1120ADEMO BOARD FOR THE LT5538IDD |
2,769 |
|
Datasheet | - | Box | Active | Power Detector | 40MHz ~ 3.8GHz | Board(s) | LT5538 |
