Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS1100-25DBBOARD DEMO TS1100-25 OPAMP |
3,509 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | 6 kHz | - | 680 nA | 2V ~ 27V | TS1100-25 | Board(s) |
|
TS1100-100DBDEMO BOARD TS1100-100 OPAMP |
2,112 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | 4.5 kHz | - | 680 nA | 2V ~ 27V | TS1100-100 | Board(s) |
|
|
TS1100-50DBDEMO BOARD TS1100-50 OPAMP |
2,976 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | 6 kHz | - | 680 nA | 2V ~ 27V | TS1100-50 | Board(s) |
|

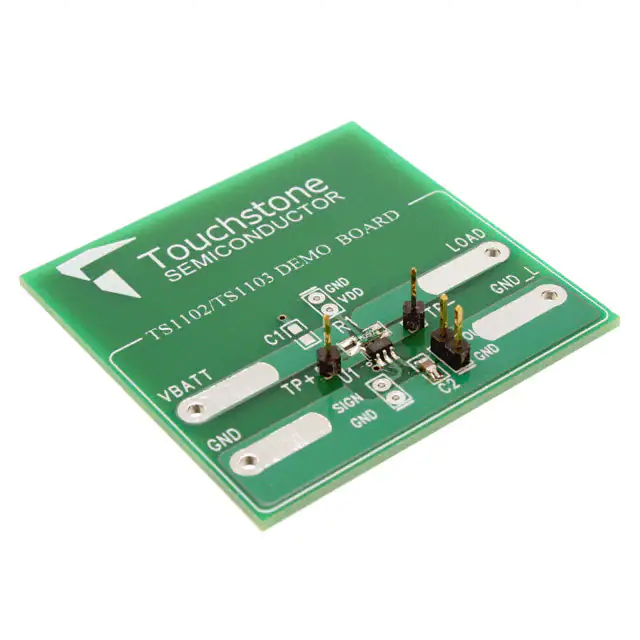

TS1102-50DBDEMO BOARD TS1102-50 OPAMP |
3,547 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | 6 kHz | - | 680 nA | 2V ~ 27V | TS1102-50 | Board(s) |
|
|
TS1108-200DBDEMO BOARD TS1108-200 OPAMP |
3,806 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | - | - | - | - | TS1108-200 | Board(s) |
|
|
TS1108-20DBDEMO BOARD TS1108-20 OPAMP |
3,391 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | - | - | - | - | - | TS1108-20 | Board(s) |
