LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
551600000-001A/NOPBEVAL BOARD FOR LM3402 LM3404 |
3,333 |
|
Datasheet | WEBENCH® Buildit Board | Bulk | Obsolete | - | - | - | - | - | Board(s) | LM3402, LM3404 |
|
COMBOLEDEVAL BOARD COMBOLED |
3,024 |
|
Datasheet | - | Box | Discontinued at Digi-Key | - | - | - | - | - | Board(s) | - |
|
EVALED2000PEVAL BOARD FOR LED2000 |
4,124 |
|
Datasheet | - | Box | Obsolete | 3A | 1 Non-Isolated Output | - | Dimmable | 3V ~ 18V | Board(s) | LED2000 |
|
EVALED7706EVALUATION BOARD FOR LED7706 |
2,547 |
|
Datasheet | - | Box | Obsolete | 30mA | 6 Non-Isolated Outputs | 36V | Dimmable | 4.5V ~ 36V | Board(s) | LED7706 |
|
COM-11850EVAL BOARD FOR AL8805 |
3,366 |
|
Datasheet | - | Bulk | Obsolete | 680mA | 3 Non-Isolated Outputs | - | - | 6V ~ 20V | Board(s) | AL8805 |
|
MR16 7W BOARDEVAL BOARD FOR ILD4001 |
3,905 |
|
Datasheet | - | Box | Discontinued at Digi-Key | 770mA | 1 Non-Isolated Output | 6.5V | - | 12VAC | Board(s) | ILD4001 |
|

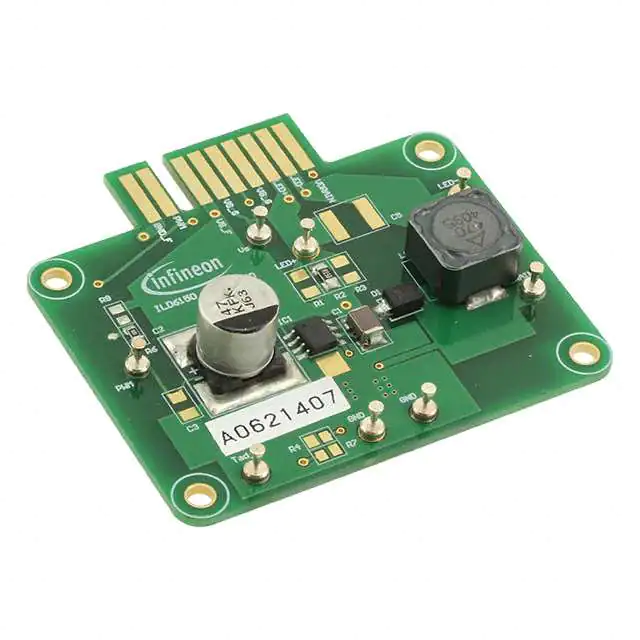

VALLEDILD6150TOBO1EVAL BOARD FOR ILD6150 |
4,187 |
|
Datasheet | - | Box | Obsolete | 1.5A | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 60V | Board(s) | ILD6150 |
|

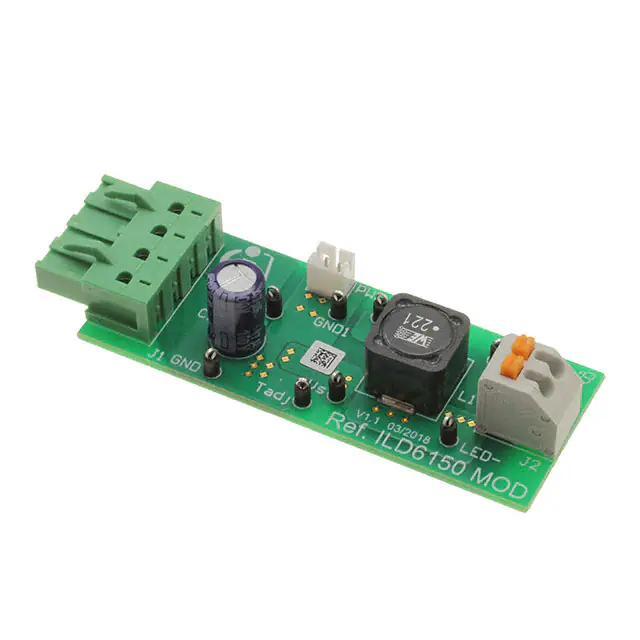

REFILD6150DC60V1ATOBO1EVAL BOARD FOR ILD6150 |
1,840 |
|
Datasheet | - | Bulk | Obsolete | 1A | 1 Non-Isolated Output | 3V ~ 57V | Dimmable | 4.5V ~ 60V | Board(s) | ILD6150 |
|
551600003-001AEVAL BOARD FOR LM3402 |
2,150 |
|
Datasheet | WEBENCH® Buildit Board | Bulk | Obsolete | - | - | - | - | - | Board(s) | LM3402 |
|

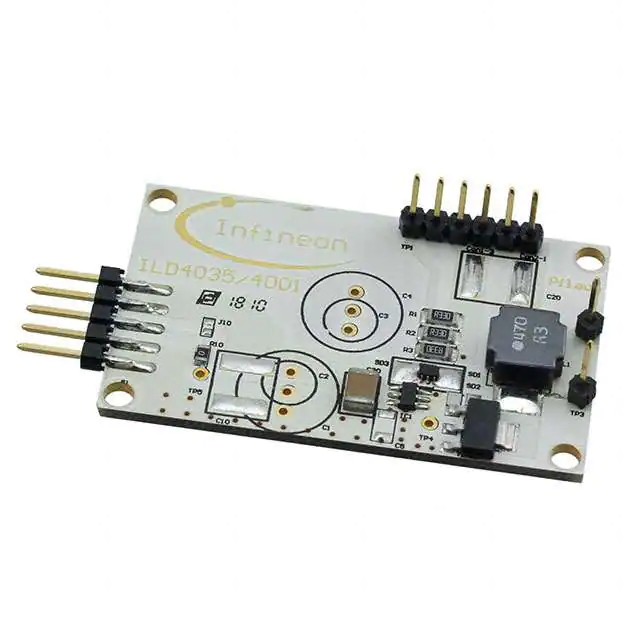

ILD4001 1.0A BOARDEVAL BOARD FOR ILD4001 |
4,766 |
|
Datasheet | - | Box | Discontinued at Digi-Key | 1A | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 30V | Board(s) | ILD4001 |
|

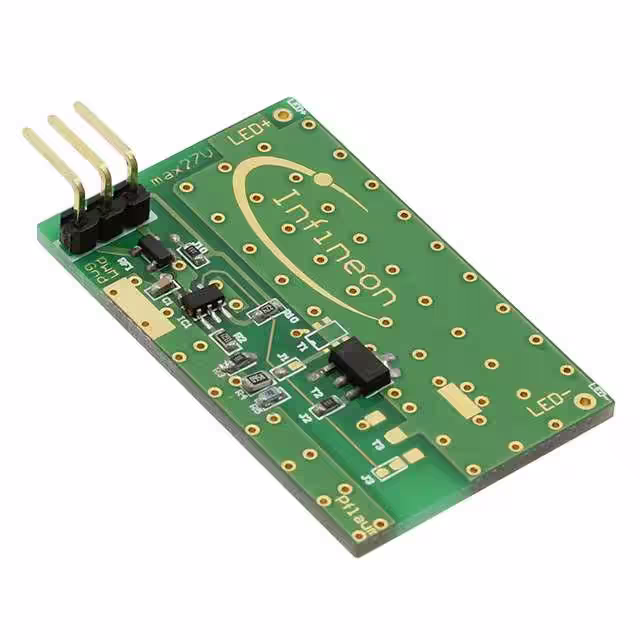

BCR450 BOARDEVAL BOARD FOR BCR450 |
3,638 |
|
Datasheet | - | Box | Obsolete | - | - | - | - | - | Board(s) | BCR450 |
|
EVALLED-ILD6070EVAL BOARD FOR ILD6070 |
3,670 |
|
Datasheet | - | Box | Obsolete | 500mA | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 60V | Board(s) | ILD6070 |
|
LD403524VBOARDTOBO1EVAL BOARD FOR ILD4035 |
3,750 |
|
Datasheet | - | Bulk | Obsolete | 350mA | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 30V | Board(s) | ILD4035 |
|
|
MR163WBOARDTOBO1EVAL BOARD FOR ILD4035 |
2,560 |
|
Datasheet | - | Box | Discontinued at Digi-Key | 350mA | 1 Non-Isolated Output | - | - | 12VAC | Board(s) | ILD4035 |
|
MR16 10W BOARDEVAL BOARD FOR ILD4001 |
3,499 |
|
Datasheet | - | Box | Discontinued at Digi-Key | 1.02A | 1 Non-Isolated Output | 6.6V | - | 12VAC | Board(s) | ILD4001 |
|

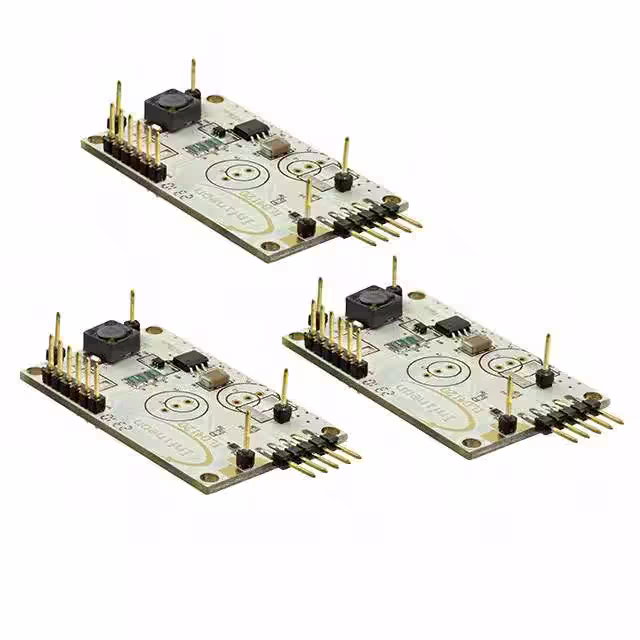

ILD4120 BOARDEVAL BOARD FOR ILD4120 |
2,439 |
|
Datasheet | - | Box | Obsolete | 600mA | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 30V | Board(s) | ILD4120 |
|

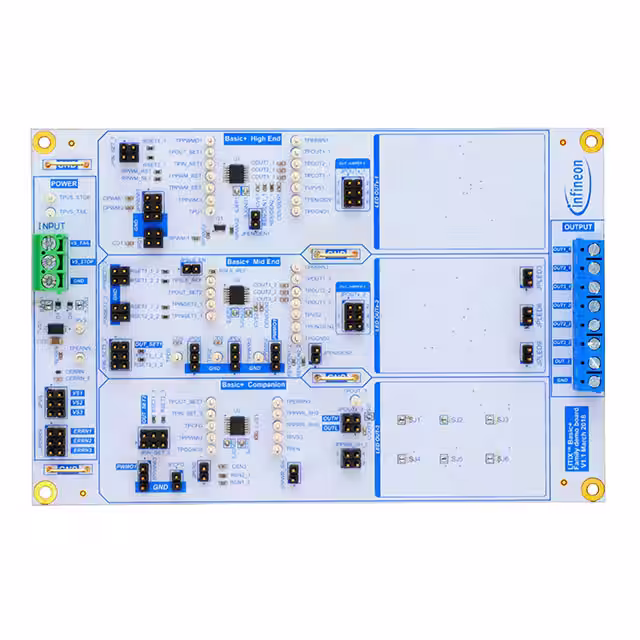

KITLEDXMC1202AS01TOBO1EVAL BOARD FOR XMC1202 |
4,782 |
|
Datasheet | - | Box | Discontinued at Digi-Key | - | 3 Non-Isolated Outputs | - | - | 12V ~ 48V | Board(s) | XMC1202 |
|
TPS92551EVM/NOPBEVAL BOARD FOR TPS92551 |
4,185 |
|
Datasheet | - | Box | Obsolete | 350mA | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 60V | Board(s) | TPS92551 |
|
|
1689EVAL BOARD FOR NEOPIXEL |
4,606 |
|
Datasheet | Neopixel | Bulk | Obsolete | - | 8 Non-Isolated Outputs | - | - | - | Board(s) | NeoPixel |
|
LM3444MR16BSTRB/NOPBEVAL BOARD FOR LM3444 |
4,411 |
|
Datasheet | - | Box | Obsolete | - | 1 Non-Isolated Output | - | - | 12VAC | Board(s) | LM3444 |
