LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM3552SDEVEVAL BOARD FOR LM3552 |
4,874 |
|
Datasheet | - | Box | Obsolete | 700mA | 1 Non-Isolated Output | 4V | - | 2.7V ~ 5.5V | Board(s) | LM3552 |
|
LM3528TMEVEVAL BOARD FOR LM3528 |
1,835 |
|
Datasheet | - | Box | Obsolete | 20mA | 2 Non-Isolated Outputs | 21V | Dimmable | 2.5V ~ 5.5V | Board(s) | LM3528 |
|
LM3699EVMEVAL BOARD FOR LM3699 |
1,555 |
|
Datasheet | - | Box | Obsolete | - | 3 Non-Isolated Outputs | - | - | 2.7V ~ 5.5V | Board(s) | LM3699 |
|
UCC25710EVM-654EVAL BOARD FOR UCC25710 |
1,591 |
|
Datasheet | - | Box | Obsolete | 250mA | 4 Isolated Outputs | 98V | Dimmable | 370V ~ 410V | Board(s) | UCC25710 |
|
LM3565EVMEVAL BOARD FOR LM3565 |
1,690 |
|
Datasheet | - | Box | Obsolete | - | - | - | - | 2.7V ~ 5.5V | Board(s) | LM3565 |
|
LP8860-Q1EVMEVAL BOARD FOR LP8860-Q1 |
2,676 |
|
Datasheet | - | Box | Obsolete | 150mA | 4 Non-Isolated Outputs | - | Dimmable | 3V ~ 48V | Board(s) | LP8860-Q1 |
|
LM3633EVMEVAL BOARD FOR LM3633 |
3,310 |
|
Datasheet | - | Box | Obsolete | - | - | - | - | 2.7V ~ 5.5V | Board(s) | LM3633 |
|

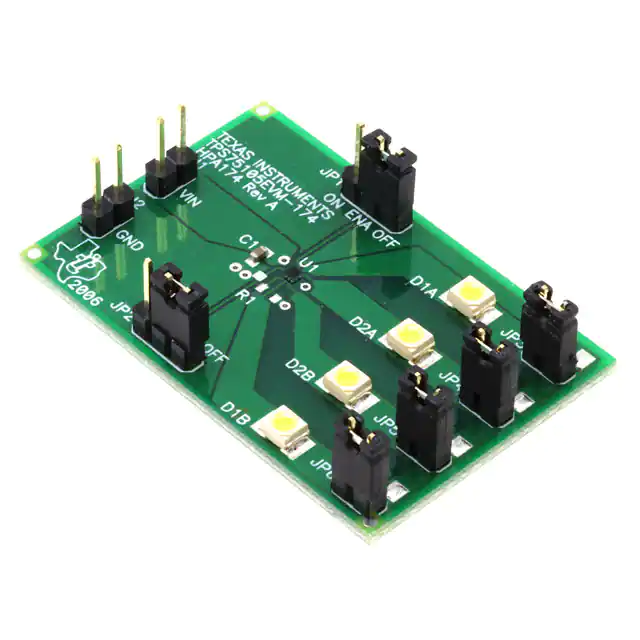

TPS75105EVM-174EVAL BOARD FOR TPS75105 |
4,336 |
|
Datasheet | - | Box | Active | 5mA | 4 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | TPS75105 |
|
LM3401-MR16DEMO/NOPBEVAL BOARD FOR LM3401 |
2,728 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | 6.2V | Dimmable | 12VAC | Board(s) | LM3401 |
|
TPS92550EVM/NOPBEVAL BOARD FOR TPS92550 |
3,051 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | - | Dimmable | 4.5V ~ 36V | Board(s) | TPS92550 |
