LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVLHVLED815W8CVEVAL BOARD FOR HVLED815PF |
4,731 |
|
Datasheet | - | Bulk | Active | 310mA | 1 Isolated Output | 25V | - | 200 ~ 265 VAC | Board(s) | HVLED815PF |
|
|
EVLHVLED815W10AEVAL BOARD FOR HVLED815PF |
2,950 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | - | 85 ~ 265 VAC | Board(s) | HVLED815PF |
|

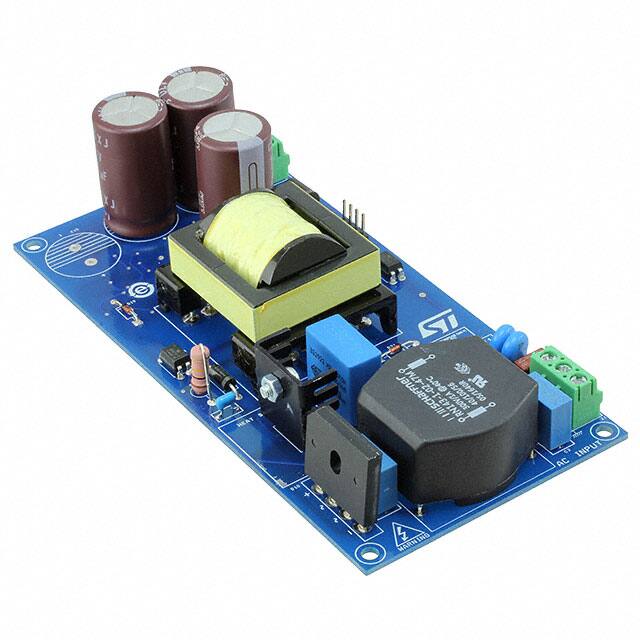

STEVAL-ILL085V1EVAL BOARD FOR HVLED001A |
2,107 |
|
Datasheet | - | Bulk | Obsolete | 700mA | 1 Non-Isolated Output | 60V ~ 105V | Dimmable | 90 ~ 300 VAC | Board(s) | HVLED001A |
|
STEVAL-ILL074V1EVAL BOARD FOR HVLED001A |
3,410 |
|
Datasheet | - | Box | Active | 1.2A, 50mA | 2 Isolated Outputs | 15V, 52V | - | 90 ~ 277 VAC | Board(s) | HVLED001A |
|
STEVAL-ILL074V2EVAL BOARD FOR HVLED001A |
3,903 |
|
Datasheet | - | Box | Obsolete | 1.2A, 50mA | 2 Isolated Outputs | 15V, 52V | - | 90 ~ 277 VAC | Board(s) | HVLED001A |
|
|
STEVAL-ILL024V1EVAL BOARD FOR STM32F103VB |
3,560 |
|
Datasheet | - | Bulk | Obsolete | 100mA | 16 Non-Isolated Outputs | 20V | - | 3V ~ 5.5V | Board(s) | STM32F103VB, STP16DP05 |
|

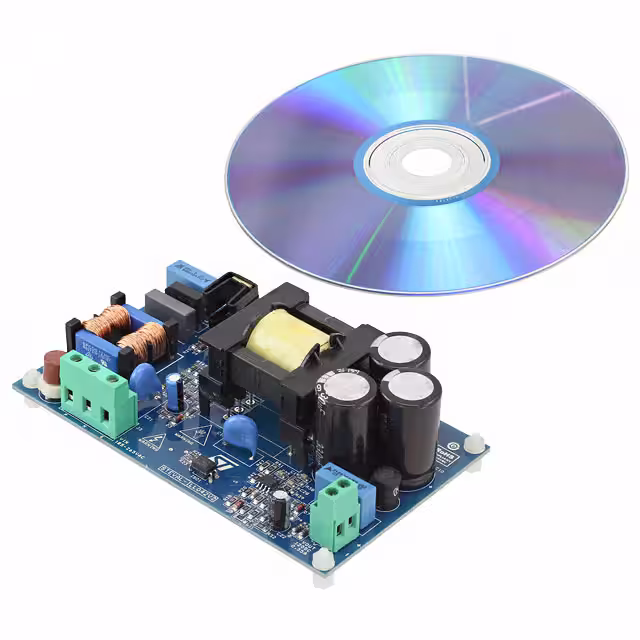

STEVAL-ILL042V2EVAL BOARD FOR L6562AT TSM101 |
2,555 |
|
Datasheet | - | Bulk | Obsolete | 462mA | 1 Isolated Output | 130V | - | 185 ~ 265 VAC | Board(s) | L6562AT, TSM101 |
|
|
EVAL-SSR01B-35WEVAL BOARD FOR HVLED001B |
4,235 |
|
- |
- | Bulk | Active | 700mA | 1 Non-Isolated Output | 24V ~ 48V | Dimmable | 90 ~ 265 VAC | Board(s) | HVLED001B |
|
STEVAL-ILL016V1EVAL BOARD FOR LD6562AD TSM1052 |
2,716 |
|
Datasheet | - | Box | Obsolete | 700mA | 1 Isolated Output | 40V | Dimmable | 96 ~ 132 VAC | Board(s) | LD6562AD, TSM1052 |
|

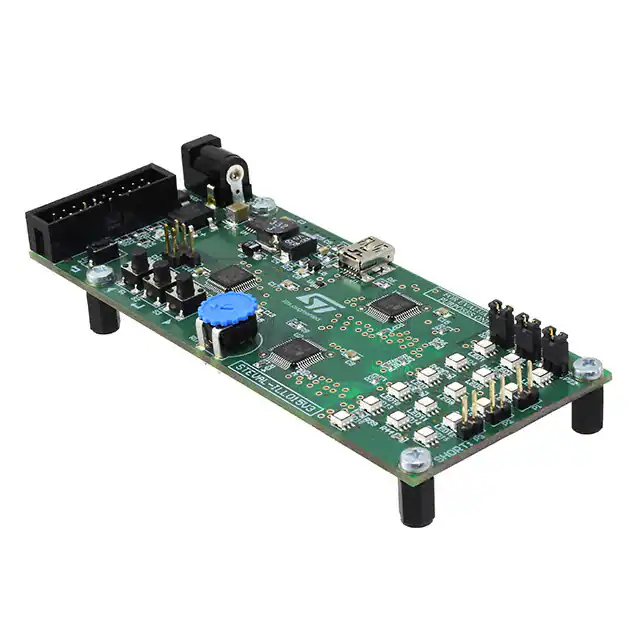

STEVAL-ILL015V3EVAL BOARD FOR LED2472G |
3,821 |
|
Datasheet | - | Bulk | Obsolete | 72mA | 16 Non-Isolated Outputs | 20V | - | 7.5V ~ 18V | Board(s) | LED2472G |
