LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
COM-13716EVAL BOARD FOR AL8805 |
362 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8805 |
|
WIG-13279EVAL BOARD FOR TPIC6C596 |
2,966 |
|
Datasheet | - | Bulk | Active | - | 8 Non-Isolated Outputs | - | - | 5V, 12V | Board(s) | TPIC6C596 |
|

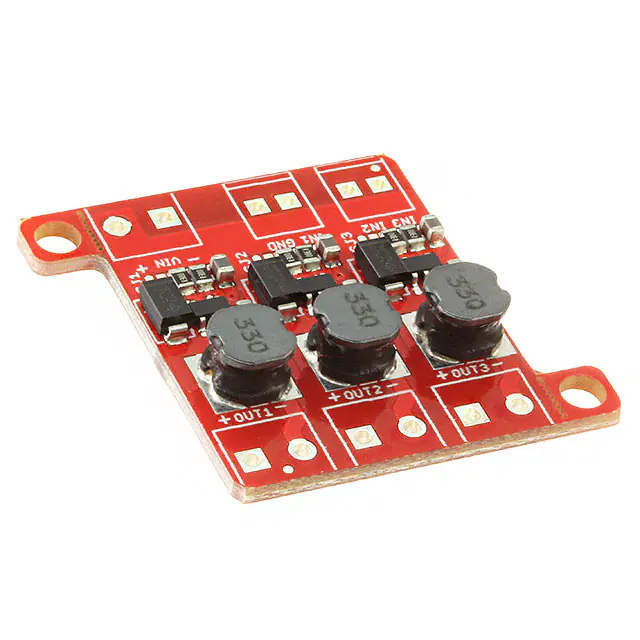

COM-13705EVAL BOARD FOR AL8860 |
2,408 |
|
Datasheet | - | Bulk | Active | 330mA | 3 Non-Isolated Outputs | - | Dimmable | 6V ~ 36V | Board(s) | AL8860 |
|

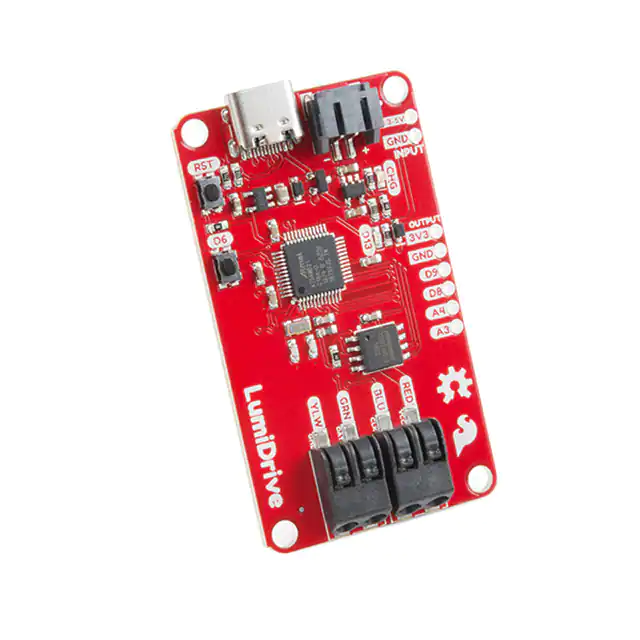

DEV-14779EVAL BOARD FOR ATSAMD21G |
1,004 |
|
Datasheet | - | Bulk | Active | 1.5A | 1 Non-Isolated Output | - | - | 5V, USB | Board(s) | ATSAMD21G |
|

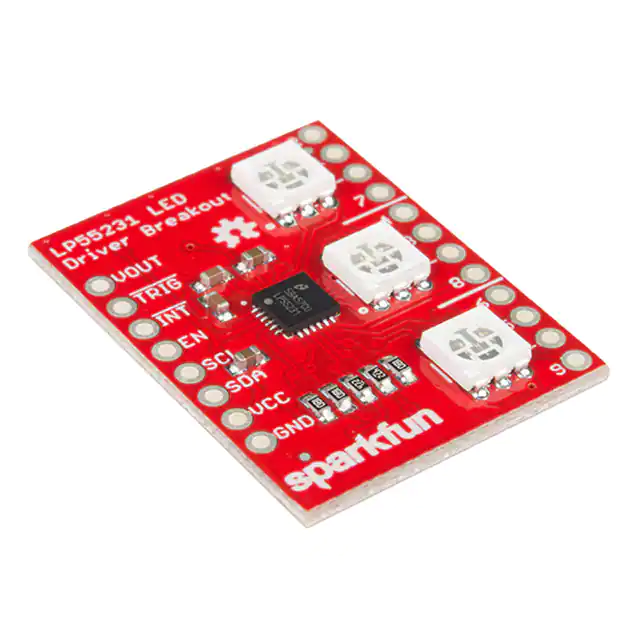

BOB-13884EVAL BOARD FOR LP55231 |
2,903 |
|
Datasheet | - | Bulk | Active | - | 9 Non-Isolated Outputs | - | - | 2.7V ~ 5.5V | Board(s) | LP55231 |
|

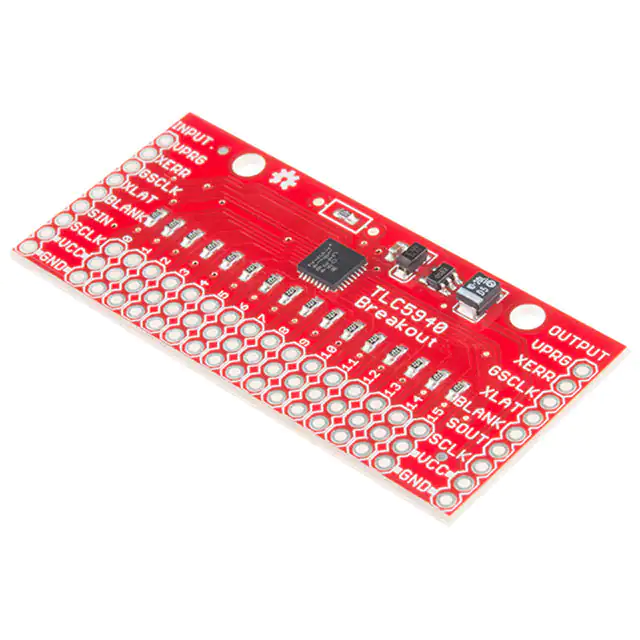

BOB-10616EVAL BOARD FOR TLC5940 |
3,413 |
|
Datasheet | - | Bulk | Active | - | - | - | - | 3V ~ 5.5V | Board(s) | TLC5940 |
|
COM-12937EVAL BOARD FOR AL8805 |
2,880 |
|
Datasheet | - | Bulk | Obsolete | 350mA | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8805 |
|

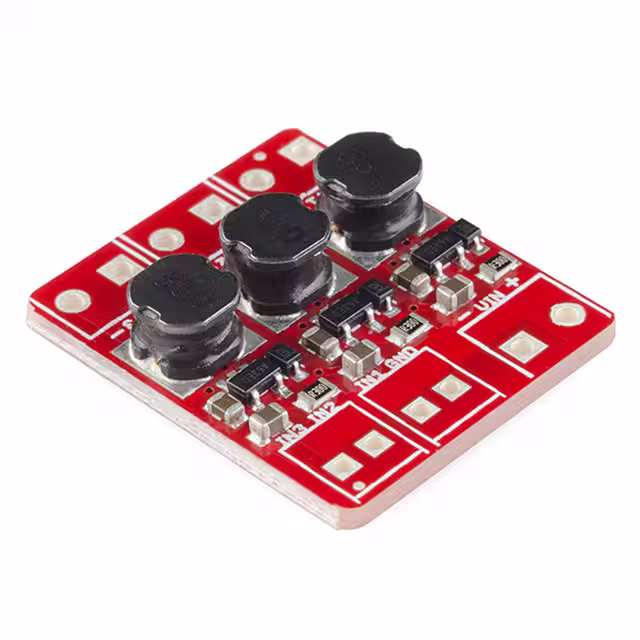

COM-11850EVAL BOARD FOR AL8805 |
3,366 |
|
Datasheet | - | Bulk | Obsolete | 680mA | 3 Non-Isolated Outputs | - | - | 6V ~ 20V | Board(s) | AL8805 |
