LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSLB9082FOBEVAL BOARD FOR MSL3162 |
1,786 |
|
Datasheet | - | Tube | Obsolete | - | 8 Non-Isolated Outputs | - | Dimmable | 10V ~ 16V | Board(s) | MSL3162 |
|
|
MSLB9082DGAEVAL BOARD FOR MSL3162 |
1,120 |
|
Datasheet | - | Tube | Obsolete | - | 8 Non-Isolated Outputs | - | Dimmable | 10V ~ 16V | Board(s) | MSL3162 |
|
|
MCP1650DM-LED1EVAL BOARD FOR MCP1651 |
1,599 |
|
Datasheet | - | Bulk | Obsolete | - | 1 Non-Isolated Output | - | Dimmable | 2V ~ 4.5V | Board(s) | MCP1651 |
|

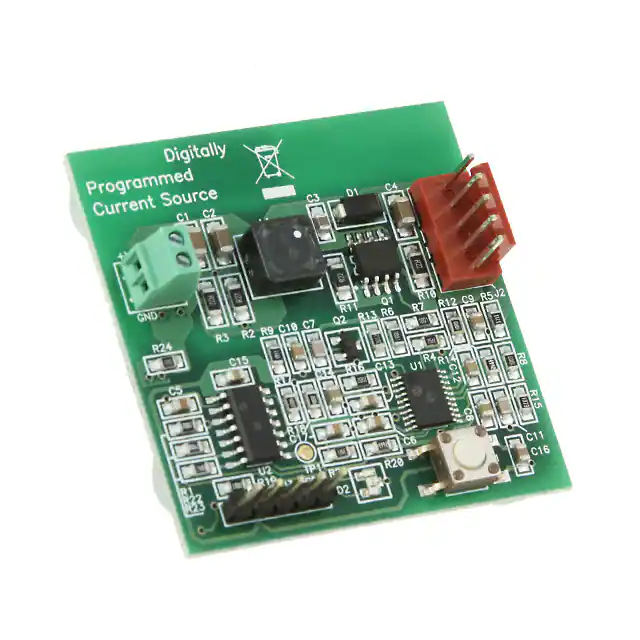

MCP1631RD-DCPC1EVAL BOARD FOR MCP1631HV |
2,665 |
|
Datasheet | - | Bulk | Active | 700mA | 1 Non-Isolated Output | - | - | 3.5V ~ 16V | Board(s) | MCP1631HV, PIC16F616 |
|

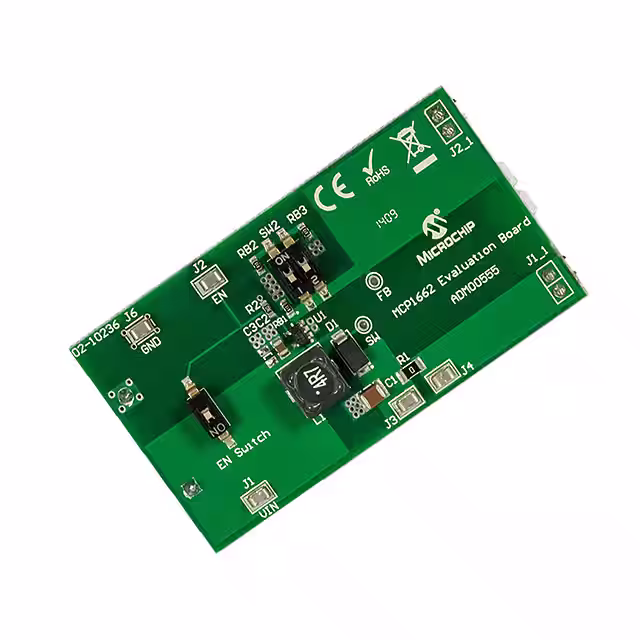

ADM00555EVAL BOARD FOR MCP1662 |
3,559 |
|
Datasheet | - | Bulk | Active | 90mA | 1 Non-Isolated Output | - | Dimmable | 2.4V ~ 5.5V | Board(s) | MCP1662 |
|
|
ADM00939EVAL BOARD FOR MIC3223 |
3,945 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | Dimmable | 6V ~ 20V | Board(s) | MIC3223 |
|
|
MSLB9082EVAL BOARD FOR MSL3162 |
4,444 |
|
Datasheet | - | Tube | Obsolete | - | 8 Non-Isolated Outputs | - | Dimmable | 10V ~ 16V | Board(s) | MSL3162 |
|

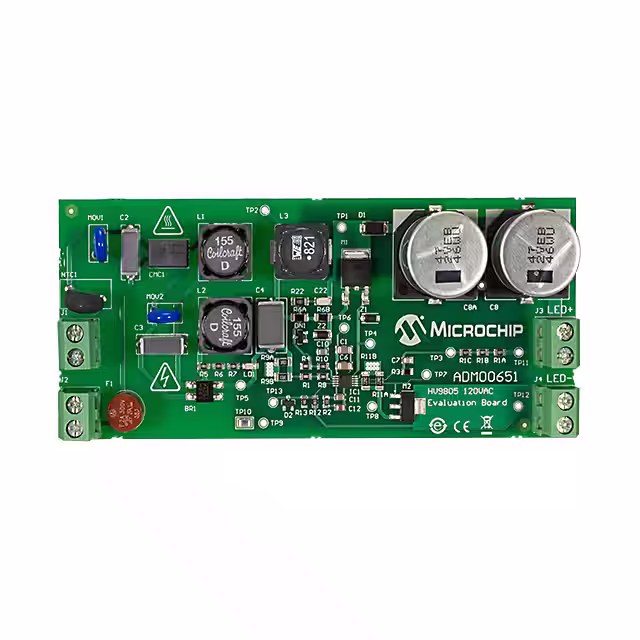

ADM00651EVAL BOARD FOR HV9805 |
4,253 |
|
Datasheet | - | Bulk | Active | 90mA | 1 Non-Isolated Output | 240V | - | 102 ~ 138 VAC | Board(s) | HV9805 |
|

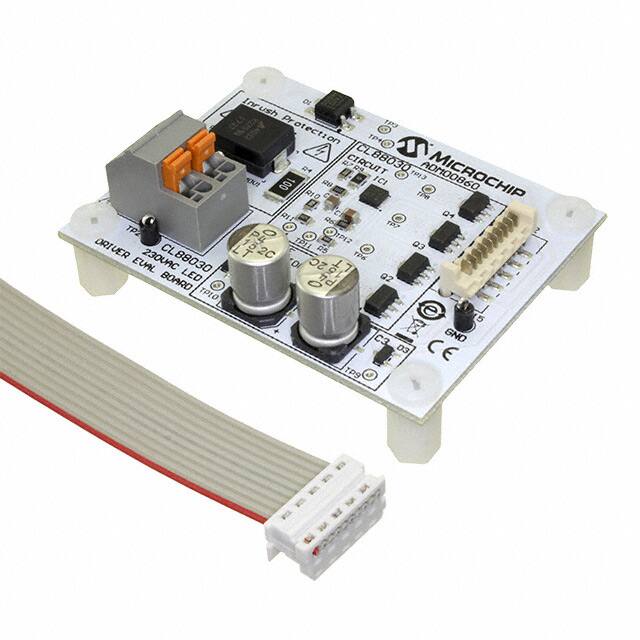

ADM00860EVAL BOARD FOR CL88030 |
1,329 |
|
Datasheet | - | Bulk | Active | 130mA | 1 Non-Isolated Output | - | Dimmable | 195.5 ~ 264.5 VAC | Board(s) | CL88030 |
|

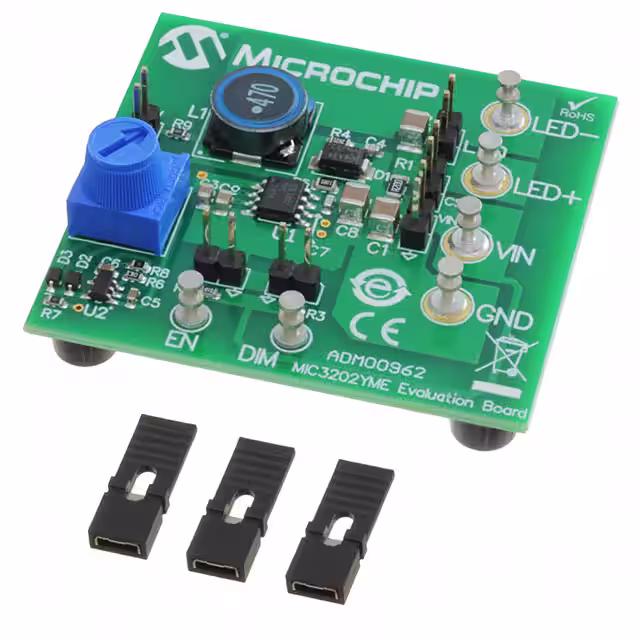

ADM00962EVAL BOARD FOR MIC3202 |
4,214 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | Dimmable | 6V ~ 37V | Board(s) | MIC3202 |
