Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3622ADAFRUIT AMG8833 IR THERMAL CAME |
4,713 |
|
Datasheet | Grid-EYE | Bulk | Active | Feather | Sensor | Temperature (IR) | AMG8833 | Board(s) |
|
MIKROE-2817PIXI CLICK |
1,026 |
|
Datasheet | PIXI™ | Bulk | Active | mikroBUS™ Click™ | Data Acquisition | ADC/DAC Module | MAX11300 | Board(s) |
|
MIKROE-2545RN4678 CLICK |
2,372 |
|
Datasheet | - | Bulk | Active | mikroBUS™ Click™ | RF | Bluetooth Low Energy (BLE) | RN4678 | Board(s) |
|
X-NUCLEO-OUT15A1NUCLEO BOARD IPS1025HF |
4,203 |
|
Datasheet | - | Bulk | Active | Nucleo | Power Management | Driver | IPS1025HF | Board(s) |
|
MIKROE-3116MULTIMETER CLICK |
1,982 |
|
Datasheet | - | Bulk | Active | mikroBUS™ Click™ | Sensor | Capacitance, Current, Resistance, Voltage | MCP3204 | Board(s) |
|
MIKROE-4443ARDUINO NANO CLICK SHIELD |
4,303 |
|
Datasheet | - | Bulk | Active | Arduino Nano | Interconnect Adapter | mikroBUS Click to Arduino Nano | TXS0108E | Board(s) |
|

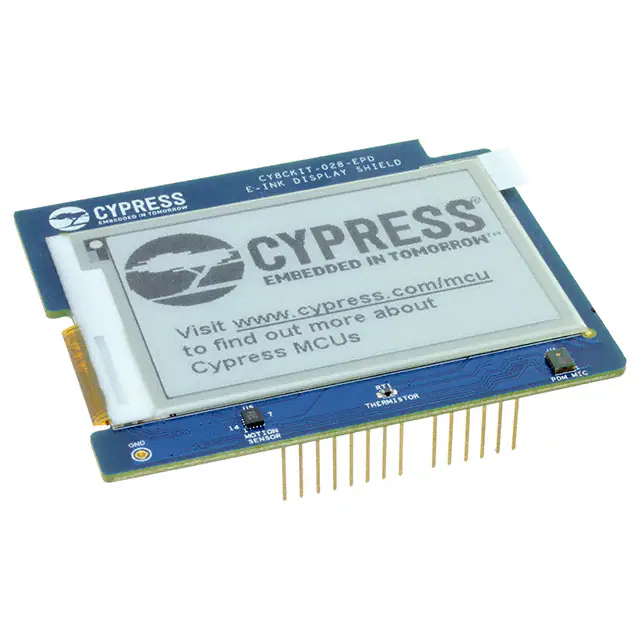

CY8CKIT-028-EPDSHIELD SENSORS MIC AND E-INK |
3,783 |
|
Datasheet | - | Bulk | Active | Arduino, Pioneer | Display | eInk Electronic ePaper 2.7" | - | Board(s) |
|
SEN0231GRAVITY: FORMALDEHYDE (HCHO) SEN |
4,577 |
|
Datasheet | - | Bulk | Active | Gravity | Sensor | Formaldehyde (HCHO) | - | Board(s), Cable(s) |
|
COM-19038MICROMOD SINGLEPAIR ETHERNET BRD |
2,280 |
|
Datasheet | - | Bulk | Active | MicroMod | Interface | Ethernet | ADIN1110 | Board(s) |
|
BOOSTXL-ULPSENSEULP SENSE BOOSTERPACK |
2,920 |
|
Datasheet | SimpleLink™ | Bulk | Active | LaunchPad™ | Sensor | Accelerometer, Light | - | Board(s) |
|
MIKROE-5097DAC 12 CLICK |
2,801 |
|
Datasheet | - | Box | Active | mikroBUS™ Click™ | Data Acquisition | Digital to Analog Converter (DAC) | DAC60508 | Board(s) |
|
MIKROE-3169PWR METER CLICK |
4,184 |
|
Datasheet | - | Bulk | Active | mikroBUS™ Click™ | Power Management | Current, Power, Voltage Monitor | MCP39F511A | Board(s) |
|
MIKROE-411510X10 RGB CLICK |
4,776 |
|
- |
- | Bulk | Active | mikroBUS™ Click™ | Opto | LED Matrix | WS2812 | Board(s) |
|
BTS70302EPADAUGHBRDTOBO1PROFET +2 12V BTS7030-2EPA DAUGH |
3,135 |
|
Datasheet | PROFET™+ | Box | Active | - | Power Management | Switch | BTS7030-2EPA | Board(s) |
|
EVAL-LTC4306-PMDZPMOD BOARD LTC4306 |
2,330 |
|
Datasheet | - | Bulk | Active | Pmod™ | Interface | Multiplexer (MUX) | LTC4306 | Board(s) |
|
|
IQS7211AEV02A-S2 X IQS7211A STAMP, 1 X FLOWER T |
4,323 |
|
Datasheet | IQ Switch® ProxFusion® | Box | Active | - | Sensor | Capacitive Touch | IQS7211A | Board(s) |
|
EVAL-CN0335-PMDZPMOD BOARD 12BIT 300KSPS ADC |
1,626 |
|
- |
Circuits from the Lab™ | Box | Active | Pmod™ | Data Acquisition | Analog to Digital Converter (ADC) | AD7091R, AD8606, ADuM5401 | Board(s) |
|
EVAL-CN0216-ARDZSHIELD BOARD WEIGH SCALE AD7791 |
2,162 |
|
Datasheet | Circuits from the Lab™ | Box | Active | Arduino | Sensor | Weight Scale | AD7791, ADA4528-2 | Board(s) |
|
EVAL-CN0336-PMDZPMOD BOARD 12BIT 300KSPS ADC |
1,195 |
|
- |
Circuits from the Lab™ | Box | Active | Pmod™ | Data Acquisition | Analog to Digital Converter (ADC) | AD7091R, AD8606, ADuM5401 | Board(s) |
|
EVAL-CN0337-PMDZPMOD BRD RTD SENSOR CONDITIONER |
1,792 |
|
- |
Circuits from the Lab™ | Box | Active | Pmod™ | Interface | Sensor Conditioner | AD7091R, AD8608, ADuM5401 | Board(s) |
