Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

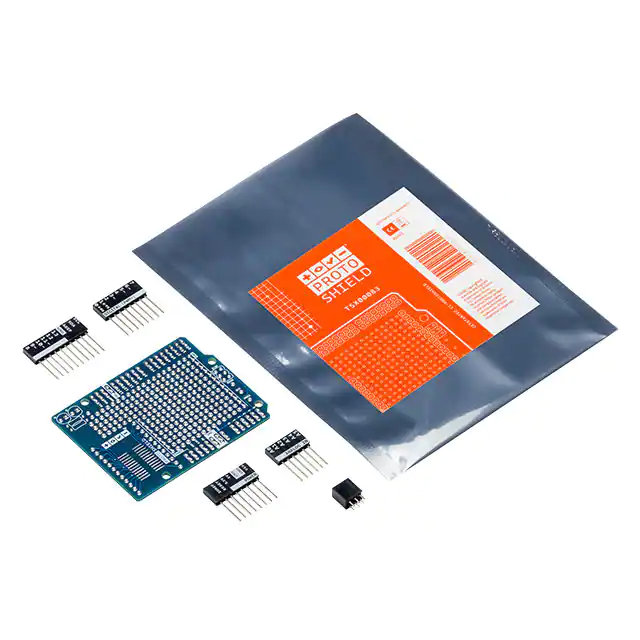

TSX00083PROTO SHIELD REV3 |
249 |
|
Datasheet | - | Bulk | Active | Arduino | Protoboard | Plated Through Hole | - | Board(s) |
|

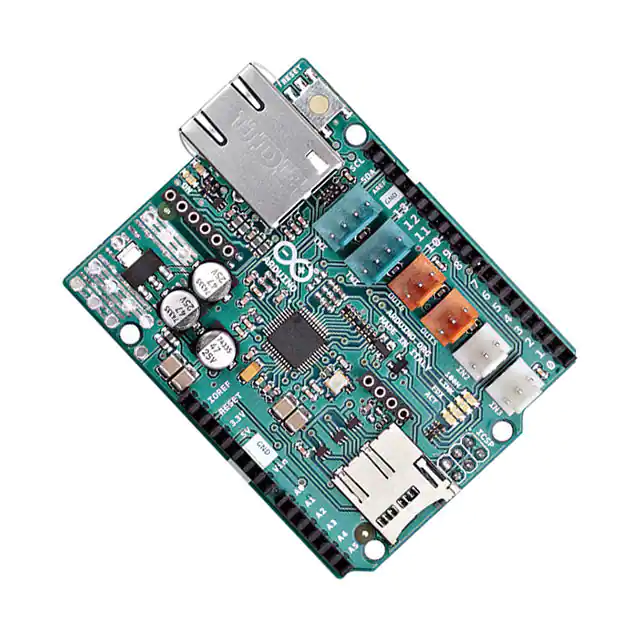

A000024ETHERNET SHIELD 2 W5500 W/O POE |
615 |
|
Datasheet | - | Box | Active | Arduino | Interface | Ethernet | W5500 | Board(s) |
|

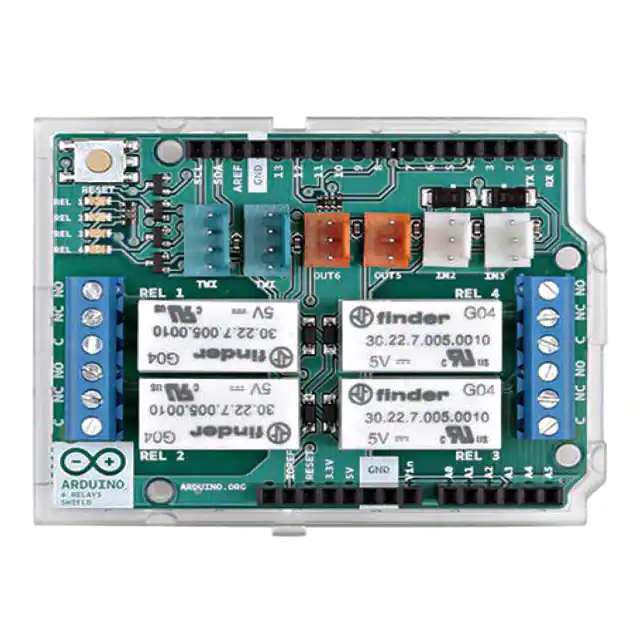

A000110ARDUINO 4 RELAYS SHIELD |
207 |
|
Datasheet | - | Box | Active | Arduino | Relay | Electromechanical | - | Board(s) |
|
ASX00049PORTENTA HAT CARRIER |
873 |
|
Datasheet | - | Box | Active | - | - | - | - | - |
|

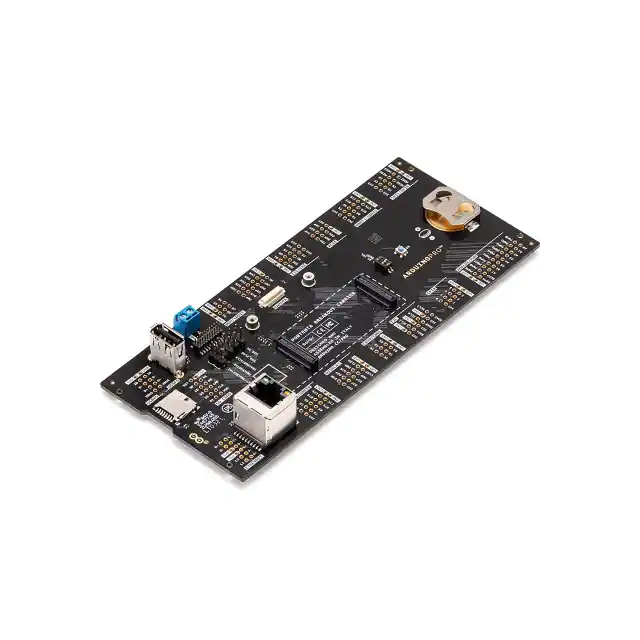

ASX00031BREAKOUTBOARD BOARD FOR PORTENTA |
145 |
|
Datasheet | - | Bulk | Active | Arduino | Connectivity | Breakout Board | - | Board(s), Cable(s) |
|
|
ASX00039ARDUINO GIGA DISPLAY |
193 |
|
Datasheet | - | Box | Active | - | - | - | - | - |
|

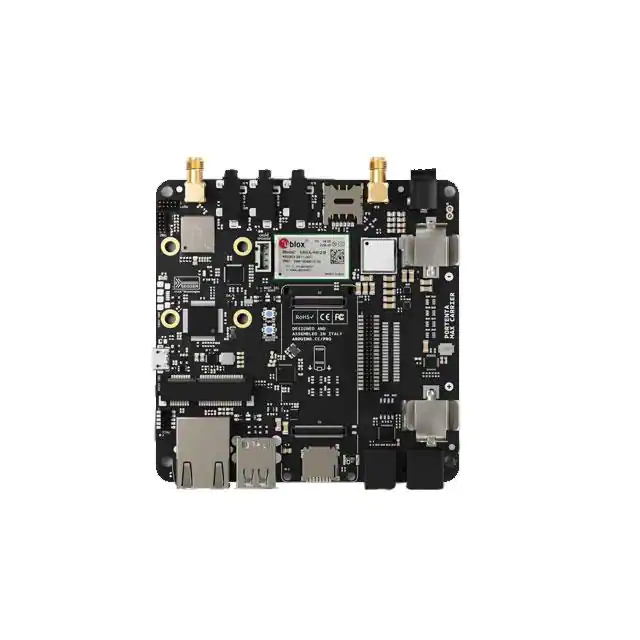

ABX00043PORTENTA MAX CARRIER |
124 |
|
Datasheet | - | Bulk | Active | Arduino | Connectivity | Carrier Board | CMWX1ZZABZ-078, CS42L52, NCP383LMUAJAATXG, SN74LVC1T45, TJA1049T/3J, USB2514B/M2 | Board(s) |
|

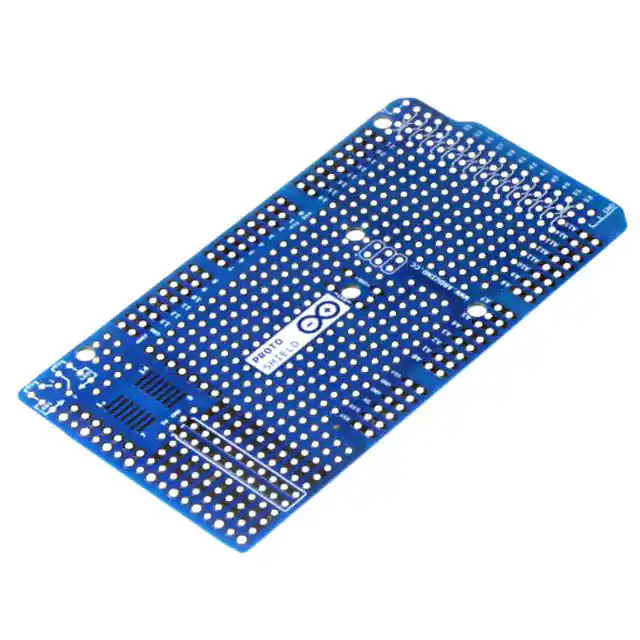

A000080SHIELD - MEGA PROTO PCB REV3 |
115 |
|
Datasheet | - | Box | Active | Arduino Mega | Protoboard | Plated Through Hole | - | Board(s) |
|

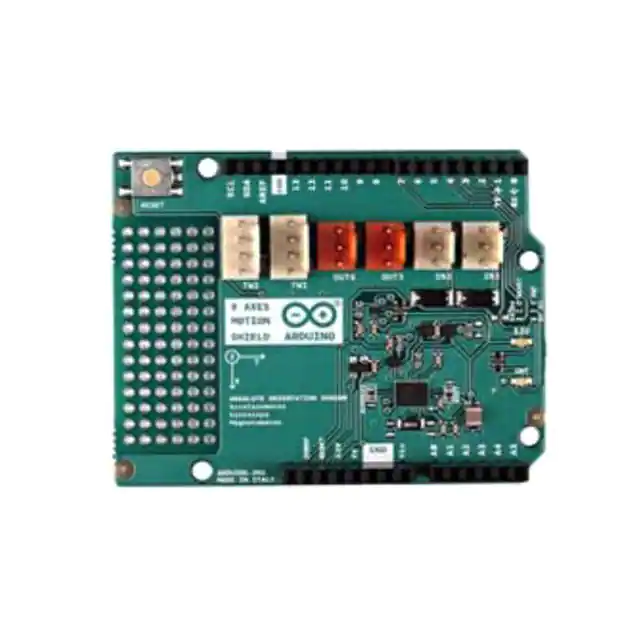

A000070ARDUINO 9 AXIS MOTION SHIELD |
424 |
|
Datasheet | - | Box | Active | Arduino | Sensor | Accelerometer, Gyroscope, Magnetometer | BNO055 | Board(s) |
|

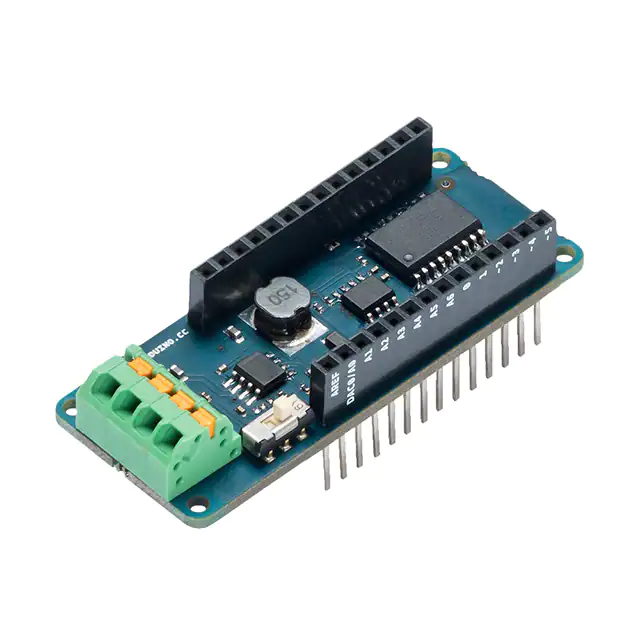

ASX00005ARDUINO MKR CAN SHLD SCREW TERM |
103 |
|
Datasheet | - | Bulk | Active | MKR | Interface | CANbus | MCP2515, TJA1049 | Board(s) |
