Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASD2831-RREALTIMECLOCKTINYSHIELD |
1,885 |
|
Datasheet | - | Bulk | Active | TinyDuino | Clock Timing | Real Time Clock (RTC) | DS1339 | Board(s) |
|

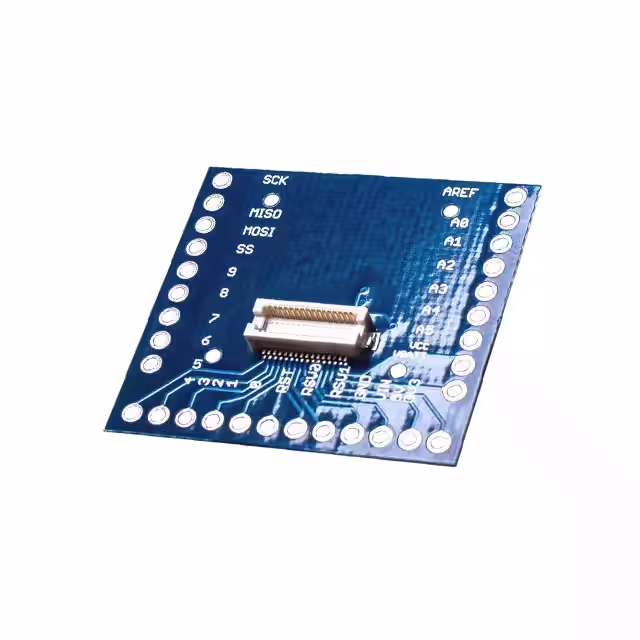

ASD2005-RPROTOTERMINAL NOTINSTALLED |
1,906 |
|
- |
- | Bulk | Active | TinyDuino | Connectivity | Screw Terminal | - | Board(s) |
|
AST1003CAPACITIVE TOUCH SLIDER WIRELING |
3,587 |
|
Datasheet | - | Bulk | Active | Wireling | Sensor | Capacitive Touch | ATtiny841 | Board(s) |
|
AST1031AUDIO AMPLIFIER WIRELING |
4,000 |
|
Datasheet | - | Bulk | Active | Wireling | Audio | Amplifier | NCP2820 | Board(s) |
|
ASD2202-R-EEEPROMTINYSHIELD |
3,907 |
|
Datasheet | - | Bulk | Active | TinyDuino | Memory | EEPROM | 24FC1025 | Board(s) |
|

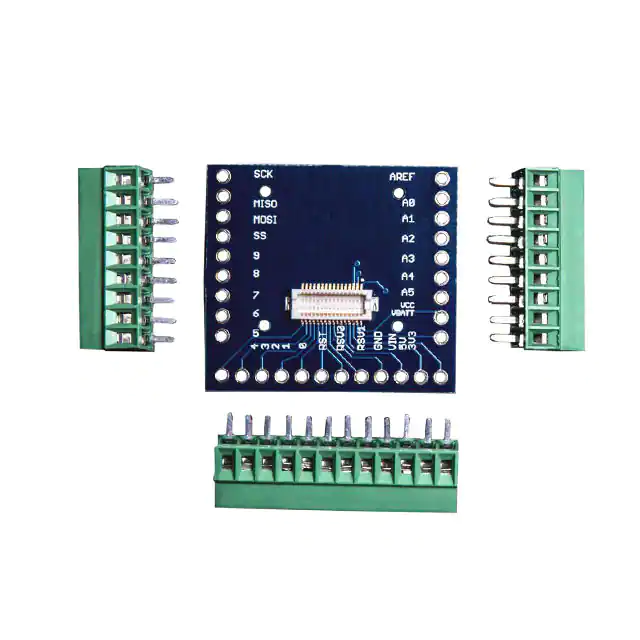

ASD2005-R-TPROTOTERMINAL INCLUDED NOTSOLDER |
4,386 |
|
- |
- | Bulk | Active | TinyDuino | Connectivity | Screw Terminal | - | Board(s), Header(s) |
|
ASD2202-R-SSRAM TINYSHIELD |
2,848 |
|
Datasheet | - | Bag | Active | TinyDuino | Memory | SRAM | 23LC1024 | Board(s) |
|
AST10140.69" OLED SCREEN WIRELING |
2,215 |
|
Datasheet | - | Bulk | Active | Wireling | Display | OLED 0.69" | ER-OLED0.69-1W | Board(s) |
|

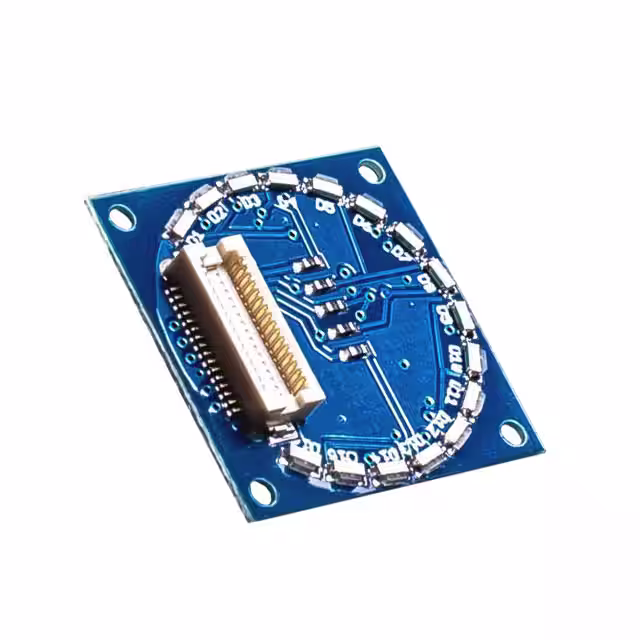

ASD2411-R-LRTINYSHIELD16EDGELEDS- RED |
2,733 |
|
Datasheet | - | Bulk | Active | TinyDuino | Opto | LED Array Circular | - | Board(s) |
|

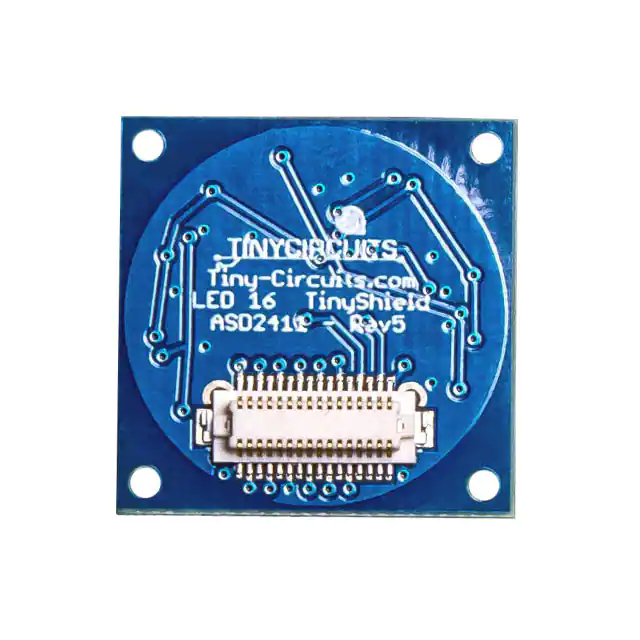

ASD2411-R-LATINYSHIELD16EDGELEDS- AMBER |
1,875 |
|
- |
- | Bulk | Active | TinyDuino | Opto | LED Array Circular | - | Board(s) |
