Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SHIELD-LOL-3MM-WHITEEVAL BOARD |
1,633 |
|
- |
- | Bulk | Active | Arduino | Opto | LED White | - | Board(s) |
|
|
SHIELD-LOL-3MM-BLUEEVAL BOARD |
4,042 |
|
- |
- | Bulk | Active | Arduino | Opto | LED Blue | - | Board(s) |
|

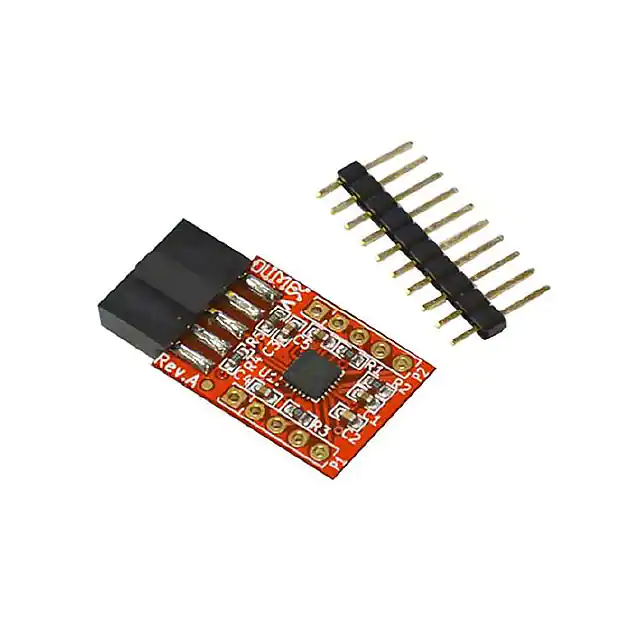

MOD-MPU9150UEXT BOARD MPU9150 9-AXIS MOTION |
1,287 |
|
Datasheet | MotionTracking™ | Bulk | Not For New Designs | UEXT | Sensor | Accelerometer, Gyroscope, Magnetometer | MPU-9150 | Board(s) |
|

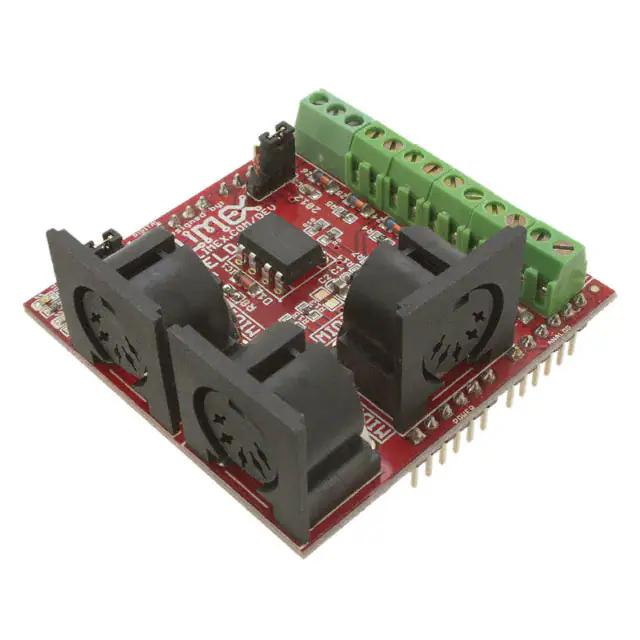

SHIELD-MIDIOLIMEX ARDUINO MIDI SHIELD |
1,255 |
|
Datasheet | - | Box | Active | Arduino | Interface | MIDI | - | Board(s) |
|

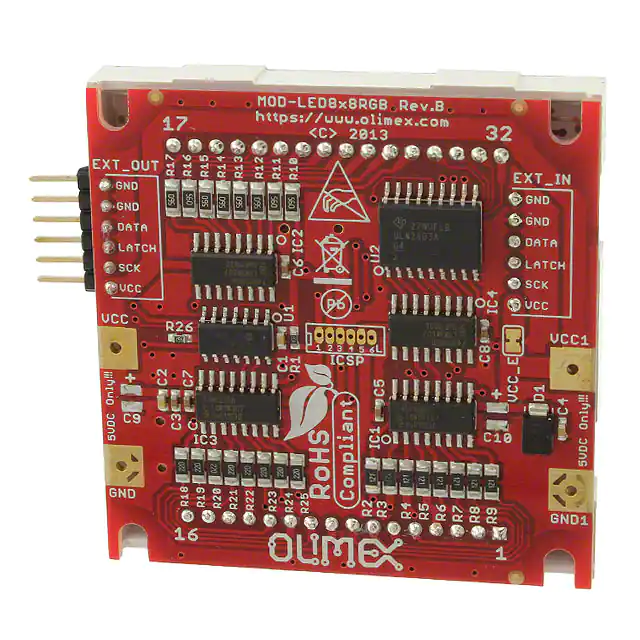

MOD-LED8X8RGBLED BD MSP430 MATRIX RGB 8X8 |
3,525 |
|
Datasheet | - | Bulk | Active | LaunchPad™ | Opto | LED Matrix | PIC16F1503 | Board(s) |
|

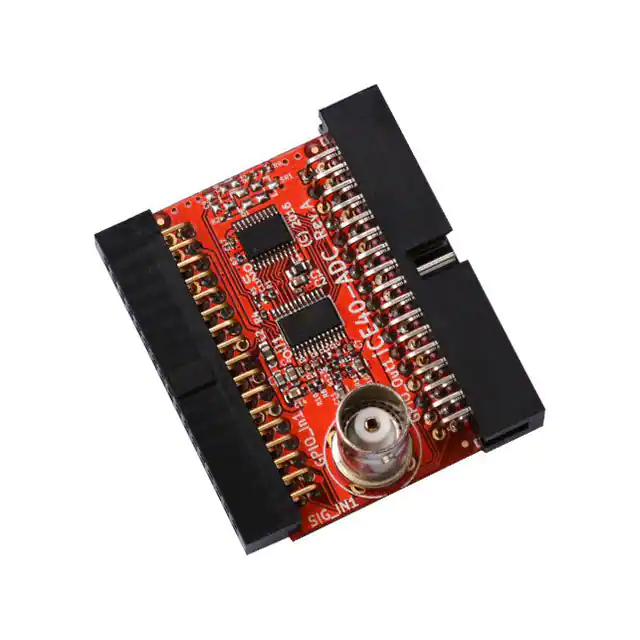

ICE40-ADCEXTENSION MODULE FOR ICE40HX1K-E |
4,620 |
|
Datasheet | - | Bulk | Not For New Designs | - | Data Acquisition | Analog to Digital Converter (ADC) | ADC08100 | Board(s) |
|

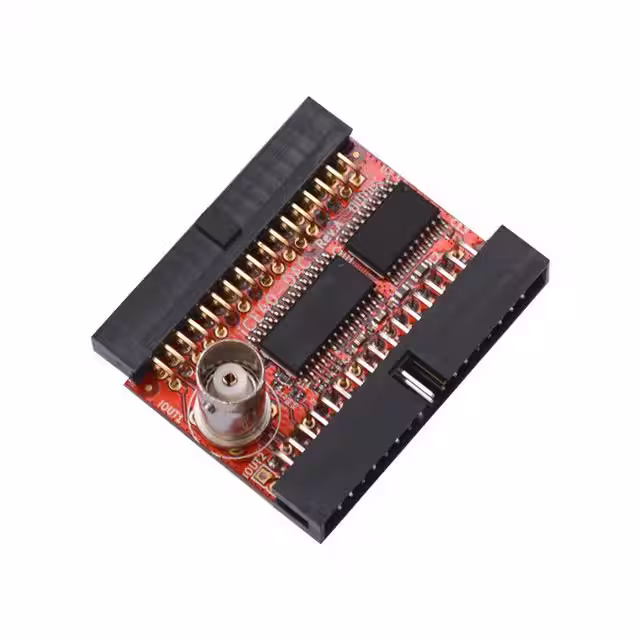

ICE40-DACEXTENSION MODULE FOR ICE40HX1K-E |
3,529 |
|
Datasheet | CommsDAC™ | Bulk | Not For New Designs | - | Data Acquisition | Digital to Analog Converter (DAC) | THS5641A | Board(s) |
|
ICE40-DIOICE40-DIO DIGITAL INPUT / OUTPUT |
2,783 |
|
Datasheet | - | Bulk | Not For New Designs | - | Interface | Digital I/O | - | Board(s) |
|
|
SHIELD-LOL-5MM-WHITEEVAL BOARD |
2,327 |
|
- |
- | Bulk | Active | Arduino | Opto | LED White | - | Board(s) |
|
|
SHIELD-LOL-5MM-REDEVAL BOARD |
2,289 |
|
- |
- | Bulk | Active | Arduino | Opto | LED Red | - | Board(s) |
