Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

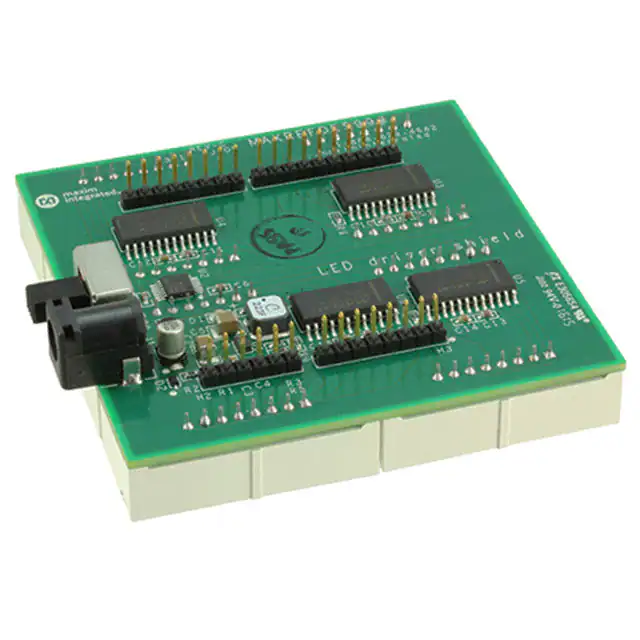

MAXREFDES99#LED DRIVER SHIELD |
3,385 |
|
- |
- | Box | Active | Arduino | Power Management | LED Driver | MAX7219 | Board(s) |
|
MAX33074ESHLD#DUAL VOLTAGE 20MBPS HALF DUPLEX |
3,284 |
|
Datasheet | - | Box | Active | - | Interface | RS485 | MAX33074E | Board(s) |
|

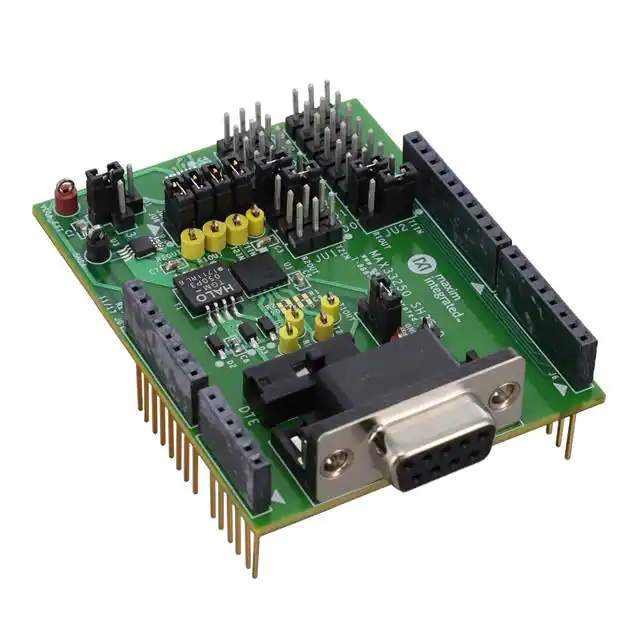

MAX33250ESHLD#EVAL DUAL TXRX RS232 MAX33250 |
2,610 |
|
Datasheet | - | Box | Active | Arduino | Interface | RS232 | MAX33250E | Board(s) |
|

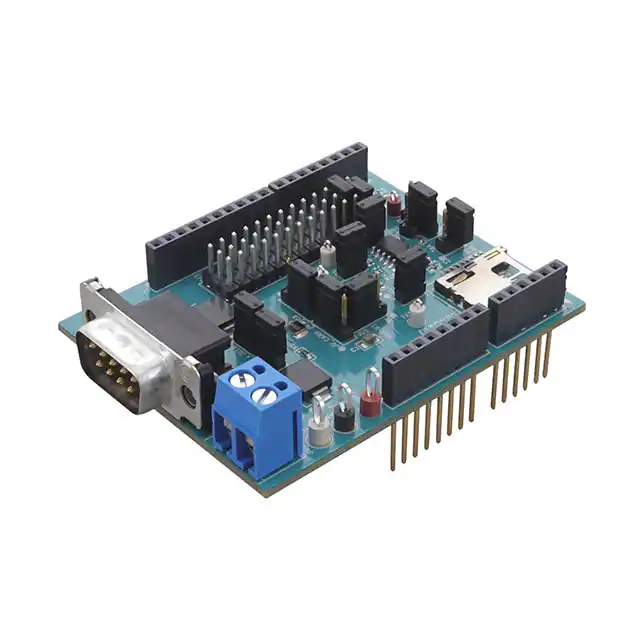

MAX33012ESHLD#CAN TRANSCEIVER WITH +/-65V FP, |
2,199 |
|
Datasheet | - | Box | Active | Arduino | Interface | CANbus | MAX33012E | Board(s) |
|

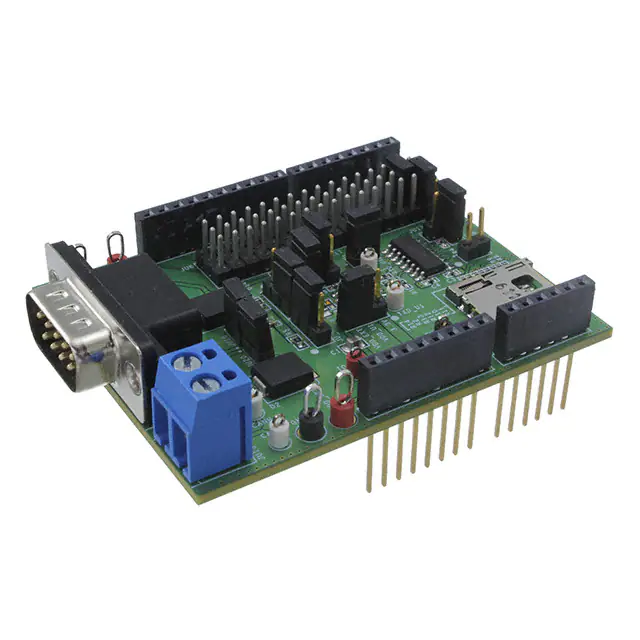

MAX33054ESHLD#EVAL MAX33054 TXRX CAN |
2,163 |
|
Datasheet | - | Box | Active | Arduino | Interface | CANbus | MAX33054E | Board(s) |
|

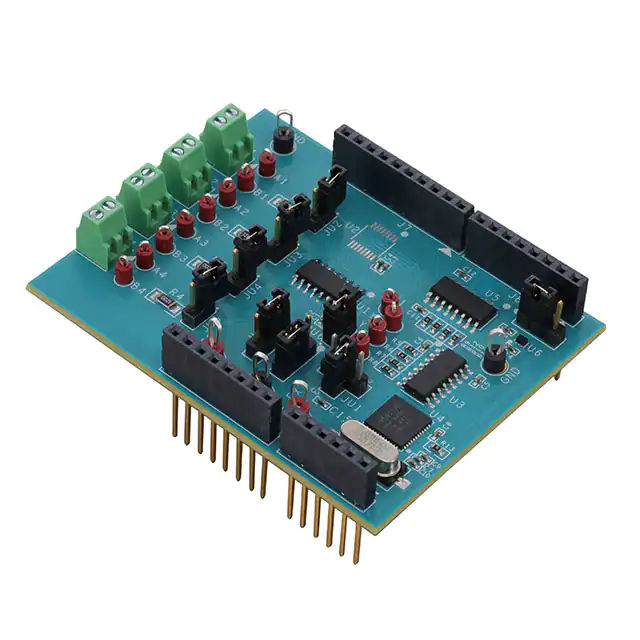

MAX33076ESHLD#MAX33076E SHIELD |
3,167 |
|
Datasheet | - | Box | Active | Arduino | Interface | RS422, RS485 | MAX33076E | Board(s) |
|
MAX31343SHLD#MAX31343 RTC SHIELD |
2,461 |
|
Datasheet | - | Box | Active | Arduino | Clock Timing | Real Time Clock (RTC) | MAX31343 | Board(s), Cable(s) |
|

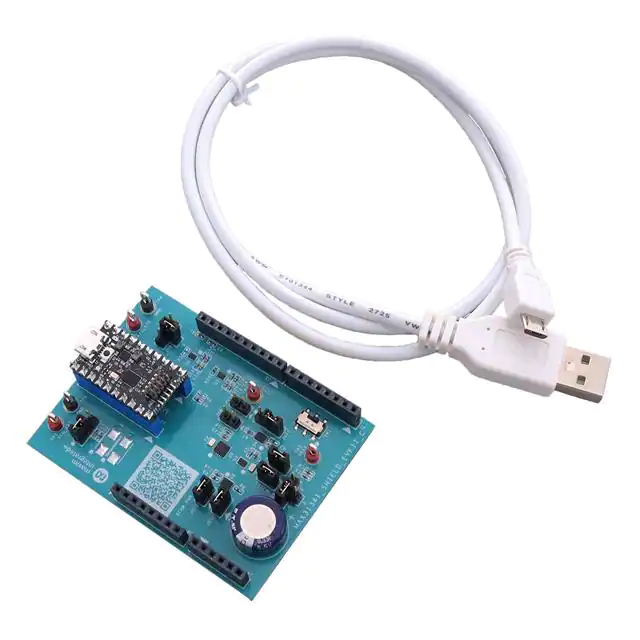

MAX31341SHLD#EVKIT FOR LOW CURRENT REAL TIME |
2,287 |
|
Datasheet | - | Box | Active | mikroBUS™ Click™ | Clock Timing | Real Time Clock (RTC) | MAX31341 | Board(s) |
|
MAX30003WING2#ECG AFE FEATHER BRD |
1,937 |
|
Datasheet | - | Box | Active | Feather | Interface | Front End | MAX30003 | Board(s) |
|

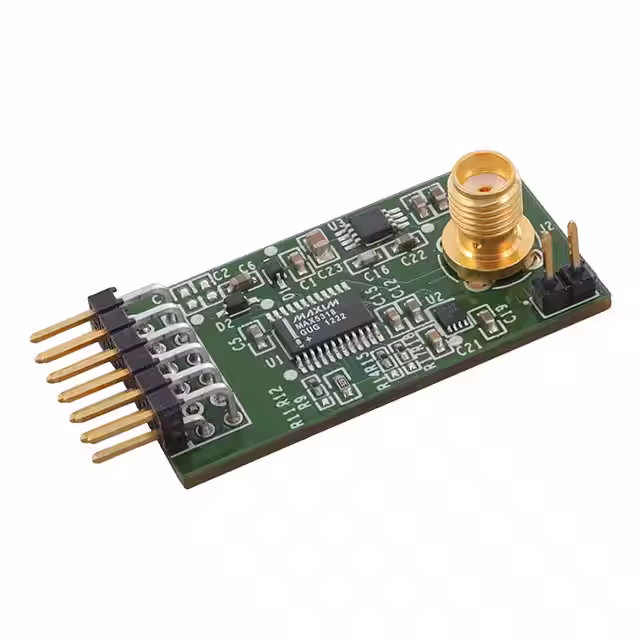

MAX5318PMB#MAX5318PMB# PERIPHERAL MODULE |
4,564 |
|
Datasheet | - | Box | Active | Pmod™ | Data Acquisition | Digital to Analog Converter (DAC) | MAX5318 | Board(s) |
