Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U108SCALES UNIT WITH 20KGS RANGE(HX7 |
2,569 |
|
Datasheet | - | Retail Package | Active | M5Stack | Sensor | Weight Scale | HX711, SK6812, STM32F030 | Board(s), Cable(s) |
|
U069M5STICKC ADC HAT ADS1100 |
3,314 |
|
Datasheet | - | Retail Package | Active | M5StickC | Data Acquisition | Analog to Digital Converter (ADC) | ADS1100 | Board(s), Accessories |
|
U118M5STICKC HEART RATE HAT (MAX3010 |
2,607 |
|
- |
- | Bulk | Active | M5Stack | Sensor | Heart Rate | MAX30102 | Board(s) |
|
K115-BM5STACK ATOM LITE- LCD DISPLAY D |
3,450 |
|
Datasheet | - | Bulk | Active | Arduino | Display | Display Adapter LCD | ESP32-PICO-D4 | Board(s) |
|

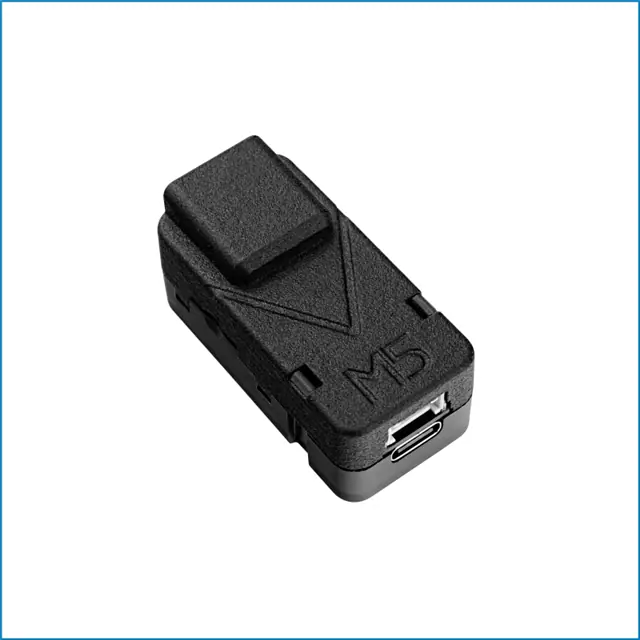

U078-USBUNITV2 USB VERSION W/O CAMERA |
1,086 |
|
Datasheet | - | Bulk | Active | M5Stack | Interface | USB | SSD202D | Board(s), Cable(s), Accessories |
|
|
U159M5STICKC VIBRATION HAT |
2,569 |
|
Datasheet | - | Bulk | Active | M5Stack | Motor/Haptic | Haptic/Vibration Motor | Z3OC1T8219731 | Board(s) |
|
|
A114ATOM PWM BASE W/O ATOM LITE |
3,149 |
|
- |
- | Bulk | Active | M5Atom | Power Management | Motor Controller/Driver | EG27324, FDD8447L | Board(s), Accessories |
|
|
U183DMX UNIT WITH ISOLATED RS-485 TR |
4,183 |
|
Datasheet | - | Retail Package | Active | M5Stack | Interface | DMX512 Lighting | CA-IS3092W | Board(s), Cable(s) |
|
|
A103ATOM CANBUS W/O ATOM LITE |
2,545 |
|
- |
- | Bulk | Active | M5Stack | Interface | CANbus | CA-IS3050G | Board(s), Accessories |
|
|
U069-V11M5STICKC ADC HAT ADS1100 V1.1 |
2,197 |
|
Datasheet | - | Bulk | Active | Arduino, UIFlow (Blocky, Python) | Data Acquisition | Analog to Digital Converter (ADC) | ADS1100 | Board(s), Accessories |
