Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC231XEVAL BOARD FOR FT231X |
158 |
|
Datasheet | USBmadeEZ-UART, FT-X, X-Chip | Bulk | Active | Interface | USB 2.0 to UART | - | FT231X | - | USB Charging Detection | Board(s) |
|

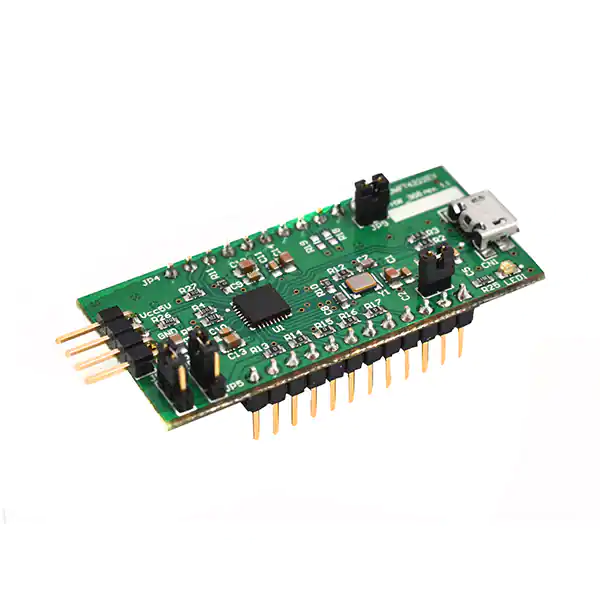

UMFT4222EV-DEVAL BOARD FOR FT4222H |
560 |
|
Datasheet | - | Bulk | Active | Interface | USB 2.0 to I2C/SPI Bridge | - | FT4222H | - | - | Board(s) |
|

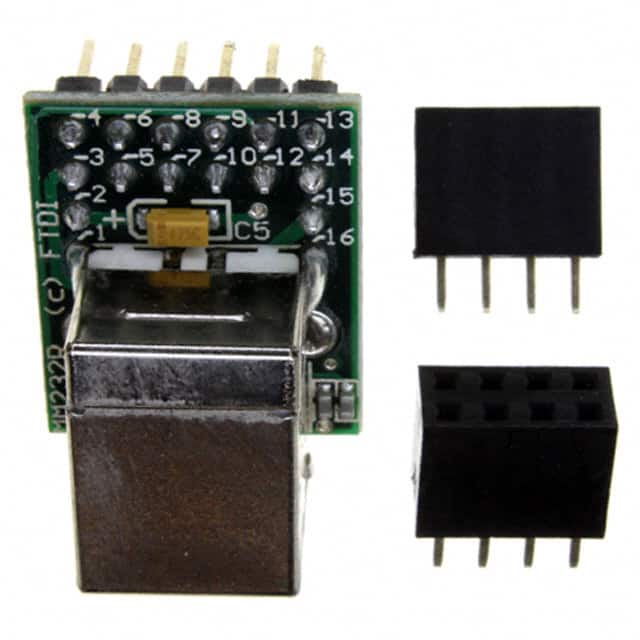

MM232REVAL BOARD FOR FT232R |
1,292 |
|
Datasheet | - | Box | Active | Interface | USB 2.0 to UART (RS232/RS422/RS485) Bridge | No | FT232R | Full Speed, Rates of 300 ~ 3MBaud, Security ID Number | 6 ~ 48MHz Clock Generator Output, Royalty-Free Drivers | Board(s), Accessories |
|

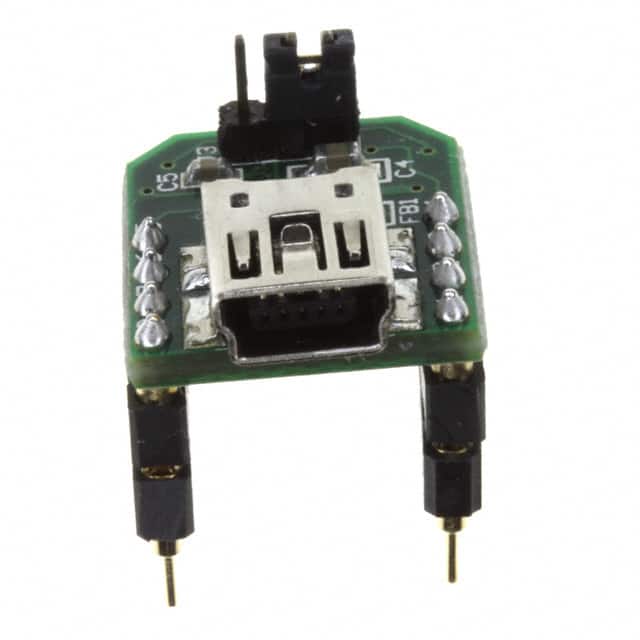

UB232REVAL BOARD FOR FT232R |
235 |
|
Datasheet | - | Box | Active | Interface | USB 2.0 to UART (RS232) Bridge | No | FT232R | Full Speed, 300Baud to 3Mbaud, Security ID Number | Royalty-Free Drivers | Board(s) |
|
UM232REVAL BOARD FOR FT232R |
376 |
|
Datasheet | - | Box | Active | Interface | USB 2.0 to UART (RS232) Bridge | No | FT232R | Full Speed, Rates of 300 ~ 3MBaud, Security ID Number | 6 ~ 48MHz Clock Generator Output, Royalty-Free Drivers | Board(s) |
|
EVAL232REVAL BOARD FOR FT232R |
307 |
|
Datasheet | - | Box | Active | Interface | USB 2.0 to UART (RS232) Bridge | No | FT232R | Full Speed, Rates of 300 ~ 3MBaud, Security ID Number | 6 ~ 48MHz Clock Generator Output, Royalty-Free Drivers | Board(s) |
|
UM232HEVAL BOARD FOR FT232H |
299 |
|
Datasheet | - | Box | Active | Interface | USB 2.0 to Serial FIFO Bridge | No | FT232H | High Speed (480Mbps) Transceiver | On-Board LEDs | Board(s) |
|
VDIP1EVAL BOARD FOR VNC1L-1A |
219 |
|
Datasheet | Vinculum | Bulk | Not For New Designs | Interface | USB 2.0 Host/Controller | Yes, ASIC | VNC1L-1A | Single A-Type Connector, UART / Parallel FIFO / SPI Interfaces | Second USB Port is Available via Pins, Traffic LEDs | Board(s) |
|
FT2232H MINI MODULEEVAL BOARD FOR FT2232H |
419 |
|
Datasheet | - | Bulk | Active | Interface | USB 2.0 to I2C, JTAG, SPI, UART | No | FT2232H | High Speed, Asynch Serial Data from 300baud ~ 12Mbaud at TTL Levels | - | Board(s) |
|
|
FT4232H MINI MODULEEVAL BOARD FOR FT4232H |
268 |
|
Datasheet | - | Bulk | Active | Interface | USB 2.0 to UART (RS232) Bridge | Yes, ASIC | FT4232H | High-Speed, 300baud ~ 12Mbaud, Security ID Number | - | Board(s) |
