Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NM-ISD15100EVAL BOARD FOR ISD15100 |
4,900 |
|
Datasheet | ChipCorder® | Box | Active | Audio | Voice Record/Playback | - | ISD15100 | - | - | Board(s) |
|
EV_INMP521-FXEVAL BOARD FOR INMP521 |
4,923 |
|
Datasheet | - | Box | Not For New Designs | Audio | MEMS Omnidirectional Microphones | No | INMP521 | - | Digital Output | Board(s) |
|
VM816C50A-NEVAL BOARD FOR BT816 |
1,923 |
|
Datasheet | EVE2 | Box | Active | Display | LCD Controller | - | BT816 | Audio, Display and Touch Functions | SPI Interface(s) | Board(s) |
|
ADM00309EVAL BOARD 8-MSOP 10-DIP 10-MSOP |
2,642 |
|
Datasheet | - | Bulk | Active | - | - | No | 8-MSOP, 10-DIP, 10-MSOP | - | - | Unpopulated (Bare) Board(s) |
|
TEA6017DK1005EVAL BOARD FOR TEA6017AT |
4,532 |
|
Datasheet | - | Box | Active | Power Management | Power Factor Correction | No | TEA6017AT | ESD Protection | I2C Interface(s) | Board(s) |
|
EV-LTC6655-REFZEVAL BOARD FOR LTC6655 |
4,052 |
|
Datasheet | - | Box | Active | Power Management | Voltage Reference | No | LTC6655 | - | - | Board(s) |
|

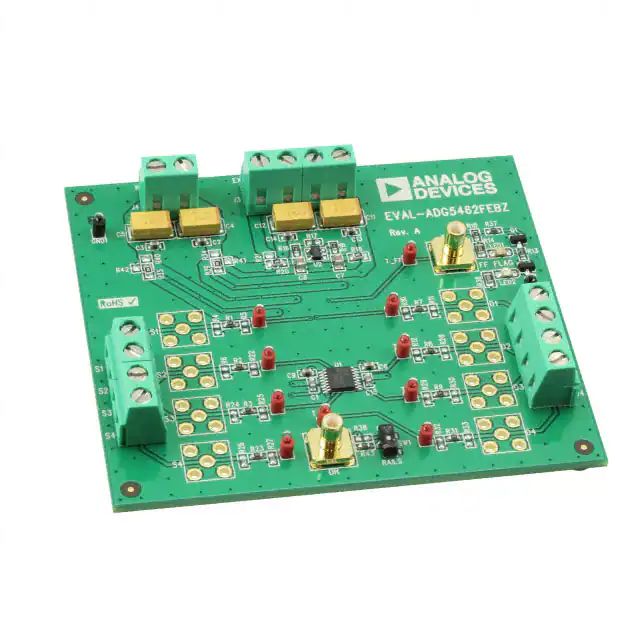

EVAL-ADG5462FEBZEVAL BOARD FOR ADG5462F |
1,848 |
|
Datasheet | - | Box | Active | Power Management | Circuit Protection | - | ADG5462F | Overvoltage Protection | On-Board LEDs | Board(s) |
|

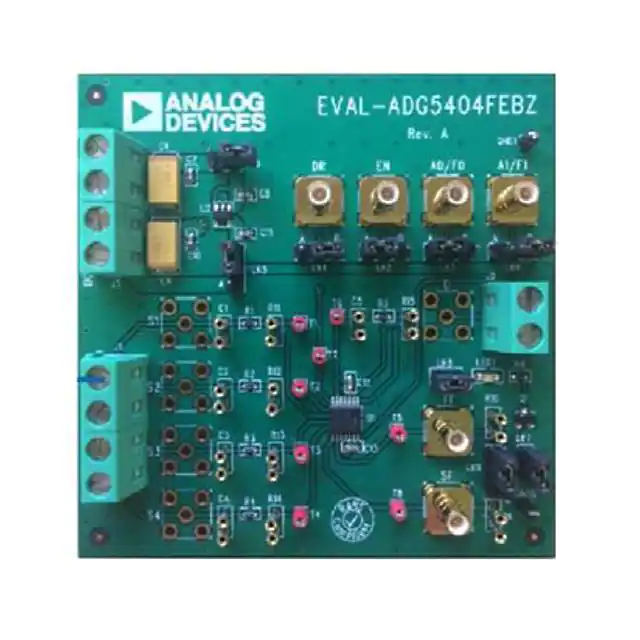

EVAL-ADG5404FEBZEVAL BOARD FOR ADG5404F |
2,824 |
|
Datasheet | - | Box | Active | Interface | 4:1 Multiplexer | - | ADG5404F | Overvoltage Protection | On-Board LEDs | Board(s) |
|
|
AP22653FDZ-EVMEVAL BOARD FOR AP22653 |
3,840 |
|
Datasheet | - | Box | Active | Power Management | Power Distribution Switch (Load Switch) | - | AP22653 | - | - | Board(s) |
|
|
ISL15102IRZ-EVALZEVAL BOARD FOR ISL15102IRZ |
2,771 |
|
Datasheet | - | Bulk | Active | Interface | Power Line Communication/Modem (PLC, PLM) | - | ISL15102IRZ | - | - | Board(s) |
|
STEVAL-ILM001V1MOD PLUG-IN STM8S-DISCOVERY DALI |
3,335 |
|
Datasheet | - | Bulk | Active | Opto/Lighting | DALI Slave Device | No | - | Plug-in Module for STM8S-DISCOVERY | Overvoltage Protection | Board(s) |
|

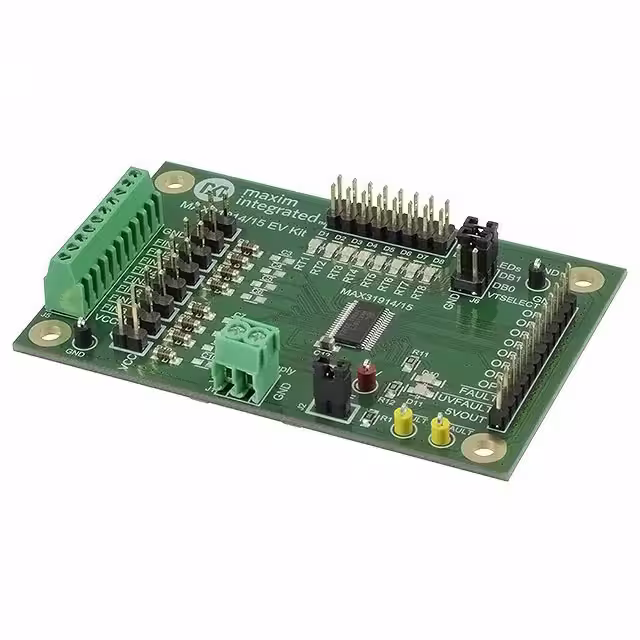

MAX31915EVKIT#EVAL BOARD FOR MAX31915 |
2,469 |
|
Datasheet | - | Box | Not For New Designs | Interface | Sensor Signal Conditioner | No | MAX31915 | 8-Channel (Octal) | On-Board LEDs | Board(s) |
|
|
HIP2103-4DEMO2ZEVAL BOARD FOR HIP2103 HIP2104 |
1,804 |
|
Datasheet | - | Bulk | Active | Power Management | Motor Controller/Driver | - | HIP2103, HIP2104 | - | On-Board LEDs | Board(s) |
|

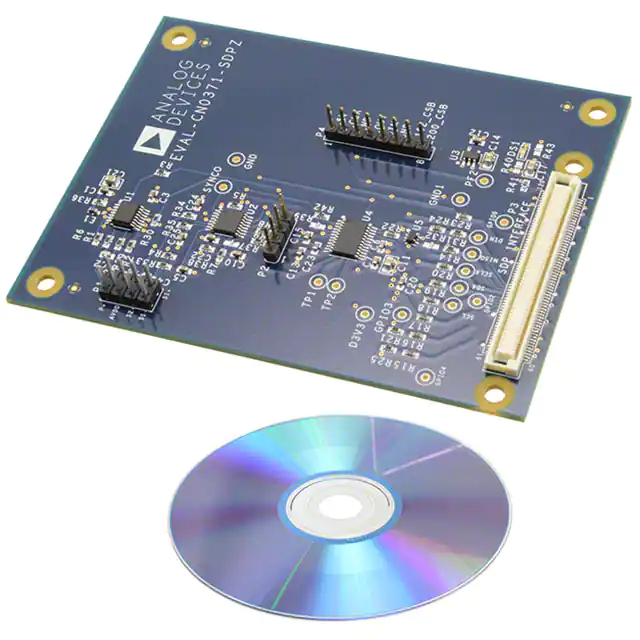

EVAL-CN0371-SDPZEVAL BOARD AD7192 ADA2200 ADG794 |
3,117 |
|
- |
Circuits from the Lab™ | Box | Active | Interface | Sensor Signal Conditioner | - | AD7192, ADA2200, ADG794, ADP151 | LVDT Signal Conditioner | - | Board(s) |
|

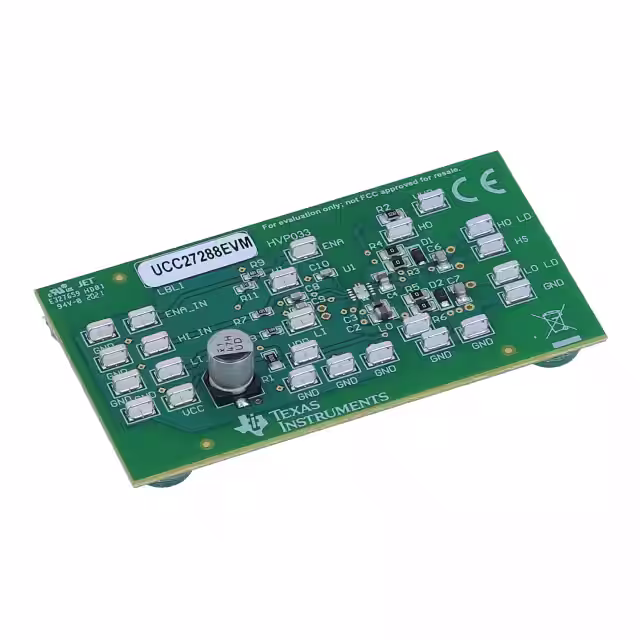

UCC27288EVMEVAL BOARD FOR UCC27288 |
2,101 |
|
Datasheet | - | Box | Active | Power Management | Gate Driver | No | UCC27288 | 2-Channel, 10MHz Input Frequency, 12V Input Power Supply | - | Board(s) |
|

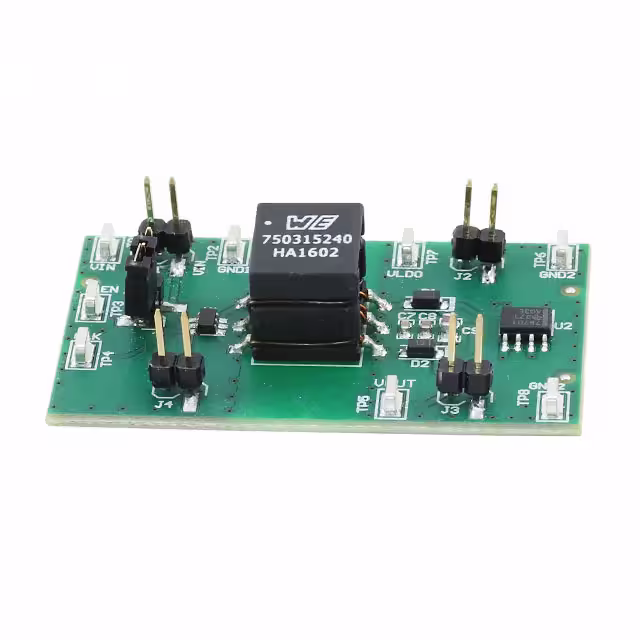

SN6505AEVMEVAL BOARD FOR SN6505A |
3,958 |
|
Datasheet | - | Bulk | Active | Power Management | Transformer Driver | No | SN6505A | Isolated | - | Board(s) |
|

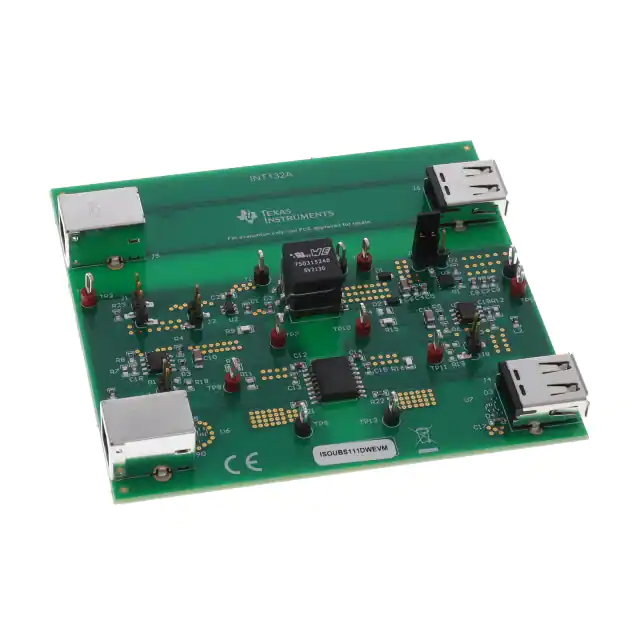

ISOUSB111DWEVMEVAL BOARD FOR ISOUSB111 |
3,731 |
|
Datasheet | - | Box | Active | Interface | USB Repeater | No | ISOUSB111 | Isolated | On-Board Test Points | Board(s) |
|

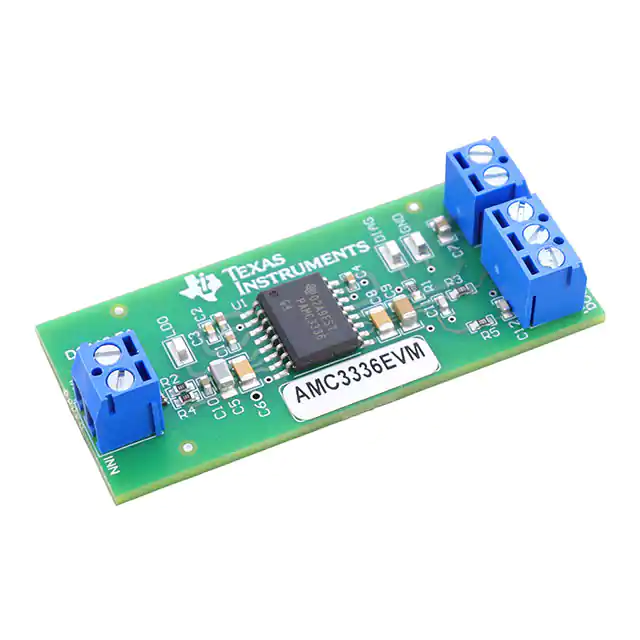

AMC3336EVMEVAL BOARD FOR AMC3336 |
3,163 |
|
Datasheet | - | Box | Active | Data Acquisition | Modulator | No | AMC3336 | - | - | Board(s) |
|

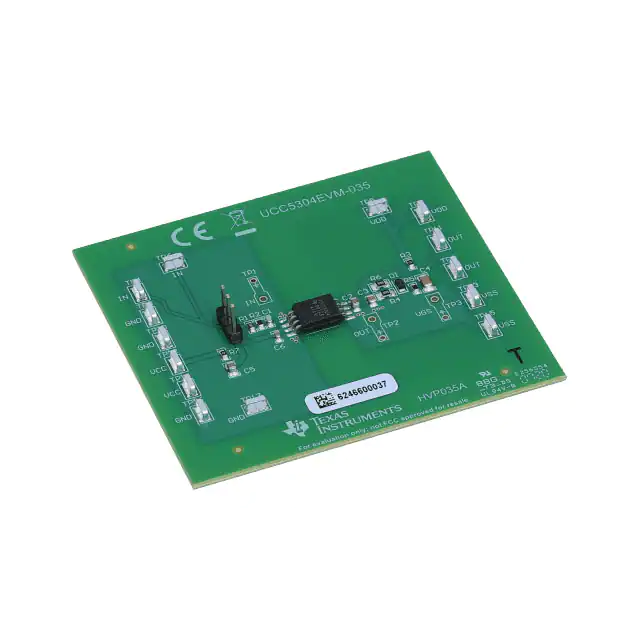

UCC5304EVM-035EVAL BOARD FOR UCC5304 |
3,259 |
|
Datasheet | - | Box | Active | Power Management | Gate Driver | - | UCC5304 | Isolated | On-Board Test Points | Board(s) |
|

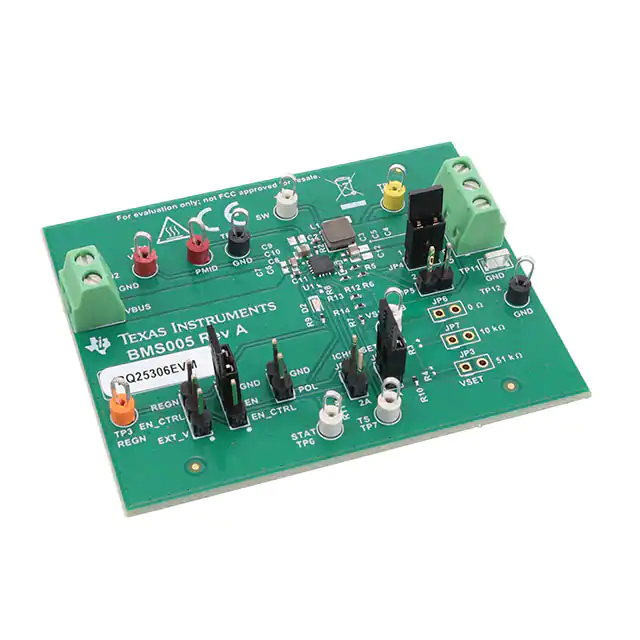

BQ25306EVMEVAL BOARD FOR BQ25306 |
2,983 |
|
Datasheet | - | Box | Active | Power Management | Battery Charger | No | BQ25306 | Li-Ion / Li-Pol (1 ~ 2 Cells) | - | Board(s) |
