Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
395EVAL BOARD FOR TXB0108 |
105 |
|
Datasheet | - | Box | Active | Interface | Logic-Level Translator | - | TXB0108 | 8-Channel (Octal) | - | Board(s) |
|
2045EVAL BOARD FOR SI5351 |
102 |
|
Datasheet | - | Bulk | Active | Timing | Clock Generator | - | Si5351 | - | I2C Interface(s) | Board(s) |
|

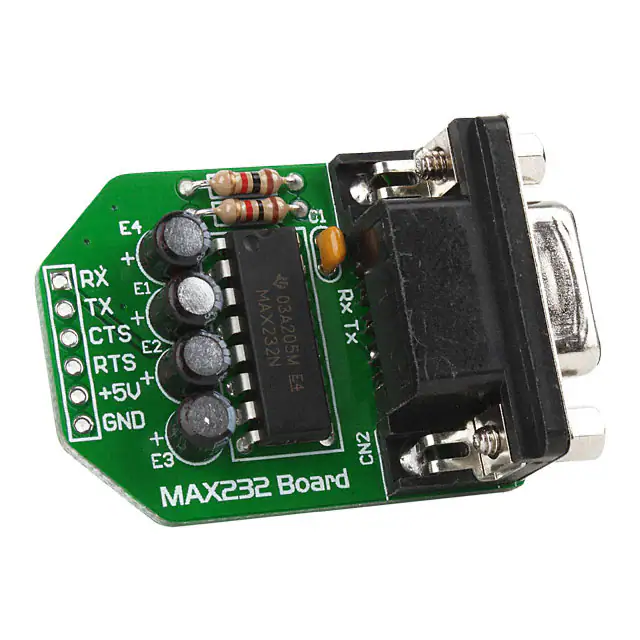

MIKROE-222EVAL BOARD FOR MAX232 |
137 |
|
Datasheet | - | Bulk | Active | Interface | Transceiver, RS-232 | No | MAX232 | - | - | Board(s) |
|

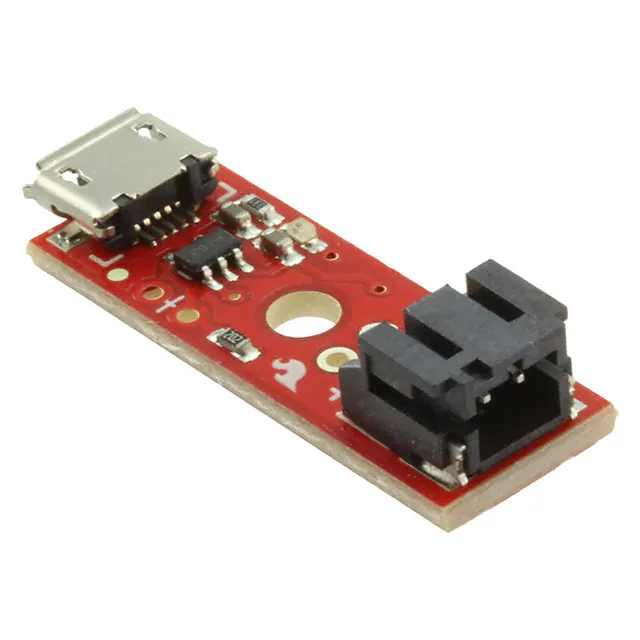

PRT-10217EVAL BOARD FOR MCP73831 |
131 |
|
Datasheet | - | Bulk | Active | Power Management | Battery Charger | - | MCP73831 | - | On-Board LEDs | Board(s) |
|

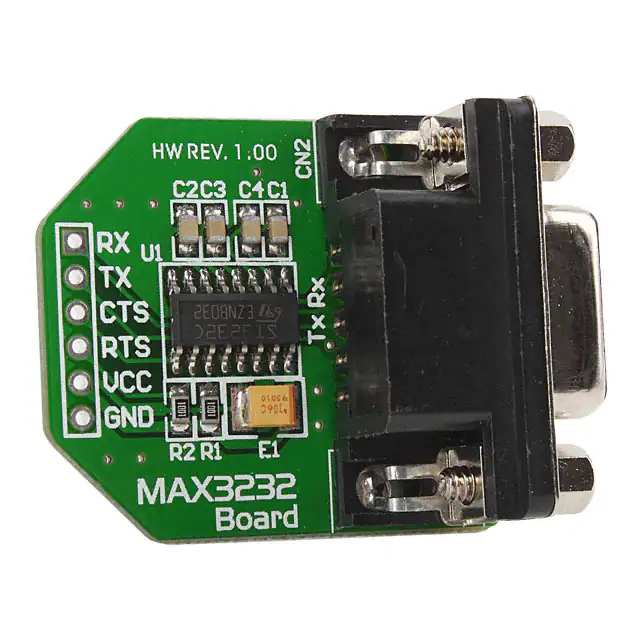

MIKROE-602EVAL BOARD FOR MAX3232 |
106 |
|
Datasheet | - | Bulk | Active | Interface | Transceiver, RS-232 | No | MAX3232 | - | - | Board(s) |
|

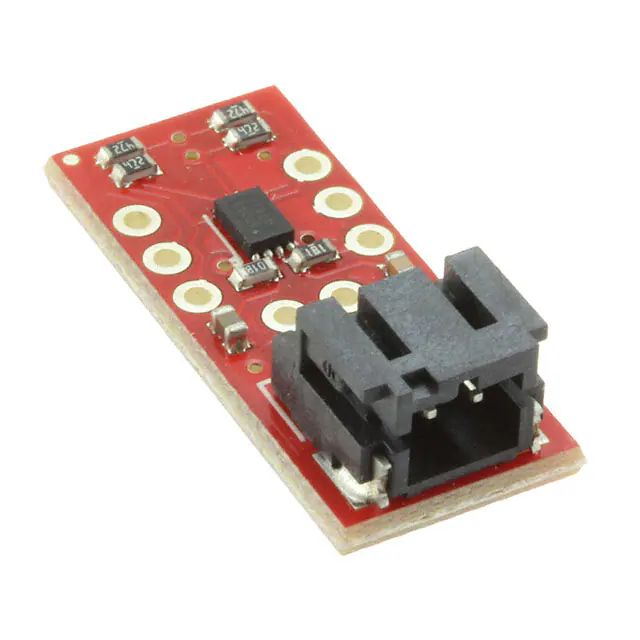

TOL-10617EVAL BOARD FOR MAX17043 |
240 |
|
Datasheet | - | Bulk | Active | Power Management | Fuel Gauge | No | MAX17043 | - | I2C Interface(s) | Board(s) |
|

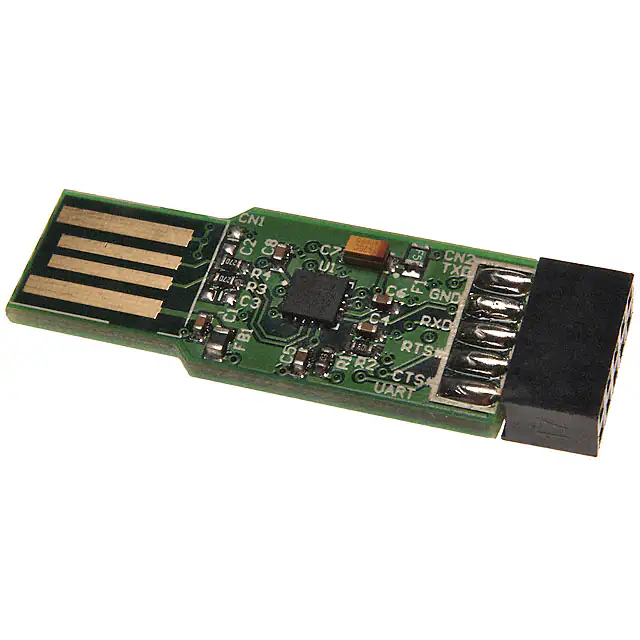

UMFT230XB-01EVAL BOARD FOR FT230X |
249 |
|
Datasheet | USBmadeEZ-UART, FT-X, X-Chip | Box | Active | Interface | USB 2.0 to UART | Yes, ASIC | FT230X | Female Connector | USB Charging Detection | Board(s) |
|

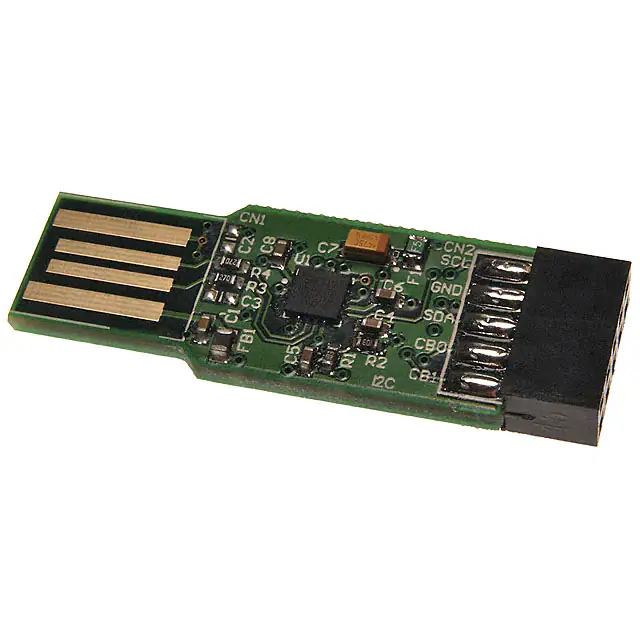

UMFT201XB-01EVAL BOARD FOR FT201X |
156 |
|
Datasheet | USBmadeEZ-FIFO, FT-X, X-Chip | Box | Active | Interface | USB 2.0 to I2C Bridge (Slave) | Yes, ASIC | FT201X | Female Connector | USB Charging Detection | Board(s) |
|

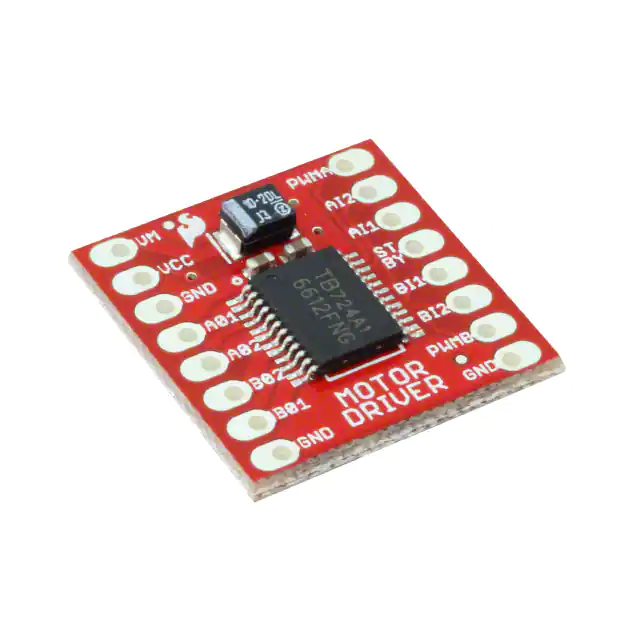

ROB-14451EVAL BOARD FOR TB6612FNG |
177 |
|
Datasheet | - | Bulk | Active | Power Management | Motor Controller/Driver | - | TB6612FNG | - | - | Board(s) |
|

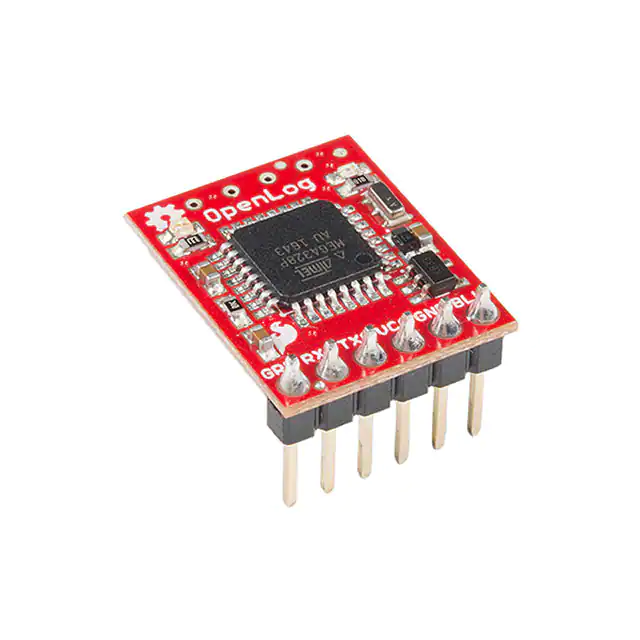

DEV-13955EVAL BOARD FOR ATMEGA328 |
116 |
|
Datasheet | - | Bulk | Active | Memory | Data Logger | Yes, MCU, 8-Bit | ATmega328 | - | On-Board LEDs | Board(s) |
|
TMC5130A-BOBEVAL BOARD FOR TMC5130A |
393 |
|
Datasheet | - | Bulk | Active | Power Management | Motor Controller/Driver, Stepper | - | TMC5130A | Motors (Stepper) | SPI Interface(s) | Board(s) |
|
TMC5072-BOBEVAL BOARD FOR TMC5072 |
390 |
|
- |
- | Bulk | Active | Power Management | Motor Controller/Driver, Stepper | - | TMC5072 | Motors (Stepper) | SPI Interface(s) | Board(s) |
|

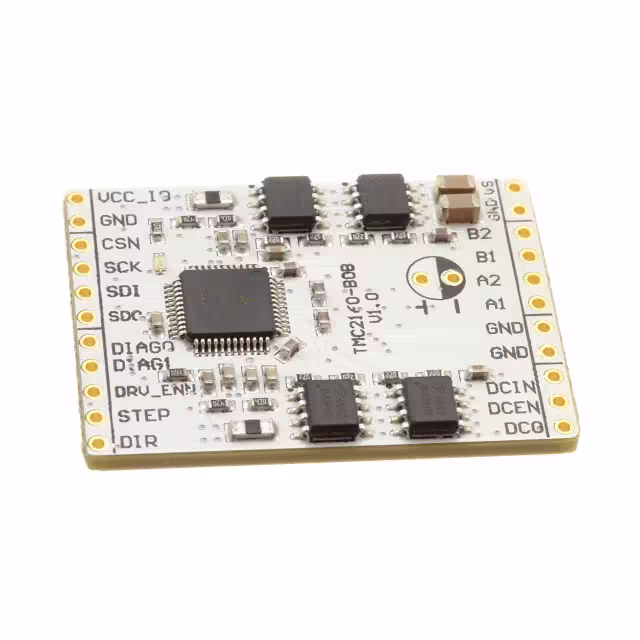

TMC2160-BOBEVAL BOARD FOR TMC2160 |
326 |
|
Datasheet | - | Bulk | Active | Power Management | Motor Controller/Driver, Stepper | - | TMC2160 | - | SPI Interface(s) | Board(s) |
|

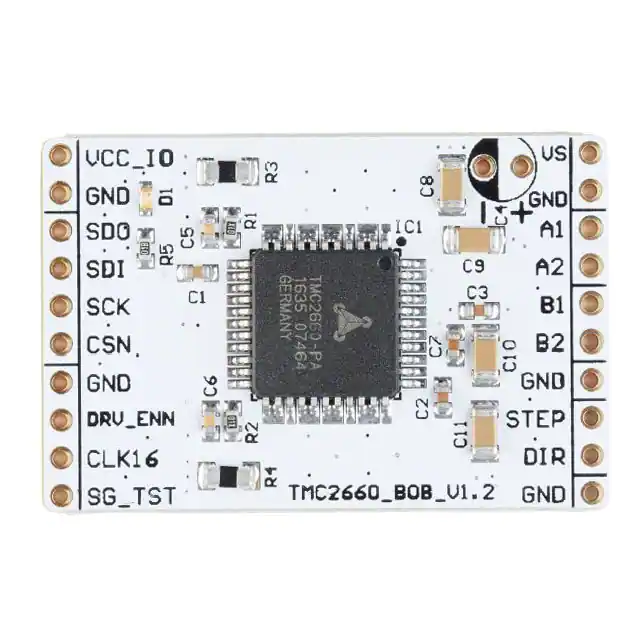

TMC2660-BOBEVAL BOARD FOR TMC2660 |
316 |
|
Datasheet | - | Bulk | Active | Power Management | Motor Controller/Driver, Stepper | - | TMC2660 | Motors (Stepper) | SPI Interface(s) | Board(s) |
|
TMC2300-BOBEVAL BOARD FOR TMC2300 |
301 |
|
Datasheet | - | Bulk | Active | Power Management | Motor Controller/Driver, Stepper | - | TMC2300 | Motors (Stepper) | - | Board(s) |
|

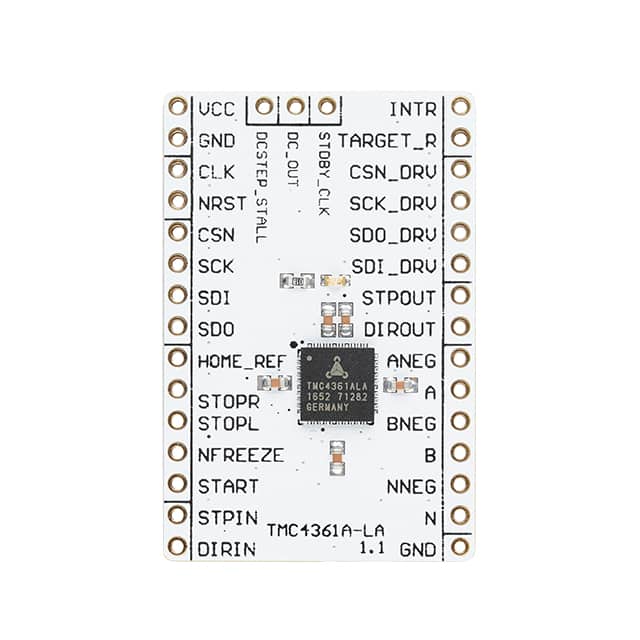

TMC4361A-BOBEVAL BOARD FOR TMC4361A |
262 |
|
Datasheet | - | Bulk | Active | Power Management | Motor Controller/Driver, Stepper | - | TMC4361A | - | - | Board(s) |
|

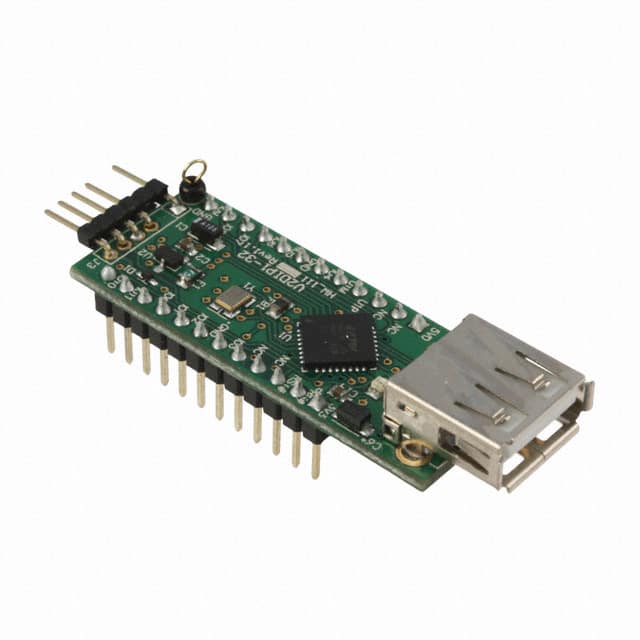

V2DIP1-32EVAL BOARD FOR VNC2-32Q |
892 |
|
Datasheet | Vinculum-II | Box | Active | Interface | USB 2.0 Host/Controller | Yes, ASIC | VNC2-32Q | Single A-Type Connector, UART / Parallel FIFO / SPI Interfaces | Second USB Port is Available via Pins, Traffic LEDs | Board(s) |
|

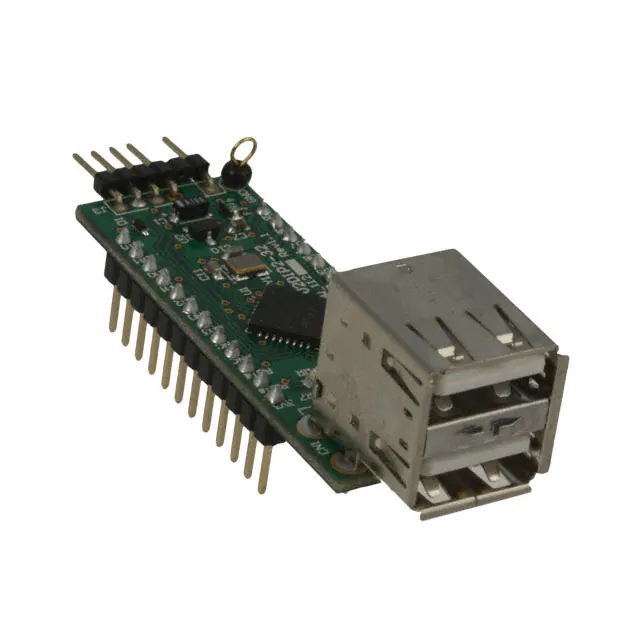

V2DIP2-32EVAL BOARD FOR VNC2-32Q |
450 |
|
Datasheet | Vinculum-II | Box | Active | Interface | USB 2.0 Host/Controller | Yes, ASIC | VNC2-32Q | Dual A-Type Connector, UART / Parallel FIFO / SPI Interfaces | On-Board LEDs | Board(s) |
|

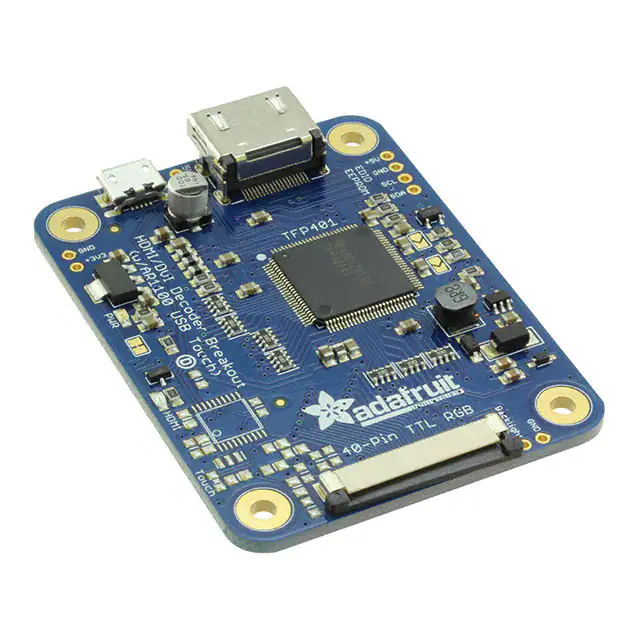

2218EVAL BOARD FOR TFP401 |
105 |
|
Datasheet | - | Bulk | Active | Video | Video Decoder | - | TFP401 | - | - | Board(s) |
|
CP2102N-EKEVAL BOARD FOR CP2102N |
276 |
|
Datasheet | - | Box | Active | Interface | USB 2.0 to UART (RS232) Bridge | - | CP2102N | - | - | Board(s) |
