Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS25981EVMEVAL BOARD FOR TPS25981 |
4,100 |
|
Datasheet | - | Bulk | Active | Circuit Protection | Electronic Fuses (eFuse) | No | TPS25981 | 2.7V ~ 16V Operating Voltage | On-Board Test Points | Board(s) |
|

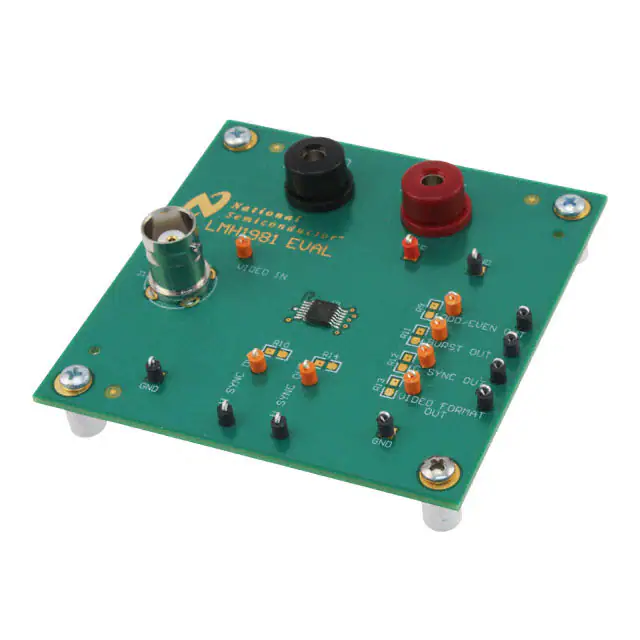

LMH1981MTEVAL/NOPBEVAL BOARD FOR LMH1981 |
4,939 |
|
Datasheet | - | Box | Active | Video | Video Processing | No | LMH1981 | Sync Separator | NTSC, PAL, 480I/P, 576I/P, 720P, and 1080I/P/PsF Compatible | Board(s) |
|

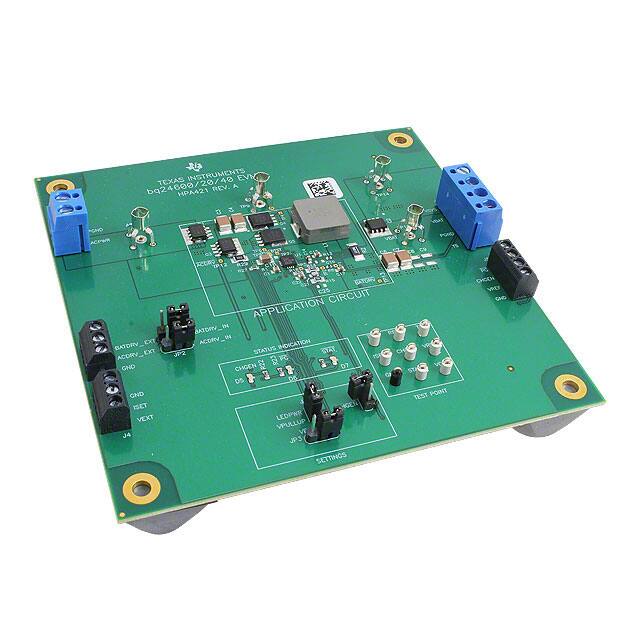

BQ24620EVMEVAL BOARD FOR BQ24620 |
3,025 |
|
Datasheet | - | Box | Active | Power Management | Battery Charger | No | BQ24620 | Multi Cell-Li-ion / Li-Polymer, Programmable up to 26V Output | On-Board LEDs | Board(s) |
|

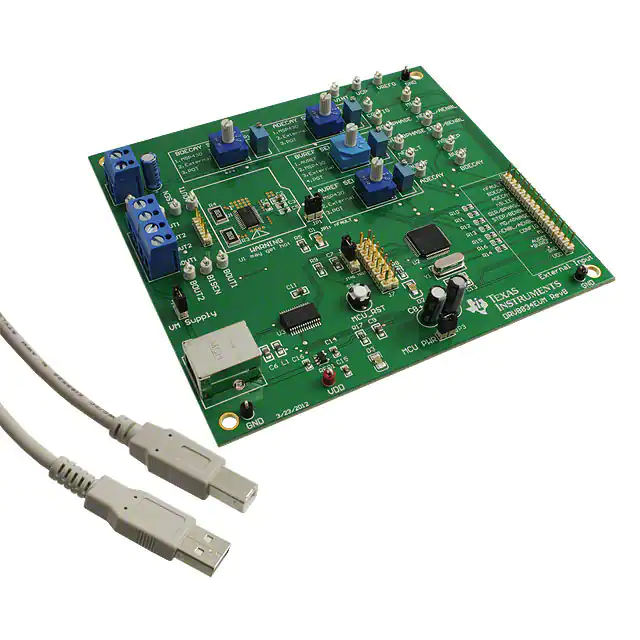

DRV8834EVMEVAL BOARD FOR DRV8834 |
3,308 |
|
Datasheet | - | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU, 16-Bit | DRV8834 | 2 Channel H-Bridge Driver | Overvoltage, Short-Circuit, Thermal and Undervoltage Protection | Board(s) |
|
3220UFP-DGLEVMEVAL BOARD FOR HD3SS3220 |
2,463 |
|
Datasheet | - | Bulk | Active | Interface | USB Type-C® | - | HD3SS3220 | - | On-Board LEDs | Board(s) |
|

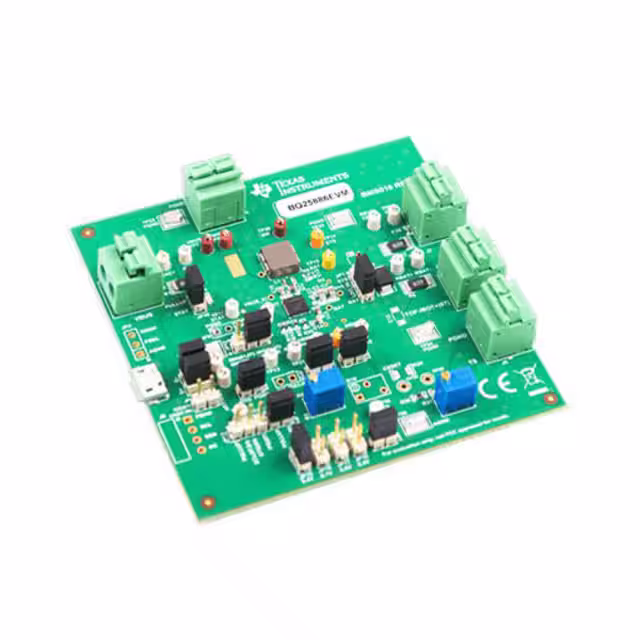

BQ25886EVMEVAL BOARD FOR BQ25886 |
1,393 |
|
Datasheet | - | Box | Active | Power Management | Battery Charger | - | BQ25886 | - | - | Board(s) |
|

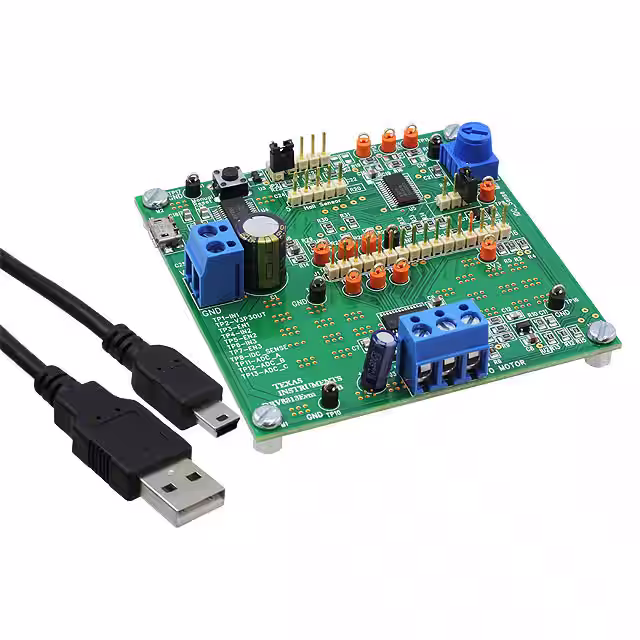

DRV8313EVMEVAL BOARD FOR DRV8313 |
2,726 |
|
Datasheet | - | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU, 16-Bit | DRV8313 | 3 Half Bridge Drivers | USB Interface(s), Graphical User Interface (GUI) | Board(s) |
|
HD3SS6126EVMEVAL BOARD FOR HD3SS6126 |
2,056 |
|
Datasheet | - | Box | Active | Interface | USB 3.0 Switch | - | HD3SS6126 | - | On-Board LEDs | Board(s) |
|
|
BQ25638EVMEVAL BOARD FOR BQ25638 |
1,103 |
|
Datasheet | - | Box | Active | Power Management | Battery Charger | No | BQ25638 | 1 Cell | On-Board Test Points | Board(s) |
|

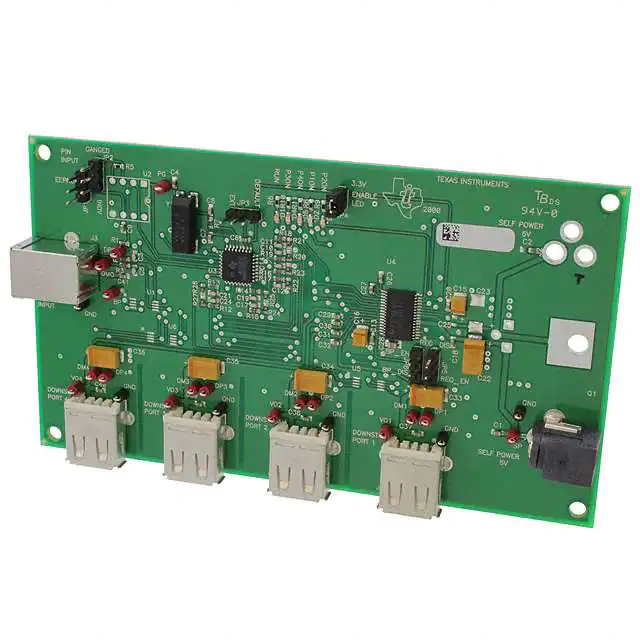

TPS2071EVM-159EVAL BOARD FOR TPS2071 |
4,994 |
|
Datasheet | - | Bulk | Active | Interface | USB 2.0 Hub | - | TPS2071 | - | - | Board(s) |
|

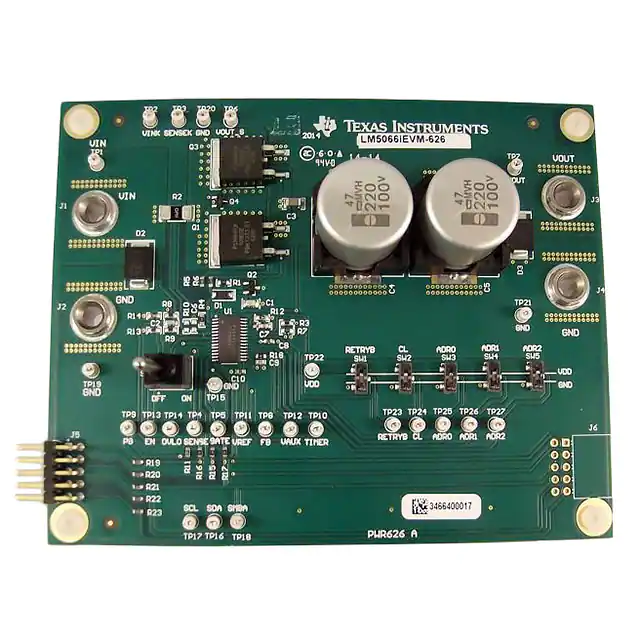

LM5066IEVM-626EVAL BOARD FOR LM5066I |
1,477 |
|
Datasheet | - | Box | Active | Power Management | Hot Swap Controller | No | LM5066I | - | Graphical User Interface (GUI) | Board(s) |
|

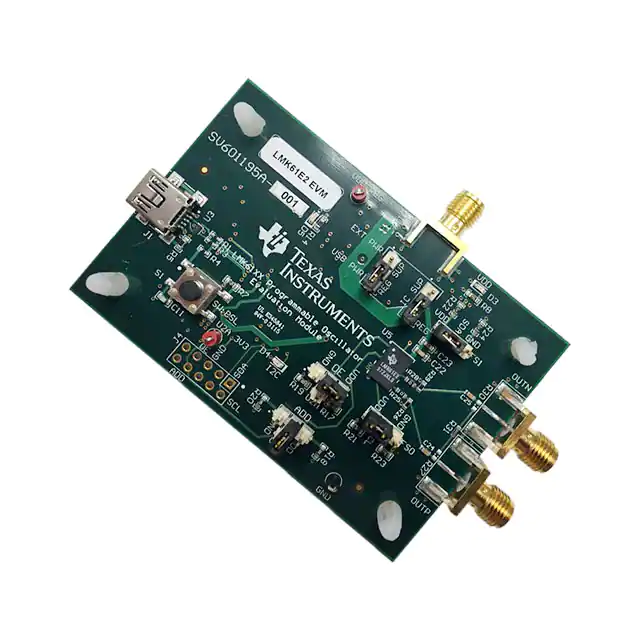

LMK61E2EVMEVAL BOARD FOR LMK61E2 |
3,406 |
|
Datasheet | PLLatinum™ | Box | Active | Timing | Clock Oscillation | Yes, MCU, 16-Bit | LMK61E2 | Single Fractional-N PLL with VCO | Graphical User Interface (GUI) | Board(s) |
|

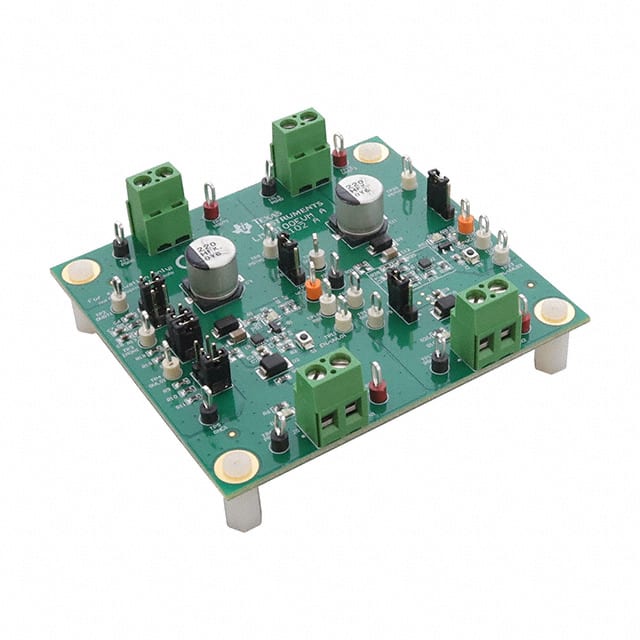

LM73100EVMEVAL BOARD FOR LM73100 |
3,597 |
|
Datasheet | - | Box | Active | Power Management | ORing Controller / Ideal Diode | No | LM73100 | 2-Channel (Dual) | - | Board(s) |
|
|
TPS1HC30EVMEVAL BOARD FOR TPS1HC30-Q1 |
2,770 |
|
Datasheet | - | Box | Active | Power Management | Power Distribution Switch (Load Switch) | Yes | TPS1HC30-Q1 | - | On-Board Test Points | Board(s) |
|

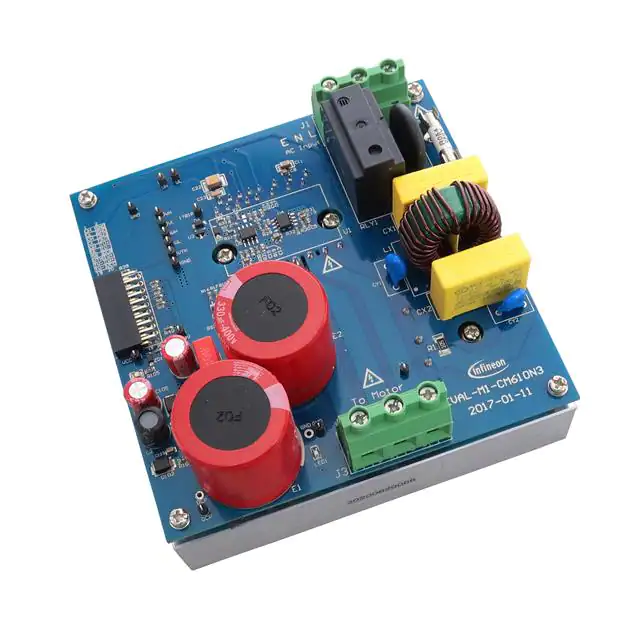

EVALM1CM610N3TOBO2EVAL BOARD FOR IKCM10H60GA |
4,961 |
|
Datasheet | iMOTION™ | Bulk | Active | Power Management | Motor Controller/Driver | Yes, MCU | IKCM10H60GA | 110VAC ~ 240VAC Input Voltage | On-Board LEDs | Board(s) |
|
EVALM1IM535TOBO1EVAL BOARD FOR IM535-U6D |
2,660 |
|
Datasheet | CIPOS™ | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU | IM535-U6D, IM535-U6D | 3-Phase Motor Control, IGBT Intelligent Power Module | - | Board(s) |
|
|
EVLDRIVE101-HPDEVAL BOARD FOR STDRIVE101 |
3,621 |
|
Datasheet | - | Bulk | Active | Power Management | Motor Controller/Driver | Yes, MCU | STDRIVE101 | 3-Ph Brushless DC (BLDC) Motors | - | Board(s) |
|

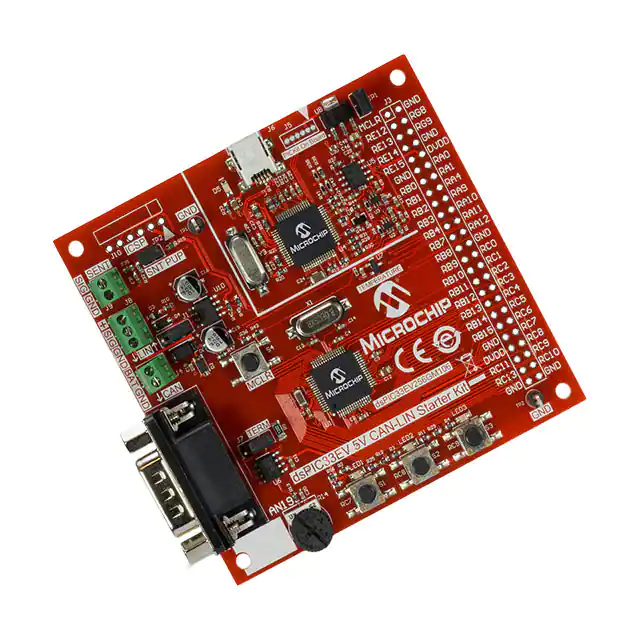

DM330018EVAL BOARD FOR DSPIC33EV |
2,397 |
|
Datasheet | dsPIC® | Box | Active | Power Management | Motor Controller/Driver | Yes, DSC | dsPIC33EV | - | - | Board(s), Cable(s) |
|
SJA1124EVBEVAL BOARD FOR SJA1124 |
3,173 |
|
Datasheet | - | Bulk | Active | Interface | LIN | - | SJA1124 | 4-Channel (Quad) | On-Board LEDs | Board(s) |
|
|
EPC90139EVAL BOARD FOR EPC2069 |
1,874 |
|
Datasheet | - | Box | Active | Power Management | Half H-Bridge Driver (External FET) | No | EPC2069 | 7.5V ~ 12V Supply, 40A Output | - | Board(s) |
