Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS90LVRA2EVMEVAL BOARD FOR DS90LVRA2 |
1,743 |
|
Datasheet | - | Box | Active | Interface | LVDS, Receiver | No | DS90LVRA2 | 1.8V, 2.5V, 3.3V Supply | On-Board Test Points | Board(s) |
|
MCT8316ZTEVMEVAL BOARD FOR MCT8316Z |
4,518 |
|
Datasheet | - | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU | MCT8316Z | Motors (BLDC) | Graphical User Interface (GUI) | Board(s) |
|

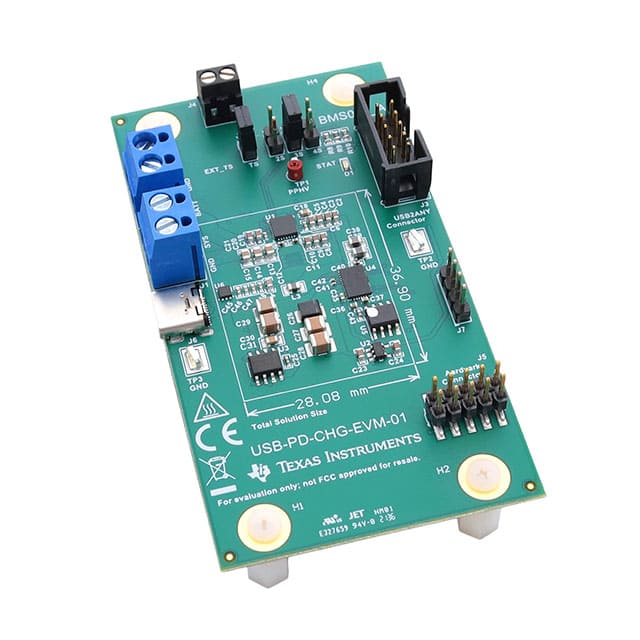

USB-PD-CHG-EVM-01EVAL BOARD FOR BQ25792, TPS25750 |
4,164 |
|
Datasheet | - | Box | Active | Power Management | USB Type-C® | No | BQ25792, TPS25750 | - | - | Board(s) |
|
|
MCF8316AEVMEVAL BOARD FOR MCF8316A |
2,329 |
|
Datasheet | - | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU, 16-Bit | MCF8316A, MSP430FR2355 | Motors (BLDC) | Graphical User Interface (GUI) | Board(s) |
|

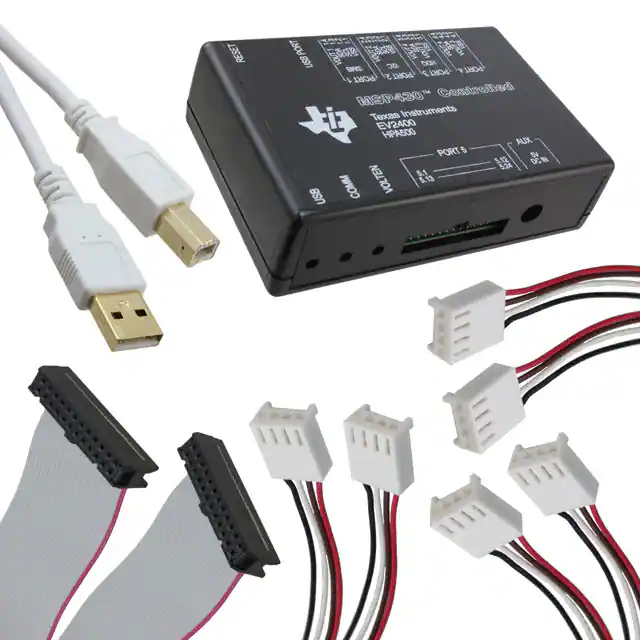

EV2400EVAL BOARD FOR MSP430F5529 |
148 |
|
Datasheet | - | Box | Active | Interface | USB 2.0 to SMBus Bridge | Yes, MCU, 16-Bit | MSP430F5529 | - | - | Board(s), Cable(s) |
|

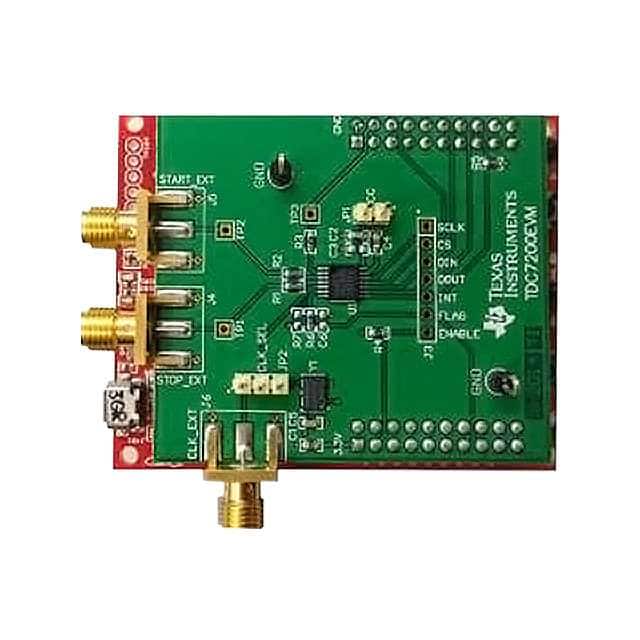

TDC7200EVMEVAL BOARD FOR TDC7200 |
2,877 |
|
Datasheet | - | Box | Active | Interface | Time-to-Digital Converter | - | TDC7200 | - | Graphical User Interface (GUI) | Board(s) |
|

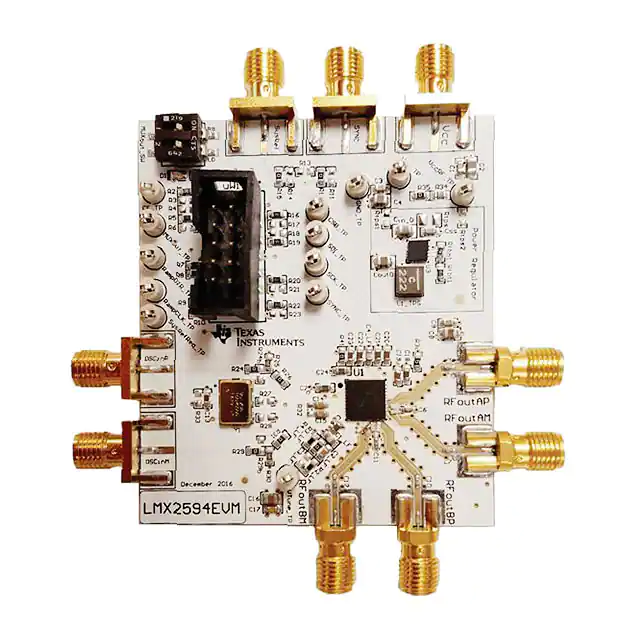

LMX2594EVMEVAL BOARD FOR LMX2594 |
2,610 |
|
Datasheet | PLLatinum™ | Box | Active | Timing | Frequency Synthesizer | - | LMX2594 | Single Fractional-N PLL with VCO | Graphical User Interface (GUI) | Board(s) |
|

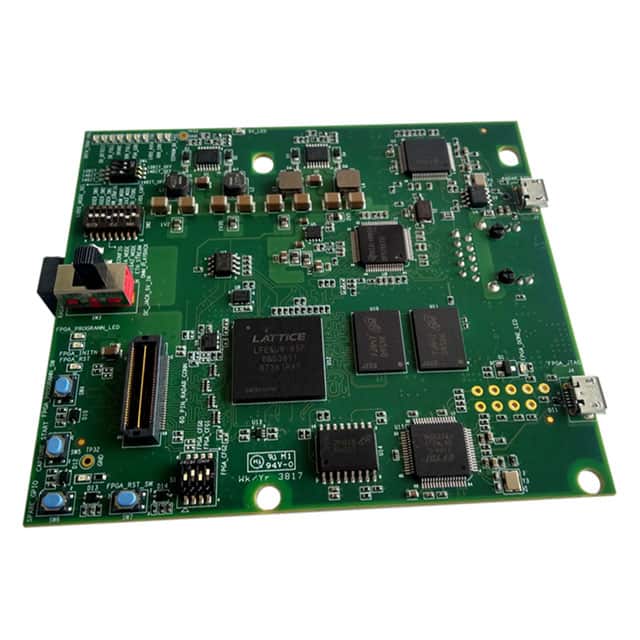

DCA1000EVMDEVELOPMENT DATA ACQUISITION |
147 |
|
Datasheet | - | Box | Active | Interface | Data Capture | Yes, FPGA / CPLD | - | ADC Evaluation | - | Board(s) |
|
TUSB9261DEMOEVAL BOARD FOR TUSB9261 |
3,428 |
|
Datasheet | - | Box | Active | Interface | USB 3.0 to SATA | No | TUSB9261 | - | - | Board(s) |
|

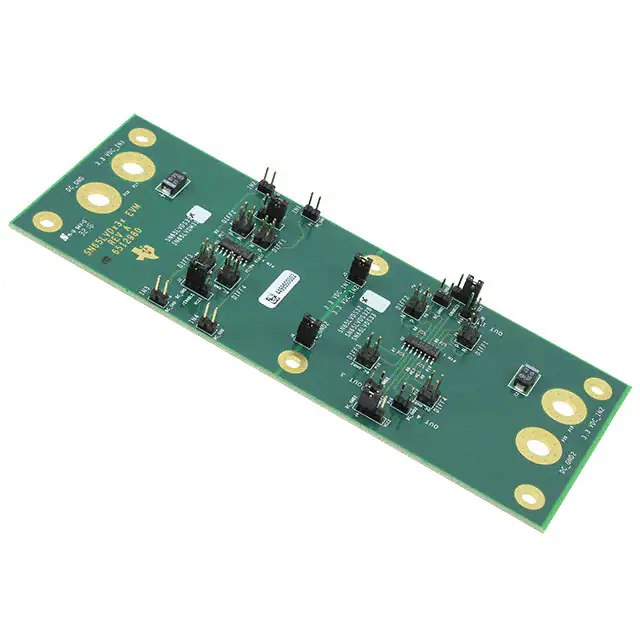

SN65LVDS31-32EVMEVAL BOARD SN65LVDS31 SN65LVDS32 |
2,104 |
|
Datasheet | - | Bulk | Active | Interface | LVDS, Serial to Parallel | - | SN65LVDS31, SN65LVDS32 | - | - | Board(s) |
