Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

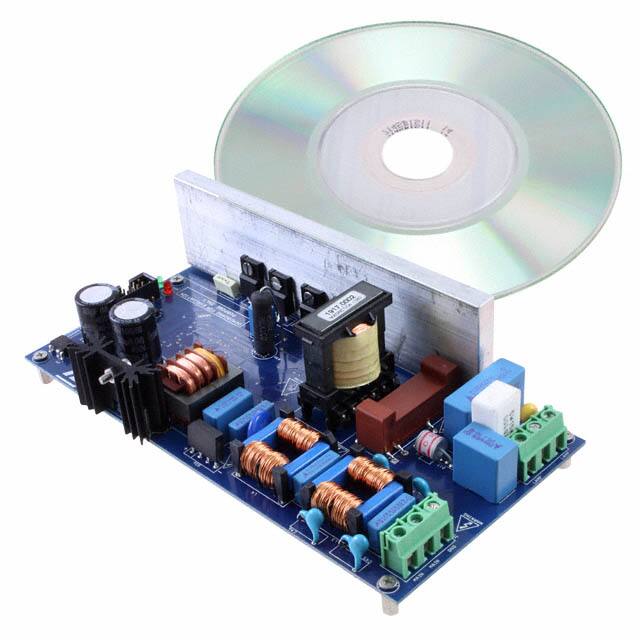

STEVAL-ILH005V2EVAL BOARD FOR L6562A |
2,700 |
|
Datasheet | - | Bulk | Obsolete | Opto/Lighting | Ballast Control | Yes, MCU, 8-Bit | L6562A | - | - | Board(s) |
|

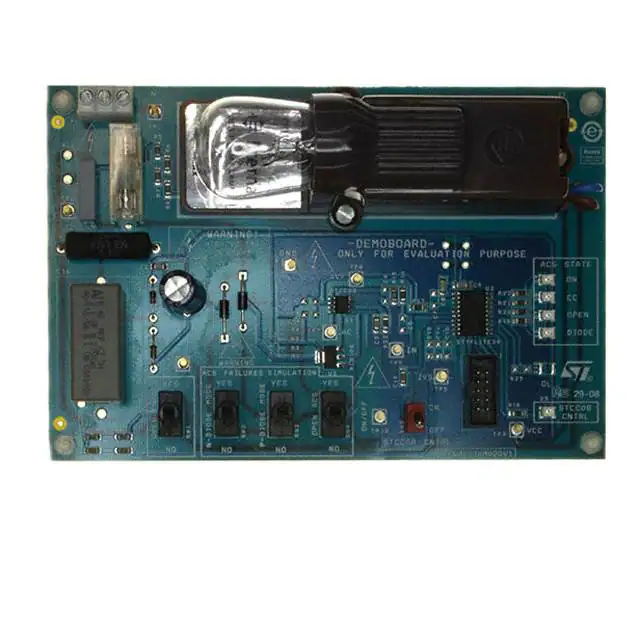

STEVAL-IHM020V1EVAL BRD FOR STCC08 ST7FLITE39F2 |
4,482 |
|
Datasheet | - | Box | Obsolete | Power Management | Triac Controller | Yes, MCU, 8-Bit | STCC08, ST7FLITE39F2 | - | - | Board(s) |
|

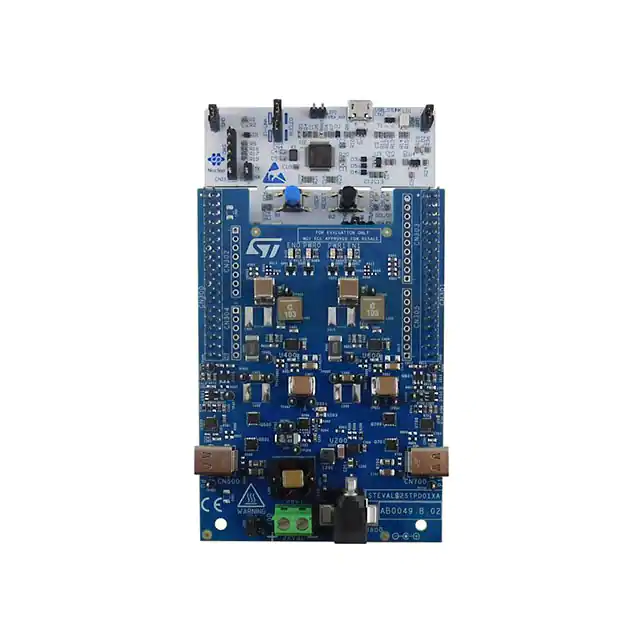

STEVAL-2STPD01EVAL BOARD FOR STM32G071, STPD01 |
2,906 |
|
- |
- | Bulk | Active | Power Management | USB Type-C® Power Delivery (PD) | Yes, MCU, 32-Bit | STM32G071, STPD01 | 6V ~ 24V Input Voltage | On-Board LEDs | Board(s) |
|

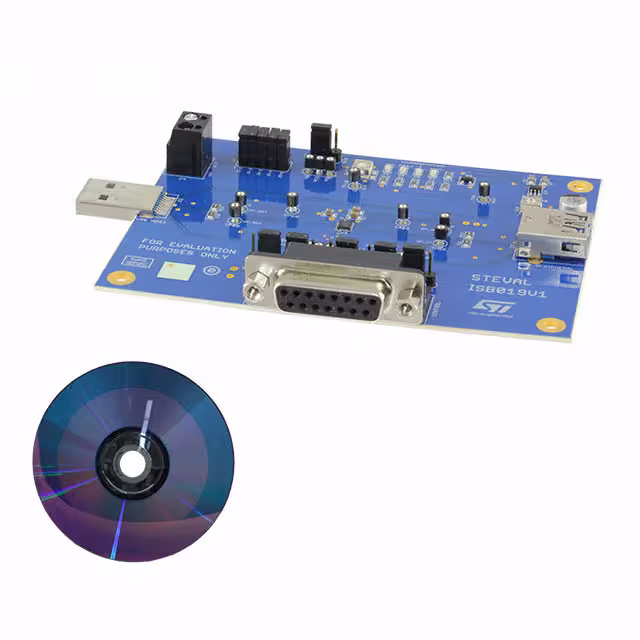

STEVAL-ISB019V1EVAL BOARD FOR STCC2540 |
3,117 |
|
Datasheet | - | Box | Obsolete | Power Management | Power Distribution Switch (Load Switch) | - | STCC2540 | USB Charging Port | - | Board(s) |
|

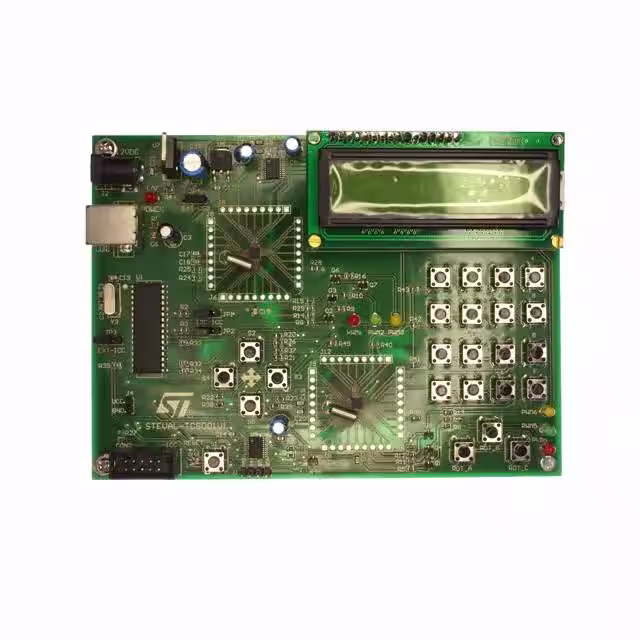

STEVAL-TCS001V1EVAL BOARD FOR STMPE2401 |
4,324 |
|
Datasheet | - | Bulk | Obsolete | Interface | GPIO Expander | No | STMPE2401 | - | - | Board(s) |
|

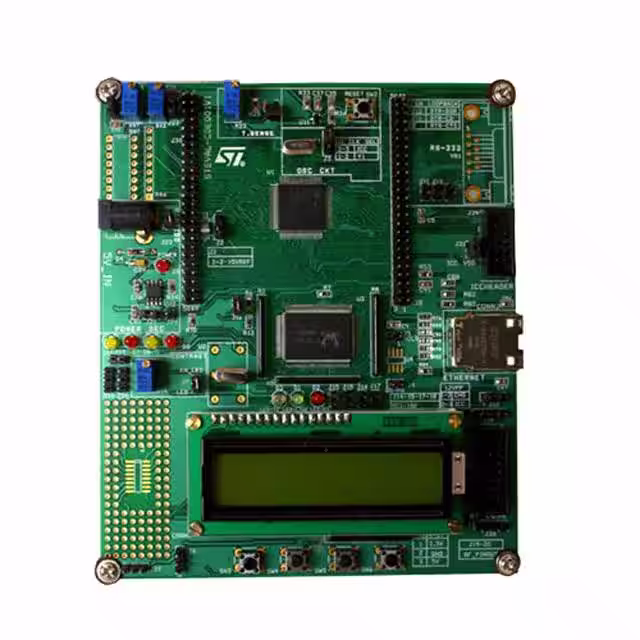

STEVAL-CDE001V1EVAL BOARD FOR ST72F321M9T6 |
3,074 |
|
Datasheet | - | Box | Obsolete | Interface | Web Server | Yes, MCU, 8-Bit | ST72F321M9T6 | Temperature (Local and Remote) Displayed on LCD via Ethernet | - | Board(s) |
|
STEVAL-IHM019V1EVAL BRD ST7FMC VIPER12AS L6388 |
3,418 |
|
Datasheet | - | Box | Obsolete | Power Management | Motor Controller/Driver | Yes, MCU, 8-Bit | ST7FMC, VIPer12AS, L6388 | - | - | Board(s) |
|
STEVAL-TSP003V2EVAL BOARD FOR PM8800A |
1,838 |
|
Datasheet | - | Box | Active | Power Management | Power over Ethernet (PoE) | No | PM8800A | - | - | Board(s) |
|
EVALST7540-1EVAL BOARD FOR ST7540 |
2,317 |
|
Datasheet | - | Bulk | Obsolete | Interface | Power Line Transceiver | Yes, MCU, 8-Bit | ST7540 | - | GUI, Requires the EVALCOMMBOARD | Board(s) |
|
EVL6563S-400WEVAL BOARD FOR L6563 |
2,855 |
|
Datasheet | - | Box | Obsolete | Power Management | Power Factor Correction | No | L6563 | - | Transition Mode and Active Tracking Boost Function | Board(s) |
