Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

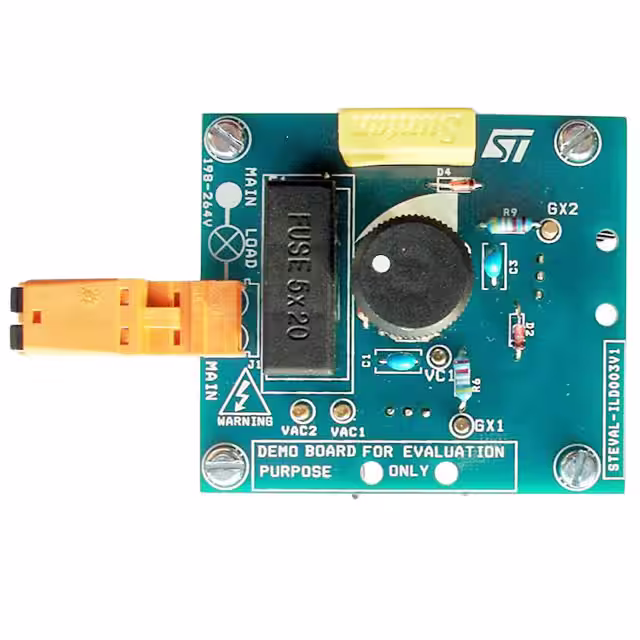

STEVAL-ILD003V1EVAL BOARD FOR TS820 |
4,806 |
|
Datasheet | - | Bulk | Active | Opto/Lighting | Dimmer | No | TS820 | - | - | Board(s) |
|

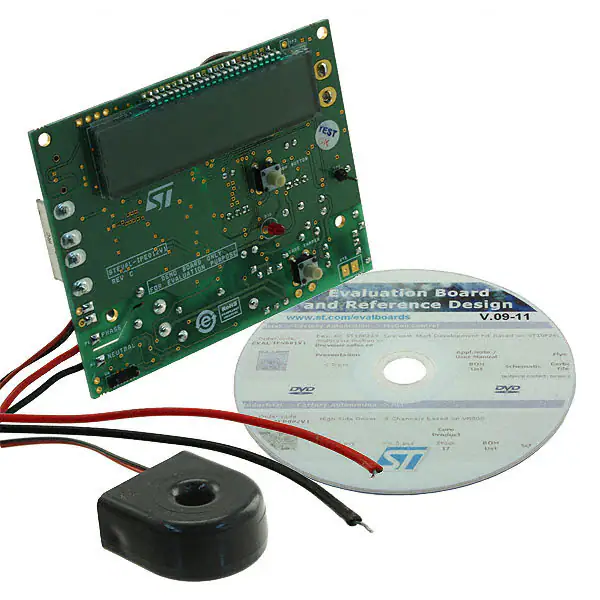

STEVAL-IPE012V1EVAL BRD FOR STPM10BTR STM8L152 |
3,186 |
|
Datasheet | - | Bulk | Obsolete | Power Management | Energy/Power Meter | Yes, MCU, 8-Bit | STPM10BTR, STM8L152 | Single Phase with 1 Current Transformer and Shunt | Tamper Detection | Board(s) |
|

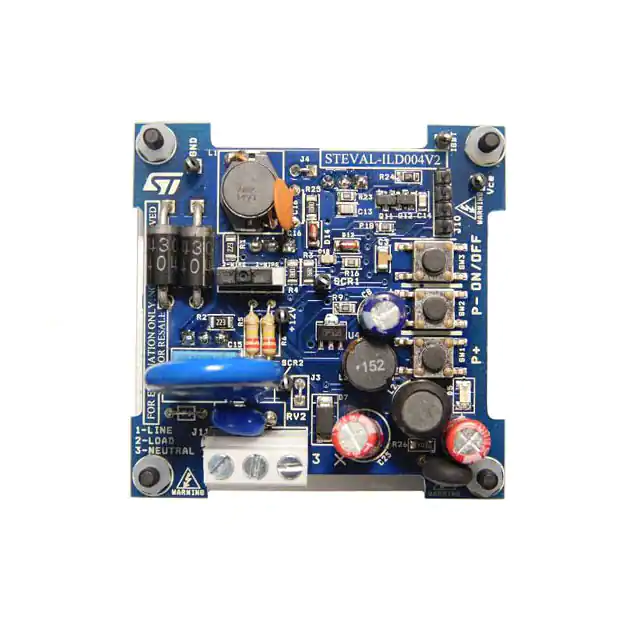

STEVAL-ILD004V2EVAL BRD STGF10NC60KD TS820-600 |
3,493 |
|
Datasheet | - | Bulk | Active | Opto/Lighting | Dimmer | Yes, MCU, 8-Bit | STGF10NC60KD, TS820-600 | - | - | Board(s) |
|
EV-VNF7000AYPROTOTYPE |
1,512 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | Board(s) |
|
EVL6563H-100WEVAL BOARD FOR L6563 |
3,357 |
|
Datasheet | - | Bulk | Active | Power Management | Power Factor Correction | No | L6563 | 100W Power Factor Correction and Preregulator Combination | Transition Mode and Active Tracking Boost Function | Board(s) |
|

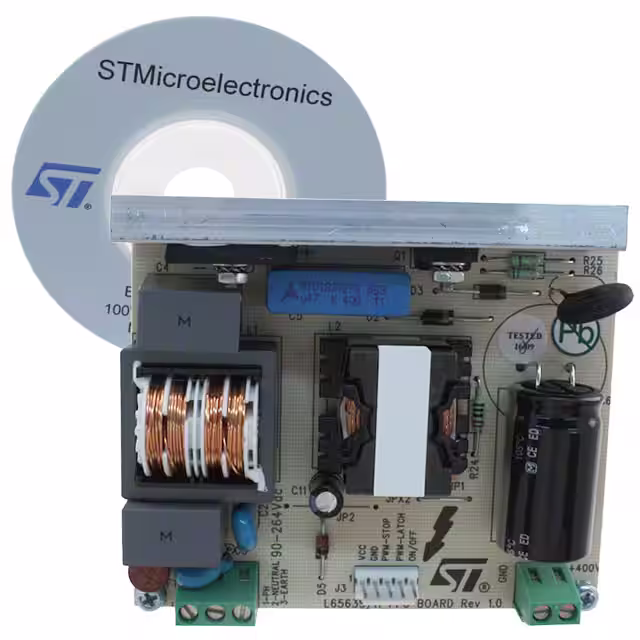

EVL6563S-100WEVAL BOARD FOR L6563 |
4,733 |
|
Datasheet | - | Box | Active | Power Management | Power Factor Correction | No | L6563 | 100W Power Factor Correction and Preregulator Combination | Transition Mode and Active Tracking Boost Function | Board(s) |
|

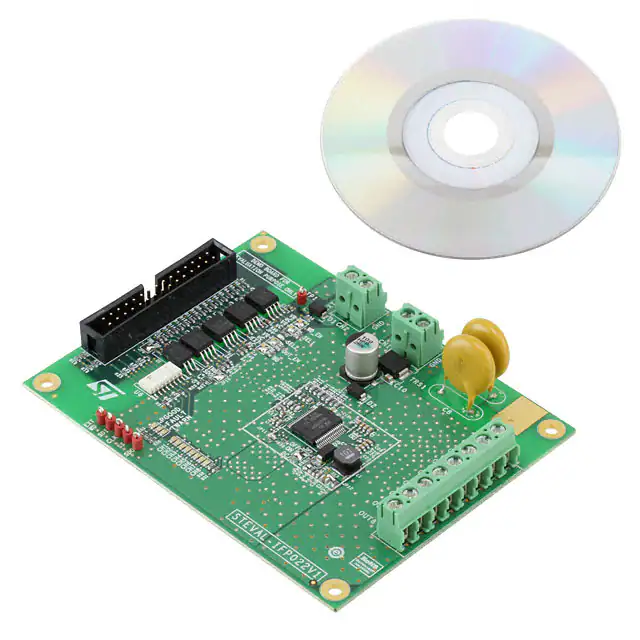

STEVAL-IFP022V1EVAL BOARD FOR VNI8200XP |
2,695 |
|
Datasheet | - | Bulk | Active | Power Management | High Side Driver (Internal FET) | - | VNI8200XP | 8-Channel (Octal) | On-Board LEDs | Board(s) |
|
STEVAL-IFP020V1EVAL BOARD FOR L6370Q |
3,530 |
|
Datasheet | - | Bulk | Active | Power Management | High Side Driver (Internal FET) | No | L6370Q | 1-Channel (Single) | Short-Circuit, Thermal and Undervoltage Protection | Board(s) |
|
|
STEVAL-IHM002V1EVAL BOARD FOR ST7FMC |
4,852 |
|
Datasheet | - | Bulk | Obsolete | Power Management | Motor Controller/Driver | Yes, MCU, 8-Bit | ST7FMC | - | - | Board(s) |
|
|
EVL6563-ZRC200WEVAL BOARD FOR L6563 |
2,392 |
|
Datasheet | - | Bulk | Obsolete | Power Management | Power Factor Correction | No | L6563 | - | - | Board(s) |
