Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

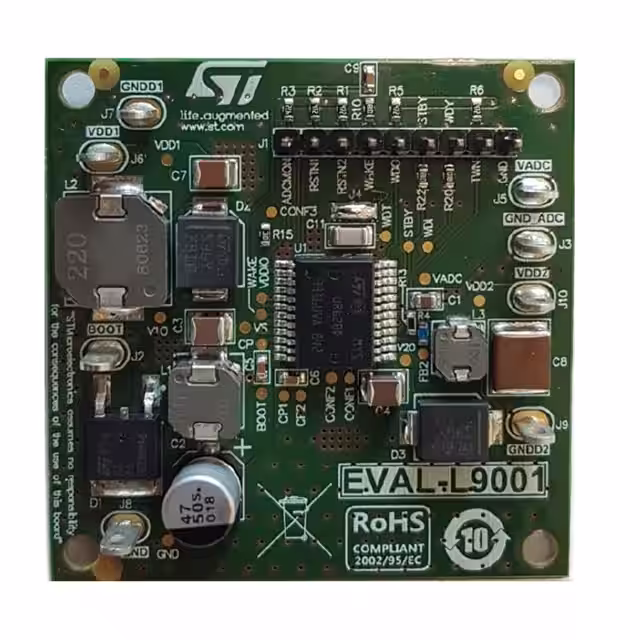

EVAL-L9001EVAL BOARD FOR L9001 |
2,253 |
|
Datasheet | - | Bulk | Active | Power Management | Power Supply | - | L9001 | - | - | Board(s) |
|

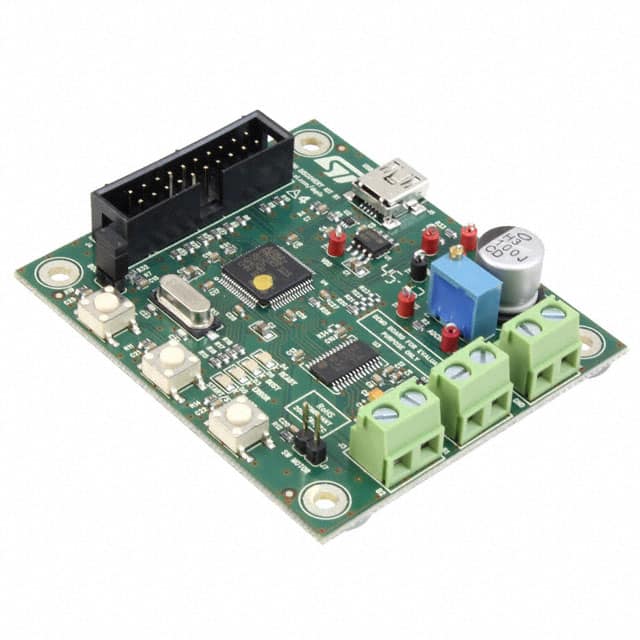

EVAL6470H-DISCEVAL BOARD FOR L6470 |
1,361 |
|
Datasheet | dSPIN™ | Box | Obsolete | Power Management | Motor Controller/Driver, Stepper | Yes, MCU, 32-Bit | L6470 | - | On-Board LEDs | Board(s) |
|

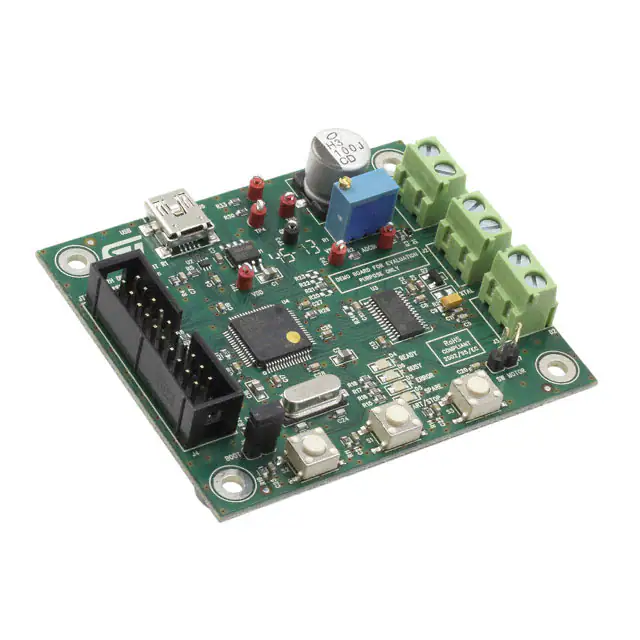

EVAL6472H-DISCEVAL BOARD FOR L6472 |
3,178 |
|
Datasheet | dSPIN™ | Box | Active | Power Management | Motor Controller/Driver, Stepper | Yes, MCU, 32-Bit | L6472 | - | On-Board LEDs | Board(s) |
|

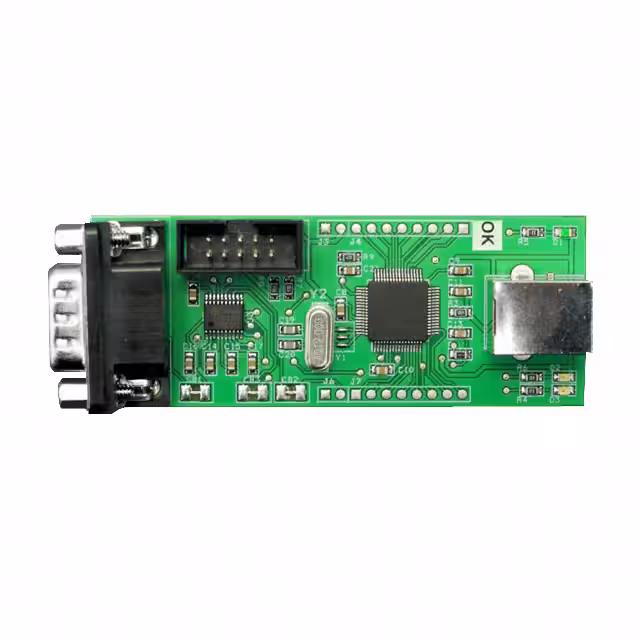

STEVAL-PCC001V1EVAL BOARD FOR ST72F63B |
3,601 |
|
Datasheet | - | Bulk | Obsolete | Interface | USB 2.0 to UART (RS232) Bridge | Yes, MCU, 8-Bit | ST72F63B | Full Speed (12Mbps) | On-Board LEDs | Board(s) |
|

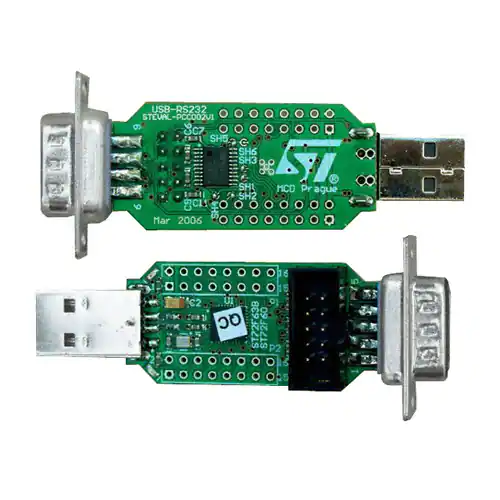

STEVAL-PCC002V1EVAL BOARD FOR ST72F60K2U1 |
3,343 |
|
Datasheet | - | Bulk | Obsolete | Interface | USB 2.0 to UART (RS232) Bridge | Yes, MCU, 8-Bit | ST72F60K2U1 | Low Speed, 800Bps, HID Focused | Graphical User Interface (GUI) | Board(s) |
|

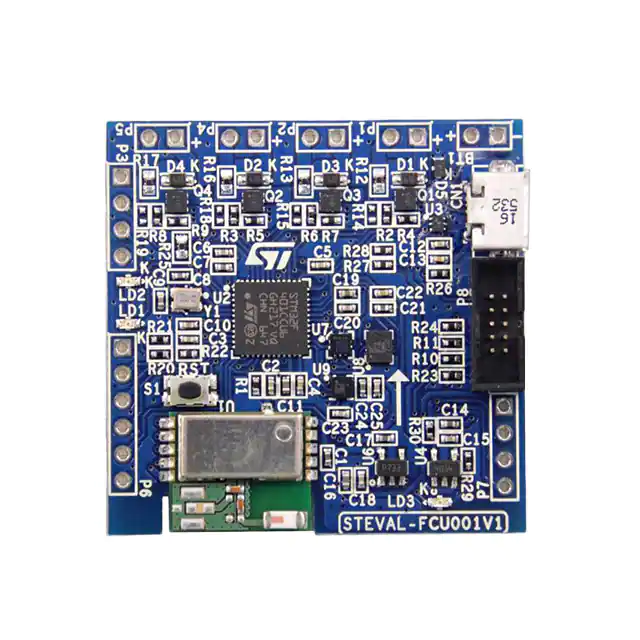

STEVAL-FCU001V1EVAL BOARD FOR STM32F401 |
2,796 |
|
Datasheet | - | Bulk | Obsolete | Power Management | Flight Controller | Yes, MCU, 32-Bit | STM32F401 | - | - | Board(s) |
|

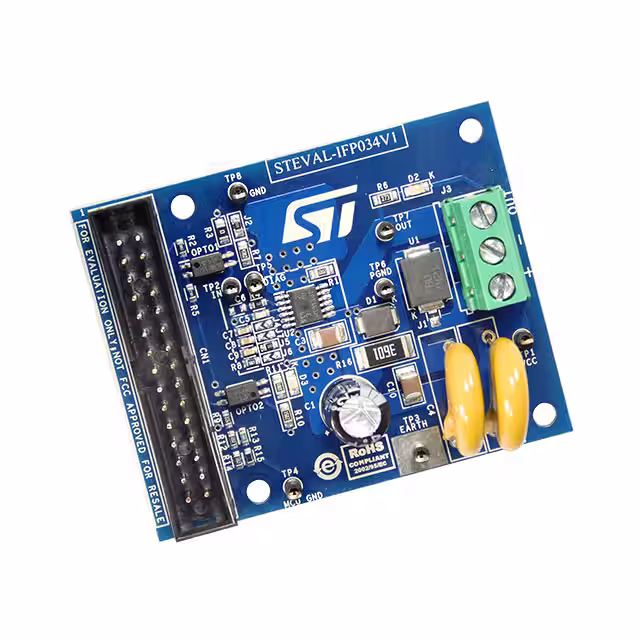

STEVAL-IFP034V1EVAL BOARD FOR IPS161H |
2,688 |
|
Datasheet | - | Bulk | Active | Power Management | High Side Driver (Internal FET) | No | IPS161H | 1-Channel (Single) | On-Board LEDs | Board(s) |
|
STEVAL-ILL004V1EVAL BOARD FOR ST7FLITE09 |
3,104 |
|
Datasheet | - | Bulk | Obsolete | Power Management | Phase Control | Yes, MCU, 8-Bit | ST7FLITE09 | Light Dimmer and Motor Speed Control | - | Board(s) |
|

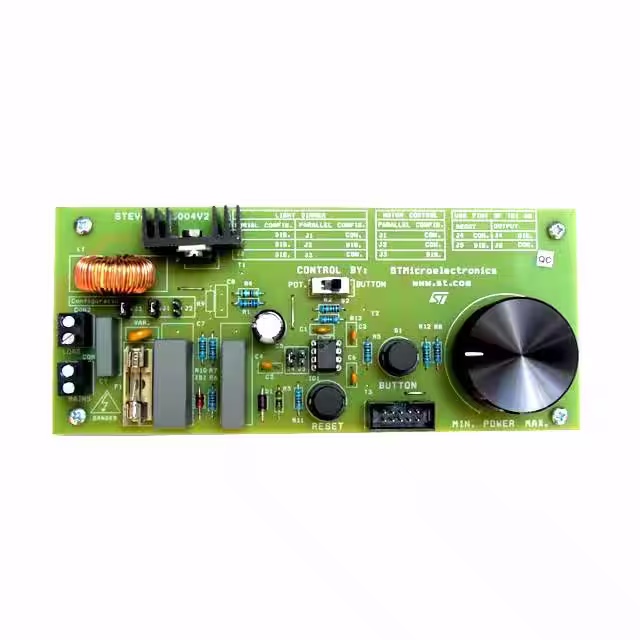

STEVAL-ILL004V2EVAL BOARD FOR ST7FLITEU5Y0B6 |
3,499 |
|
Datasheet | - | Bulk | Obsolete | Power Management | Phase Control | Yes, MCU, 8-Bit | ST7FLITEU5Y0B6 | Light Dimmer and Motor Speed Control | - | Board(s) |
|
|
STEVAL-ISQ014V1EVAL BOARD FOR TSZ121 |
3,185 |
|
Datasheet | - | Box | Active | Power Management | Current Sensing | - | TSZ121 | - | - | Board(s) |
