Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL-ADG1408LEBZEVAL BOARD FOR ADG1408L |
3,866 |
|
Datasheet | iCMOS® | Box | Active | Interface | Multiplexer | No | ADG1408L | 8-Channel (Octal) | - | Board(s) |
|
|
EVAL-ADG2436EBZEVAL BOARD |
2,506 |
|
- |
- | Box | Active | Interface | Switch, SPDT | No | ADG2436 | 2 x SPDT Analog Switch | On-Board Test Points | Board(s) |
|
|
EVAL-ADG6436EBZEVAL BOARD |
2,756 |
|
- |
- | Tray | Active | Interface | Switch, SPDT | No | ADG6436 | 2 x SPDT Analog Switch | On-Board Test Points | Board(s) |
|
EVAL-CN0313-SDPZEVAL BOARD FOR ADM3485E |
1,072 |
|
Datasheet | Circuits from the Lab™ | Box | Active | Interface | Transceiver, RS-485 | - | ADM3485E | Electromagnetic Compatibility (EMC) | - | Board(s) |
|

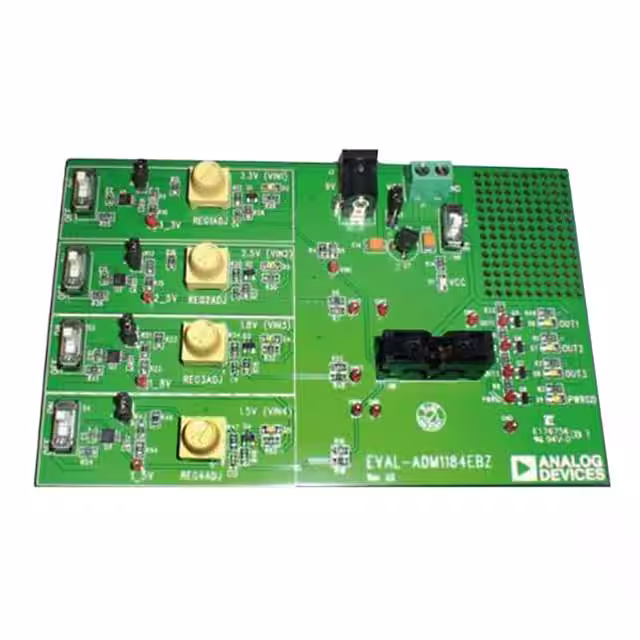

EVAL-ADM1184EBZEVAL BOARD FOR ADM1184 |
4,409 |
|
Datasheet | - | Bulk | Active | Power Management | Power Supply Supervisor/Tracker/Sequencer | No | ADM1184 | 4 Inputs, 3 Open-Drain Enable Outputs | Open-Drain Power-Good Output | Board(s) |
|

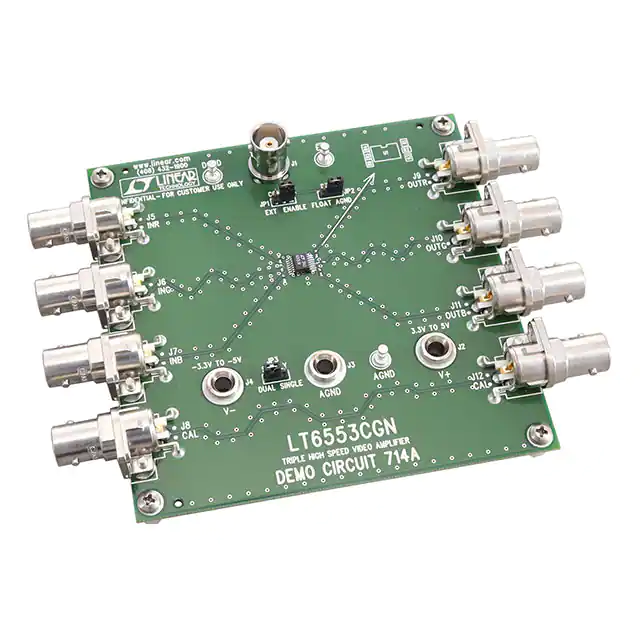

DC714AEVAL BOARD FOR LT6553 |
2,754 |
|
Datasheet | - | Bulk | Active | Video | Amplifier, Triple | No | LT6553 | - | - | Board(s) |
|

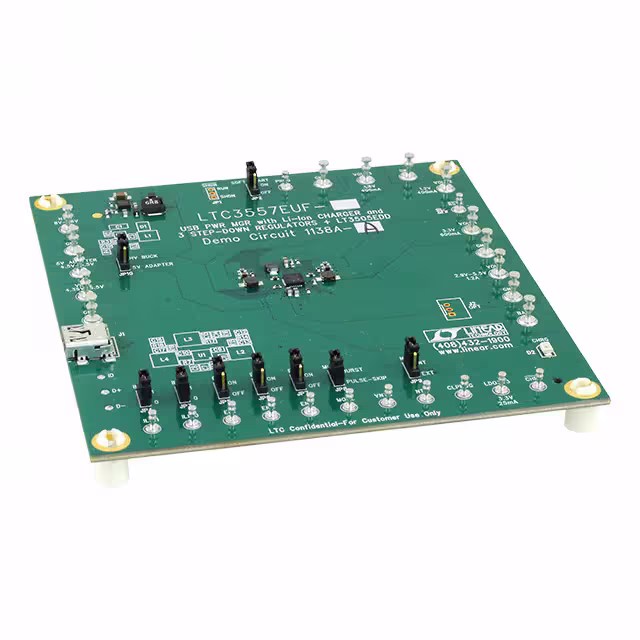

DC1138A-AEVAL BOARD FOR LTC3557 |
3,545 |
|
Datasheet | - | Box | Active | Power Management | Battery Charger | No | LTC3557 | - | - | Board(s) |
|

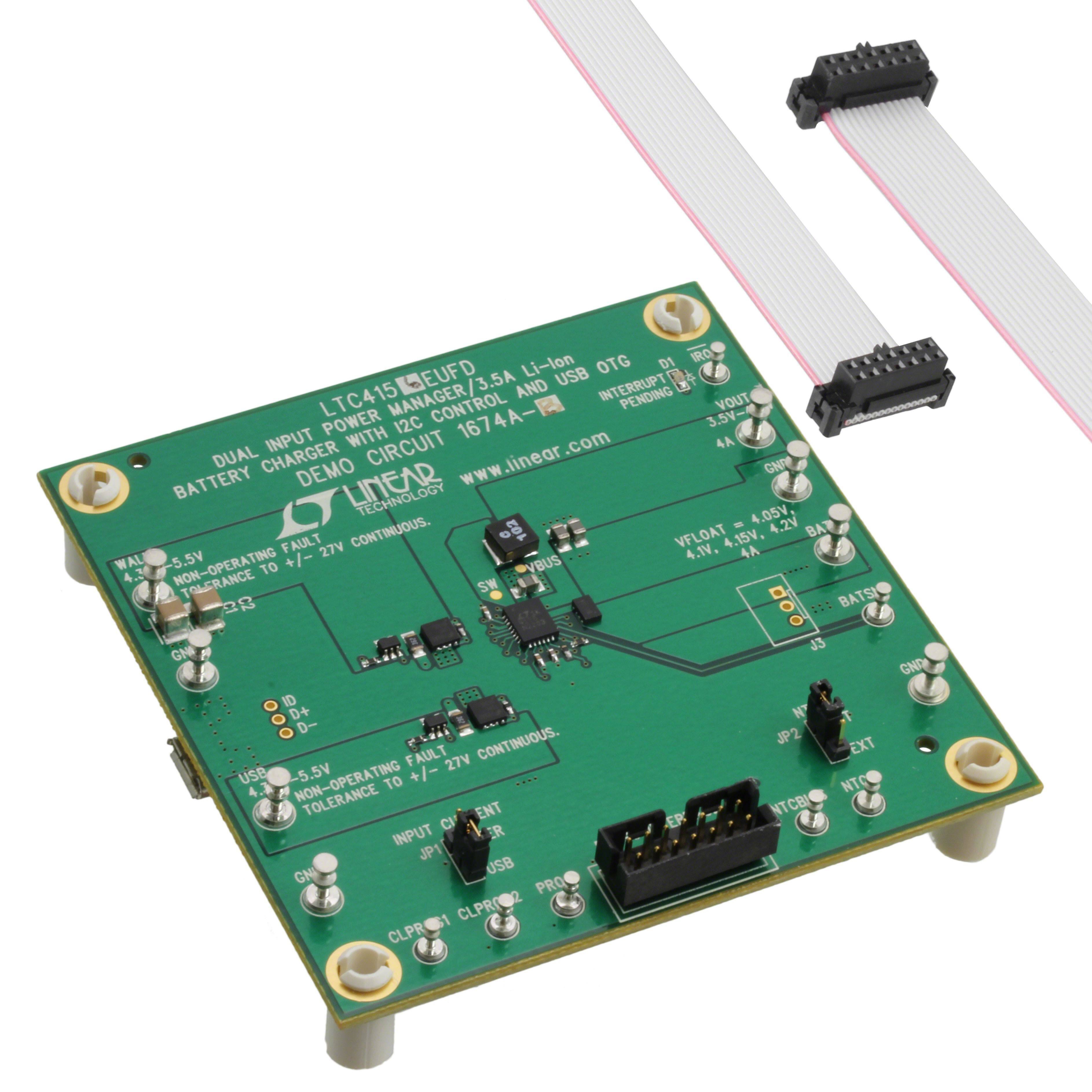

DC1674A-BEVAL BOARD FOR LTC4156 |
4,463 |
|
Datasheet | - | Box | Active | Power Management | Battery Charger | No | LTC4156 | - | I2C Interface(s), Graphical User Interface (GUI) | Board(s) |
|
|
DC1484A-AEVAL BOARD FOR LT3651-8.4 |
2,681 |
|
Datasheet | - | Bulk | Active | Power Management | Battery Charger | No | LT3651-8.4 | Li-Ion / Li-Pol (2 Cells) | On-Board LEDs, Test Points | Board(s) |
|
|
DC1484A-BEVAL BOARD FOR LT3651-8.2 |
3,016 |
|
Datasheet | - | Bulk | Active | Power Management | Battery Charger | No | LT3651-8.2 | Li-Ion / Li-Pol (2 Cells) | On-Board LEDs, Test Points | Board(s) |
