Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

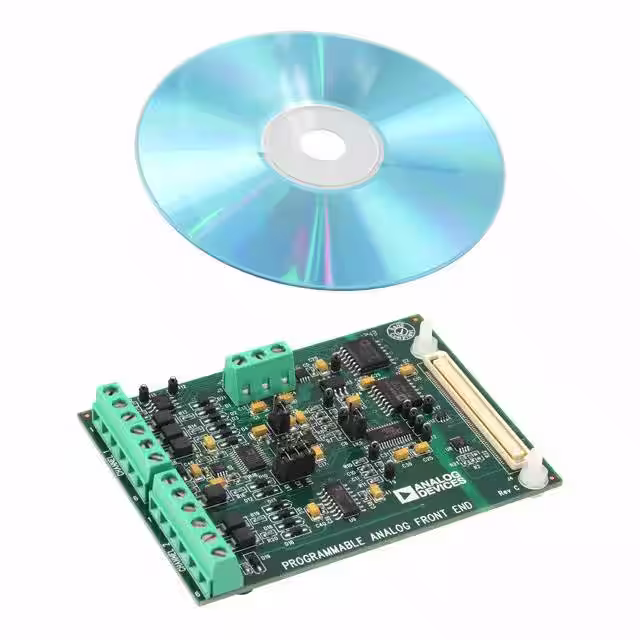

EVAL-CN0209-SDPZEVAL BOARD FOR AD7193 |
2,081 |
|
- |
Circuits from the Lab™ | Box | Active | Interface | Analog Front End (AFE) | No | AD7193 | - | - | Board(s) |
|
EVAL-ADV7390EBZEVAL BOARD FOR ADV7390 |
1,502 |
|
Datasheet | Advantiv® | Box | Obsolete | Video | Video Encoder | - | ADV7390 | - | - | Board(s) |
|

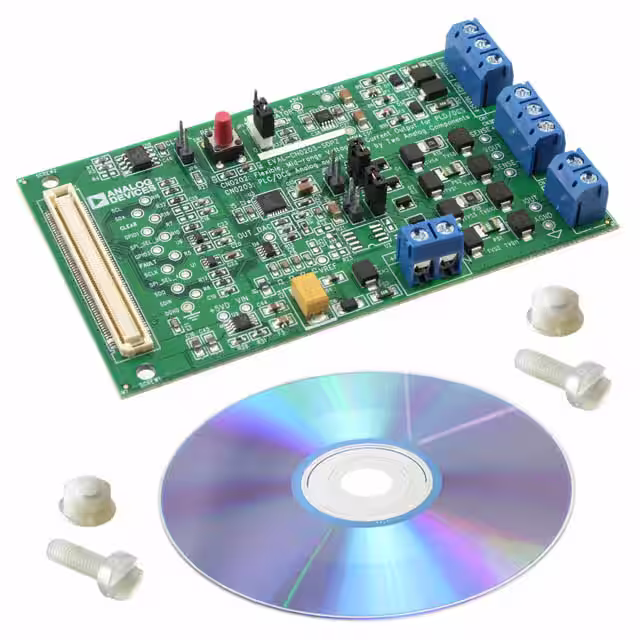

EVAL-CN0203-SDPZEVAL BOARD FOR AD5660 AD5750 |
4,027 |
|
Datasheet | Circuits from the Lab™ | Box | Active | Reference Design | Analog Output Module | No | AD5660, AD5750 | - | - | Board(s) |
|
EVAL-ADCMP564BRQZEVAL BOARD FOR ADCMP564 |
2,430 |
|
Datasheet | - | Box | Active | Interface | Comparator | - | ADCMP564 | - | Latch Enable Pin | Board(s) |
|
EVAL-ADM2487EEB5ZEVAL BOARD FOR ADM2487 |
1,018 |
|
Datasheet | - | Box | Active | Interface | Transceiver, RS-485 | - | ADM2487 | - | - | Board(s) |
|

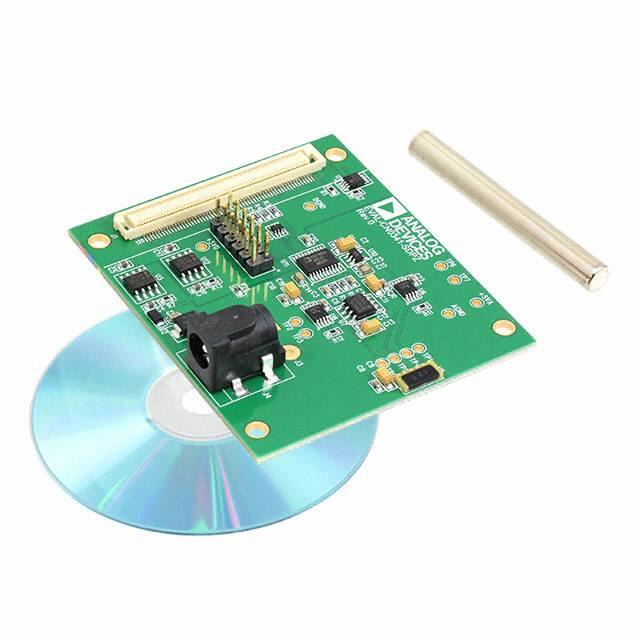

EVAL-CN0341-SDPZEVAL BD FOR AD7866 AD8227 AD8615 |
2,956 |
|
Datasheet | Circuits from the Lab™ | Box | Obsolete | Interface | Sensor Signal Conditioner | No | AD7866, AD8227, AD8615 | AMR Linear Position Measurement | - | Board(s) |
|

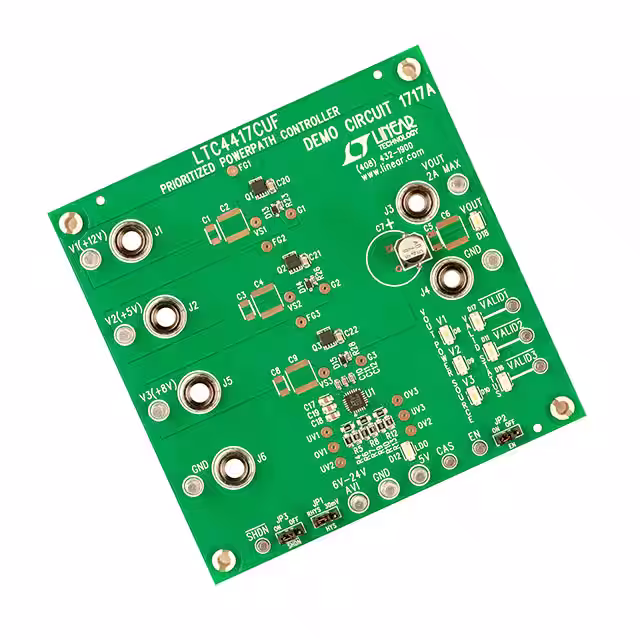

DC1717AEVAL BOARD FOR LTC4417 |
3,791 |
|
Datasheet | PowerPath™ | Bulk | Obsolete | Power Management | Power Distribution Switch (Load Switch) | No | LTC4417 | 3-Channel (Triple) | On-Board LEDs | Board(s) |
|
|
DC1080AEVAL BOARD FOR LTC4268-1 |
2,187 |
|
Datasheet | - | Box | Active | Power Management | Power over Ethernet (PoE) | - | LTC4268-1 | - | - | Board(s) |
|
|
DC1162A-AEVAL BOARD FOR LTC4223-1 |
2,157 |
|
Datasheet | - | Box | Active | Power Management | Hot Swap Controller | - | LTC4223-1 | Latch-Off | - | Board(s) |
|
|
DC1162A-BEVAL BOARD FOR LTC4223-2 |
3,224 |
|
Datasheet | - | Box | Active | Power Management | Hot Swap Controller | - | LTC4223-2 | Auto-Retry | - | Board(s) |
