Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDK-721EVAL BOARD FOR BRD1265C |
4,400 |
|
Datasheet | - | Box | Active | Reference Design | Link Switch-TN2 | No | BRD1265C | 85VAC ~ 265VAC Input Voltage, 2.75W Non-isolated Buck Converter | 550mA, 5V Output | Board(s) |
|
|
RDK-872EVAL BOARD FOR BRD1261C |
3,673 |
|
Datasheet | BridgeSwitch | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU | BRD1261C | 180VAC ~ 265VAC Input | On-Board Test Points | Board(s) |
|
|
RDK-873EVAL BOARD FOR BRD1260C |
1,192 |
|
Datasheet | BridgeSwitch | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU | BRD1260C | 270VAC ~ 365VAC Input | On-Board Test Points | Board(s) |
.jpg)
|

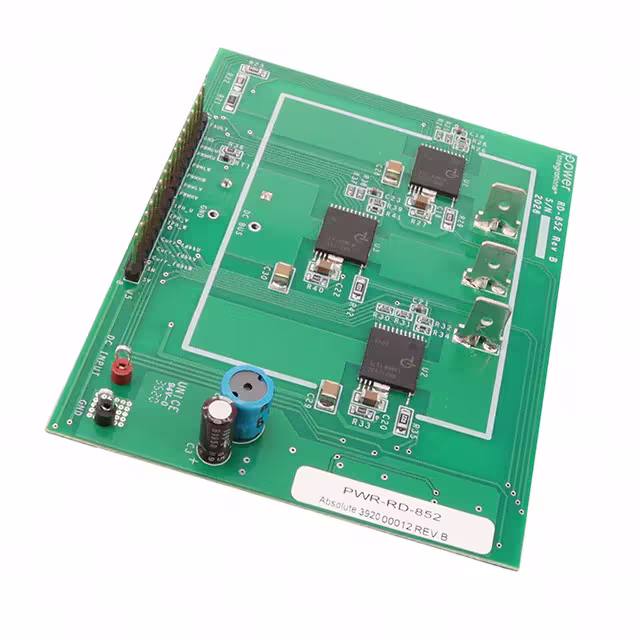

RDK-852EVAL BOARD FOR BRD1265C |
1,575 |
|
Datasheet | BridgeSwitch | Box | Active | Power Management | Motor Controller/Driver | No | BRD1265C, LNK3204D | - | - | Board(s) |
.jpg)
|

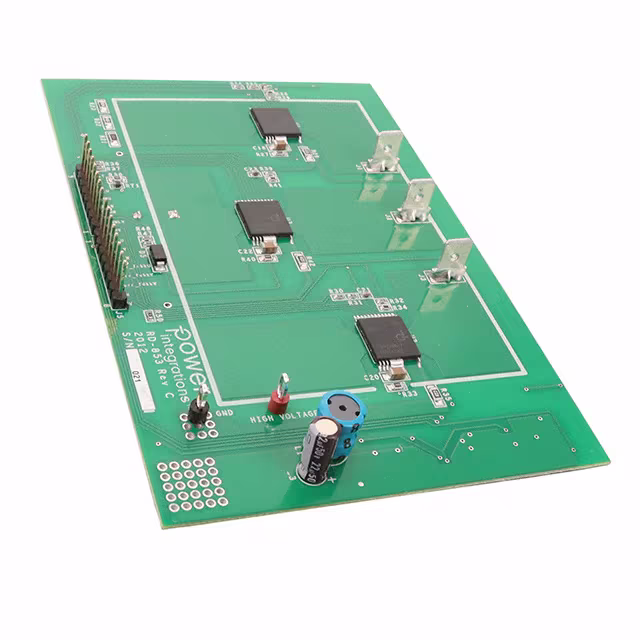

RDK-853EVAL BOARD FOR BRD1265C |
4,889 |
|
Datasheet | BridgeSwitch | Box | Active | Power Management | Motor Controller/Driver | No | BRD1265C, LNK3204D | - | - | Board(s) |
|
|
RDK-912EVAL BOARD FOR LNK3207D |
3,888 |
|
Datasheet | - | Box | Active | Reference Design | Link Switch-TN2 | No | LNK3207D | 85VAC ~ 265VAC Input Voltage | 12V Output | Board(s) |
|

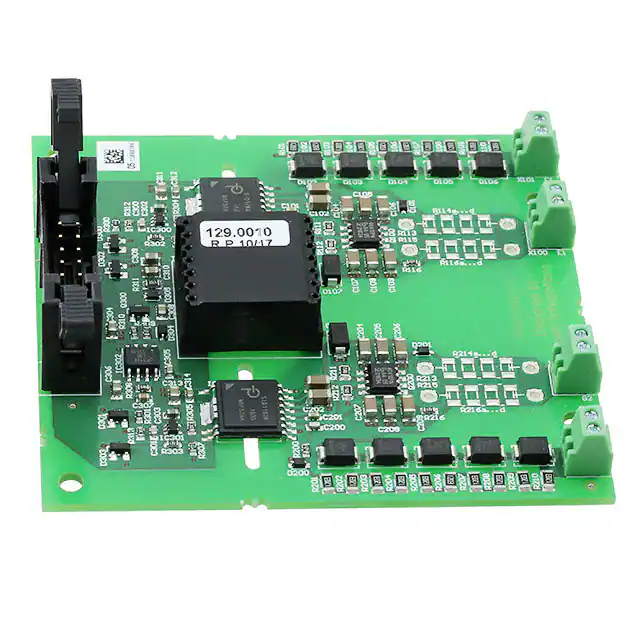

RDHP-1526EVAL BOARD FOR SID1182K |
3,193 |
|
Datasheet | SCALE-iDriver™ | Box | Active | Power Management | IGBT Power Module Driver | - | SID1182K | - | Short-Circuit Protection | Board(s) |
|

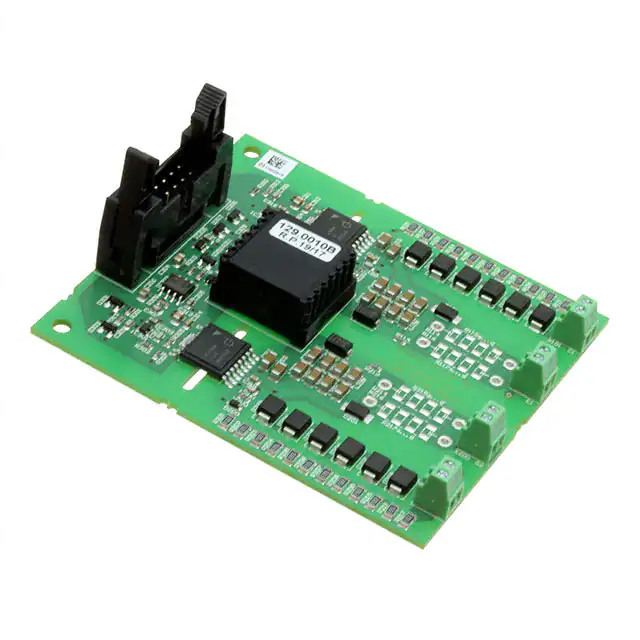

RDHP-1702EVAL BOARD FOR SID1183K |
3,264 |
|
Datasheet | SCALE-iDriver™ | Box | Active | Power Management | IGBT Power Module Driver | - | SID1183K | - | - | Board(s) |
|
|
RDK-964EVAL BOARD FOR BRD1265C |
4,827 |
|
Datasheet | BridgeSwitch | Tray | Active | Power Management | Motor Controller/Driver | No | BRD1265C | - | - | Board(s) |
|

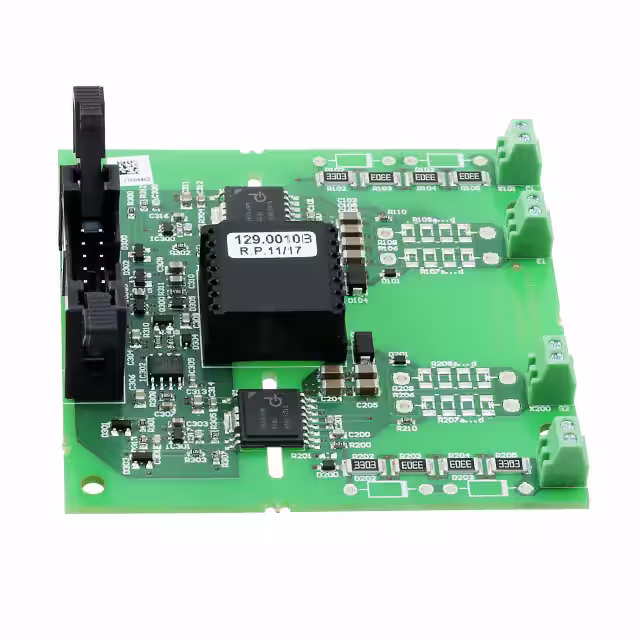

RDHP-1608EVAL BOARD FOR SID1182K |
4,152 |
|
Datasheet | SCALE-iDriver™ | Box | Active | Power Management | IGBT Power Module Driver | - | SID1182K | - | Short-Circuit Protection | Board(s) |
