Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

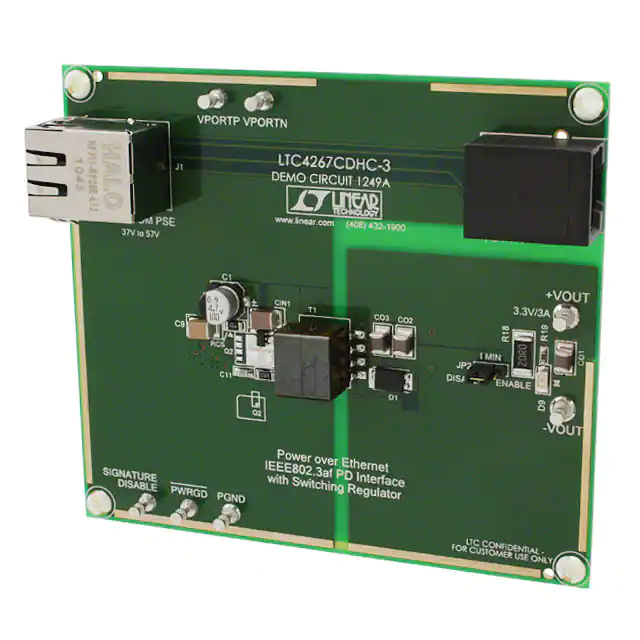

DC1249AEVAL BOARD FOR LTC4267 |
3,946 |
|
Datasheet | - | Box | Active | Power Management | Power over Ethernet (PoE) | No | LTC4267 | - | - | Board(s) |
|

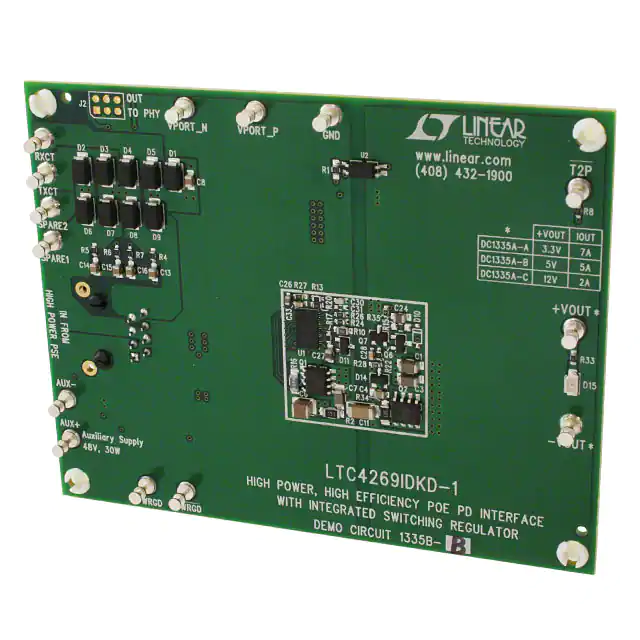

DC1335B-BEVAL BOARD FOR LTC4269-1 |
2,145 |
|
Datasheet | - | Box | Active | Power Management | Power over Ethernet (PoE) | No | LTC4269-1 | - | - | Board(s) |
|

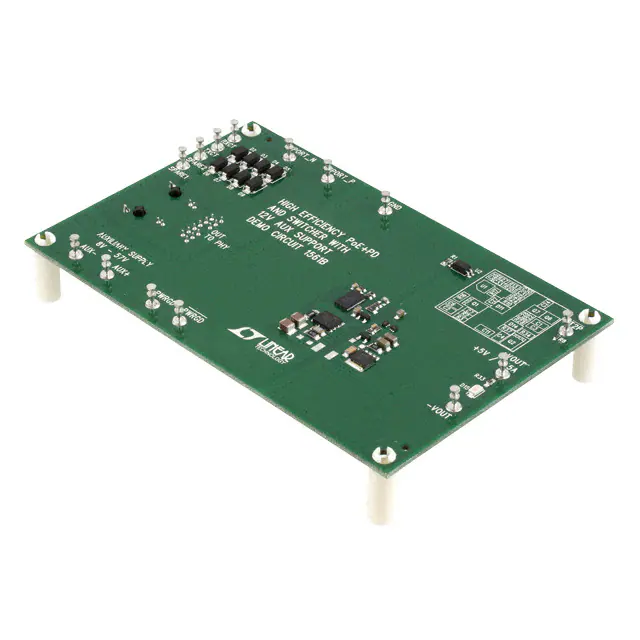

DC1561BEVAL BOARD FOR LTC4278 |
1,889 |
|
Datasheet | - | Box | Active | Power Management | Power over Ethernet (PoE) | No | LTC4278 | - | - | Board(s) |
|

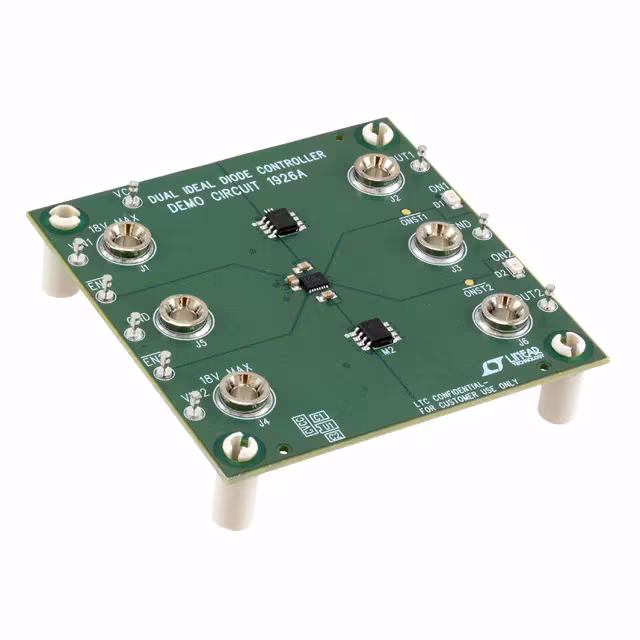

DC1926AEVAL BOARD FOR LTC4353 |
2,008 |
|
Datasheet | - | Box | Active | Power Management | ORing Controller / Ideal Diode | No | LTC4353 | 2-Channel (Dual) | - | Board(s) |
|

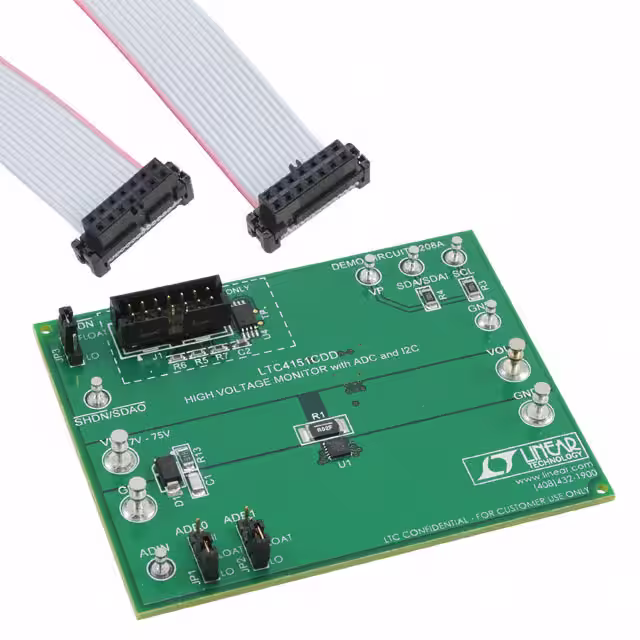

DC1208AEVAL BOARD FOR LTC4151 |
3,374 |
|
Datasheet | - | Box | Active | Power Management | Current Monitor: High Side | No | LTC4151 | - | I2C Interface(s) | Board(s) |
|

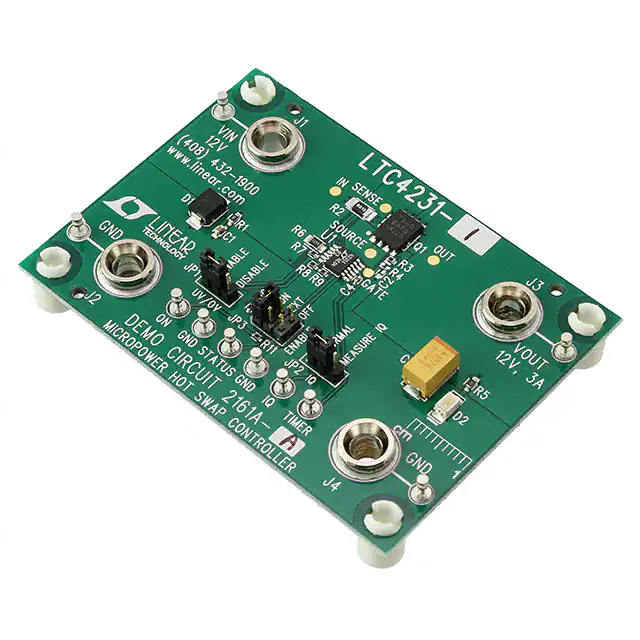

DC2161A-AEVAL BOARD FOR LTC4231-1 |
1,846 |
|
Datasheet | - | Bulk | Active | Power Management | Hot Swap Controller | - | LTC4231-1 | Latch-Off | - | Board(s) |
|

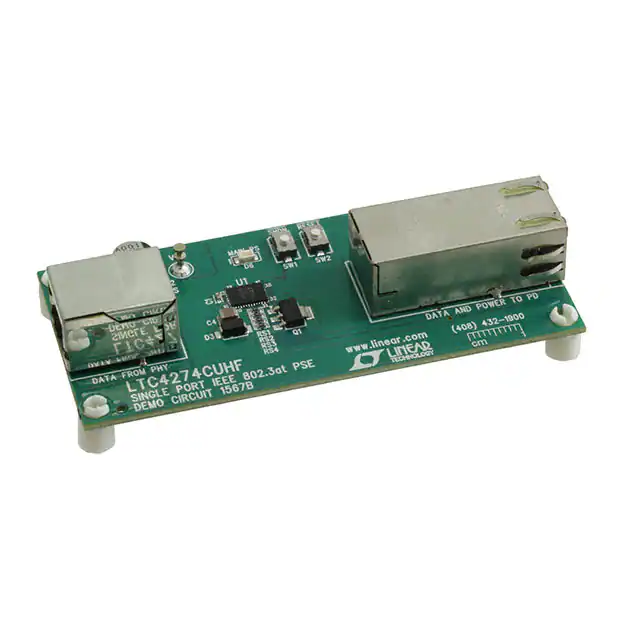

DC1567BEVAL BOARD FOR LTC4274 |
2,107 |
|
Datasheet | - | Box | Active | Power Management | Power over Ethernet (PoE) | No | LTC4274 | - | - | Board(s) |
|

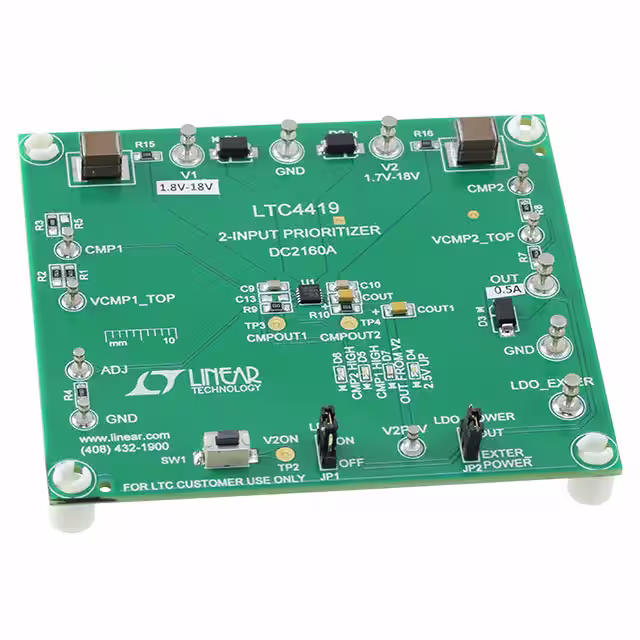

DC2160AEVAL BOARD FOR LTC4419 |
4,001 |
|
Datasheet | PowerPath™ | Box | Active | Power Management | Power Distribution Switch (Load Switch) | - | LTC4419 | Battery Backup | On-Board LEDs | Board(s) |
|

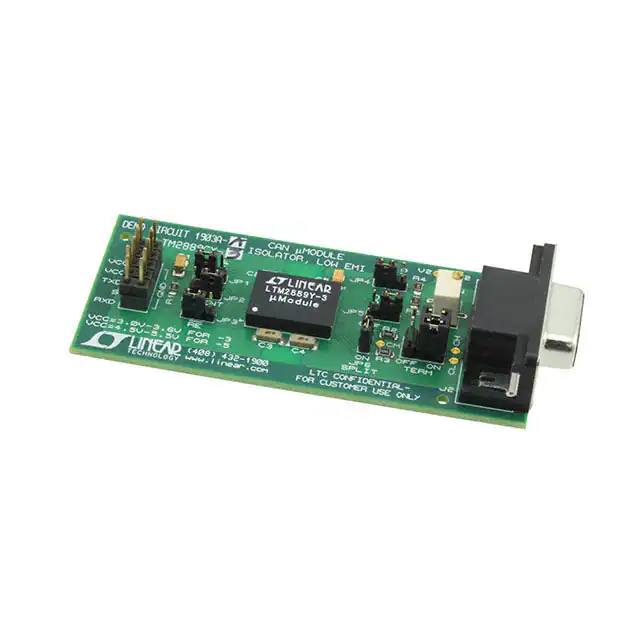

DC1903A-AEVAL BOARD FOR LTM2889-3 |
4,683 |
|
Datasheet | µModule® | Box | Active | Interface | Digital Isolator | - | LTM2889-3 | - | CAN Interface(s) | Board(s) |
|
DC1903A-BEVAL BOARD FOR LTM2889-5 |
2,411 |
|
Datasheet | µModule® | Box | Active | Interface | Digital Isolator | - | LTM2889-5 | - | CAN Interface(s) | Board(s) |
|
DC1794AEVAL BOARD FOR LTM2885 |
1,008 |
|
Datasheet | µModule® | Box | Active | Interface | Transceiver, RS-422, RS-485 | - | LTM2885 | Isolated | - | Board(s) |
|

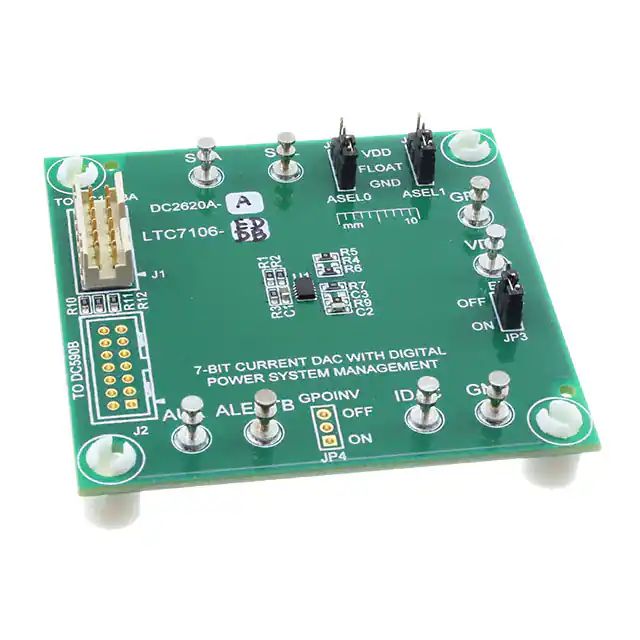

DC2620A-AEVAL BOARD FOR LTC7106 |
4,807 |
|
Datasheet | - | Box | Active | Power Management | Current DAC | No | LTC7106 | - | - | Board(s) |
|

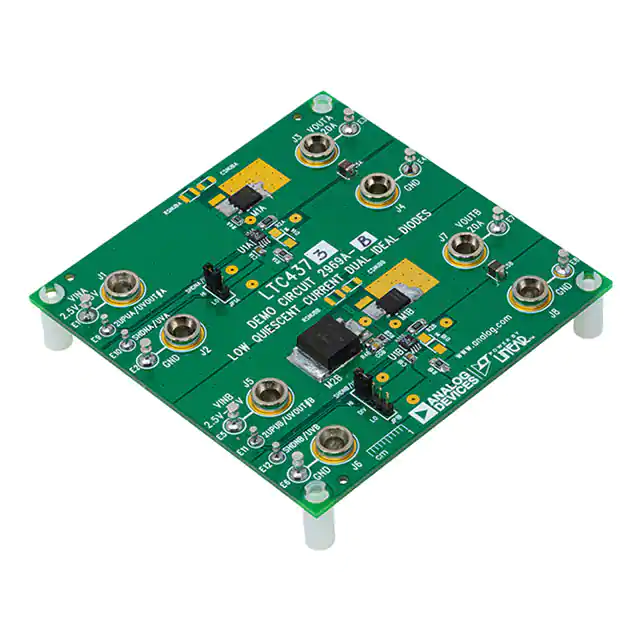

DC2969A-BEVAL BOARD FOR LTC4373 |
3,714 |
|
Datasheet | - | Bulk | Active | Power Management | Ideal Diode Controller | No | LTC4373 | 2.5V ~ 33V Operating Range | - | Board(s) |
|
BP359CEVAL BOARD FOR BP3591 |
1,784 |
|
Datasheet | - | Bulk | Not For New Designs | Interface | UART | No | BP3591 | 5V Power Supply | - | Board(s) |
|

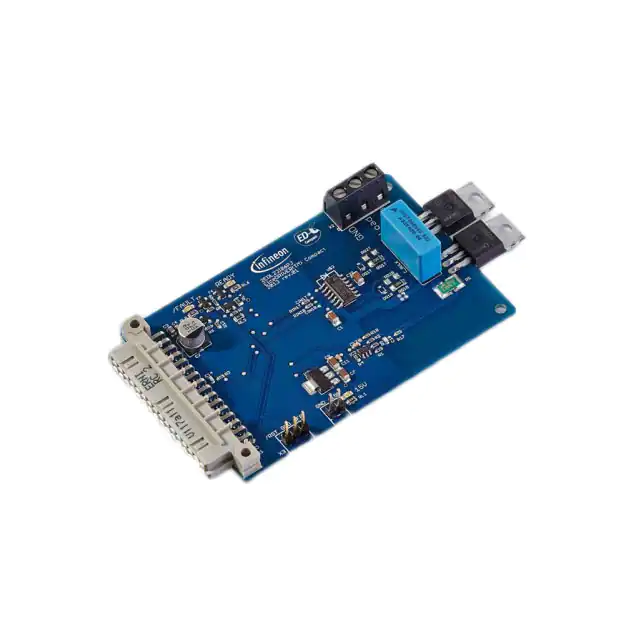

EVAL2EDL23I06PJTOBO1EVAL BOARD FOR 2EDL23I06-PJ |
4,809 |
|
Datasheet | CoolMOS™ | Bulk | Active | Power Management | Gate Driver | - | 2EDL23I06-PJ | - | - | Board(s) |
|
VM816C50A-DEVAL BOARD FOR BT816 |
1,047 |
|
Datasheet | EVE2 | Box | Active | Display | LCD Controller | - | BT816 | Audio, Display and Touch Functions | SPI Interface(s) | Board(s) |
|
DRV8106H-Q1EVMEVAL BOARD FOR DRV8106H-Q1 |
4,435 |
|
Datasheet | - | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU, 16-Bit | DRV8106H-Q1 | Single-H-Bridge Driver | On-Board LEDs | Board(s) |
|

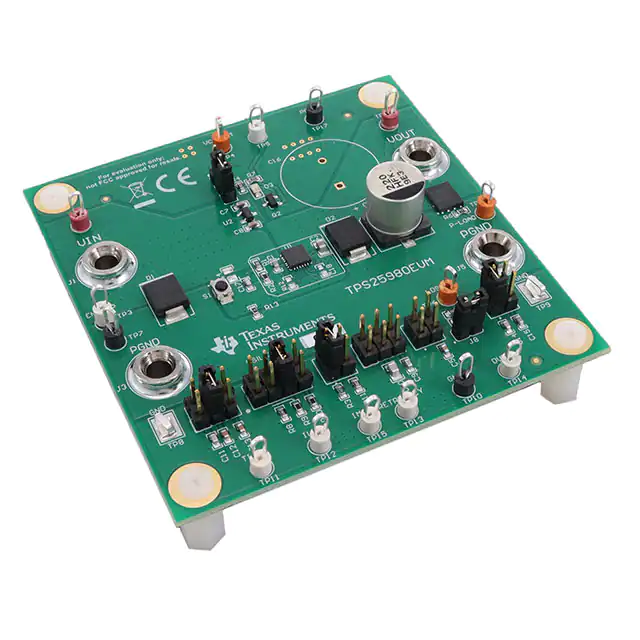

TPS25980EVMEVAL BOARD FOR TPS25980X |
1,185 |
|
Datasheet | - | Box | Active | Circuit Protection | Electronic Fuses (eFuse) | - | TPS25980X | - | - | Board(s) |
|
DRV8706S-Q1EVMEVAL BOARD FOR DRV8706S-Q1 |
1,066 |
|
Datasheet | - | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU, 16-Bit | DRV8706S-Q1 | 2 Half H-Bridge Drivers | On-Board LEDs | Board(s) |
|

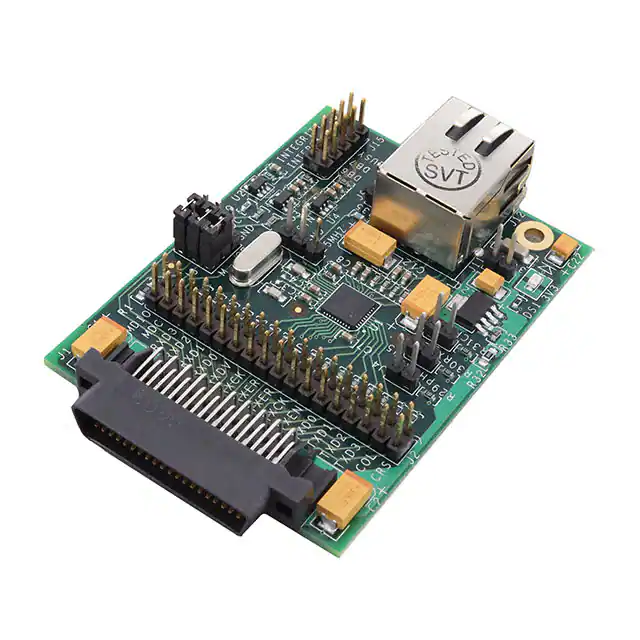

DP83848H-MAU-EKEVAL BOARD FOR DP83848H |
3,851 |
|
Datasheet | - | Box | Active | Interface | Ethernet | - | DP83848H | - | - | Board(s) |
