DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPC9143KITEVAL BOARD FOR DSPIC33CK32MP102 |
4,467 |
|
Datasheet | eGaN® | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 300 W | 12V | 25A | 18V ~ 60V | - | 500kHz | Board(s) | dsPIC33CK32MP102, EPC2053 |
|
EPC9101EVAL BOARD FOR EPC2014 EPC2015 |
4,368 |
|
Datasheet | eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 18A | 8V ~ 19V | Buck | 1MHz | Board(s) | EPC2014, EPC2015 |
|
EPC9107EVAL BOARD FOR EPC2015 |
3,750 |
|
Datasheet | eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 15A | 9V ~ 28V | Buck | 1MHz | Board(s) | EPC2015 |
|
EPC9131EVAL BOARD FOR EPC2112 |
4,125 |
|
Datasheet | eGaN® | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 27 W | 19V | 1.42A | 14V ~ 48V | Buck-Boost, SEPIC | 300kHz | Board(s) | EPC2112 |
|
EPC9102EVAL BOARD FOR EPC2001 |
1,167 |
|
Datasheet | eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 12V | 8A | 36V ~ 60V | Buck | 375kHz | Board(s) | EPC2001 |
|

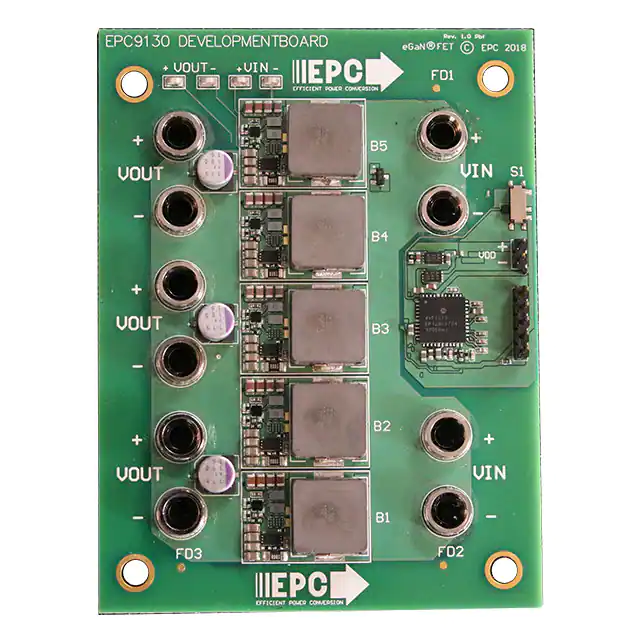

EPC9130EVAL BOARD FOR EPC2045 |
2,435 |
|
Datasheet | eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 50A | 36V ~ 60V | Buck | 500kHz | Board(s) | EPC2045 |
|

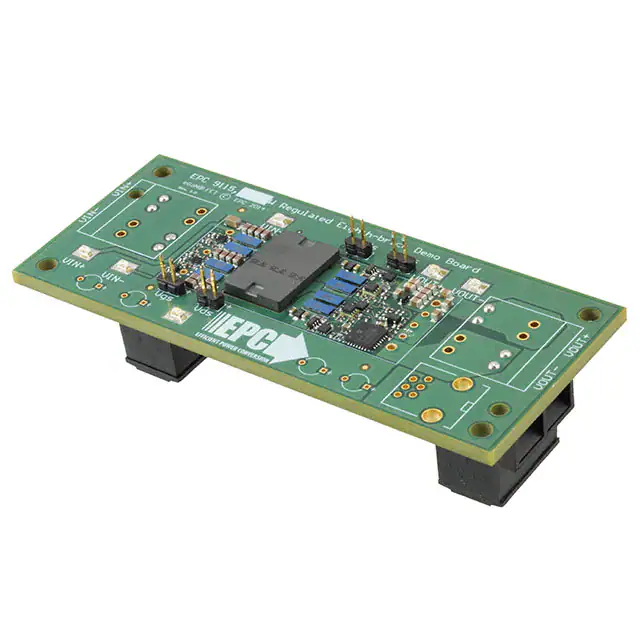

EPC9115EVAL BOARD FOR EPC2020 EPC2021 |
4,478 |
|
Datasheet | eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 12V | 5A | 48V ~ 60V | Buck | 300kHz | Board(s) | EPC2020, EPC2021 |
|
EPC9149KITEVAL BOARD FOR DSPIC33CK32MP102 |
3,563 |
|
Datasheet | - | Box | Obsolete | DC/DC Converter | 1 Non-Isolated Output | 1 kW | 9V ~ 15V | 83A | 36V ~ 60V | - | 1MHz | Board(s) | dsPIC33CK32MP102, EPC2218, EPC2214, ECP9533 |
