DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

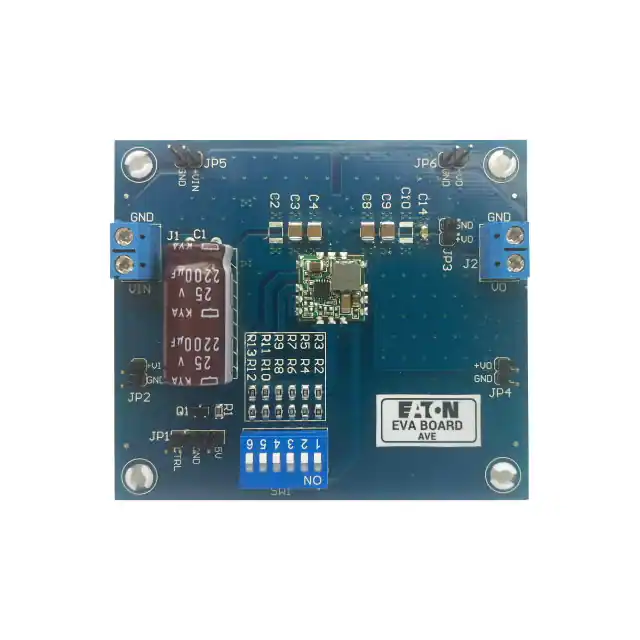

EPM12V2-P-EVKEVAL BOARD FOR EPM12V2 |
4,171 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 12A | 3V ~ 14.4V | - | 800kHz | Board(s) | EPM12V2 |
|

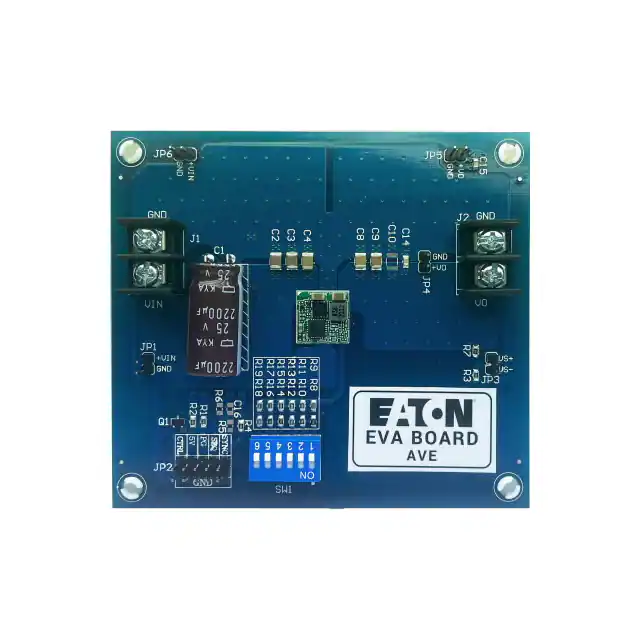

EPM12V1-EVKEVAL BOARD FOR EPM12V1 |
1,748 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.9V ~ 5.5V | 1A | 3V ~ 14V | - | 800kHz | Board(s) | EPM12V1 |
|
|
EPM12V2-N-EVKEVAL BOARD FOR EPM12V2 |
3,230 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 12A | 3V ~ 14.4V | - | 800kHz | Board(s) | EPM12V2 |
|

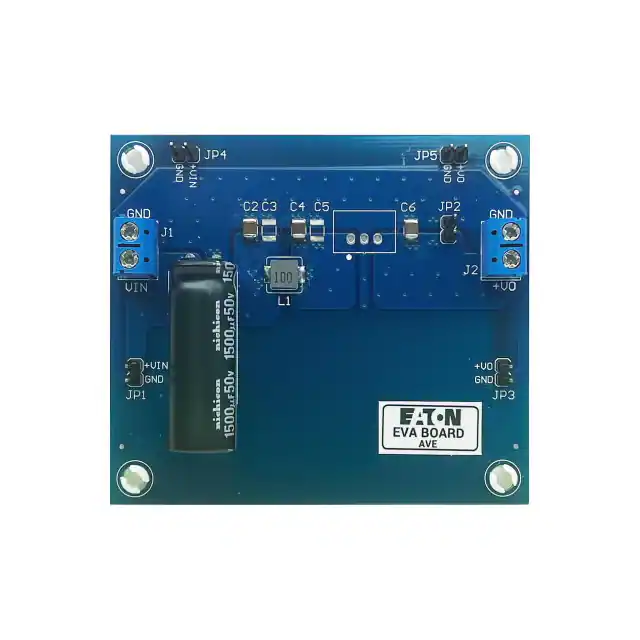

EPM78-EVKEVAL BOARD FOR EPM78 |
4,910 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 1.8V ~ 15V | 1A | 4.75V ~ 32V | - | 500kHz | Board(s) | EPM78 |
