DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

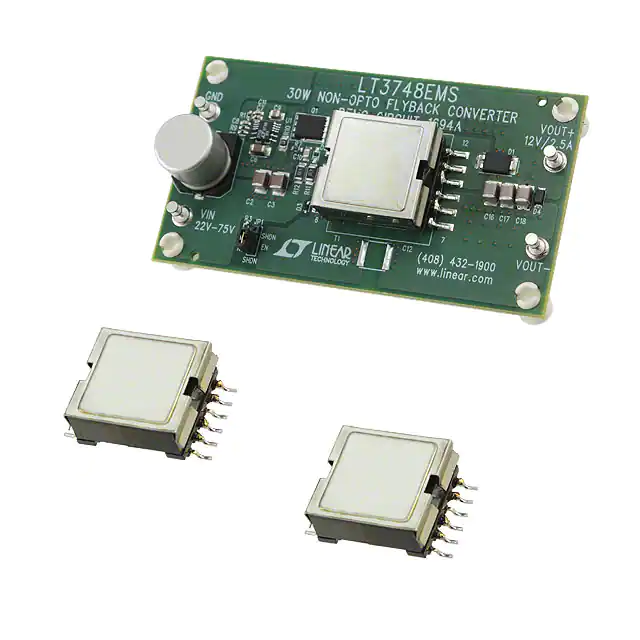

750108EVAL BOARD FOR LT3748 |
3,925 |
|
Datasheet | - | Tray | Obsolete | DC/DC, Step Down | 1 Isolated Output | 30 W | 12V | 2.5A | 22V ~ 75V | Flyback | - | Board(s) | LT3748 |
|

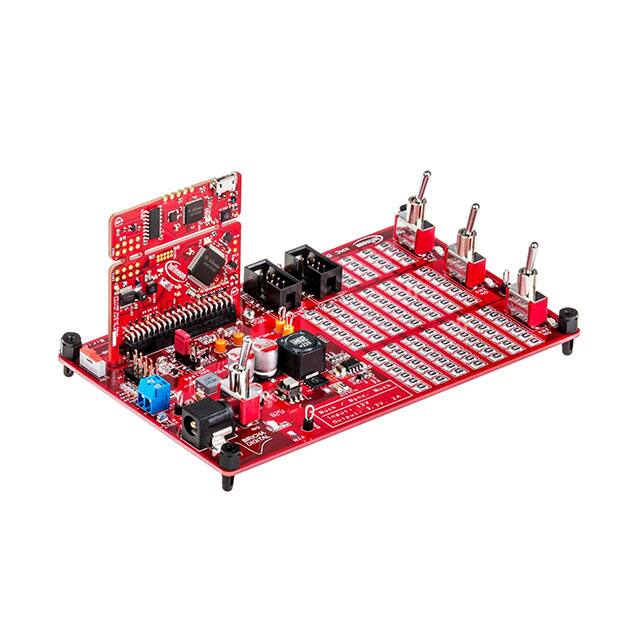

IC-744726XMC DIGITAL POWER EXPLORER |
4,475 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 12V | Buck | 2.2MHz | Board(s) | - |
