DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

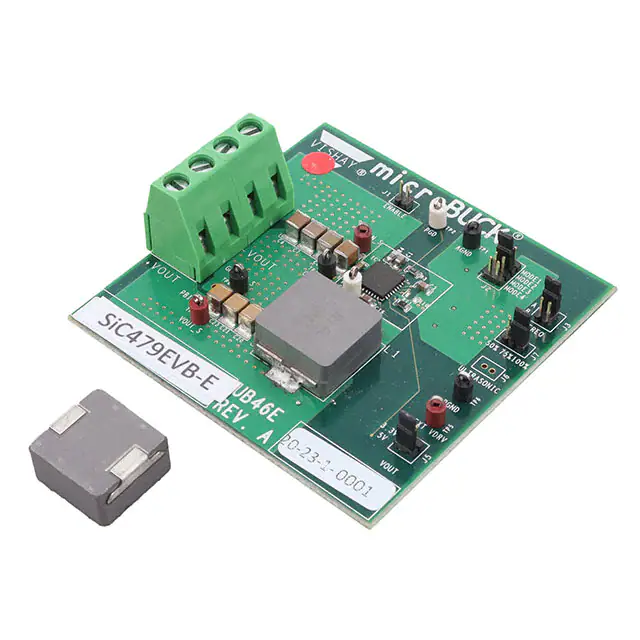

SIC479EVB-EEVAL BOARD FOR SIC479 |
1,236 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 24V | 3A | 4.5V ~ 55V | Buck | - | Board(s) | SIC479 |
|

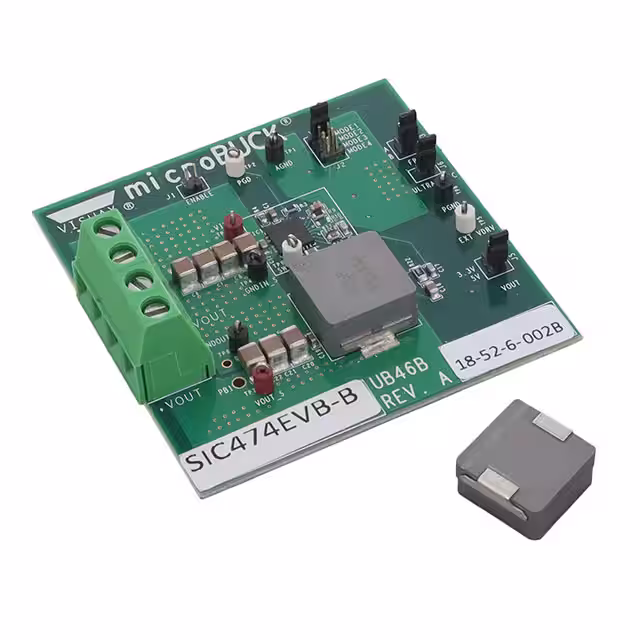

SIC474EVB-BEVAL BOARD FOR SIC474 |
3,396 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 50V | 3A | 4.5V ~ 55V | Buck | - | Board(s) | SIC474 |
|

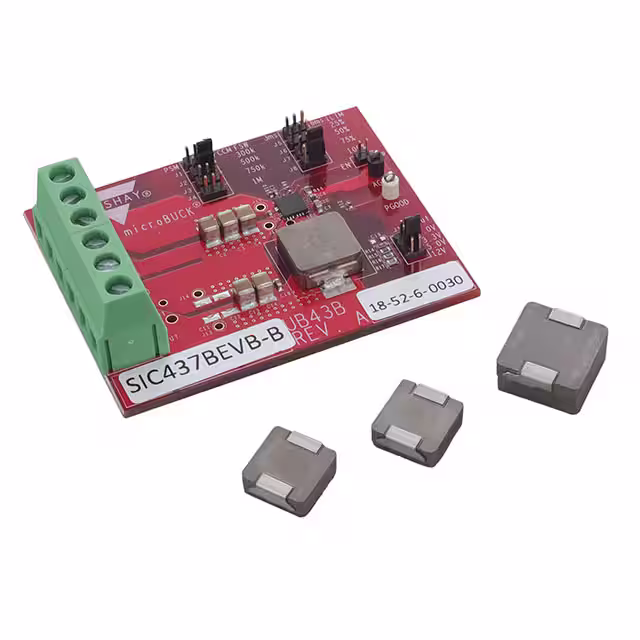

SIC437BEVB-BEVAL BOARD FOR SIC437 |
4,273 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 20V | 12A | 4.5V ~ 28V | Buck | - | Board(s) | SiC437 |
|
SIC931EVB-AEVAL BOARD FOR SIC931 |
2,177 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 20A | 4.5V ~ 18V | Buck | - | Board(s) | SiC931 |
|
SIC462EVB-AEVAL BOARD FOR SIC462 |
2,888 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 55V | 6A | 4.5V ~ 60V | Buck | - | Board(s) | SIC462 |
|

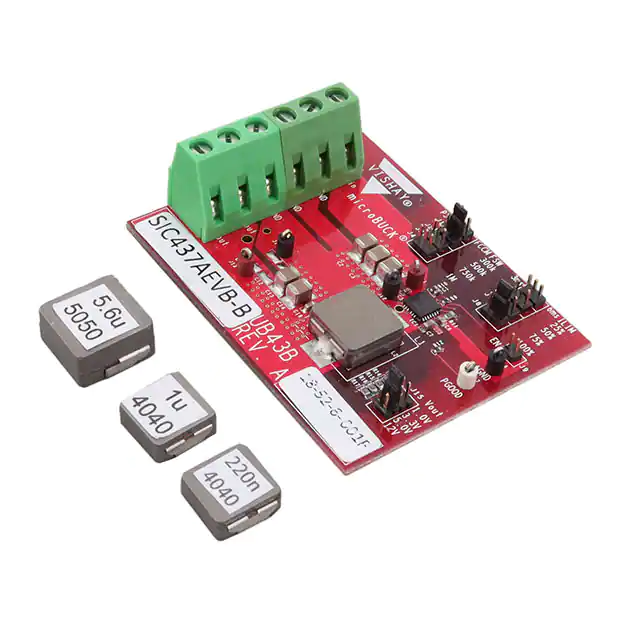

SIC437AEVB-BEVAL BOARD FOR SIC437 |
3,728 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 20V | 12A | 4.5V ~ 28V | Buck | - | Board(s) | SiC437 |
|
SIC464EVBEVAL BOARD FOR SIC464 |
2,364 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.5V ~ 60V | Buck | - | Board(s) | SIC464 |
|
|
SIC967EVB-AEVAL BOARD FOR SIC967 |
2,843 |
|
Datasheet | microBRICK® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 15V | 6A | 4.5V ~ 60V | Buck | - | Board(s) | SiC967 |
|
|
SIP12117DBEVAL BOARD FOR SIP12117 |
2,694 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 3A | 4.5V ~ 15V | Buck | 600kHz | Board(s) | SIP12117 |
|

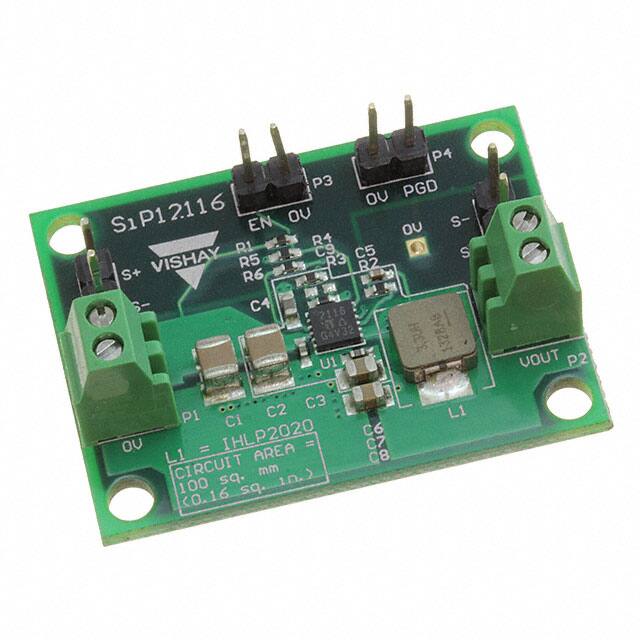

SIP12116DBEVAL BOARD FOR SIP12116 |
2,170 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 3A | 4.5V ~ 15V | Buck | 600kHz | Board(s) | SIP12116 |
