DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

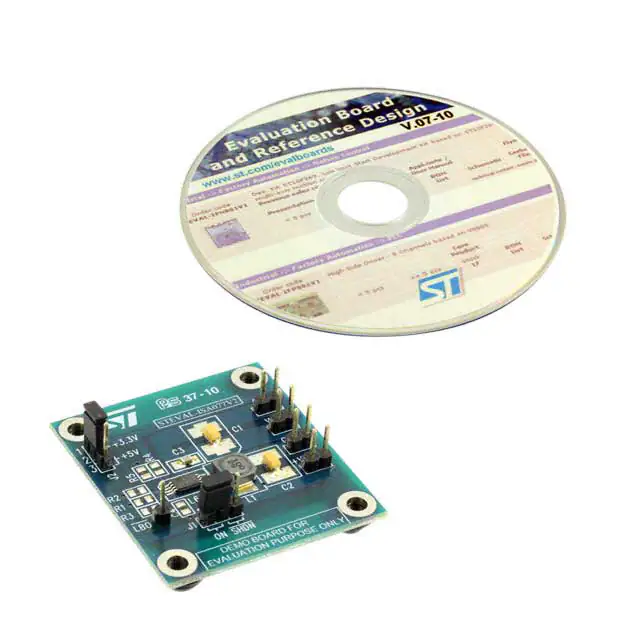

STEVAL-ISA077V2EVAL BOARD FOR L6920 |
4,969 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 2V ~ 5.2V | - | 0.6V ~ 5.5V | Boost | - | Board(s) | L6920 |
|

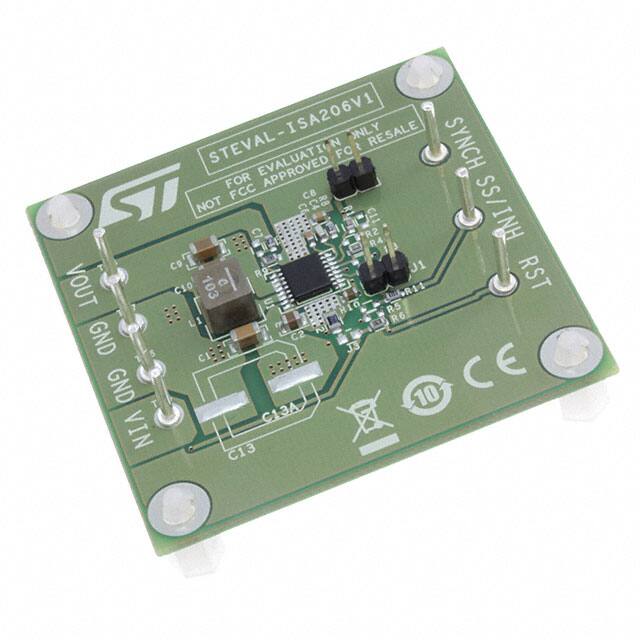

STEVAL-ISA206V1EVAL BOARD FOR L6986H |
1,157 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4V ~ 38V | Buck | 500kHz | Board(s) | L6986H |
|

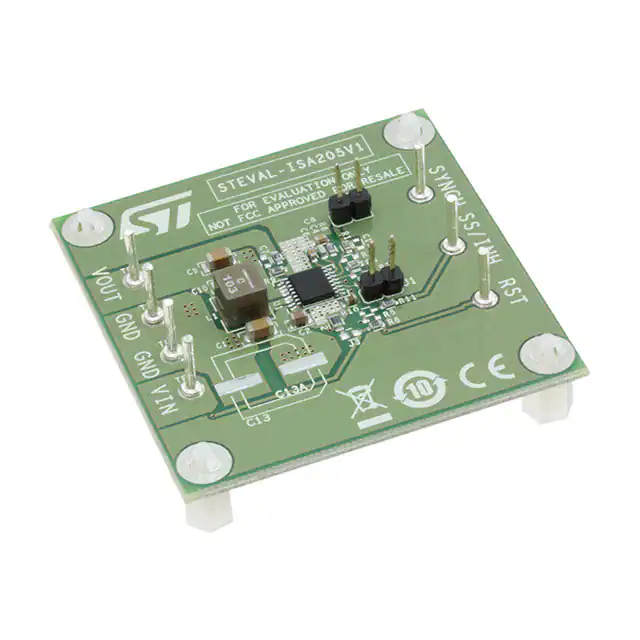

STEVAL-ISA205V1EVAL BOARD FOR A6986H |
2,860 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4V ~ 38V | Buck | 500kHz | Board(s) | A6986H |
|

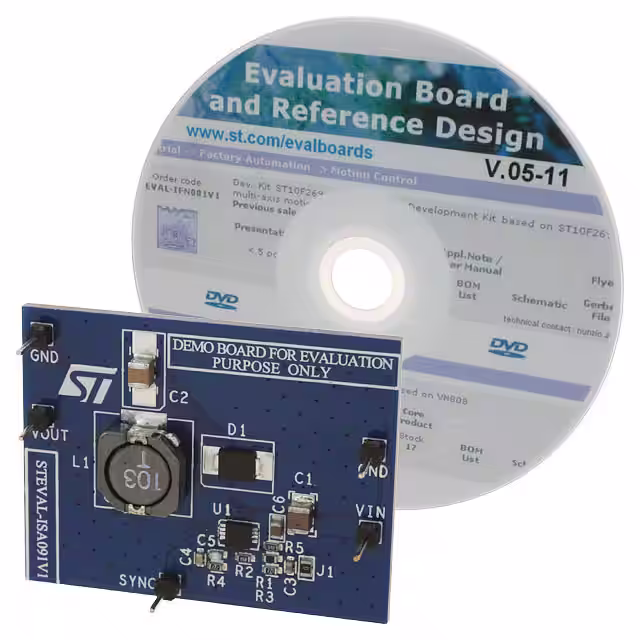

STEVAL-ISA091V1EVAL BOARD FOR L7980 |
2,447 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 28V | Buck | 250kHz | Board(s) | L7980 |
|

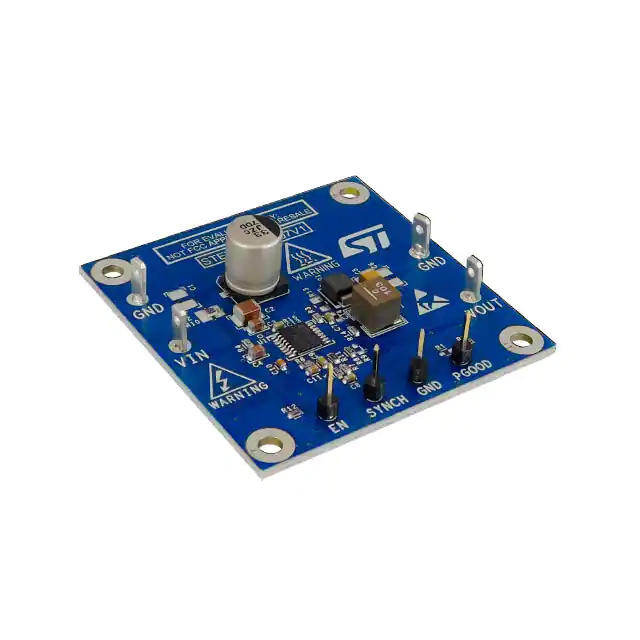

STEVAL-ISA207V1EVAL BOARD FOR A7987 |
2,871 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 60V | Buck | 500kHz | Board(s) | A7987 |
|
STEVAL-LNBH01EVAL BOARD FOR LNBH25LS |
2,544 |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH25LS |
|

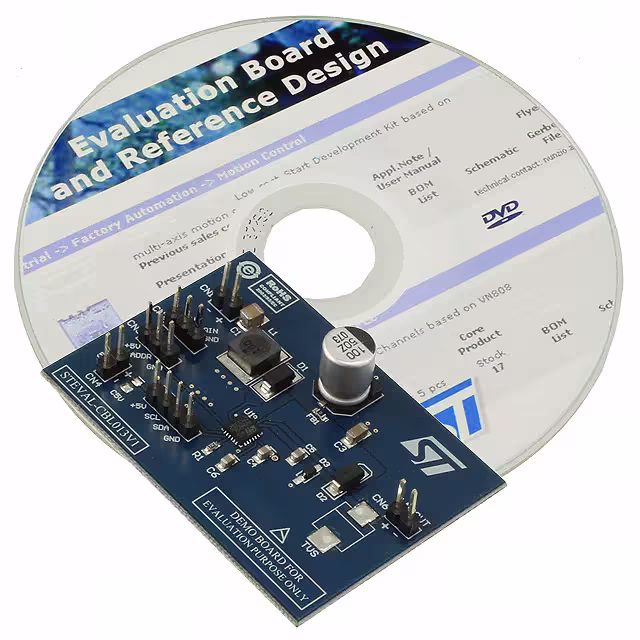

STEVAL-CBL013V1EVAL BOARD FOR LNBH25 |
1,579 |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH25 |
|

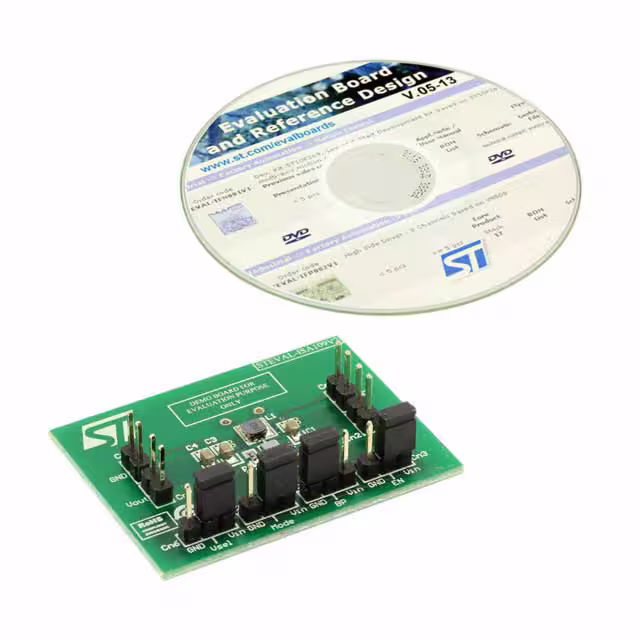

STEVAL-ISA109V2EVAL BOARD FOR STBB2 |
1,498 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 2.3V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | STBB2 |
|

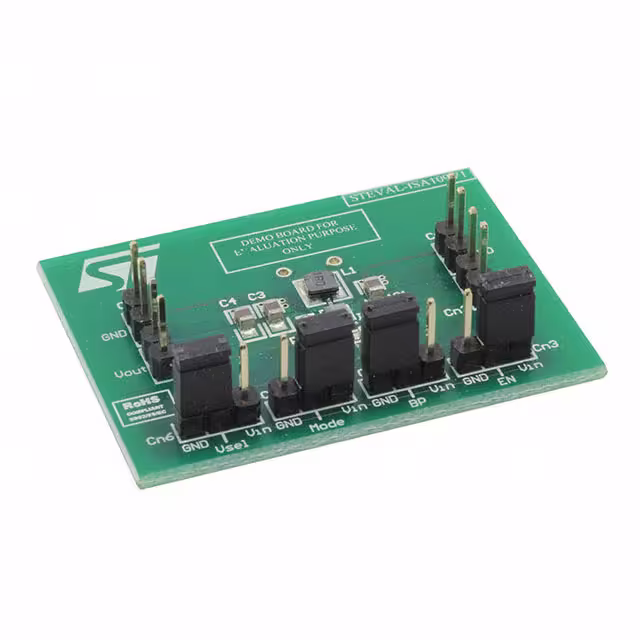

STEVAL-ISA109V1EVAL BOARD FOR STBB2 |
1,740 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 2.3V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | STBB2 |
|
STEVAL-ISA178V1EVAL BOARD FOR VIPER01 |
3,207 |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | - | 5V | 200mA | 85 ~ 265 VAC | Buck | 60kHz | Board(s) | VIPer01 |
