DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
106990007EVAL BOARD FOR MP2307 |
4,588 |
|
- |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 17V | 1.8A | 4.5V ~ 23V | Buck | 340kHz | Board(s) | MP2307 |
|
106990003EVAL BOARD FOR LM2596 |
3,824 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V ~ 35V | 3A | 3.2V ~ 40V | Buck | 65kHz | Board(s) | LM2596 |
|

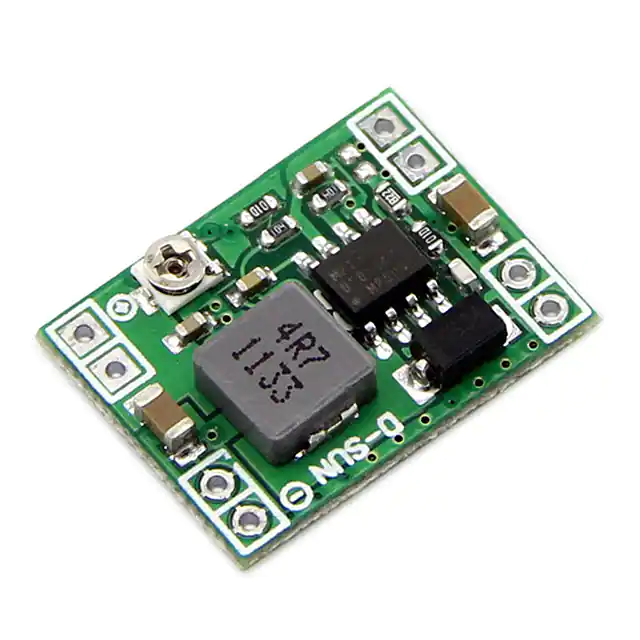

106990005EVAL BOARD FOR MP1584 |
4,357 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 18V | 3A | 4.5V ~ 28V | Buck | - | Board(s) | MP1584 |
|

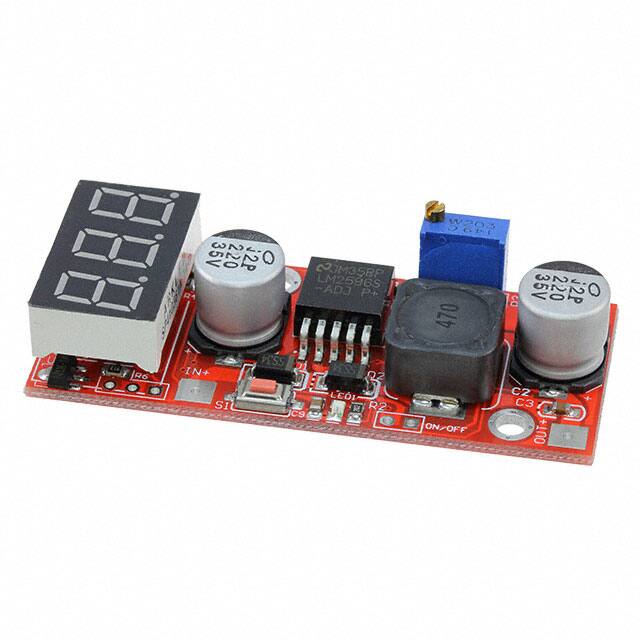

114990167DISPLAY ADJ DC/DC POWER CONV |
1,424 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 15 W | 1.3V ~ 25V | 1.5A | 4.5V ~ 28V | Buck | - | Board(s) | - |
|

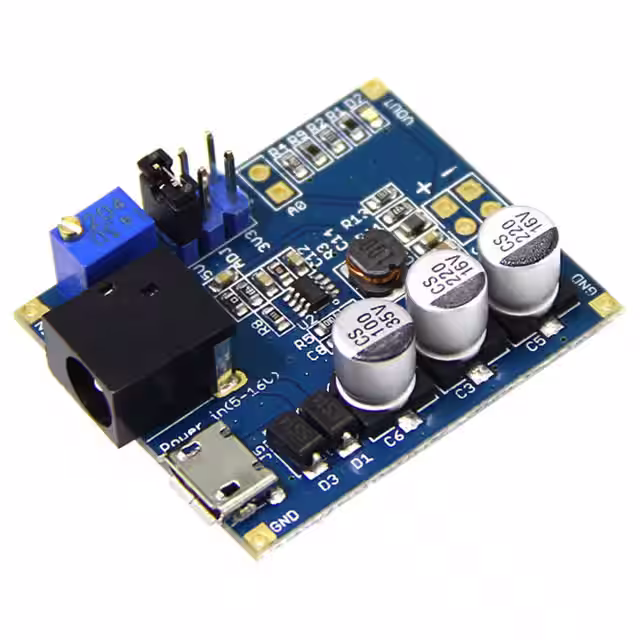

105030005ADJUSTABLE DC/DC POWER CONV |
1,353 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 12V | 1.5A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | - |
|

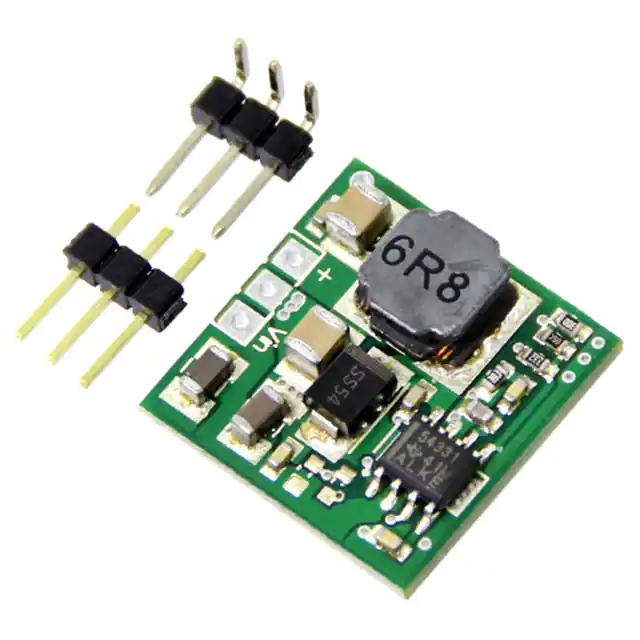

106990019EVAL BOARD FOR TPS54331 |
3,537 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Positive and Negative | 1 Non-Isolated Output | - | - | 2A | 3.5V ~ 28V | Buck | - | Board(s) | TPS54331 |
