DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BM2PAB1Y-EVK-003EVAL BOARD FOR BM2PAB1Y |
4,853 |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 8 W | 20V | 400mA | 90 ~ 264 VAC | Buck | 25kHz | Board(s) | BM2PAB1Y |
|
BM2P141X-EVK-001EVAL BOARD FOR BM2P141X |
1,411 |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 10 W | 14V | 715mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P141X |
|

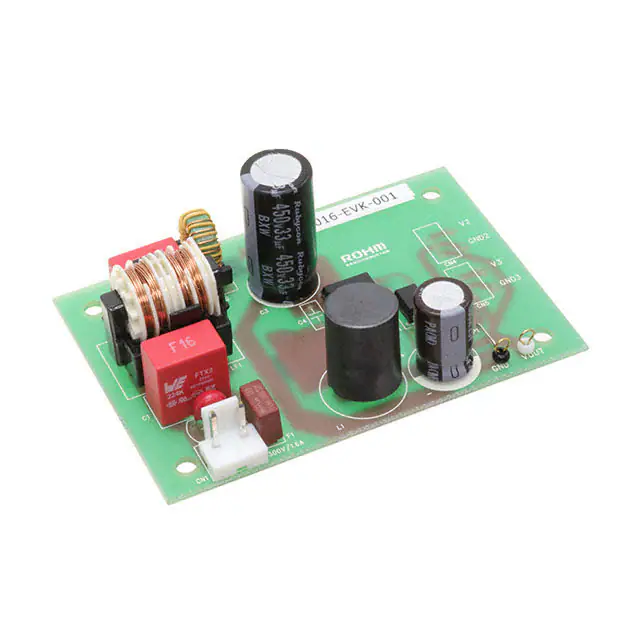

BM2P016-EVK-001EVAL BOARD FOR BM2P016 |
3,874 |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 15 W | 15V | 1A | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P016 |
|
|
BM2P121X-EVK-001EVAL BOARD FOR BM2P121X |
2,139 |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 9 W | 12V | 750mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P121X |
|

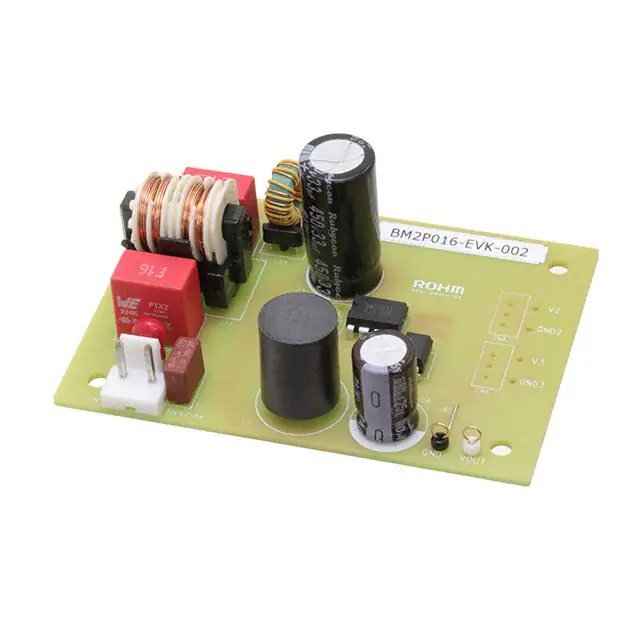

BM2P016-EVK-002EVAL BOARD FOR BM2P016 |
2,073 |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 12 W | 12V | 1A | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P016 |
|
BM2P0161-EVK-001EVAL BOARD FOR BM2P0161 |
1,622 |
|
Datasheet | - | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 7.5 W | 15V | 500mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P0161 |
|

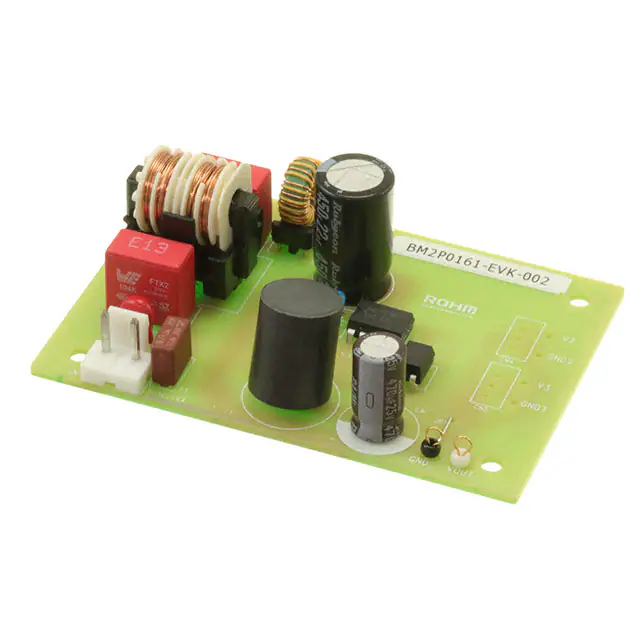

BM2P0161-EVK-002EVAL BOARD FOR BM2P0161 |
3,526 |
|
Datasheet | - | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 6 W | 12V | 500mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P0161 |
|

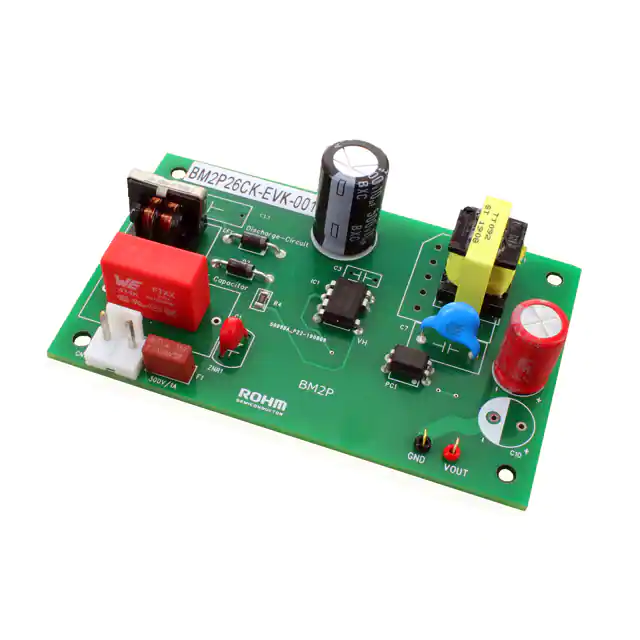

BM2P26CK-EVK-001EVAL BOARD FOR BM2P26 |
3,530 |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 2.5 W | 5V | 500mA | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | BM2P26 |
|
BD7F100HFN-EVK-002EVAL BOARD FOR BD7F100 |
4,159 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 1A | 24V | Flyback | 400kHz | Board(s) | BD7F100 |
|
BM2P016T-EVK-004EVAL BOARD FOR BM2P016T |
2,315 |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 48 W | 24V | 2A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P016T |
