DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL6263AEVAL1ZEVAL BOARD FOR ISL6263A |
3,041 |
|
Datasheet | Robust Ripple Regulator™ (R3) | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.412V ~ 1.2875V | 12A | 5V ~ 25V | Buck | 300kHz | Board(s) | ISL6263A |
|
|
ISL8200MEVAL2PHZEVAL BOARD FOR ISL8200M |
3,295 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 3V ~ 20V | Buck | 700kHz ~ 1.5MHz | Board(s) | ISL8200M |
|

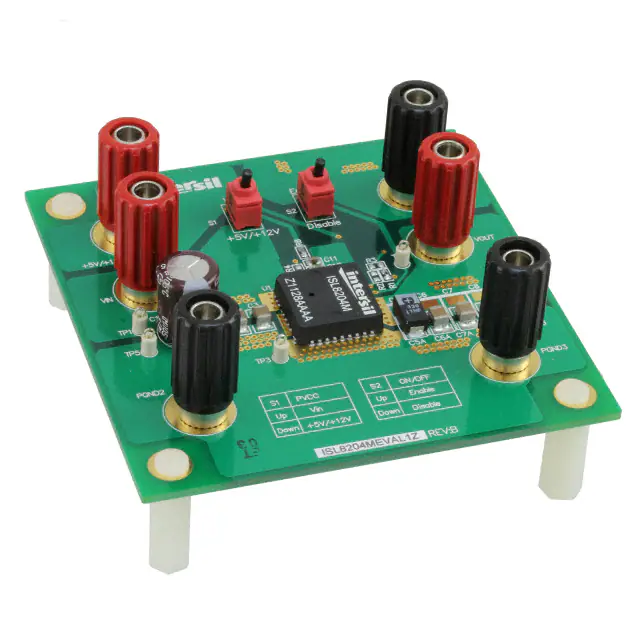

ISL8204MEVAL1ZEVAL BOARD FOR ISL8204M |
2,350 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 4A | 1V ~ 20V | Buck | 600kHz | Board(s) | ISL8204M |
|
|
ISL6754DBEVAL1ZEVAL BOARD FOR ISL6754 |
3,182 |
|
Datasheet | - | Box | Obsolete | DC/DC Isolated Power Supply | 1 Isolated Output | - | 12V | - | - | Resonant | - | Board(s) | ISL6754 |
|
|
ISL9103IRUWEVAL1ZEVAL BOARD FOR ISL9103 |
1,497 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 500mA | 2.7V ~ 6V | Buck | 2.4MHz | Board(s) | ISL9103 |
|
|
ISL6537-6506EVAL1EVAL BOARD FOR ISL6506 ISL6537 |
3,496 |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, DDR Memory Supply | - | - | - | - | - | Buck | - | Board(s) | ISL6506, ISL6537 |
|

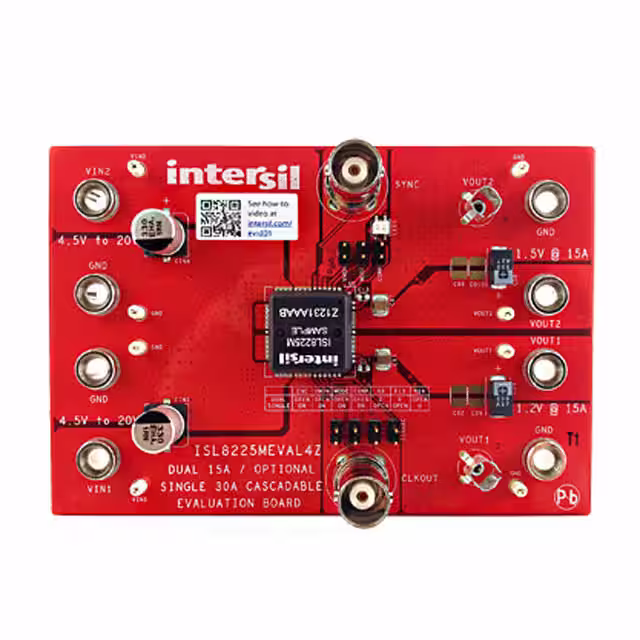

ISL8225MEVAL4ZEVAL BOARD FOR ISL8225M |
3,193 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 15A, 15A | 4.5V ~ 20V | Buck | - | Board(s) | ISL8225M |
|

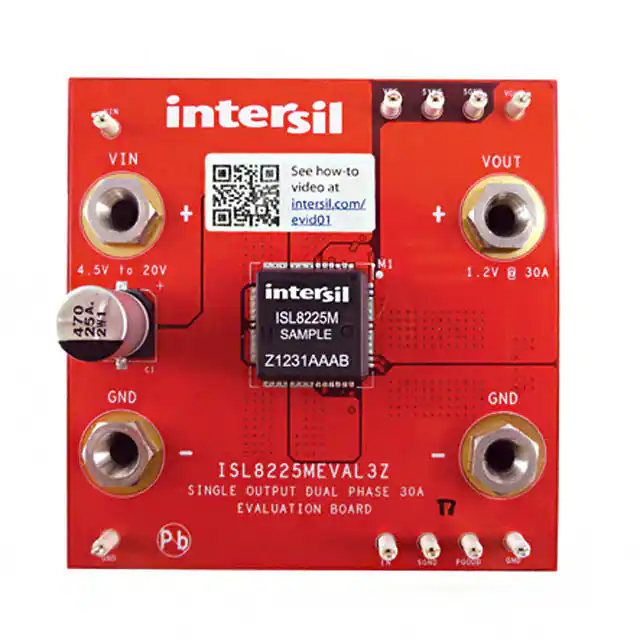

ISL8225MEVAL3ZEVAL BOARD FOR ISL8225M |
2,168 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 6V | 30A | 4.5V ~ 20V | Buck | - | Board(s) | ISL8225M |
|
|
ISL8216MEVAL1ZEVAL BOARD FOR ISL8216M |
1,693 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | - | - | - | - | 9V ~ 75V | Buck | - | Board(s) | ISL8216M |
|
|
ZL9006MEVAL1ZEVAL BOARD FOR ZL9006M |
2,979 |
|
Datasheet | Zilker Labs™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.6V | 6A | 4.5V ~ 13.5V | Buck | - | Board(s) | ZL9006M |
