DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FEBFAN6863W_CP452V1EVAL BOARD FOR FAN6863W |
2,444 |
|
- |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 40 W | 19V | 2.1A | 90 ~ 264 VAC | Flyback | - | Board(s) | FAN6863W |
|
|
FEBFSL206MRN-H428V1-GEVBEVAL BOARD FOR FSL206MR |
2,682 |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 90 ~ 265 VAC | Flyback | - | Board(s) | FSL206MR |
|
NCV8843MNR2GEVBEVAL BOARD FOR NCV8843 |
2,232 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 16V | Buck | 340kHz | Board(s) | NCV8843 |
|

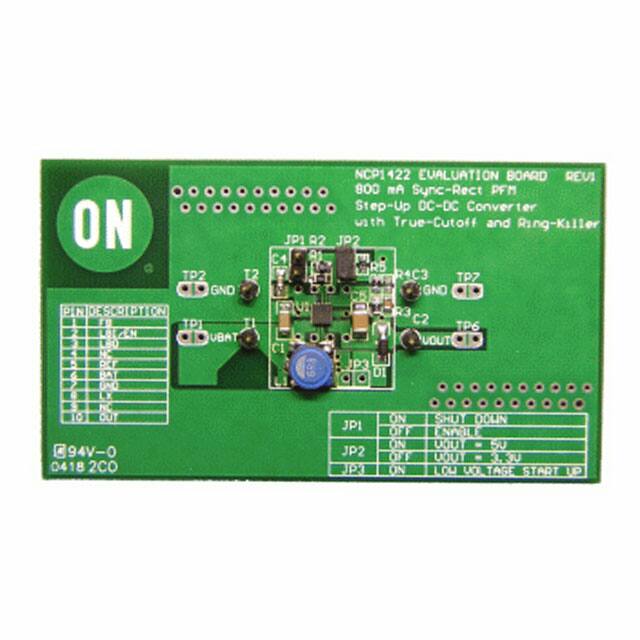

NCP1422GEVBEVAL BOARD FOR NCP1422 |
2,896 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.5V ~ 5V | - | 1V ~ 5V | Boost | - | Board(s) | NCP1422 |
|

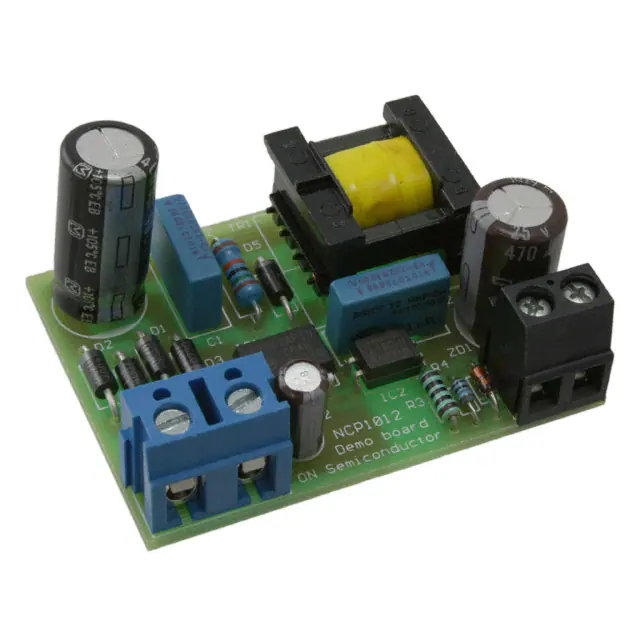

NCP1012GEVBEVAL BOARD FOR NCP1012 |
2,364 |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 12V | - | 230VAC | Flyback | 100kHz | Board(s) | NCP1012 |
|
|
FEBFSB127H_T001EVAL BOARD FOR FSB127H |
4,248 |
|
- |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 16 W | 5V | 3.2A | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | FSB127H |
|

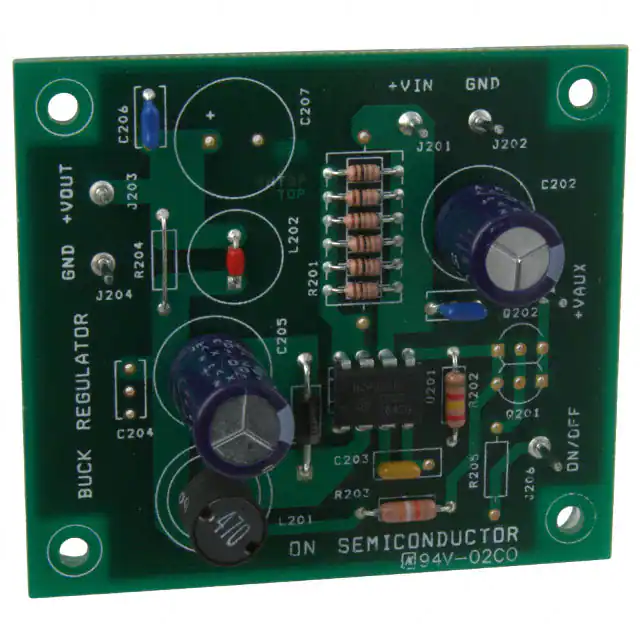

NCP3063DIPBCKEVBEVAL BOARD FOR NCP3063 |
4,051 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 7V ~ 15V | Buck | 250kHz | Board(s) | NCP3063 |
|

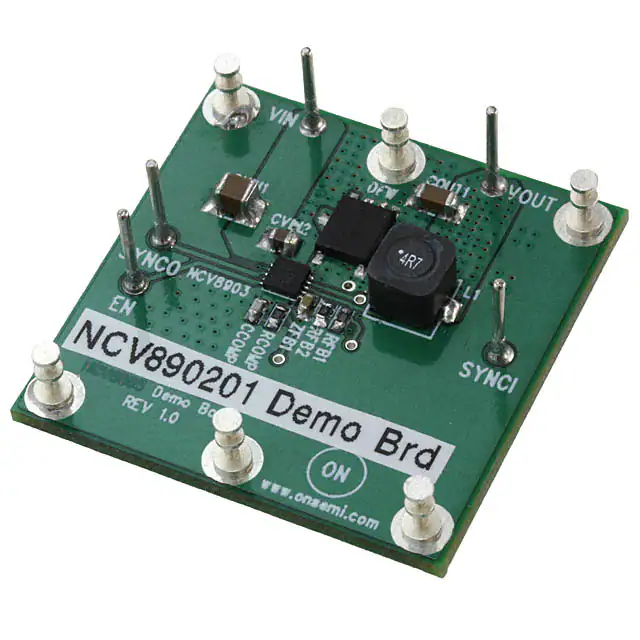

NV890201MWTXGEVBEVAL BOARD FOR NV890201 |
3,593 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 36V | Buck | 2MHz | Board(s) | NV890201 |
|

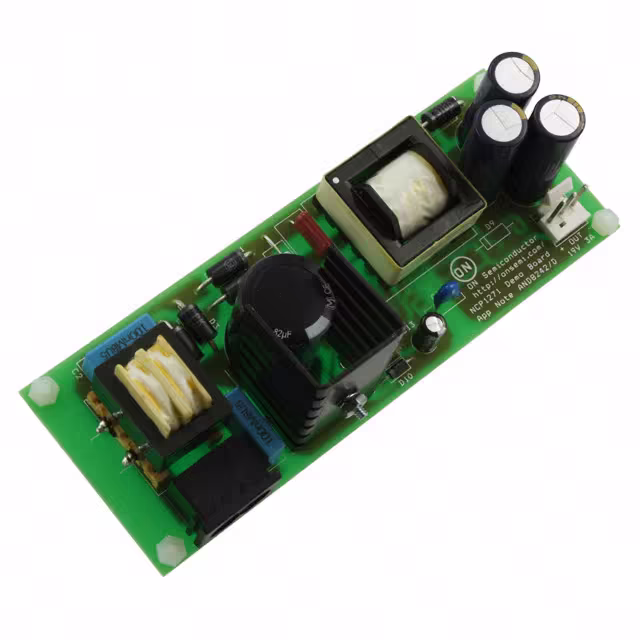

NCP1271ADAPGEVBEVAL BOARD FOR NCP1271 |
2,612 |
|
Datasheet | Soft-Skip™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 3A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | NCP1271 |
|
|
NCP3163BUCKEVBEVAL BOARD FOR NCP3163 |
1,685 |
|
- |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2.5A | 8V ~ 24V | Buck | - | Board(s) | NCP3163 |
