DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVM82504-BH-02AEVAL BOARD FOR MPM82504 |
4,889 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.5V ~ 3.3V | 25A, 25A, 25A, 25A | 4V ~ 16V | Buck | 1MHz | Board(s) | MPM82504 |
|
|
EVM3695-100-BH-00AEVAL BOARD FOR MPM3695100 |
2,590 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 100A | 3.3V ~ 16V | Buck | 600kHz | Board(s) | MPM3695-100 |
|
|
EV3383-F-00AEVAL BOARD FOR MP3383 |
3,746 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 80V | 400mA | 6V ~ 33V | Buck | - | Board(s) | MP3383 |
|
|
EVKT-MPQ4214EVAL BOARD FOR MPQ4214AEC1 |
2,110 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.5V ~ 36V | - | 6V ~ 40V | Buck-Boost | - | Board(s), Cable(s), Accessories | MPQ4214-AEC1 |
|
|
EVM3695-100-BH-00BEVAL BOARD FOR MPM3695100 |
3,838 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 200A | 3.3V ~ 16V | Buck | 600kHz | Board(s) | MPM3695-100 |
|
|
EVM3695-100-BH-00CEVAL BOARD FOR MPM3695100 |
2,889 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 400A | 3.3V ~ 16V | Buck | 600kHz | Board(s) | MPM3695-100 |
|
|
EVM3695-100-BH-00DEVAL BOARD FOR MPM3695100 |
1,279 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600A | 4V ~ 16V | Buck | 600kHz | Board(s) | MPM3695-100 |
|
|
EVM3695-100-BH-00EEVAL BOARD FOR MPM3695100 |
1,229 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 800A | 4V ~ 16V | Buck | 600kHz | Board(s) | MPM3695-100 |
|

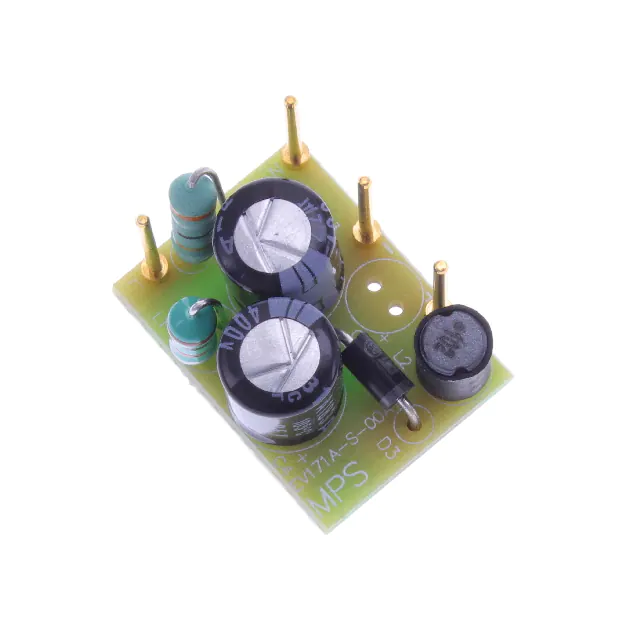

EV171A-S-00AEVAL BOARD FOR MP171A |
4,414 |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 2 W | 5V | 50mA | 85 ~ 265 VAC | Buck | - | Board(s) | MP171A |
|
|
EVQ2179-LE-00AEVAL BOARD FOR MPQ2179AEC1 |
2,142 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.5V ~ 5.5V | Buck | 2.4MHz | Board(s) | MPQ2179-AEC1 |
