DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

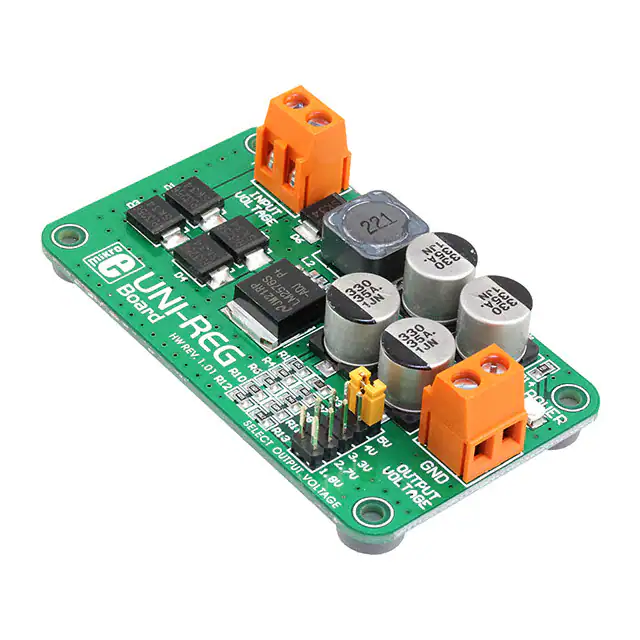

MIKROE-482EVAL BOARD FOR LM2576 |
4,637 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.7V, 3.3V, 4V, 5V or 12V | 3A | 7 ~ 23 VAC, 9V ~ 32V | Buck | - | Board(s) | LM2576 |
|

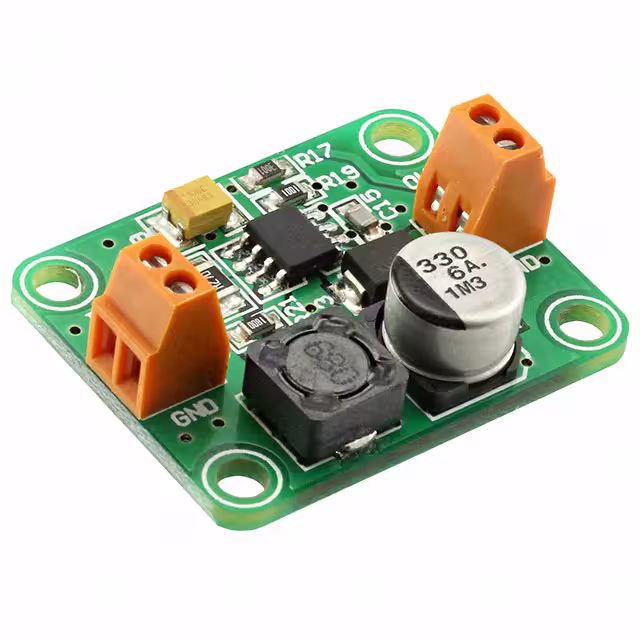

MIKROE-491EVAL BOARD FOR MC34063A |
3,003 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 250mA | 3.3V | Boost | - | Board(s) | MC34063A |
.jpg)
|

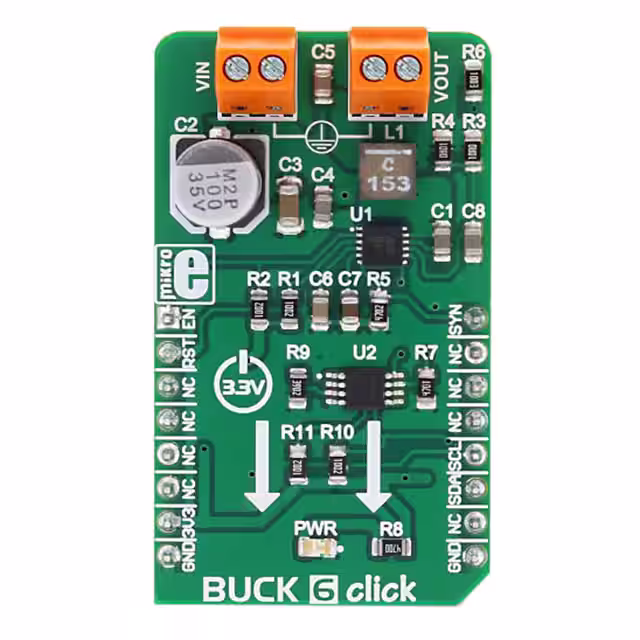

MIKROE-2957EVAL BOARD FOR MAX17572 |
1,565 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 20V | 1A | 5V ~ 30V | Buck | - | Board(s) | MAX17572 |
