DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

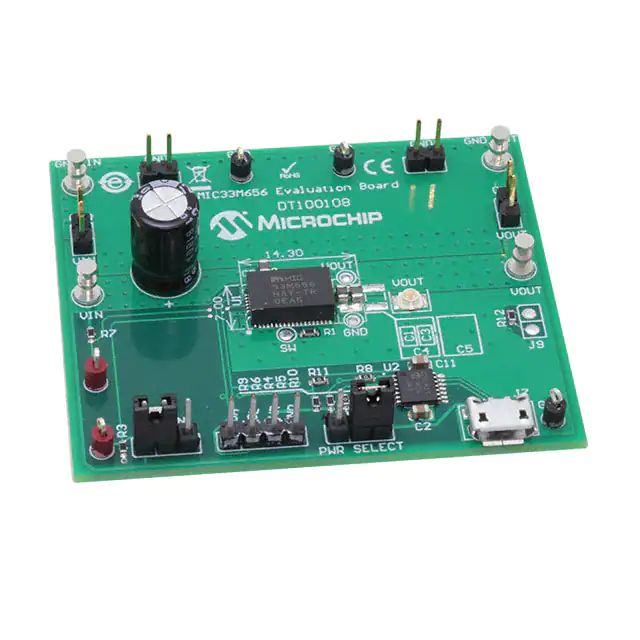

DT100108EVAL BOARD FOR MIC33M656 |
4,616 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 3.84V | 6A | 2.4V ~ 5.5V | Buck | 2.2MHz | Board(s) | MIC33M656 |
|

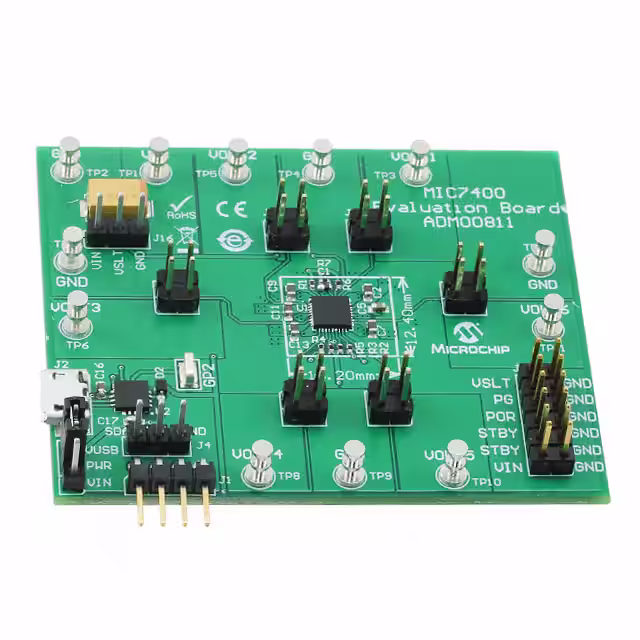

ADM00811EVAL BOARD FOR MIC74005 |
1,077 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 6 Non-Isolated Outputs | - | 1.05V, 1.1V, 1.25V, 1.8V, 1.8V or 12V | 3A, 1A, 800mA, 500mA, 500mA or 200mA | 2.4V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | MIC74005 |
|
ADM00856EVAL BOARD FOR MIC23156 |
3,938 |
|
Datasheet | HyperLight Load® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V ~ 2.4V | 1.5A | 2.7V ~ 5.5V | Buck | 3MHz | Board(s) | MIC23156 |
|

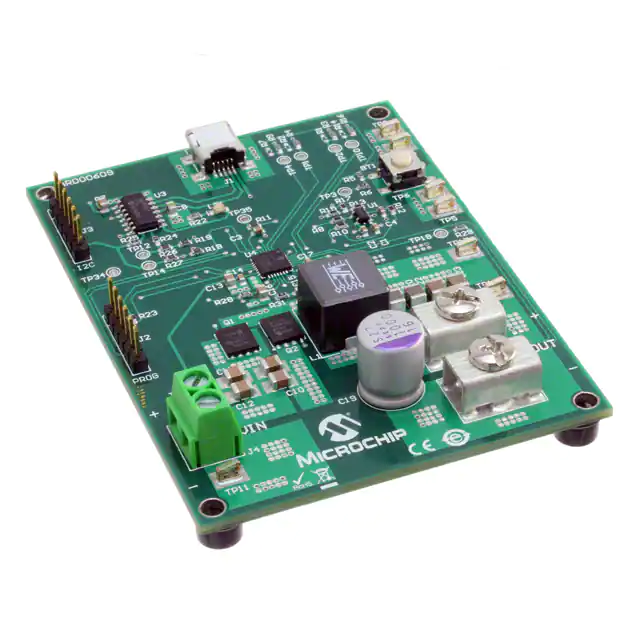

ARD00609EVAL BOARD FOR MCP19111 |
3,702 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 8V ~ 14V | Buck | 500kHz | Board(s) | MCP19111 |
|

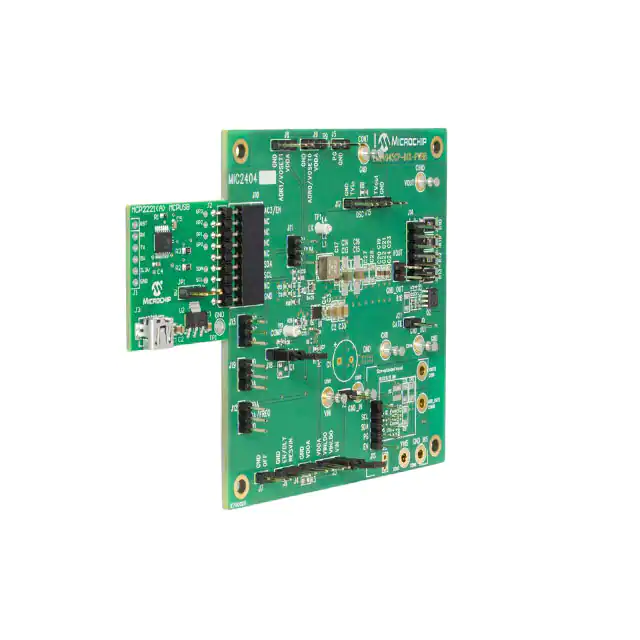

ADM00764EVAL BOARD FOR MIC2404X |
2,175 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.64V ~ 5.25V | 5A | 4.5V ~ 19V | Buck | - | Board(s), Cable(s) | MIC2404x |
|

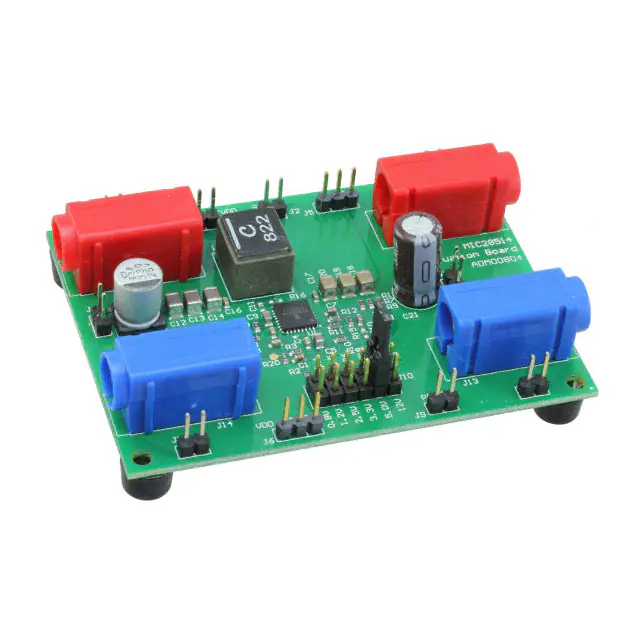

ADM00804EVAL BOARD FOR MIC28514 |
4,238 |
|
Datasheet | Hyper Speed Control® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 10V ~ 75V | Buck | 300kHz | Board(s) | MIC28514 |
|

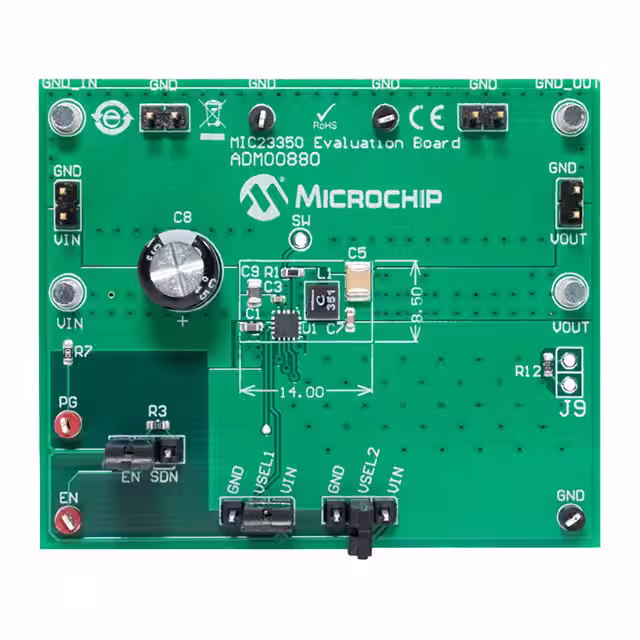

ADM00880EVAL BOARD FOR MIC23350 |
4,448 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.8V, 0.9V, 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 3A | 2.4V ~ 5.5V | Buck | - | Board(s) | MIC23350 |
|

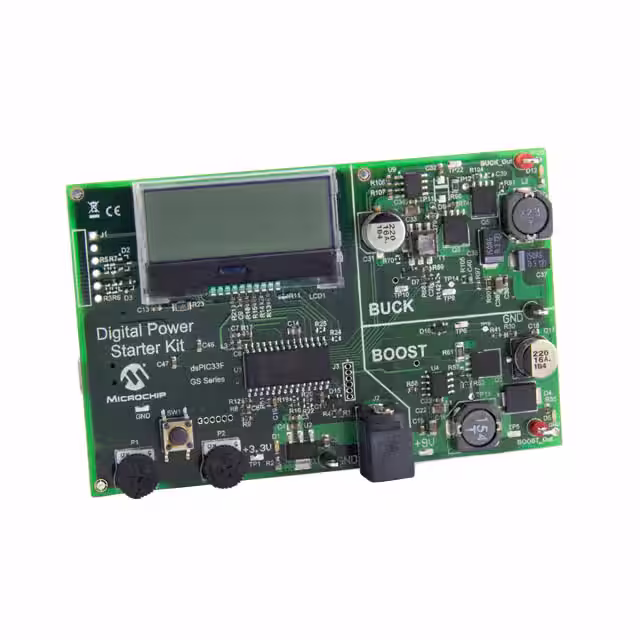

DM330017EVAL BOARD FOR DSPIC33FJ09GS302 |
1,822 |
|
Datasheet | MPLAB® | Bulk | Obsolete | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 3.3V, 15V | 1.5A, 400mA | 7V ~ 11V | Boost, Buck | 350kHz | Board(s), Cable(s), Power Supply | dsPIC33FJ09GS302 |
|

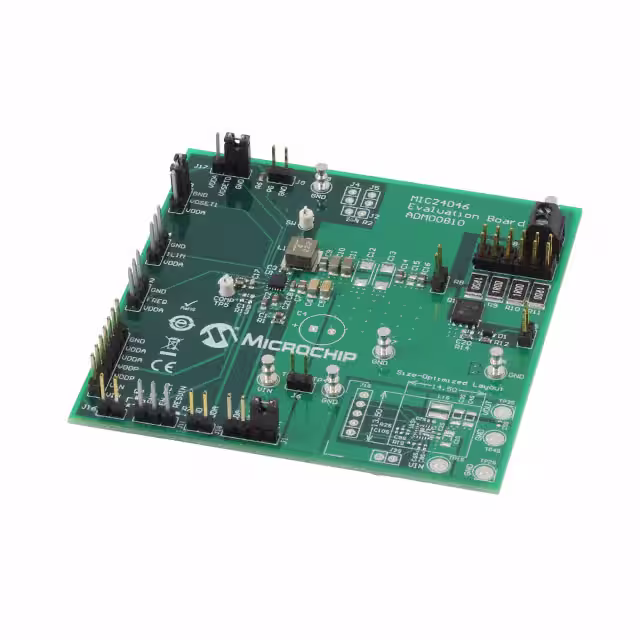

ADM00810EVAL BOARD FOR MIC24046 |
2,924 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V, 0.8V, 0.9V, 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 5A | 4.5V ~ 19V | Buck | - | Board(s) | MIC24046 |
|

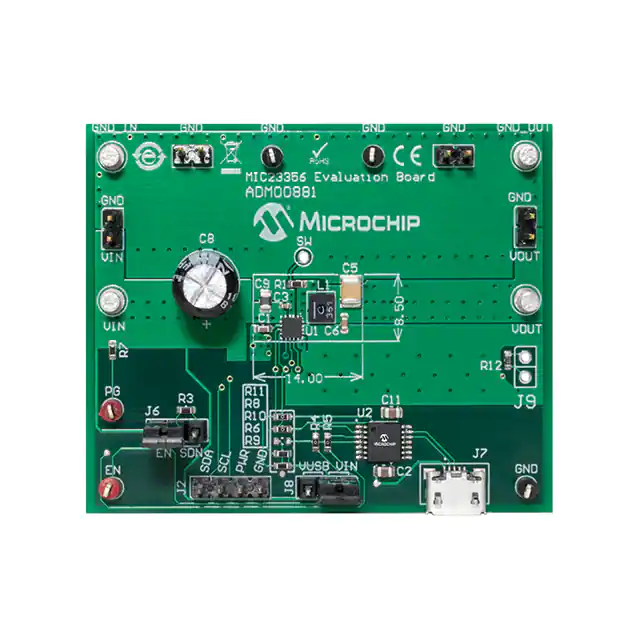

ADM00881EVAL BOARD FOR MIC23356 |
4,155 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.84V | 3A | 2.4V ~ 5.5V | Buck | - | Board(s) | MIC23356 |
