DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

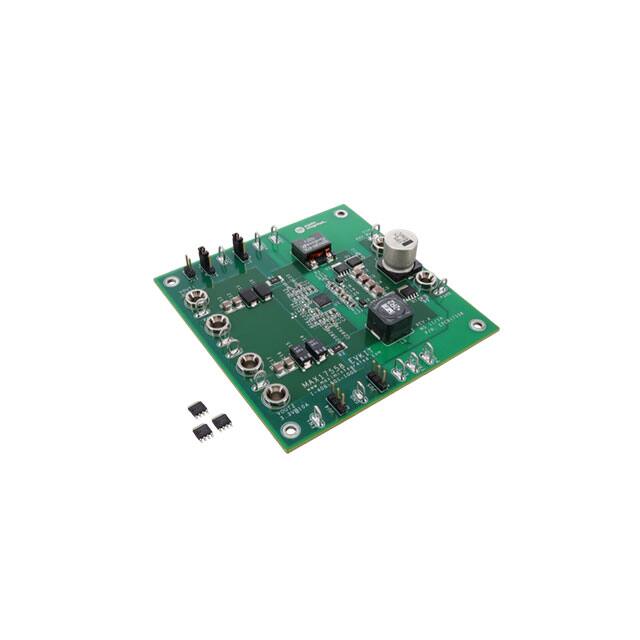

MAX17558EVKIT#EVAL BOARD FOR MAX17558 |
4,953 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 10A, 5A | 6V ~ 60V | Buck | 350kHz | Board(s) | MAX17558 |
|
MAX8654EVKIT+EVAL BOARD FOR MAX8654 |
3,150 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 8A | 4.5V ~ 14V | Buck | 500kHz | Board(s) | MAX8654 |
|
MAX20011CEVKIT#EVAL BOARD FOR MAX20011C |
4,316 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 1.275V | 16A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20011C |
|

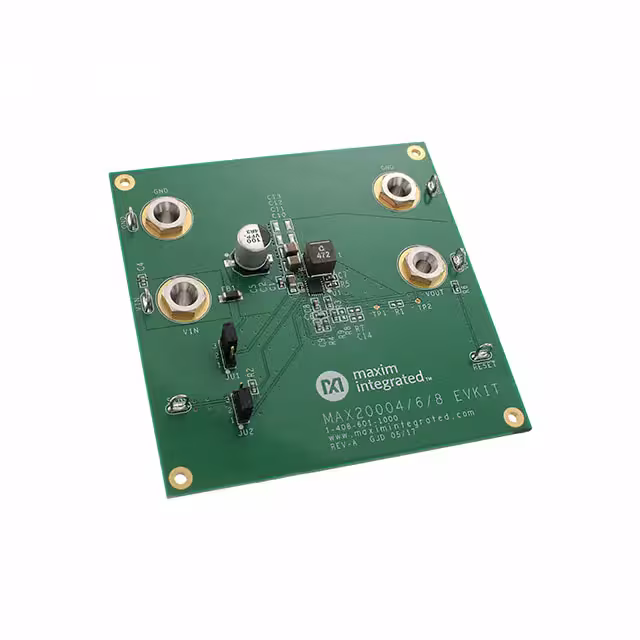

MAX20008EVKIT#EVAL BOARD FOR MAX20008 |
1,471 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 3.5V ~ 36V | Buck | 400kHz | Board(s) | MAX20008 |
|

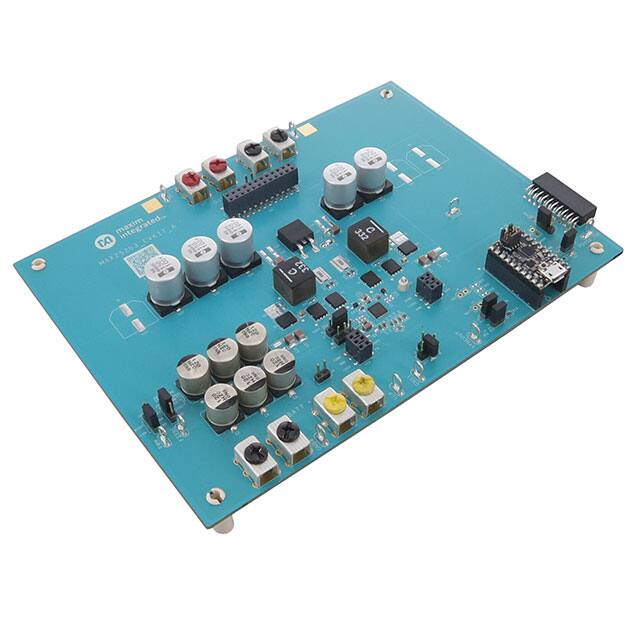

MAX25203EVKIT#EVAL BOARD FOR MAX25203 |
3,590 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 40V | 5.12A | 4.5V ~ 42V | Boost | - | Board(s) | MAX25203 |
|

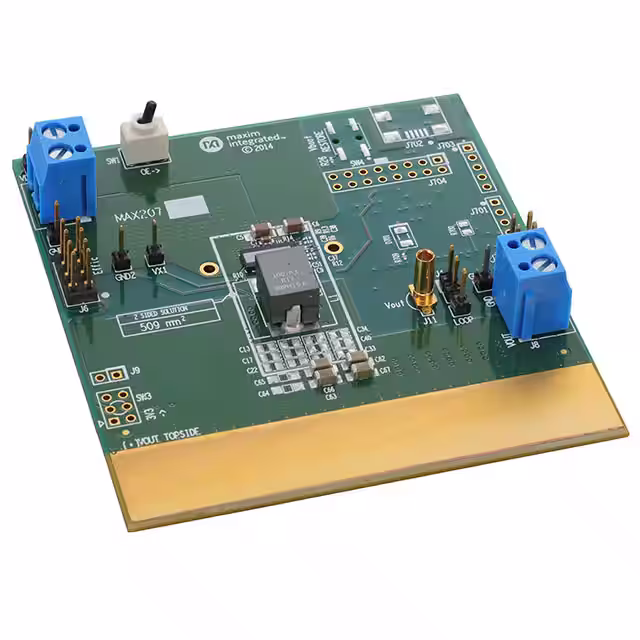

MAX20735EVKIT#EVAL BOARD FOR MAX20735 |
1,401 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 4.5V ~ 16V | Buck | 400kHz | Board(s) | MAX20735 |
|

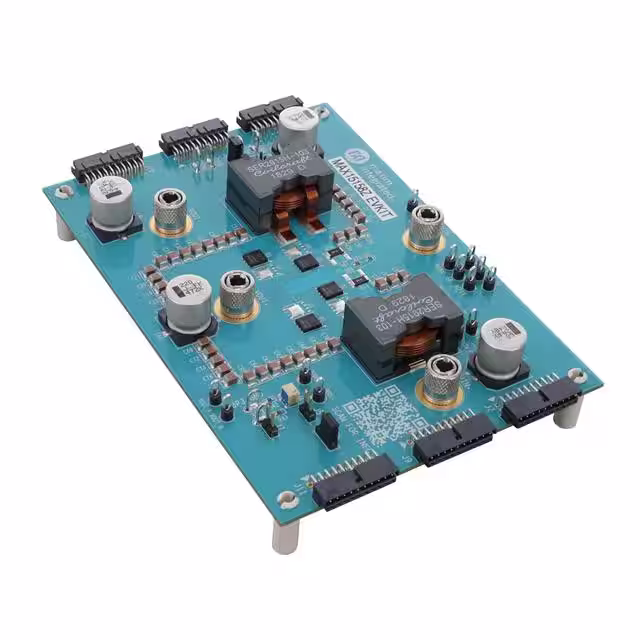

MAX15158ZEVKIT#EVAL BOARD FOR MAX15158Z |
3,402 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V ~ 60V | - | -8V ~ -60V | Boost, Inverting | - | Board(s) | MAX15158Z |
|

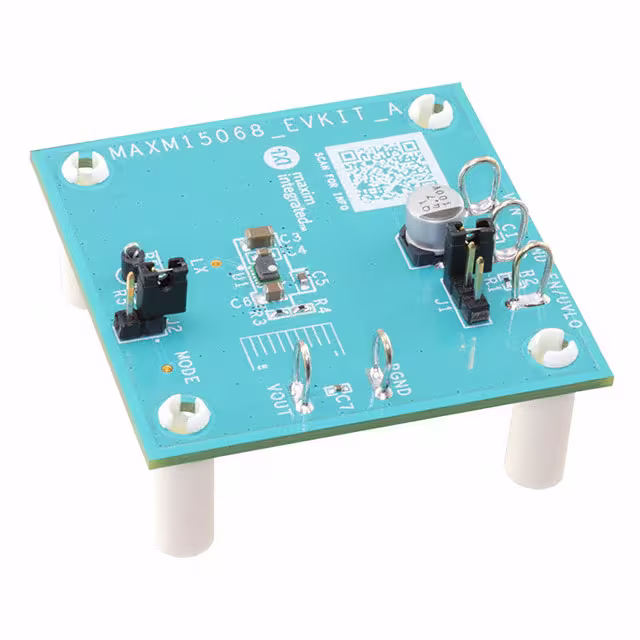

MAXM15068EVKIT#EVAL BOARD FOR MAXM15068 |
4,937 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 200mA | 15.5V ~ 60V | Buck | 550kHz | Board(s) | MAXM15068 |
|

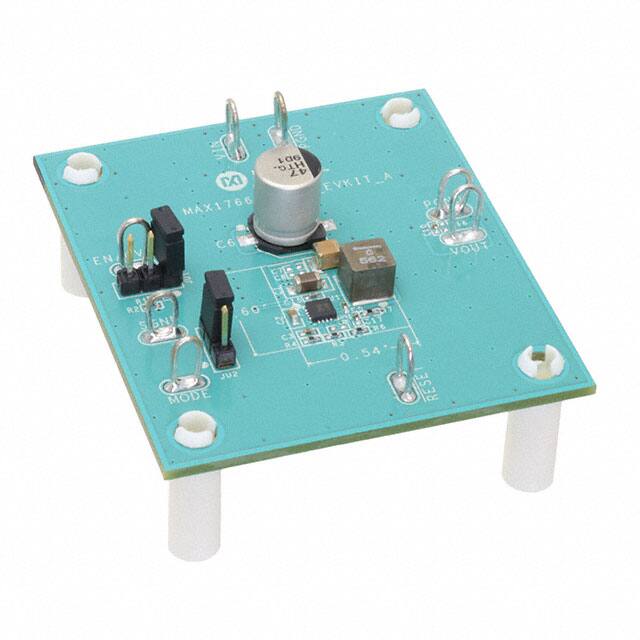

MAX17662BEVKITA#EVAL BOARD FOR MAX17662 |
4,122 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 36V | Buck | 500kHz | Board(s) | MAX17662 |
|
MAXM17623EVKIT#EVAL BOARD FOR MAXM17623 |
1,891 |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 1A | 2.9V ~ 5.5V | Buck | 2MHz | Board(s) | MAXM17623 |
