Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2130EVAL BOARD FOR PAM8302A |
668 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 2.5W x 1 @ 4Ohm | 2V ~ 5.5V | PAM8302A | Board(s) |
|
3006EVAL BOARD FOR MAX98357A |
362 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 3.2W x 1 @ 4Ohm | 2.5V ~ 5.5V | MAX98357A | Board(s) |
|
|
987EVAL BOARD FOR MAX98306 |
138 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 3.7W x 2 @ 3Ohm | 2.7V ~ 5.5V | MAX98306 | Board(s) |
|
|
1752EVAL BOARD FOR MAX9744 |
1,040 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 20W x 2 @ 4Ohm | 5V ~ 12V | MAX9744 | Board(s) |
|

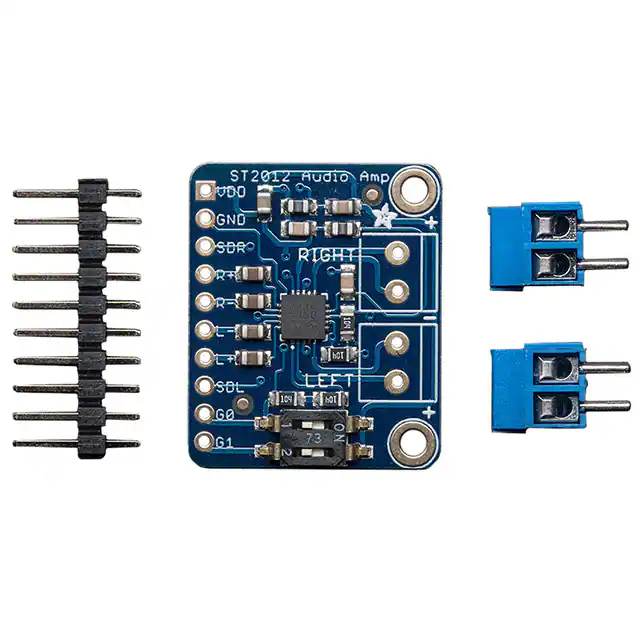

1552EVAL BOARD FOR TS2012 |
3,455 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 2.8W x 2 @ 4Ohm | 2.5V ~ 5.5V | TS2012 | Board(s) |
|

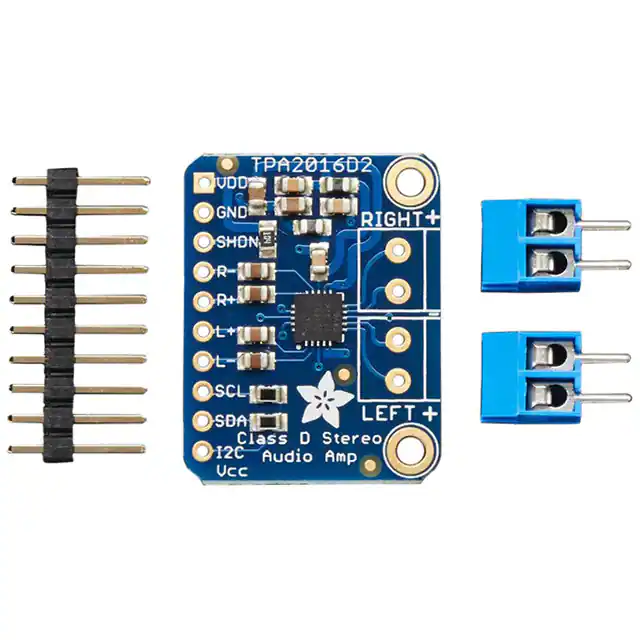

1712EVAL BOARD FOR TPA2016D2 |
3,824 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 2.8W x 2 @ 4Ohm | 2.5V ~ 5.5V | TPA2016D2 | Board(s) |
