Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

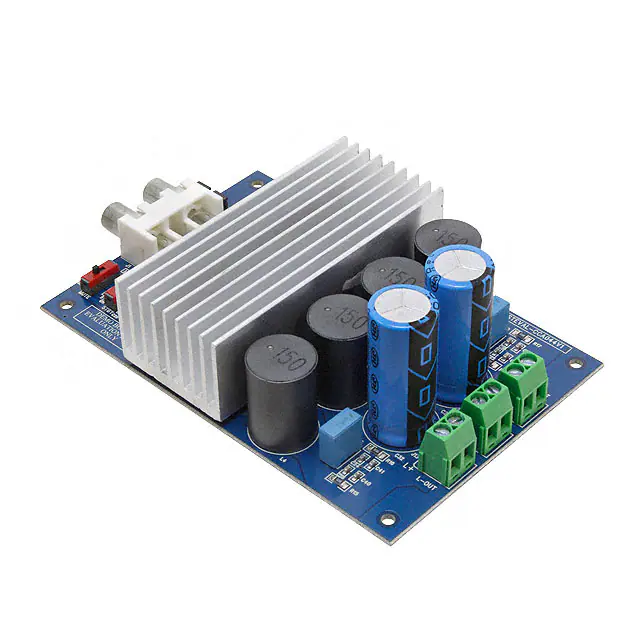

STEVAL-CCA044V1EVAL BOARD FOR TDA7498E |
3,869 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 220W x 1 @ 4Ohm; 160W x 2 @ 4Ohm | 14V ~ 36V | TDA7498E | Board(s) |
|

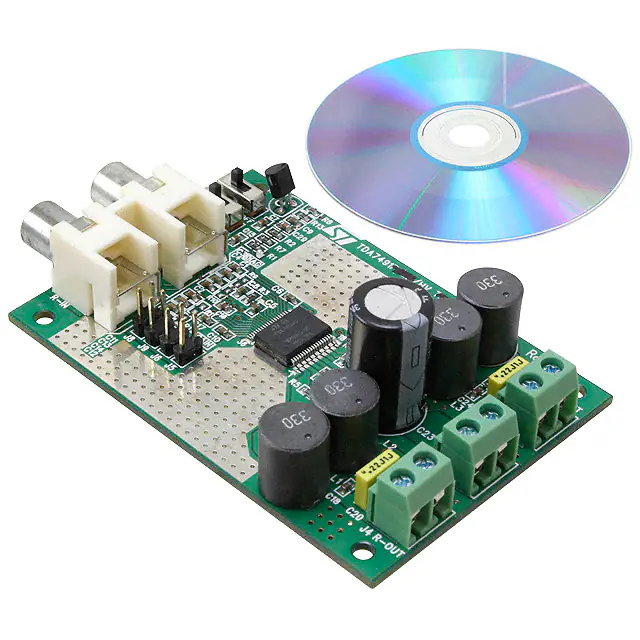

STEVAL-CCA042V1EVAL BOARD FOR TDA7491HV |
2,913 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 20W x 2 @ 8Ohm | 5V ~ 18V | TDA7491HV | Board(s) |
|
AEK-AUD-D903V1EVAL BOARD FOR FDA903D |
3,260 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 45W x 1 @ 2Ohm | 3.3V ~ 18V | FDA903D | Board(s) |
|

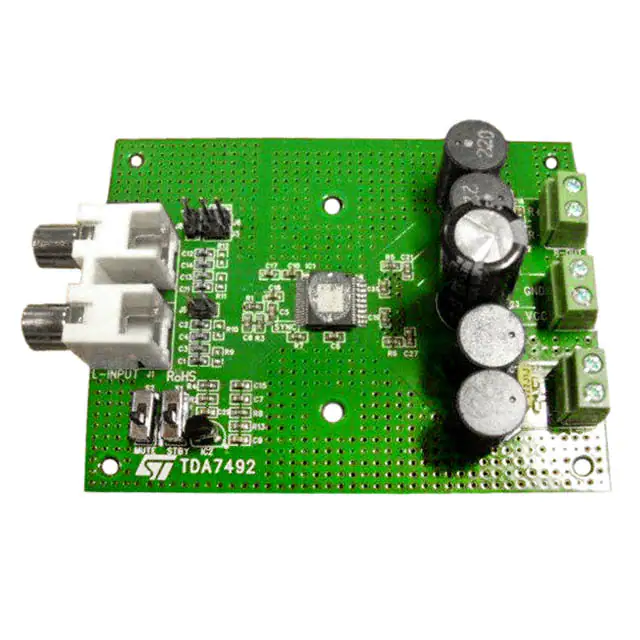

STEVAL-CCA027V1EVAL BOARD FOR TDA7492 |
1,102 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 50W x 2 @ 6Ohm | 8V ~ 26V | TDA7492 | Board(s) |
|
AEKD-STEREOAVASEVAL BOARD FOR FDA903D |
2,532 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | - | - | FDA903D | Board(s) |
|

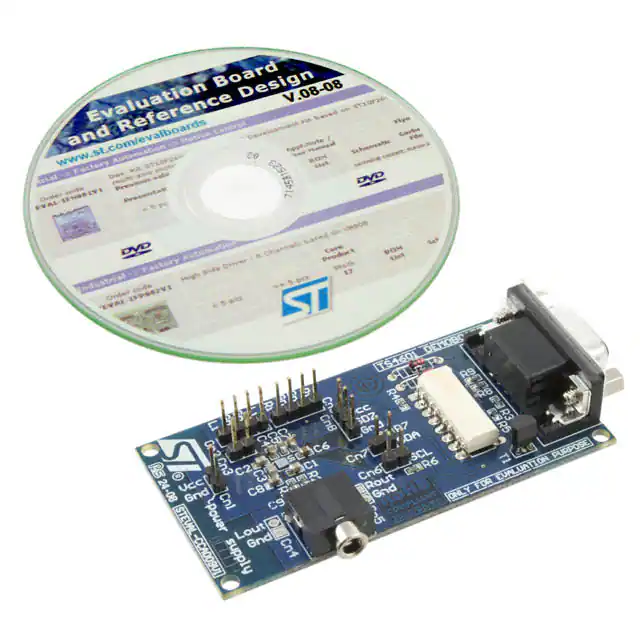

STEVAL-CCA009V1EVAL BOARD FOR TS4601 |
1,183 |
|
Datasheet | - | Box | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 10mW x 2 @ 16Ohm | 2.9V ~ 5.5V | TS4601 | Board(s) |
|

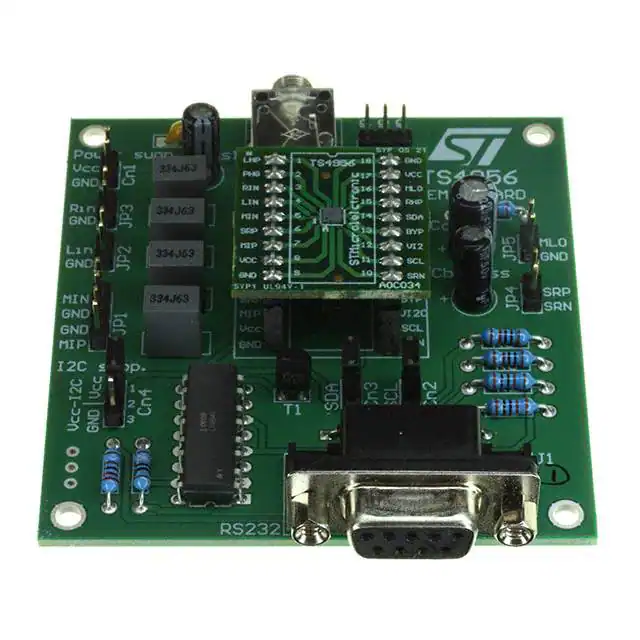

DEMOTS4956JEVAL BOARD FOR TS4956 |
2,314 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 1-Channel (Mono) with Mono and Stereo Headphones | 1W x 1 @ 8Ohm; 43mW x 2 @ 32Ohm | 2.7V ~ 5.5V | TS4956 | Board(s) |
|

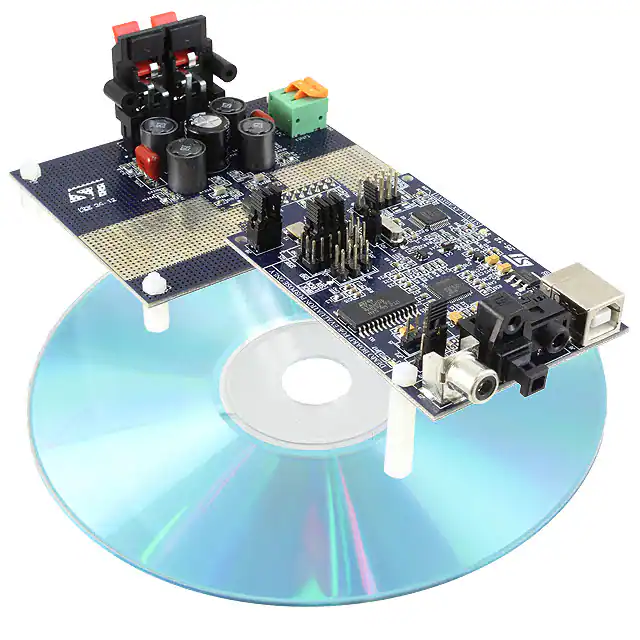

STEVAL-CCA030V1EVAL BOARD FOR STA350BW |
1,823 |
|
Datasheet | Sound Terminal™ | Bulk | Active | Class D | 2-Channel (Stereo) | 50W x 2 @ 6Ohm | 5V ~ 26V | STA350BW | Board(s) |
|
|
EVAL-FDA903S-SAEVAL BOARD FOR FDA903S |
1,326 |
|
Datasheet | - | Bulk | Active | Class D | - | 10W x 2 @ 4Ohm | 3.3V ~ 18V | FDA903S | Board(s) |
|
|
EVAL-TDA7803AFWEVAL BOARD FOR TDA7803A TDA7808 |
1,837 |
|
Datasheet | - | Bulk | Active | - | 4-Channel (Quad) | - | 6V ~ 18V | TDA7803A, TDA7808 | Partially Populated Board(s) |
